Asus ROG Strix X570-E

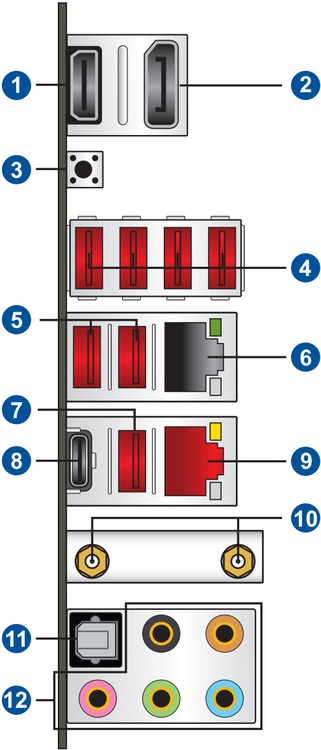

[ Rear Ports ][ Schematic ]

Asus ROG Strix X570-E Picture 56887Asus ROG Strix X570-E Picture 56888Asus ROG Strix X570-E Picture 56889Asus ROG Strix X570-E Picture 56892Asus ROG Strix X570-E Picture 56891
The Asus ROG Strix X570-E is an ATX motherboard for AMD's 3rd generation Ryzen processors. It offers a nice combination of features, I/O ports, and build quality.

In terms of connectivity, this board is well equipped with eight USB ports (one of which is a Type C), wired and wireless networking, and both digital and analog audio outputs. It also has HDMI and DisplayPort connections, but those only function when a CPU with integrated graphics is used - and we don't offer those in our systems here at Puget, as that feature is limited to the lowest-end processors in AMD's line.

Internally this motherboard has four DDR4 memory slots, supporting up to 128GB of RAM, and eight SATA III ports plus two M.2 slots for connecting drives. Five PCI-Express 4.0 slots of various sizes are available to handle a wide range of expansion cards.
Model: Asus ROG Strix X570-E Gaming

Socket  AM4
CPU Compatibility  AMD Ryzen
Form Factor  ATX
Chipset Manufacturer  AMD
Chipset  X570
Network Connectivity  Gigabit + 2.5G Networking + WiFi 6
Network Controller  Intel I211-AT + Realtek RTL8125 + Intel AX200
Audio Controller  Onboard Realtek ALC1220A HD Audio
Cooling System  Heatsink and Fan
Number of Fans  1
Color  Black
Memory Support
Type  DDR4 ECC
Maximum Speed  3200 MHz
Number of Slots  4
Maximum Size per Slot  32 GB
Maximum Amount Supported  128 GB
Onboard Video
Chipset Manufacturer  AMD
Maximum HDMI Resolution   4096x2160
Maximum DisplayPort Resolution   4096x2160
HDMI Version  2.0
DisplayPort  1
DisplayPort Version  1.2
Notes:  Onboard Graphics Requires Supported CPU
External Connections
USB 3.2 Gen 2 (USB 3.1)  7
USB 3.2 Type C  1
Audio Out  Surround Sound (7.1)
Audio In  Line-In/Microphone
S/PDIF  Optical
LAN (RJ45)  2
Wireless Antenna Port  Yes
Internal Connections
USB 2.0  2 (providing 4 ports)
USB 3.2 Gen 1 (USB 3.0)  1
USB 3.2 Gen 2 Type C  1
SATA III 6.0Gbps  8
M.2 Connector  2
M.2 Support  x2 42-110mm NVMe (Gen4) + SATA
TPM (module sold separately)  1
Compatible TPM  Asus TPM-SPI
SATA Controllers
SATA III 6.0Gbps Controller 1  AMD X570
Expansion Slots
Slot 1  Slot not available on this board
Slot 2  PCI Express 4.0 x16
Slot 3  Slot not available on this board
Slot 4  PCI Express 4.0 x1
Slot 5  PCI Express 4.0 x8 in a x16 size
Slot 6  PCI Express 4.0 x1
Slot 7  PCI Express 4.0 x4 in a x16 size
Additional Information
SLI Compatible  Yes
Crossfire Compatible  Yes
RAID Support  0,1,10
Bluetooth  Yes (5.0)
Dual GPU Slot Spacing  3-Slot
Integrated IO Shield  Yes
BIOS Features
EZ Flash  Yes
OC Profiles  Yes
Height  305 mm (12.0 in)
Width  244 mm (9.6 in)
Net Weight  1.24 kg (2.7 lbs)
