Asus Rampage III Formula X58

Motherboard

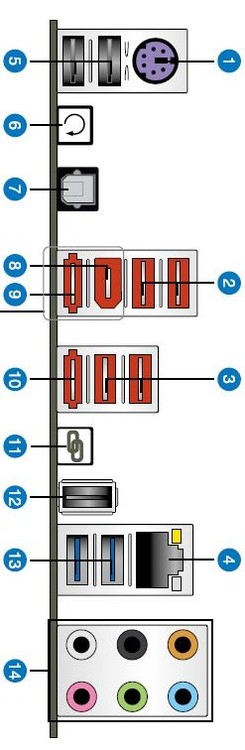

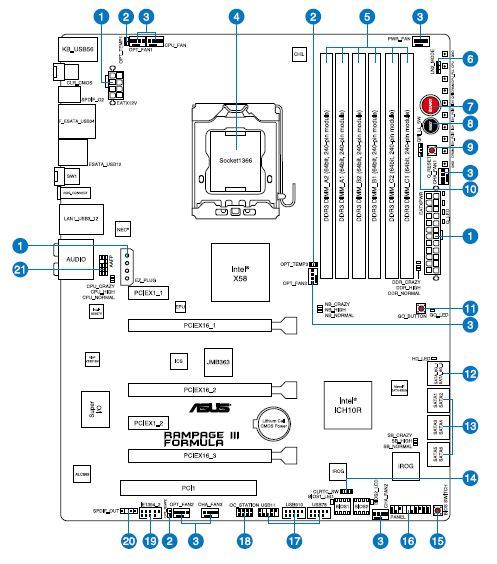

[ Rear Ports ][ Schematic ]

Asus Rampage III Formula X58 Picture 17267Asus Rampage III Formula X58 Picture 17268Asus Rampage III Formula X58 Picture 17269Asus Rampage III Formula X58 Picture 17270Asus Rampage III Formula X58 Picture 17274Asus Rampage III Formula X58 Picture 17273
Model: Asus Rampage III Formula

Specifications:
spacer
Socket  1366
CPU Compatibility  Core i7 Processor Extreme Edition/Core i7 Processor
Form Factor  ATX
Chipset Manufacturer  Intel
Chipset  X58 /ICH10R
Front Side Bus  QuickPath Interconnect
Network Connectivity  Gigabit Networking
Network Controller  Intel Ethernet 82567V
Audio Controller  SupremeFX X-Fi 2 Built-in 8-Channel High Definition Audio CODEC
Cooling System  Heatsink
Color  Black
Memory Support
Type  DDR3
Maximum Speed  1600 MHz
Number of Slots  6
Maximum Size per Slot  4 GB
Maximum Amount Supported  24 GB
External Connections
USB 2.0  7
USB 3.0  2
Firewire  1
PS/2 Keyboard  Yes
Audio Out  Surround Sound (7.1)
Audio In  Line-In/Microphone
S/PDIF  Optical
External SATA  2
LAN (RJ45)  1
Internal Connections
USB 2.0  2 (providing 4 ports)
SATA II 3.0Gbps  6
SATA III 6.0Gbps  2
Firewire  1
SATA Controllers
SATA II 3.0Gbps Controller 1  6 port - Intel ICH10R
SATA III 6.0Gbps Controller 1  2 port - Marvell 9128
Expansion Slots
Slot 1  PCI Express 2.0 x1
Slot 2  PCI Express 2.0 x16
Slot 4  PCI Express 2.0 x16
Slot 5  PCI Express 2.0 x1
Slot 6  PCI Express 2.0 x16
Slot 7  PCI
Additional Information
SLI Compatible  Yes
Crossfire Compatible  Yes
RAID Support  0,1,5,10
Dimensions
Height  305 mm (12.0 in)
Width  244 mm (9.6 in)

Rear push buttons (ROG Connect and Clear CMOS) are disabled by default on systems we build




with the Asus Rampage III Formula X58.
