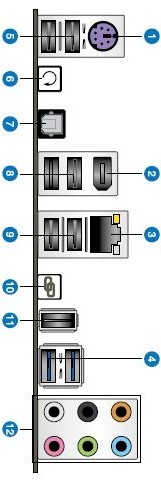

Asus Rampage III GENE Ports
PS/2 Keyboard Port: Connection for a PS/2 keyboard.
Firewire Port (IEEE 1394a): IEEE 1394a port, also known as Firewire A, is an older standard for high-speed device connectivity.
Gigabit LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 1000 Mbps.
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
Clear CMOS Switch: Resets CMOS / BIOS on the motherboard. WARNING: Do not press without consulting tech support!
Optical S/PDIF Out: Digital audio output port compatible with optical S/PDIF cables / devices (also called TOSLINK).
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
ROG Connect Switch: Switch for toggling Asus ROG Connect on and off.
ROG Connect Port: Port for Asus ROG Connect to remotely monitor / adjust the performance of your machine.
Audio Jacks: 3.5mm analog audio jacks for various input and output functions (see manual for more information).

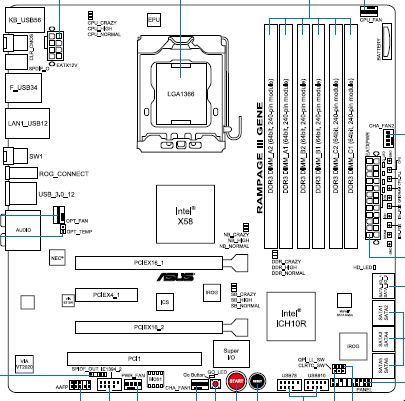

Asus Rampage III GENE Schematic

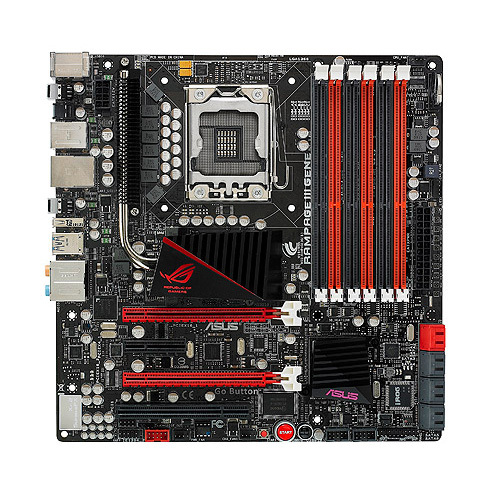

Model: Asus Rampage III GENE
Specifications
| Socket | 1366 |
| CPU Compatibility | Intel Core i7 |
| Form Factor | MicroATX |
| Chipset Manufacturer | Intel |
| Chipset | X58 /ICH10R |
| Front Side Bus | QuickPath Interconnect |
| Wired Network Connectivity | Gigabit Networking |
| Network Controller | Intel Gigabit LAN |
| Audio Controller | SupremeFX X-Fi 2 built-in 8-Channel High Definition Audio CODEC |
| Cooling System | Heat Pipes |
Memory Support | |
| Type | DDR3 |
| Maximum Speed | 1600 MHz |
| Number of Slots | 6 |
| Maximum Size per Slot | 4 GB |
| Maximum Amount Supported | 24 GB |
External Connections | |
| USB 2.0 | 6 |
| USB 3.2 Gen 1 (USB 3.0) | 2 |
| PS/2 Mouse | No |
| PS/2 Keyboard | Yes |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| S/PDIF | Optical |
| LAN (RJ45) | 1 |
| Wireless Antenna Port | No |
| Firewire | 1 |
Internal Connections | |
| USB 2.0 | 4 (providing 8 ports) |
| SATA II 3.0Gbps | 6 |
| SATA III 6.0Gbps | 2 |
| Firewire | 1 |
| IDE | 2 Devices |
SATA Controllers | |
| SATA II 3.0Gbps Controller 1 | 6 port - Intel ICH10R |
| SATA III 6.0Gbps Controller 1 | 2 port - Marvell 9128 |
Expansion Slots | |
| Slot 1 | PCI Express 2.0 x16 |
| Slot 2 | PCI Express x4 |
| Slot 3 | PCI Express 2.0 x16 |
| Slot 4 | PCI |
Additional Information | |
| SLI Compatible | Yes |
| Crossfire Compatible | Yes |
| RAID Support | 0/1/5/10 |
Dimensions | |
| Height | 244 mm (9.6 in) |
| Width | 244 mm (9.6 in) |
