Asus TUF B560M-PLUS WIFI

Motherboard

[ Rear Ports ][ Schematic ]

Asus TUF B560M-PLUS WIFI Picture 68072Asus TUF B560M-PLUS WIFI Picture 68073Asus TUF B560M-PLUS WIFI Picture 68074Asus TUF B560M-PLUS WIFI Picture 68075Asus TUF B560M-PLUS WIFI Picture 68077Asus TUF B560M-PLUS WIFI Picture 68076

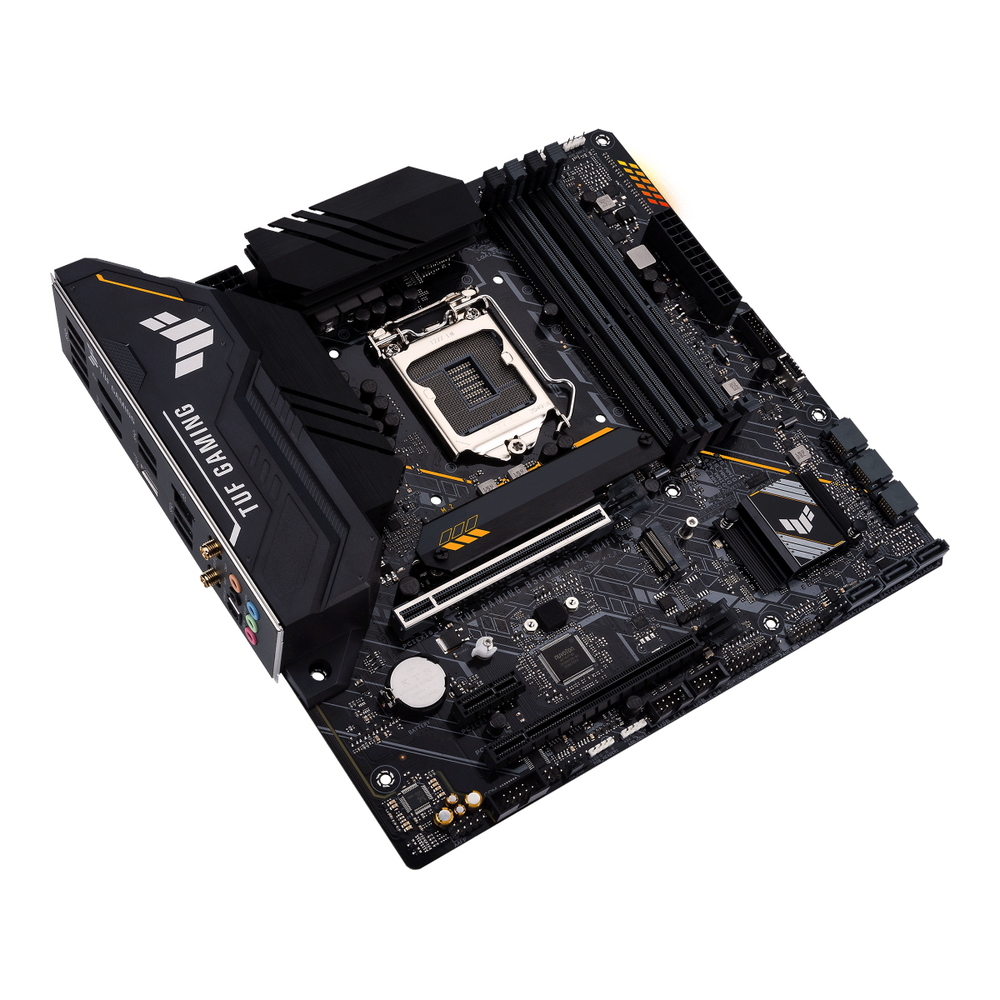

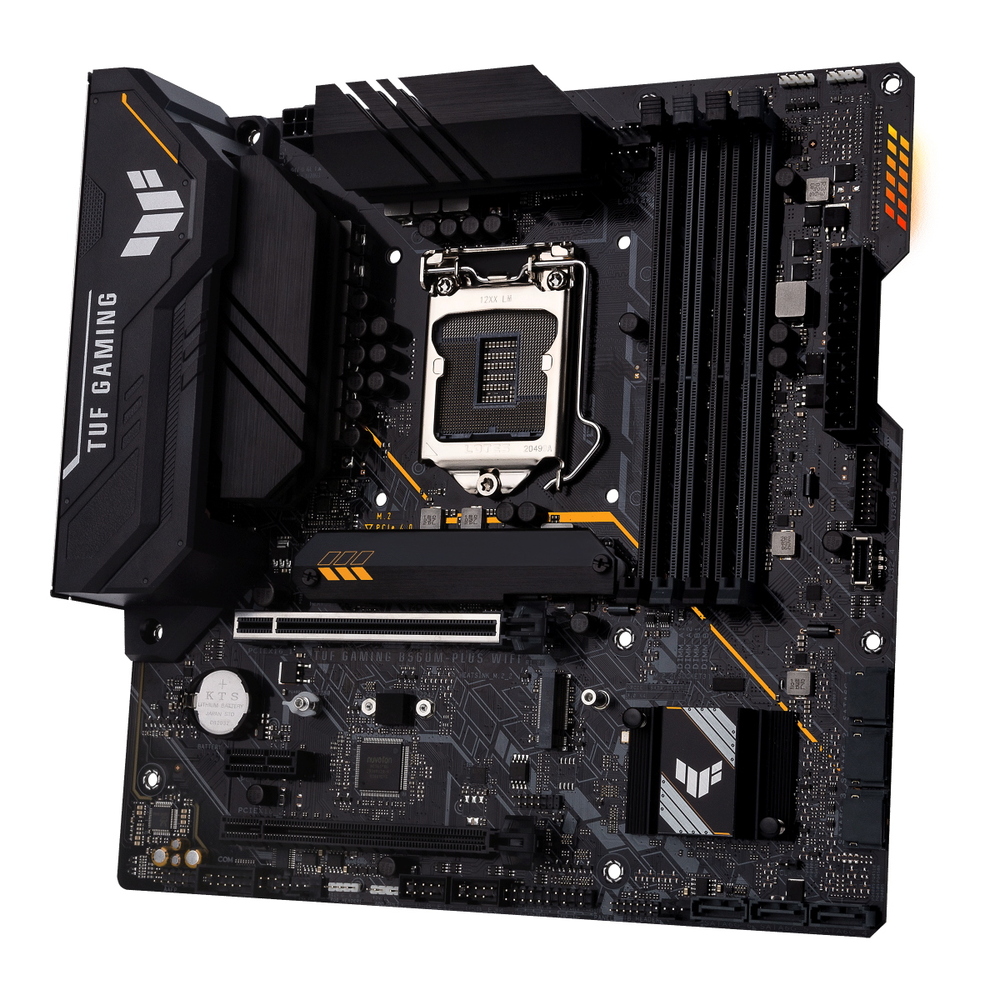

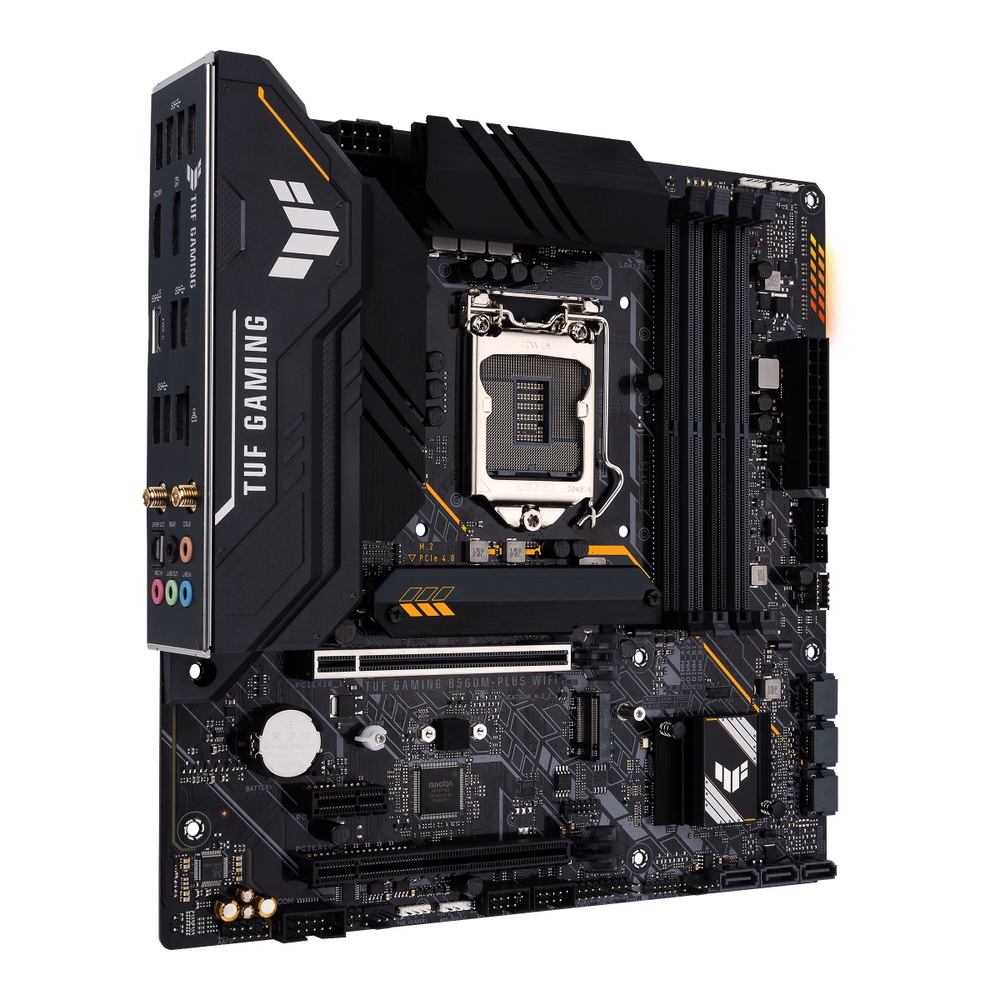

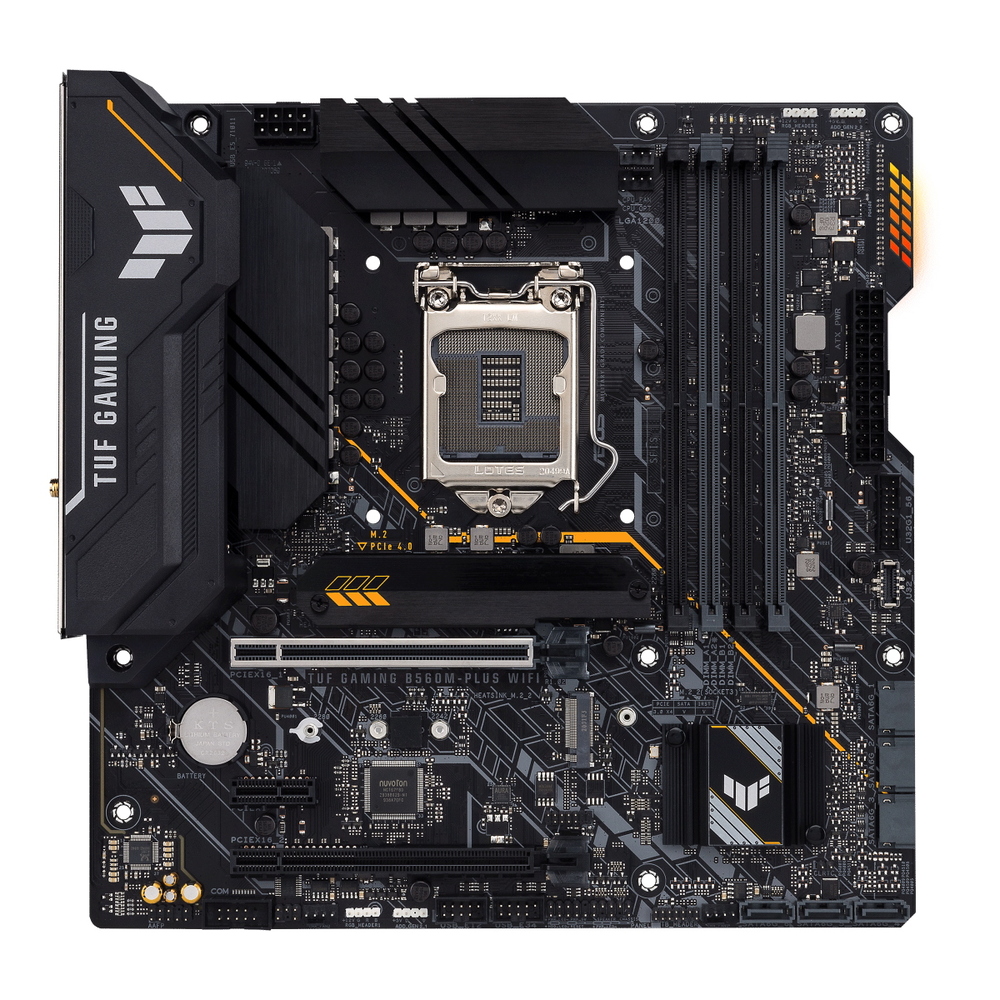

The ASUS B560M-PLUS WIFI is a Micro ATX motherboard for 10th and 11th Gen Intel Core processors. It sacrifices some of the expansion capacity that a larger motherboard can offer, but still supports up to 128GB of DDR4 memory and multiple SATA and M.2 drives.

The primary PCI-Express x16 slot will fit a standard video card, and operates in PCIe 4.0 mode as long as a 11th Gen chip is installed (or PCIe 3.0 if a 10th Gen chip is used). Additional x1 and x4 slots are also available for other expansion cards.

For external connectivity, it also has both analog and digital audio outputs, 2.5Gb Ethernet, WiFi 6, Bluetooth, nine USB ports of varying speeds (including one Type C), and HDMI & DisplayPort outputs for CPUs with integrated graphics.
Model: Asus TUF GAMING B560M-PLUS WIFI

Specifications:
spacer
Socket  1200
CPU Compatibility  Rocket Lake
Form Factor  MicroATX
Chipset Manufacturer  Intel
Chipset  B560
Front Side Bus  DMI 3.0
Network Connectivity  2.5G Networking + WiFi 6
Network Controller  Realtek RTL8125 + Intel AX201
Audio Controller  Onboard Realtek ALC897 HD Audio
Cooling System  Heatsink
Color  Black
Memory Support
Type  DDR4
Maximum Speed  3200 MHz
Number of Slots  4
Maximum Size per Slot  32 GB
Maximum Amount Supported  128 GB
Onboard Video
Chipset Manufacturer  Intel
Processor Type  CPU Dependant
Maximum Resolution  4096x2304
Maximum HDMI Resolution   4096x2160
Maximum DisplayPort Resolution   4096x2304
HDMI  1
HDMI Version  2.0
DisplayPort  1
DisplayPort Version  1.4
Notes:  Onboard Graphics Requires Supported CPU

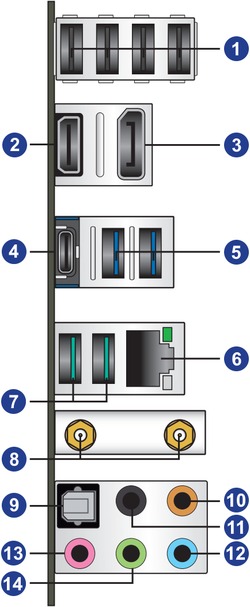

External Connections
USB 2.0  4
USB 3.2 Gen 1 (USB 3.0)  2
USB 3.2 Gen 2 (USB 3.1)  2
USB 3.2 Type C  1
Audio Out  Surround Sound (7.1)
Audio In  Line-In/Microphone
S/PDIF  Optical
LAN (RJ45)  1
Wireless Antenna Port  Yes

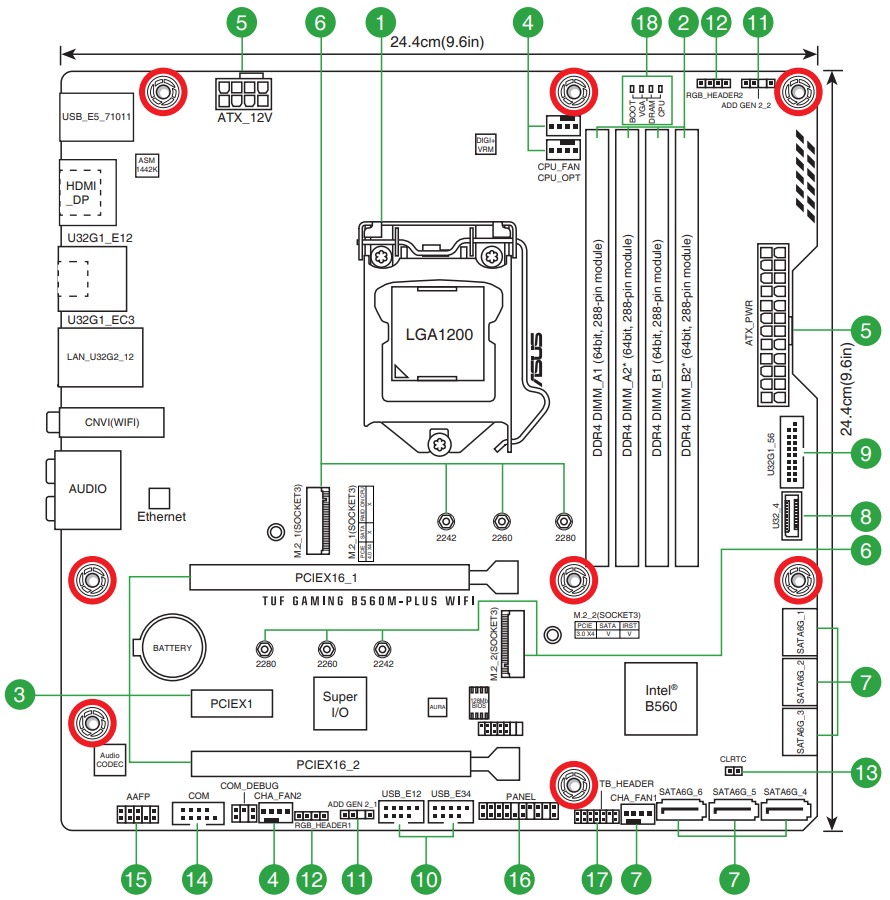

Internal Connections
USB 2.0  2 (providing 4 ports)
USB 3.2 Gen 1 (USB 3.0)  1
USB 3.2 Type C  1
SATA III 6.0Gbps  6
M.2 Connector  2
M.2 Support  1x 42-80mm NVMe (Gen4), 1x 42-80mm NVMe (Gen3) & SATA
Serial (Com)  1
SATA Controllers
SATA III 6.0Gbps Controller 1  B560
Expansion Slots
Slot 1  PCI Express 4.0 x16
Slot 2  Slot not available on this board
Slot 3  PCI Express 3.0 x1
Slot 4  PCI Express 3.0 x4 in a x16 size
Additional Information
SLI Compatible  No
Crossfire Compatible  Yes
RAID Support  0/1/10/5
Bluetooth  Yes (5.0)
Integrated IO Shield  Yes
BIOS Features
UEFI BIOS  Yes
EZ Flash  Yes
OC Profiles  Yes
Dimensions
Height  224 mm (8.8 in)
Width  224 mm (8.8 in)
Net Weight  0.89 kg (2.0 lbs)

First M.2 slot is disabled with 10th Gen processor.
