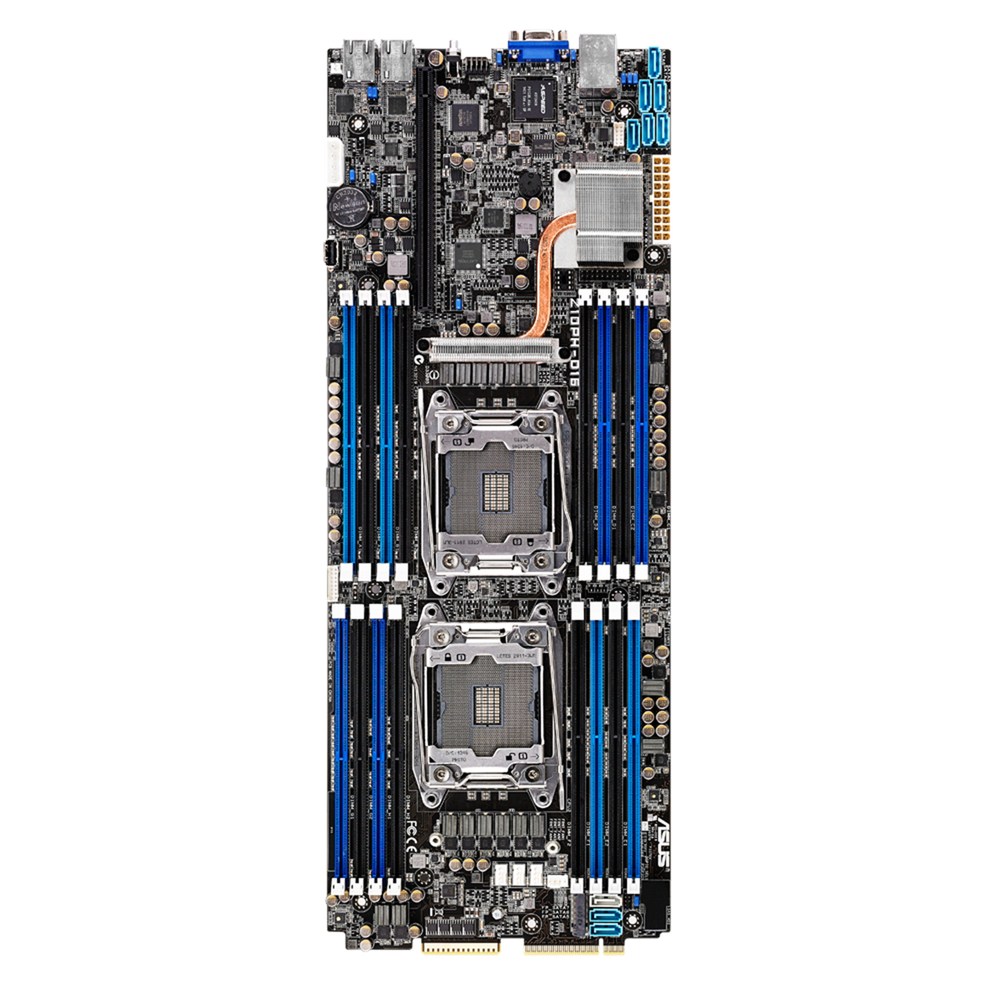

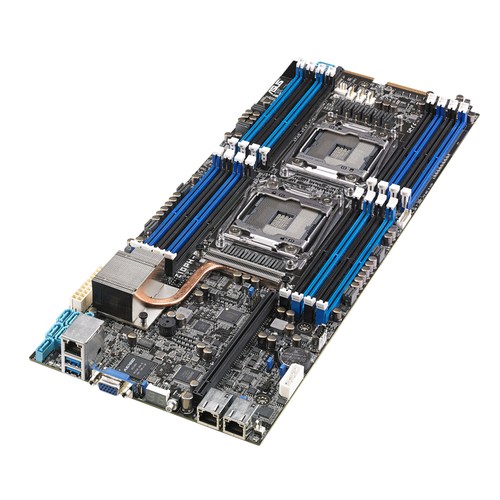

The Asus Z10PH-D16 is a powerful server motherboard for specialized compact computing situations. It can house two Xeon E5-2600 V3 processors, along with a massive amount of RAM, all in a non-standard 'half SSI' form factor. It includes USB 2.0, dual gigabit Ethernet, and basic onboard graphics - but no standard expansion slots (one PCI-E slot is available, but requires a riser). It also comes bundled with an Asus IKVM module for remote management.
Because of the odd size and layout of this board, we have adapted the Cooler Master HAF Stacker 915R chassis to accommodate it. This requires extensive modification of that case, so if you have any questions about such a setup please contact our sales staff for assistance. No other cases in our line can fit it.
Because of the odd size and layout of this board, we have adapted the Cooler Master HAF Stacker 915R chassis to accommodate it. This requires extensive modification of that case, so if you have any questions about such a setup please contact our sales staff for assistance. No other cases in our line can fit it.
Note: As this is a server/workstation motherboard, some desktop features are not present: specifically, standby/sleep functionality is not guaranteed.
Model: Asus Z10PH-D16
- PCI-E slot must be used with a riser/extender as the placement of the slot on the motherboard does not allow for cards to be mounted directly.
- Includes an Asus ASMB8-iKVM remote management module.
- RAID mode can be switched between either Intel RSTe (RAID 0,1,5,10) or LSI MegaRAID (RAID 0,1,10)
