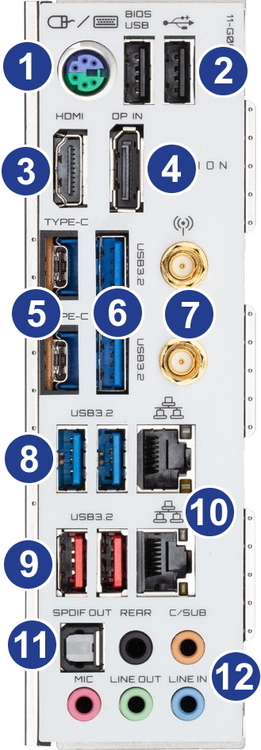

Gigabyte B550 Vision D Ports
PS/2 Hybrid Port: Connection supporting either a PS/2 mouse or PS/2 keyboard.
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
HDMI 2.1: Outputs digital video and audio at up to 8K resolution (7680x4320) at 60hz.
Displayport Input for USB C: Connect a DisplayPort cable from your video card to passthrough to the USB-C / TB port.
Thunderbolt 3 Port: Thunderbolt 3 high speed data port. Also supports USB 3.1 or DisplayPort video output with adapter.
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
WiFi Antenna Connector: Connection for WiFi antenna (included). Antenna must be connected to get proper reception.
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
USB 3.2 Gen 2 (USB 3.1) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 and older devices (10 Gb/s).
Gigabit LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 1000 Mbps.
Optical S/PDIF Out: Digital audio output port compatible with optical S/PDIF cables / devices (also called TOSLINK).
Audio Jacks: 3.5mm analog audio jacks for various input and output functions (see manual for more information).

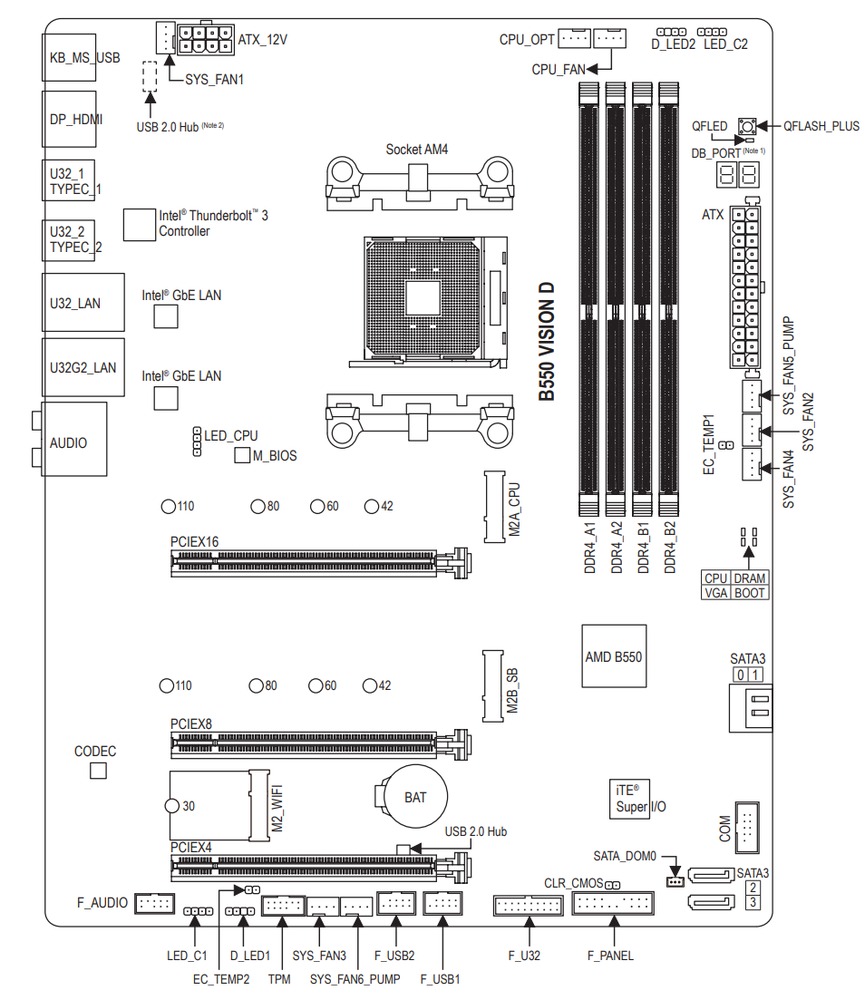

Gigabyte B550 Vision D Schematic
In terms of connectivity, this board is very well equipped with eight traditional USB ports, two Thunderbolt 3 ports (a rarity on AMD systems), dual gigabit Ethernet ports, WiFi 6, Bluetooth 5, and both digital and analog audio outputs. A DisplayPort input is present which feeds into the Thunderbolt ports, since they can carry video along with data. It also has an HDMI output, but that only functions when a CPU with integrated graphics is used - and we don't offer those in our systems here at Puget, as that feature is limited to the lowest-end processors in AMD's line.
Internally this motherboard has four DDR4 memory slots, supporting up to 128GB of RAM, and four SATA III ports plus two M.2 slots for connecting drives. Three PCI-Express slots of various speeds are available to handle a mix of expansion cards.
Note: This board has one Gen4 M.2 slot and one Gen3 M.2 slot. Putting a Gen4 M.2 in the Gen3 slot will result in Gen3 speed. Also populating both M.2 slots will disable the bottom PCIe slot. Please talk to a consultant if you have additional questions.

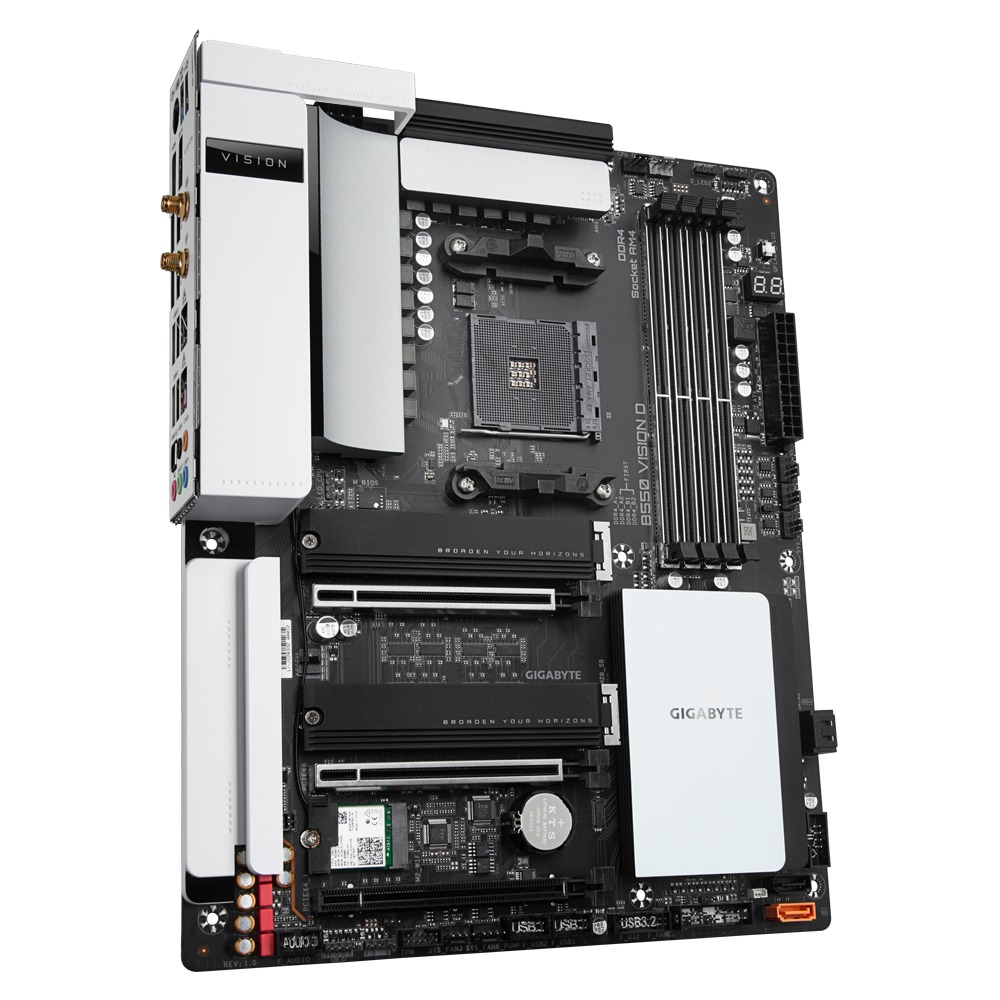

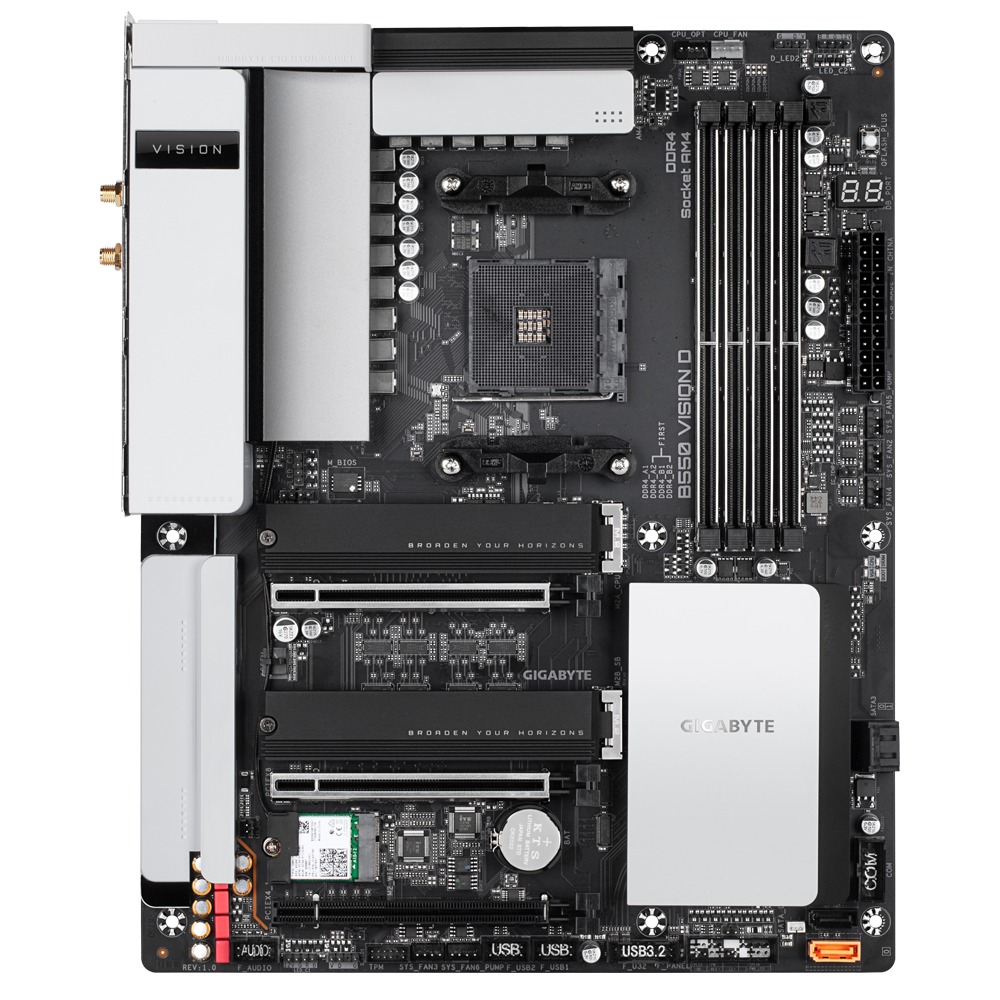

Model: Gigabyte B550 Vision D
Specifications
| Socket | AM4 |
| CPU Compatibility | AMD Ryzen |
| Form Factor | ATX |
| Chipset Manufacturer | AMD |
| Chipset | B550 |
| Network Connectivity | Dual Gigabit Networking + WiFi 6 |
| Network Controller | 2x Intel I211, Intel AX200 |
| Audio Controller | Onboard Realtek ALC S1200-VB HD Audio |
| Cooling System | Heatsink |
| Color | Black |
Memory Support | |
| Type | DDR4 ECC |
| Maximum Speed | 3200 MHz |
| Number of Slots | 4 |
| Maximum Size per Slot | 32 GB |
| Maximum Amount Supported | 128 GB |
Onboard Video | |
| Chipset Manufacturer | AMD |
| Maximum HDMI Resolution | 4096x2160 |
| HDMI | 1 |
| HDMI Version | 2.1 |
| Notes: | DisplayPort IN for Thunderbolt Video, Onboard Graphics Requires Supported CPU |
External Connections | |
| USB 2.0 | 2 |
| USB 3.2 Gen 1 (USB 3.0) | 4 |
| USB 3.2 Gen 2 (USB 3.1) | 2 |
| PS/2 Keyboard | Yes |
| PS/2 Mouse | Yes |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| S/PDIF | Optical |
| LAN (RJ45) | 2 |
| Wireless Antenna Port | Yes |
| Thunderbolt Ports | 2 |
| Thunderbolt Version | 3 |
Internal Connections | |
| USB 2.0 | 2 (providing 4 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| SATA III 6.0Gbps | 4 |
| M.2 Connector | 2 |
| M.2 Support | x1 42-110mm NVMe (Gen4) + SATA, x1 42-110mm NVMe (Gen3) + SATA |
| Serial (Com) | 1 |
| TPM (module sold separately) | 1 |
| Compatible TPM | Gigabyte GC-TPM2.0_S 2.0 |
SATA Controllers | |
| SATA III 6.0Gbps Controller 1 | AMD B550 |
Expansion Slots | |
| Slot 1 | PCI Express 4.0 x16 |
| Slot 2 | Slot not available on this board |
| Slot 3 | Slot not available on this board |
| Slot 4 | PCI Express 4.0 x8 in a x16 size |
| Slot 5 | Slot not available on this board |
| Slot 6 | PCI Express 3.0 x4 in a x16 size |
Additional Information | |
| SLI Compatible | No |
| Crossfire Compatible | Yes |
| RAID Support | 0,1,10 |
| Bluetooth | Yes (5.0) |
| Integrated IO Shield | Yes |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | Yes |
Dimensions | |
| Height | 305 mm (12.0 in) |
| Width | 244 mm (9.6 in) |
| Net Weight | 1.24 kg (2.7 lbs) |
The bottom M.2 slot and bottom PCIe slot share resources. Only one of these two interface may be used at a time.
One M.2 is Gen4. The other M.2 is Gen3
