Gigabyte B550 Vision D-P

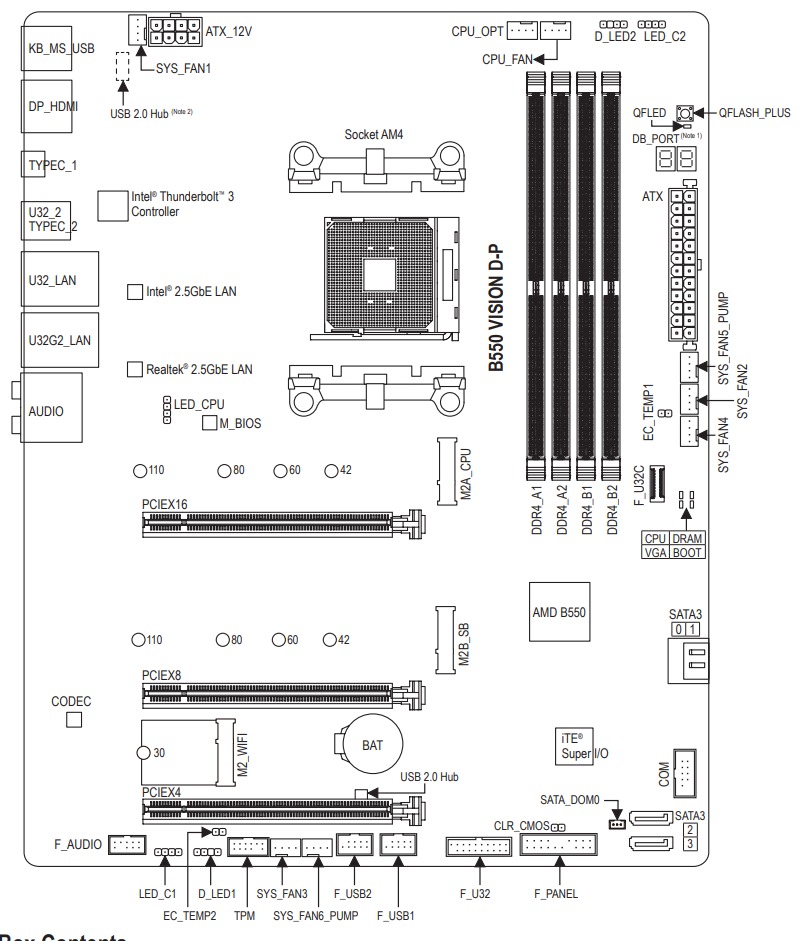

[ Rear Ports ][ Schematic ]

Gigabyte B550 Vision D-P Picture 68156Gigabyte B550 Vision D-P Picture 68157Gigabyte B550 Vision D-P Picture 68158Gigabyte B550 Vision D-P Picture 68155Gigabyte B550 Vision D-P Picture 68154

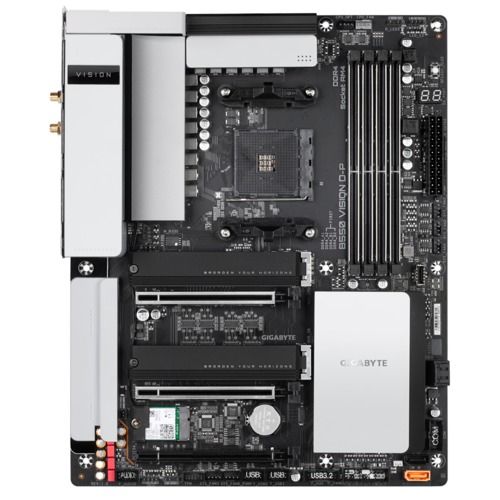

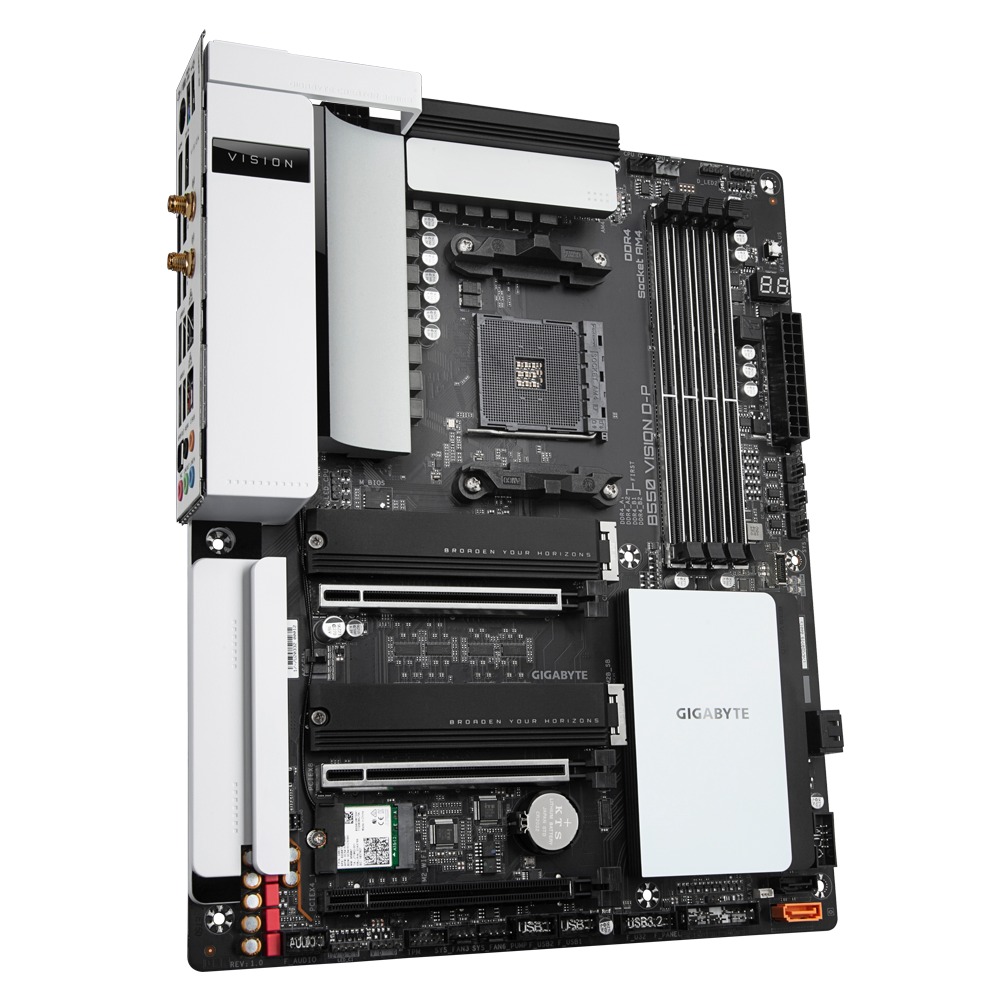

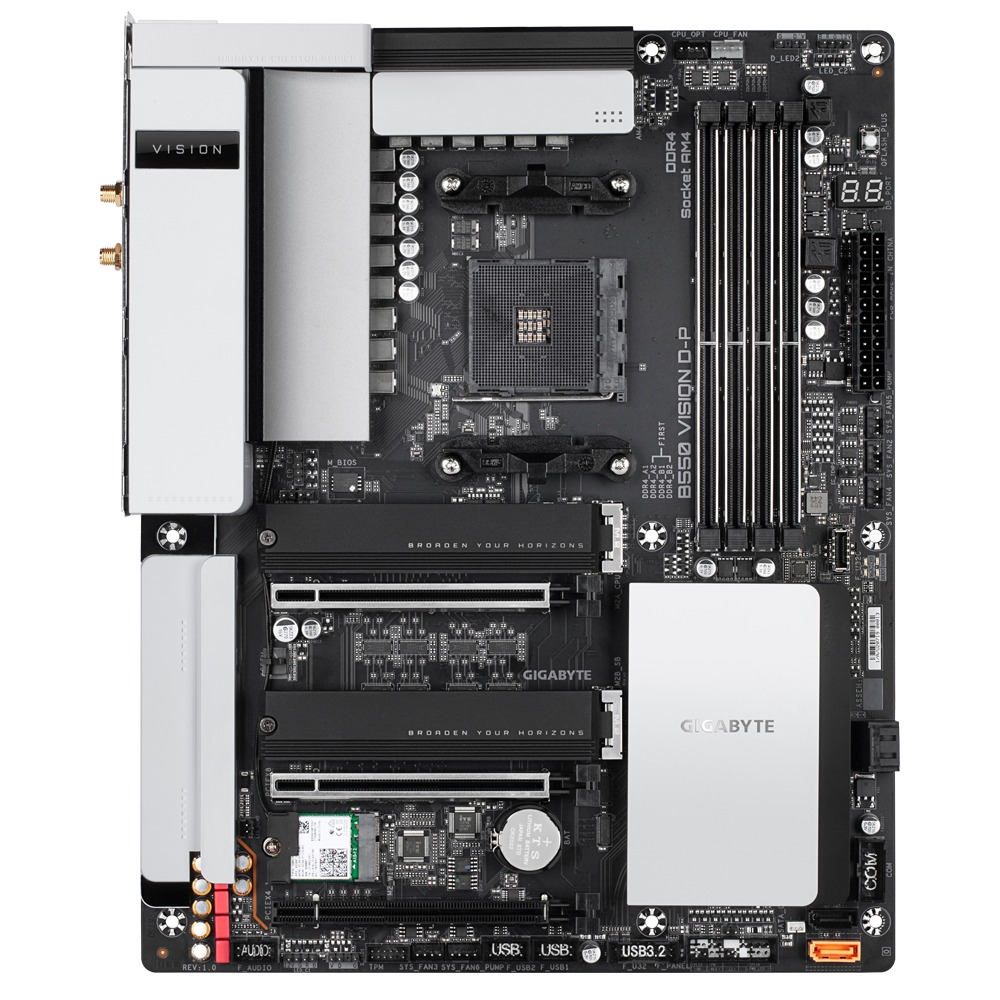

The Gigabyte B550 Vision D-P is an ATX motherboard for AMD's Ryzen processors. It is built with workstation usage in mind, and offers a solid combination of I/O ports and build quality.

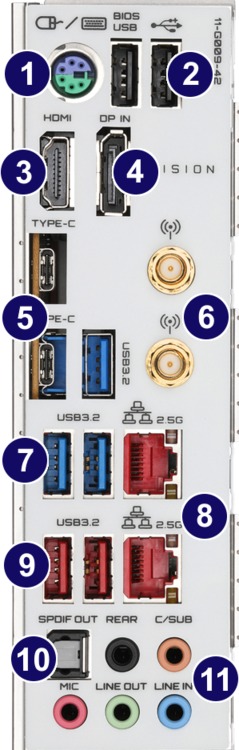

In terms of connectivity, this board is very well equipped with seven traditional USB ports, two Thunderbolt 3 ports (a rarity on AMD systems), Two 2.5G Ethernet ports, WiFi 6, Bluetooth 5, and both digital and analog audio outputs. A DisplayPort input is present which feeds into the Thunderbolt ports, since they can carry video along with data. It also has an HDMI output, but that only functions when a CPU with integrated graphics is used - and we don't offer those in our systems here at Puget, as that feature is limited to the lowest-end processors in AMD's line.

Internally this motherboard has four DDR4 memory slots, supporting up to 128GB of RAM, and four SATA III ports plus two M.2 slots for connecting drives. Three PCI-Express slots of various speeds are available to handle a mix of expansion cards.

Note: This board has one Gen4 M.2 slot and one Gen3 M.2 slot. Putting a Gen4 M.2 in the Gen3 slot will result in Gen3 speed. Also populating both M.2 slots will disable the bottom PCIe slot. Please talk to a consultant if you have additional questions.

Model: Gigabyte B550 Vision D-P

Socket  AM4
CPU Compatibility  AMD Ryzen
Form Factor  ATX
Chipset Manufacturer  AMD
Chipset  B550
Network Connectivity  2.5G Networking + WiFi 6
Network Controller  Intel I225, Realtek RTL8125, Intel AX200
Audio Controller  Onboard Realtek ALC S1200-VB HD Audio
Cooling System  Heatsink
Color  Black
Memory Support
Type  DDR4 ECC
Maximum Speed  3200 MHz
Number of Slots  4
Maximum Size per Slot  32 GB
Maximum Amount Supported  128 GB
Onboard Video
Chipset Manufacturer  AMD
Maximum HDMI Resolution   4096x2160
HDMI Version  2.1
Notes:  DisplayPort IN for Thunderbolt Video, Onboard Graphics Requires Supported CPU
External Connections
USB 2.0  2
USB 3.2 Gen 1 (USB 3.0)  3
USB 3.2 Gen 2 (USB 3.1)  2
PS/2 Keyboard  Yes
PS/2 Mouse  Yes
Audio Out  Surround Sound (7.1)
Audio In  Line-In/Microphone
S/PDIF  Optical
LAN (RJ45)  2
Wireless Antenna Port  Yes
Thunderbolt Ports  2
Thunderbolt Version  3
Internal Connections
USB 2.0  2 (providing 4 ports)
USB 3.2 Gen 1 (USB 3.0)  1
USB 3.2 Gen 1 Type C  1
SATA III 6.0Gbps  4
M.2 Connector  2
M.2 Support  x1 42-110mm NVMe (Gen4) + SATA, x1 42-110mm NVMe (Gen3) + SATA
Serial (Com)  1
TPM (module sold separately)  1
Compatible TPM  Gigabyte GC-TPM2.0_S 2.0
SATA Controllers
SATA III 6.0Gbps Controller 1  AMD B550
Expansion Slots
Slot 1  PCI Express 4.0 x16
Slot 2  Slot not available on this board
Slot 3  Slot not available on this board
Slot 4  PCI Express 4.0 x8 in a x16 size
Slot 5  Slot not available on this board
Slot 6  PCI Express 3.0 x4 in a x16 size
Additional Information
SLI Compatible  No
Crossfire Compatible  Yes
RAID Support  0,1,10
Bluetooth  Yes (5.0)
Integrated IO Shield  Yes
BIOS Features
EZ Flash  Yes
OC Profiles  Yes
Height  305 mm (12.0 in)
Width  244 mm (9.6 in)
Net Weight  1.316 kg (2.9 lbs)

The bottom M.2 slot and bottom PCIe slot share resources. Only one of these two interface may be used at a time.

The top M.2 is Gen4. The bottom M.2 is Gen3

Configure a custom computer with the Gigabyte B550 Vision D-P.
