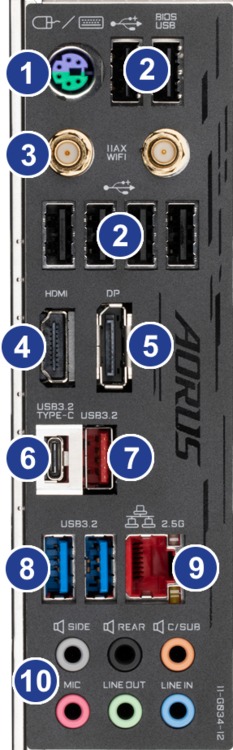

Gigabyte B560M AORUS PRO AX Ports
PS/2 Hybrid Port: Connection supporting either a PS/2 mouse or PS/2 keyboard.
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
WiFi Antenna Connector: Connection for WiFi antenna (included). Antenna must be connected to get proper reception.
HDMI 1.4b Out Port: Provides digital video and audio output up to 4K resolution and supports 3D 1080P content.
DisplayPort 1.2 Out Port: Outputs digital video and audio at up to 5K (5120x2880) @ 30Hz or 3840x2160 @ 75Hz.
USB 3.2 Type C Port(s): USB port for USB 3.2 Gen 2 Type C devices (10 Gb/s)
USB 3.2 Gen 2 (USB 3.1) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 and older devices (10 Gb/s).
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
2.5G LAN (RJ45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 2.5 Gb
Audio Jacks: 3.5mm analog audio jacks for various input and output functions (see manual for more information).
Gigabyte B560M AORUS PRO AX Schematic
The primary PCI-Express x16 slot will fit a standard video card, and operates in PCIe 4.0 mode as long as a 11th Gen chip is installed (or PCIe 3.0 if a 10th Gen chip is used). Additional x1 and x4 slots are also available for other expansion cards.
For external connectivity, it also has both analog and digital audio outputs, 2.5Gb Ethernet, WiFi 6, Bluetooth, ten USB ports of varying speeds (including one Type C), and HDMI & DisplayPort outputs for CPUs with integrated graphics.
Model: Gigabyte B560M Aorus PRO AX
Specifications
| Socket | 1200 |
| CPU Compatibility | Rocket Lake |
| Form Factor | MicroATX |
| Chipset Manufacturer | Intel |
| Chipset | B560 |
| Front Side Bus | DMI 3.0 |
| Network Connectivity | 2.5G Networking + WiFi 6 |
| Network Controller | Realtek RTL8125 + Intel AX201 |
| Audio Controller | Onboard Realtek ALC897 HD Audio |
| Cooling System | Heatsink |
| Color | Black |
Memory Support | |
| Type | DDR4 |
| Maximum Speed | 3200 MHz |
| Number of Slots | 4 |
| Maximum Size per Slot | 32 GB |
| Maximum Amount Supported | 128 GB |
Onboard Video | |
| Chipset Manufacturer | Intel |
| Processor Type | CPU Dependant |
| Maximum Resolution | 4096x2304 |
| Maximum HDMI Resolution | 4096x2160 |
| Maximum DisplayPort Resolution | 4096x2304 |
| HDMI | 1 |
| HDMI Version | 1.4b |
| DisplayPort | 1 |
| DisplayPort Version | 1.2 |
| Notes: | Onboard Graphics Requires Supported CPU |
External Connections | |
| USB 2.0 | 4 |
| USB 3.2 Gen 1 (USB 3.0) | 2 |
| USB 3.2 Gen 2 (USB 3.1) | 1 |
| USB 3.2 Type C | 1 |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| S/PDIF | Optical |
| LAN (RJ45) | 1 |
| Wireless Antenna Port | Yes |
Internal Connections | |
| USB 2.0 | 2 (providing 4 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| USB 3.2 Gen 1 Type C | 1 |
| SATA III 6.0Gbps | 6 |
| M.2 Connector | 2 |
| M.2 Support | 1x 60-80mm NVMe (Gen4), 1x 60-110mm NVMe (Gen3) & SATA |
| Serial (Com) | 1 |
| TPM (module sold separately) | 1 |
| Compatible TPM | Gigabyte GC-TPM2.0 SPI 2.0 |
SATA Controllers | |
| SATA III 6.0Gbps Controller 1 | B560 |
Expansion Slots | |
| Slot 1 | PCI Express 4.0 x16 |
| Slot 2 | PCI Express 3.0 x1 |
| Slot 3 | Slot not available on this board |
| Slot 4 | PCI Express 3.0 x4 in a x16 size |
Additional Information | |
| SLI Compatible | No |
| Crossfire Compatible | Yes |
| RAID Support | 0/1/10/5 |
| Bluetooth | Yes (5.0) |
| Integrated IO Shield | Yes |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | Yes |
Dimensions | |
| Height | 244 mm (9.6 in) |
| Width | 244 mm (9.6 in) |
| Net Weight | 0.927 kg (2.0 lbs) |
