Gigabyte Z390 Aorus Pro WiFi

Motherboard

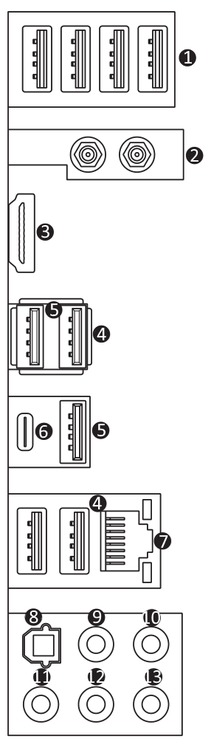

[ Rear Ports ][ Schematic ]

Gigabyte Z390 Aorus Pro WiFi Picture 50692Gigabyte Z390 Aorus Pro WiFi Picture 50693Gigabyte Z390 Aorus Pro WiFi Picture 50694Gigabyte Z390 Aorus Pro WiFi Picture 50668Gigabyte Z390 Aorus Pro WiFi Picture 50667

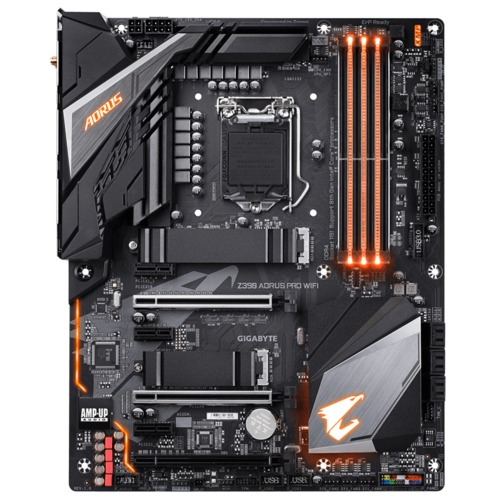

The Gigabyte Z390 Aorus Pro WiFi is an ATX motherboard for Intel's 8th & 9th-generation Core series processors (code named Coffee Lake). It offers a full range of features, a good mix of I/O ports, and solid build quality.

In terms of connectivity, this board is well rounded. It has HDMI 1.4 video output for use with the Intel graphics built into the CPU - a great backup option, in case the dedicated video card in a system isn't working. For memory it has four DDR4 slots, allowing up to 64GB of 2666MHz RAM. Drive connectivity includes six SATA III ports plus two M.2 slots. It also has both analog and digital audio outputs, gigabit Ethernet, WiFi, Bluetooth, four USB 2.0 ports, three USB 3.0 ports, and three 3.1 ports (including one Type C). For expansion cards, there are six total PCI-Express slots in varying sizes. SLI and Crossfire are supported as well, though when two video cards are installed the PCI-E slots they are in run at x8 speed rather than x16.
Model: Gigabyte Z390 AORUS PRO WIFI

Specifications:
spacer
Socket  1151
CPU Compatibility  Intel Socket 1151 for 9th Generation Core Processors
Form Factor  ATX
Chipset Manufacturer  Intel
Chipset  Z390
Front Side Bus  DMI 3.0
Network Connectivity  Gigabit Networking + 802.11 A/B/G/N/AC
Network Controller  Intel
Audio Controller  Onboard Realtek ALC1220-VB HD Audio
Cooling System  Heatsink
Color  Black
Memory Support
Type  DDR4
Maximum Speed  2666 MHz
Number of Slots  4
Maximum Size per Slot  16 GB
Maximum Amount Supported  64 GB
Onboard Video
Chipset Manufacturer  Intel
Processor Type  CPU Integrated Graphics
Maximum Shared Memory  512 MB
Maximum HDMI Resolution   4096x2160
HDMI  1
HDMI Version  1.4b
External Connections
USB 2.0  4
USB 3.0  3
USB 3.1  2
USB 3.1 Type C  1
PS/2 Keyboard  No
PS/2 Mouse  No
Audio Out  Surround Sound (7.1)
Audio In  Line-In/Microphone
S/PDIF  Optical
LAN (RJ45)  1
Wireless Antenna Port  Yes
Internal Connections
USB 2.0  2 (providing 4 ports)
USB 3.0  1 (providing 2 ports)
USB 3.1 Type C  1
SATA III 6.0Gbps  6
M.2 Connector  2
M.2 Support  x1 42-110mm NVMe, x1 42-80mm NVMe + SATA
TPM (module sold separately)  1
TPM Pinout  12-1
SATA Controllers
SATA III 6.0Gbps Controller 1  6 port - Intel Z370
Expansion Slots
Slot 1  PCI Express 3.0 x1
Slot 2  PCI Express 3.0 x16
Slot 3  PCI Express 3.0 x1
Slot 4  Slot not available on this board
Slot 5  PCI Express 3.0 x8 in a x16 size
Slot 6  PCI Express 3.0 x1
Slot 7  PCI Express 3.0 x4 in a x16 size
Additional Information
SLI Compatible  Yes
Crossfire Compatible  Yes
RAID Support  0,1,5,10
Bluetooth  Yes (5.0)
BIOS Features
UEFI BIOS  Yes
EZ Flash  Yes
OC Profiles  Yes
Dimensions
Height  305 mm (12.0 in)
Width  244 mm (9.6 in)
