Note: No PS2 ports are present on this motherboard.

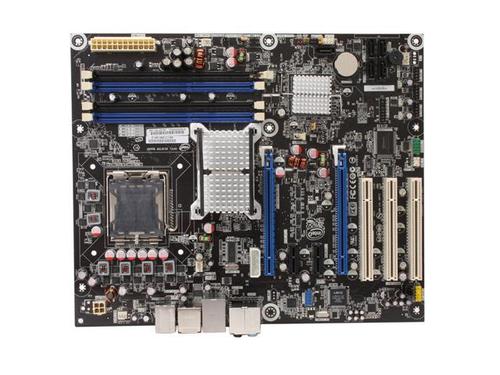

Model: Intel DP45SG
Specifications
| Socket | 775 |
| CPU Compatibility | Core 2 Duo, Core 2 Quadro, Core 2 Extreme |
| Form Factor | ATX |
| Chipset Manufacturer | Intel |
| Chipset | P45 |
| Front Side Bus | 1600Mhz |
| Wired Network Connectivity | Gigabit Networking |
| Cooling System | Heatsink |
Memory Support | |
| Type | DDR3 |
| Maximum Speed | 1333 MHz |
| Number of Slots | 4 |
| Maximum Size per Slot | 2 GB |
| Maximum Amount Supported | 8 GB |
External Connections | |
| USB 2.0 | 6 |
| PS/2 Mouse | No |
| PS/2 Keyboard | No |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| S/PDIF | Optical |
| External SATA | 1 |
| LAN (RJ45) | 1 |
| Wireless Antenna Port | No |
| Firewire | 1 |
Internal Connections | |
| USB 2.0 | 3 (providing 6 ports) |
| Firewire | 1 |
Expansion Slots | |
| Slot 1 | PCI Express 2.0 x16 |
| Slot 2 | PCI Express x1 |
| Slot 3 | PCI Express 2.0 x16 |
| Slot 4 | PCI |
| Slot 5 | PCI |
| Slot 6 | PCI |
Additional Information | |
| SLI Compatible | No |
| Crossfire Compatible | Yes |
| RAID Support | 0/1/5/10 |
Dimensions | |
| Height | 305 mm (12.0 in) |
| Width | 244 mm (9.6 in) |
Internal Connections
SATA2: 5
