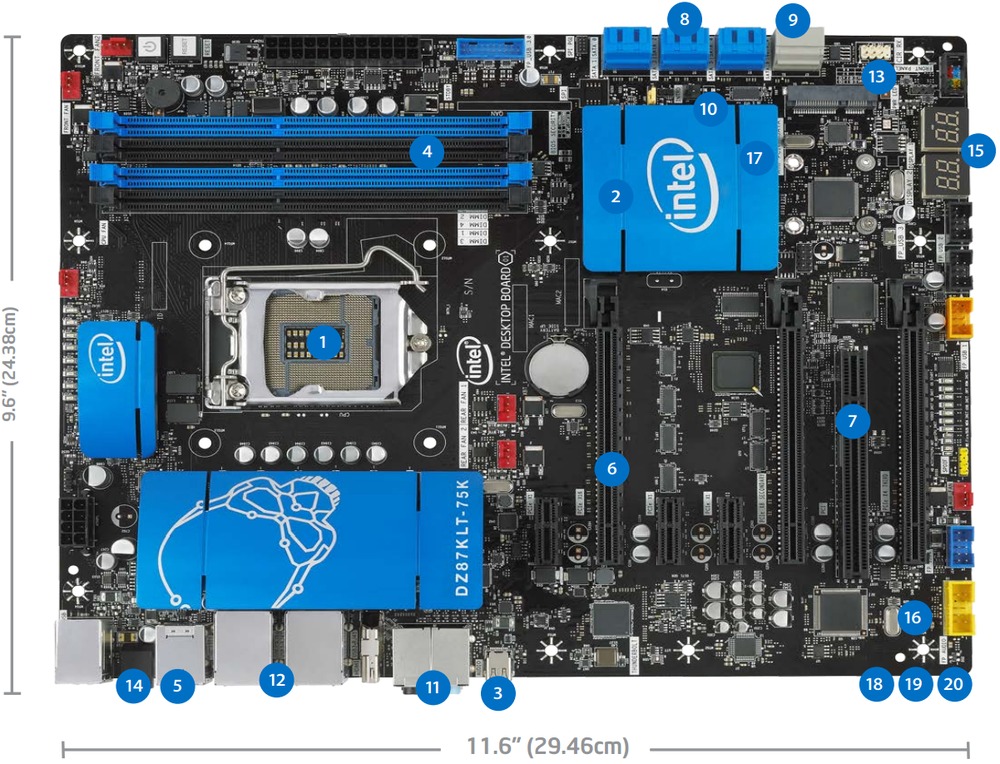

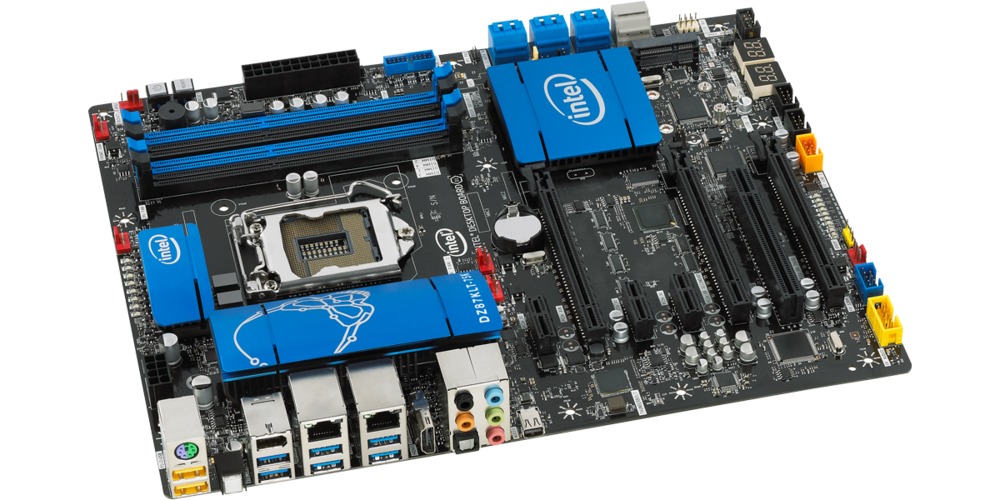

Model: Intel DZ87KLT-75K
Specifications
| Socket | 1150 |
| CPU Compatibility | Intel Socket 1150 for 4th Generation Processors |
| Form Factor | ATX |
| Chipset Manufacturer | Intel |
| Chipset | Z87 |
| Front Side Bus | Direct Media Interface |
| Wired Network Connectivity | Dual Gigabit Networking |
| Cooling System | Heatsink |
| Color | Black |
Memory Support | |
| Type | DDR3 |
| Maximum Speed | 1600 MHz |
| Number of Slots | 4 |
| Maximum Size per Slot | 8 GB |
| Maximum Amount Supported | 32 GB |
Onboard Video | |
| Chipset Manufacturer | Intel |
| Processor Type | CPU Integrated Graphics |
| Maximum DVI Resolution | 1920x1200 |
| Maximum HDMI Resolution | 4096x2160 |
| HDMI | 1 |
External Connections | |
| USB 2.0 | 2 |
| USB 3.2 Gen 1 (USB 3.0) | 6 |
| PS/2 Keyboard | Yes |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| S/PDIF | Optical |
| LAN (RJ45) | 2 |
| Thunderbolt Ports | 1 |
| Firewire | 1 |
Internal Connections | |
| USB 2.0 | 2 (providing 4 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| SATA III 6.0Gbps | 8 |
| mSATA III 6.0Gbps | 1 |
| Serial (Com) | 1 |
| TPM (module sold separately) | 1 |
| Firewire | 1 |
SATA Controllers | |
| SATA III 6.0Gbps Controller 1 | 6 port - Intel Z87 |
| SATA III 6.0Gbps Controller 2 | 2 port- Third Party |
Expansion Slots | |
| Slot 1 | PCI Express 2.0 x1 |
| Slot 2 | PCI Express 3.0 x16 |
| Slot 3 | PCI Express 2.0 x1 |
| Slot 4 | PCI Express 2.0 x1 |
| Slot 5 | PCI Express 3.0 x8 in a x16 size |
| Slot 6 | PCI |
| Slot 7 | PCI Express 2.0 x4 in a x16 size |
Additional Information | |
| SLI Compatible | Yes |
| Crossfire Compatible | Yes |
| RAID Support | 0,1,5,10 |
Dimensions | |
| Height | 305 mm (12.0 in) |
| Width | 223.5 mm (8.8 in) |
-PCI-E 3.0 x16 slots run at single x16/- or x8/x8 mode
