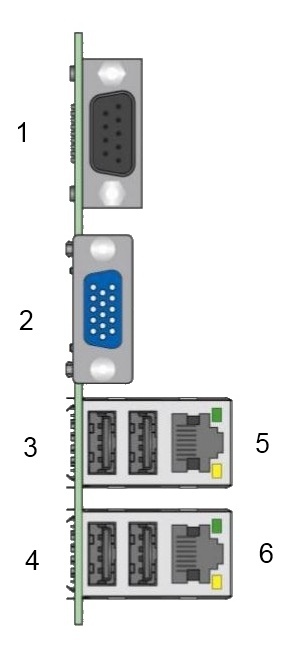

Intel S1200BTL Ports
Serial Port: 9-pin RS-232 port for connecting serial data devices (also known as a COM port).
VGA Out Port: Video Graphics Adapter (VGA) port for outputting analog video.
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 100 Mbps.
LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 100 Mbps.
Intel S1200BTL Schematic
Note: As this is a server motherboard, some desktop features are not present: standby/sleep functionality is not guaranteed, and this board does not support the "Hibernation" feature built into Windows.

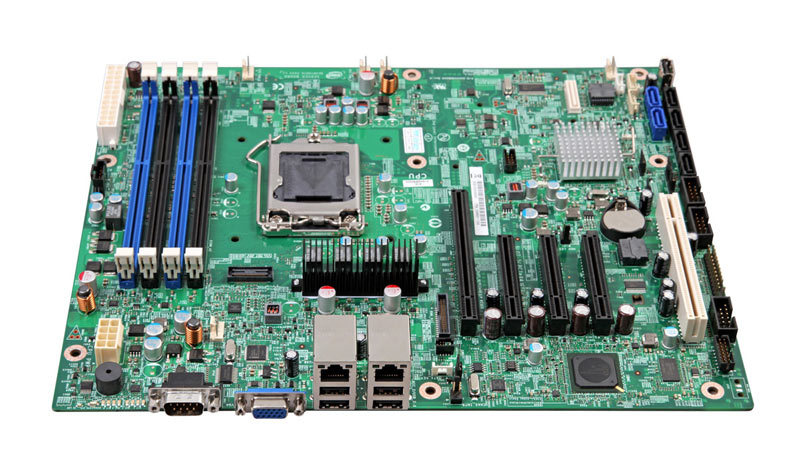

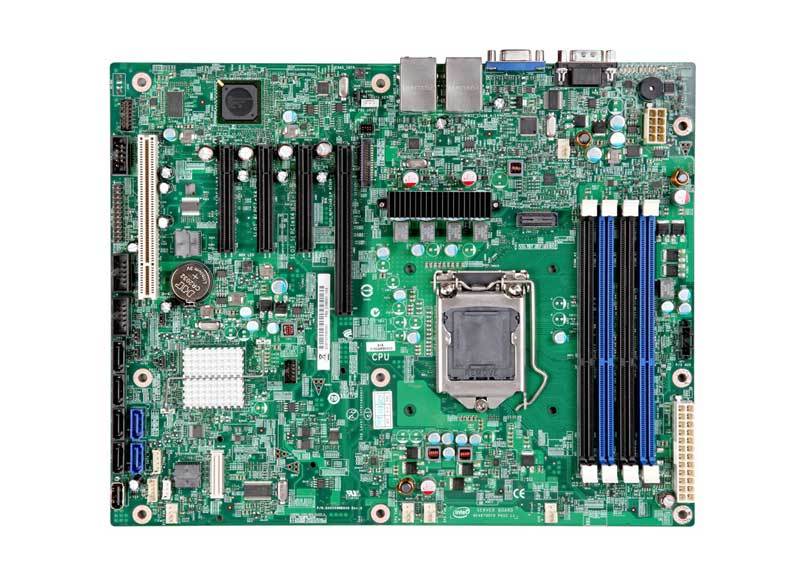

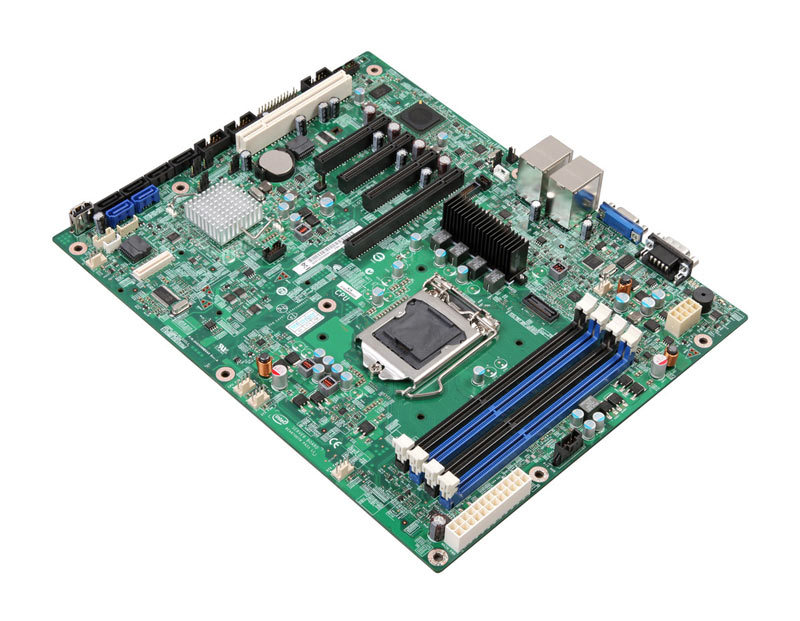

Model: Intel S1200BTL
Specifications
| Socket | 1155 |
| CPU Compatibility | Intel Xeon E3-1200 Processor Family, Intel Core i3-2100 Processor Family, Intel Core G8X0 Processor Family, Intel Core G6X0 Processor Family Processor |
| Form Factor | ATX |
| Chipset Manufacturer | Intel |
| Chipset | C204 |
| Front Side Bus | QuickPath Interconnect |
| Wired Network Connectivity | Dual Gigabit Networking |
| Network Controller | Intel 82574L, Intel 82579LM |
| Cooling System | Heatsink |
| Color | Green |
Memory Support | |
| Type | DDR3 ECC |
| Maximum Speed | 1333 MHz |
| Number of Slots | 4 |
| Maximum Size per Slot | 8 GB |
| Maximum Amount Supported | 32 GB |
Onboard Video | |
| Chipset Manufacturer | Matrox |
| Processor Type | G200e |
| VGA | 1 |
External Connections | |
| USB 2.0 | 4 |
| LAN (RJ45) | 2 |
| Serial (COM) Port | 1 |
Internal Connections | |
| USB 2.0 | 2 (providing 4 ports) |
| SATA II 3.0Gbps | 4 |
| SATA III 6.0Gbps | 2 |
SATA Controllers | |
| SATA II 3.0Gbps Controller 1 | 4 port - Intel C204 |
| SATA III 6.0Gbps Controller 1 | 2 port - Intel C204 |
Expansion Slots | |
| Slot 1 | PCI Express 2.0 x16 |
| Slot 2 | PCI Express 2.0 x8 |
| Slot 3 | PCI Express 2.0 x8 |
| Slot 4 | PCI Express 2.0 x8 |
| Slot 6 | PCI |
Additional Information | |
| RAID Support | 0,1,10,5 |
BIOS Features | |
| UEFI BIOS | No |
| EZ Flash | No |
| OC Profiles | No |
Dimensions | |
| Height | 305 mm (12.0 in) |
| Width | 244 mm (9.6 in) |
