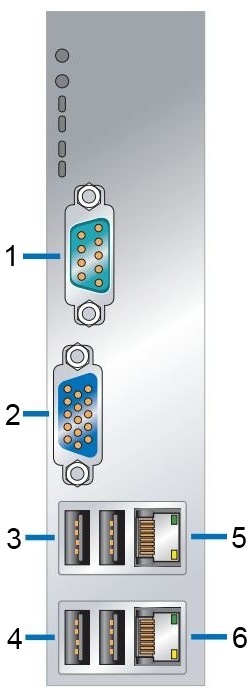

Intel S5520HCR (Harlan Creek) Ports
Serial Port: 9-pin RS-232 port for connecting serial data devices (also known as a COM port).
VGA Out Port: Video Graphics Adapter (VGA) port for outputting analog video.
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
Gigabit LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 1000 Mbps.
Gigabit LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 1000 Mbps.

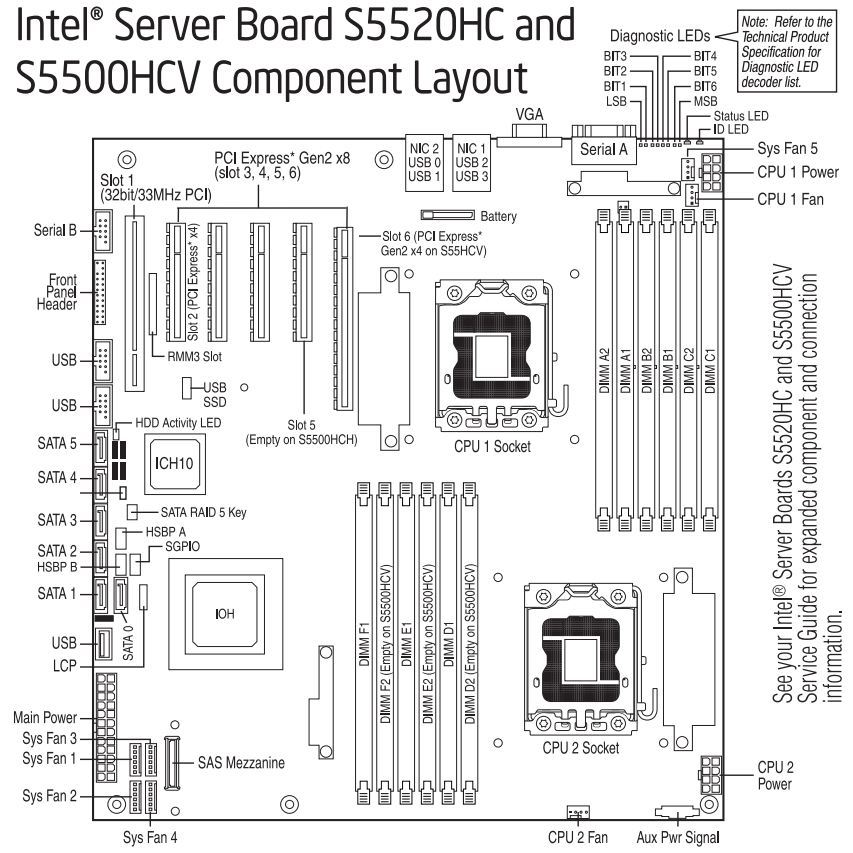

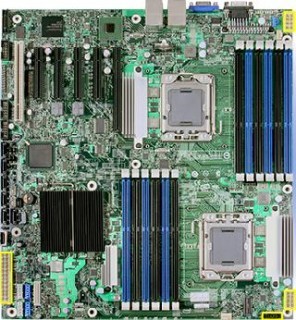

Intel S5520HCR (Harlan Creek) Schematic
Note: Certified for use with VMWare ESXi. As this is a server motherboard, some desktop features are not present: standby/sleep functionality is not guaranteed, and this board does not support the "Hibernation" feature built into Windows. SATA ports do not support hot swap.

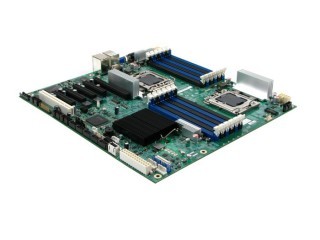

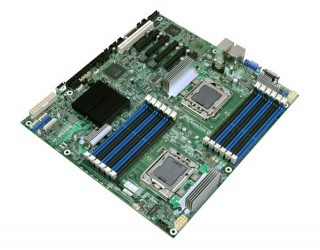

Model: Intel S5520HCR
Specifications
| Socket | Dual 1366 |
| CPU Compatibility | Intel Xeon processors 5500 or 5600 series |
| Form Factor | EATX |
| Chipset Manufacturer | Intel |
| Chipset | 5520 / ICH10R |
| Front Side Bus | QuickPath Interconnect |
| Network Connectivity | Dual Gigabit Networking |
| Network Controller | Intel 82575EB |
| Cooling System | Heatsink |
| Color | Green |
Memory Support | |
| Type | DDR3 |
| Maximum Speed | 1333 MHz |
| Number of Slots | 12 |
| Maximum Size per Slot | 8 GB |
| Maximum Amount Supported | 96 GB |
Onboard Video | |
| Processor Type | Server Engine Matrox G200e |
| Onboard Memory | 64 MB |
| Maximum Resolution | 1024x768 |
| VGA | 1 |
External Connections | |
| USB 2.0 | 4 |
| LAN (RJ45) | 2 |
Internal Connections | |
| USB 2.0 | 2 (providing 4 ports) |
| SATA II 3.0Gbps | 6 |
SATA Controllers | |
| SATA II 3.0Gbps Controller 1 | 6 port - Intel ICH10R |
Expansion Slots | |
| Slot 1 | PCI Express 2.0 x8 in a x16 size |
| Slot 2 | PCI Express 2.0 x8 |
| Slot 3 | PCI Express 2.0 x8 |
| Slot 4 | PCI Express 2.0 x8 |
| Slot 5 | PCI Express x4 in a x8 size |
| Slot 6 | PCI |
Additional Information | |
| SLI Compatible | No |
| Crossfire Compatible | Yes |
| RAID Support | 0/1/10 |
BIOS Features | |
| UEFI BIOS | No |
| EZ Flash | No |
| OC Profiles | No |
Dimensions | |
| Height | 305 mm (12.0 in) |
| Width | 330 mm (13.0 in) |
Designed with maximum performance and expandability, the Intel Server Board S5520HC targets applications such as database, email, storage, and virtualization. Scalable management with integrated and optional features include Intel Server Deployment Toolkit, Intel Active System Console, and power management with Intel Intelligent Power Node Manager.
