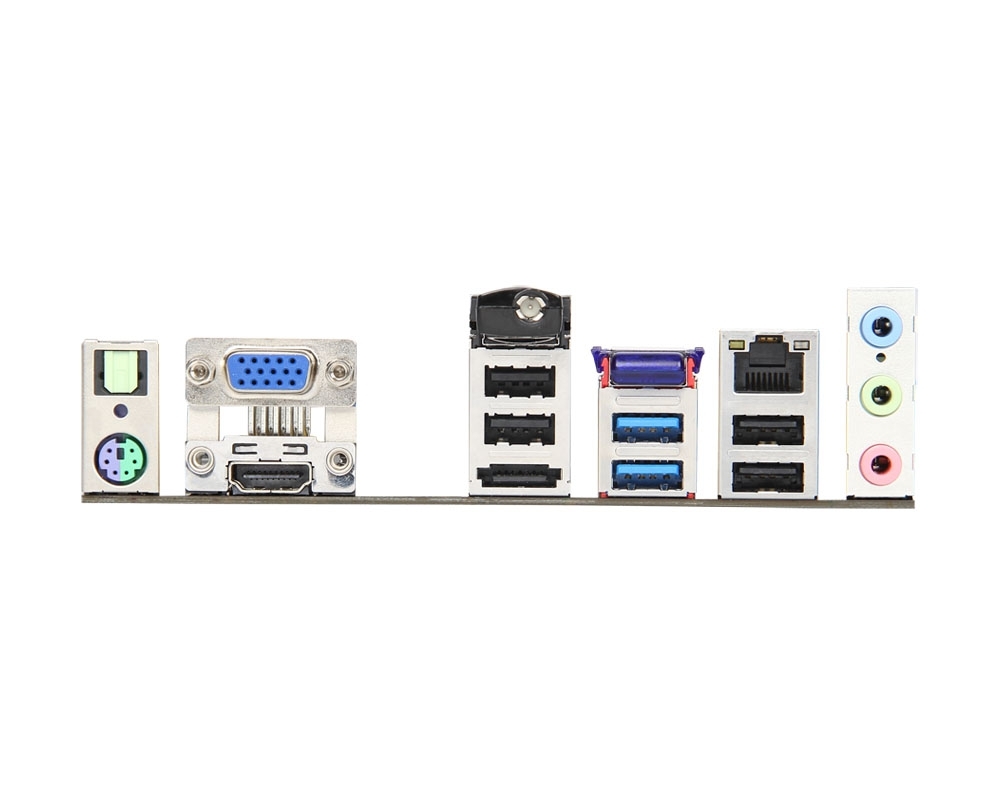

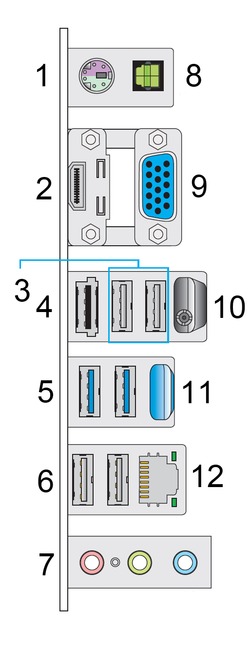

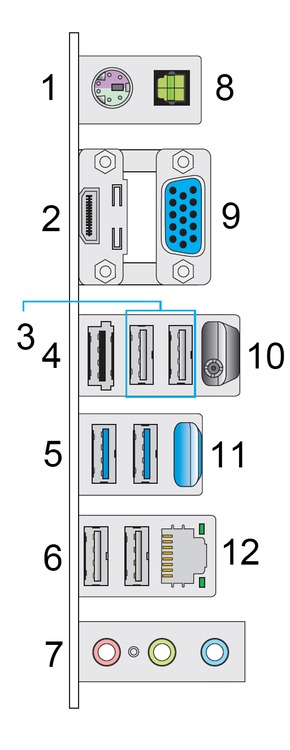

MSI FM2-A75IA-E53 Ports
PS/2 Hybrid Port: Connection supporting either a PS/2 mouse or PS/2 keyboard.
HDMI Out Port: High Definition Multimedia Interface (HDMI) port for outputting digital video and audio.
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
External SATA Port: External SATA (eSATA) port for connecting to drives directly via SATA rather than USB or Firewire.
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
Audio Jacks: 3.5mm analog audio jacks for various input and output functions (see manual for more information).
Optical S/PDIF Out: Digital audio output port compatible with optical S/PDIF cables / devices (also called TOSLINK).
VGA Out Port: Video Graphics Adapter (VGA) port for outputting analog video.
WiFi Antenna Connector: Connection for WiFi antenna (included). Antenna must be connected to get proper reception.
Bluetooth Module: External antenna for connecting Bluetooth (BT) devices directly with the PC. Glows blue when paired.
LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 100 Mbps.

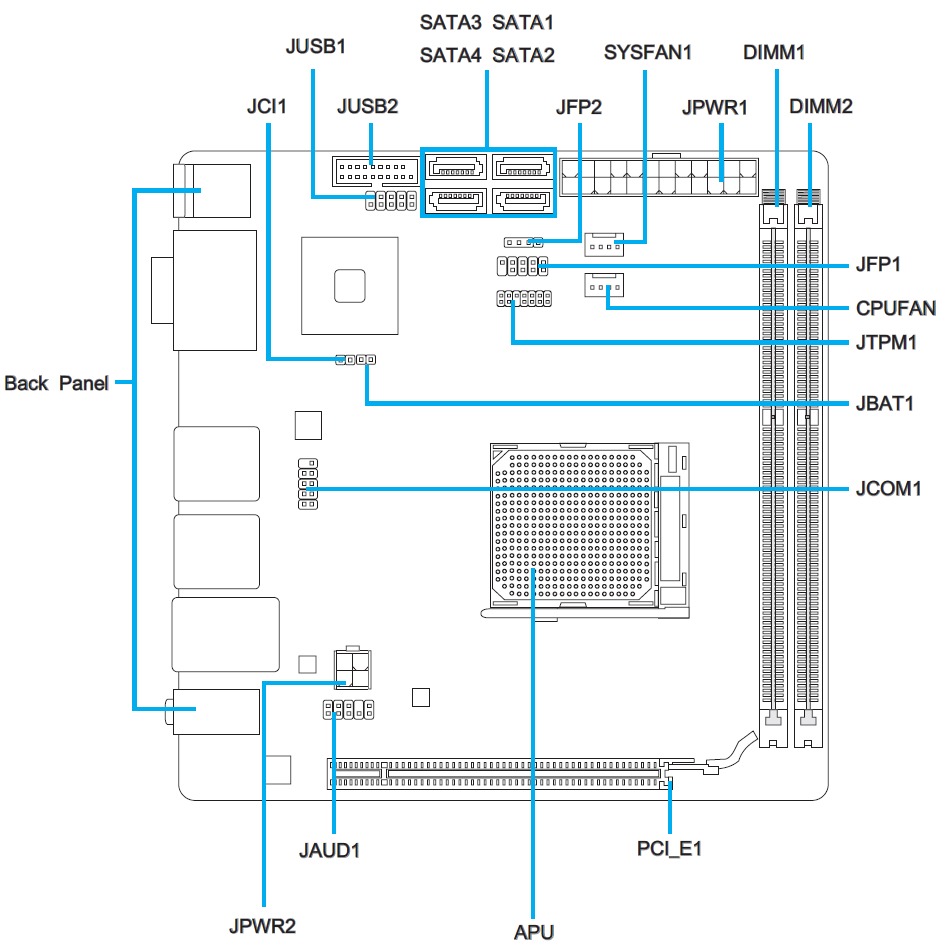

MSI FM2-A75IA-E53 Schematic

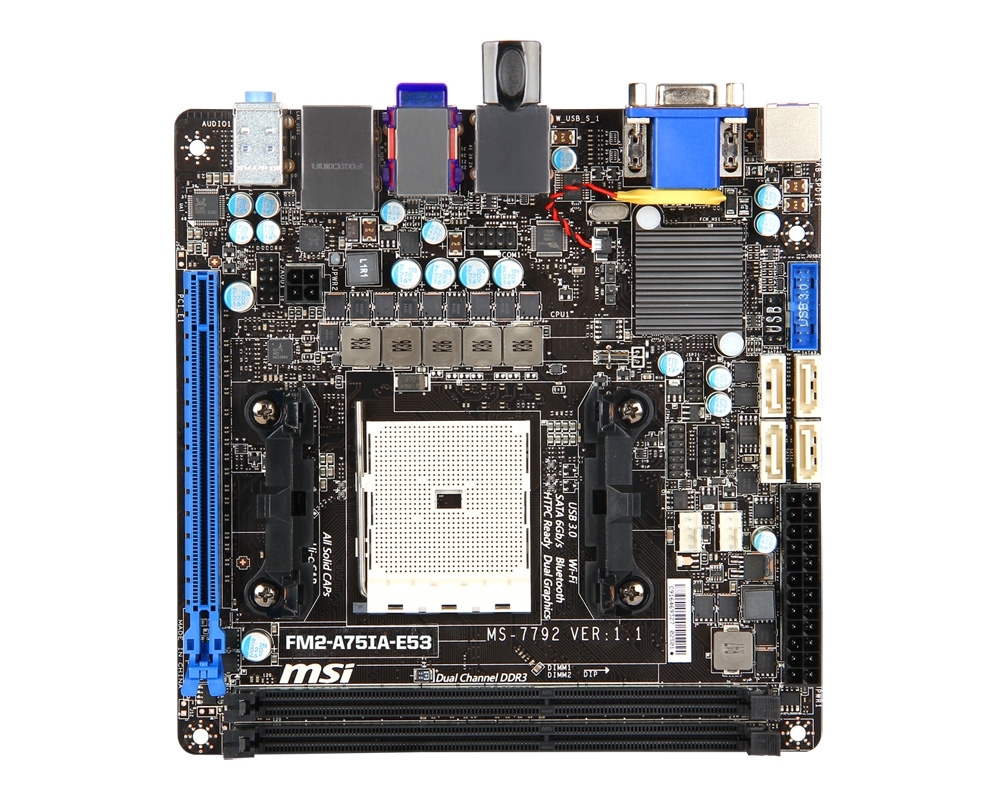

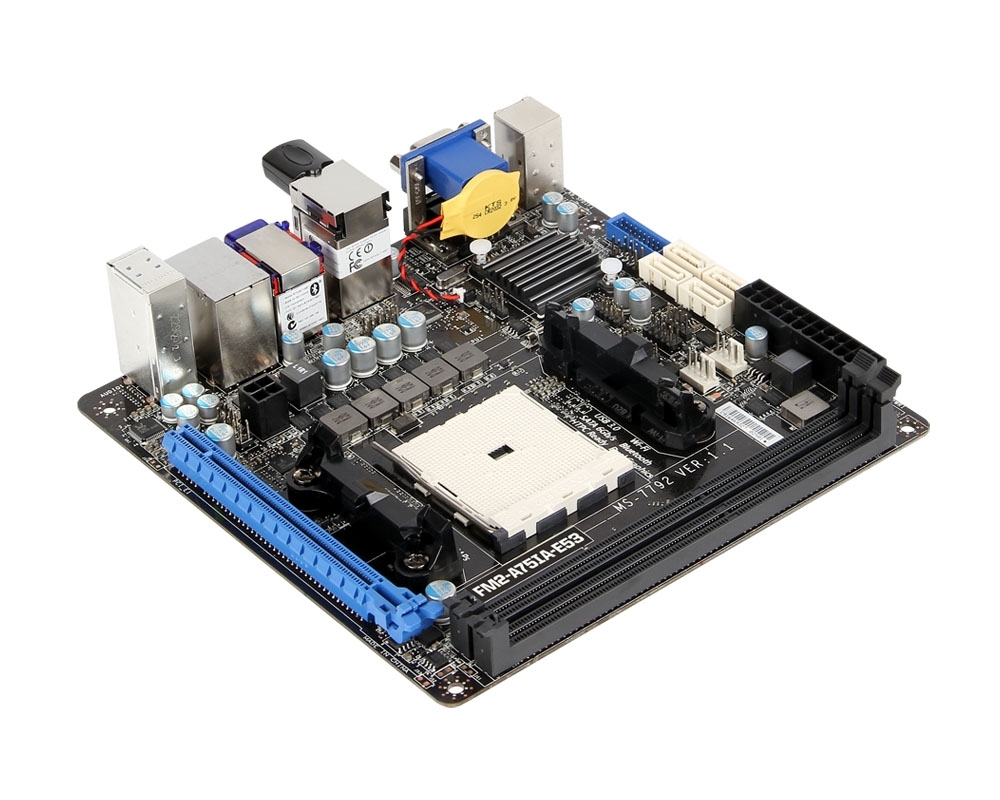

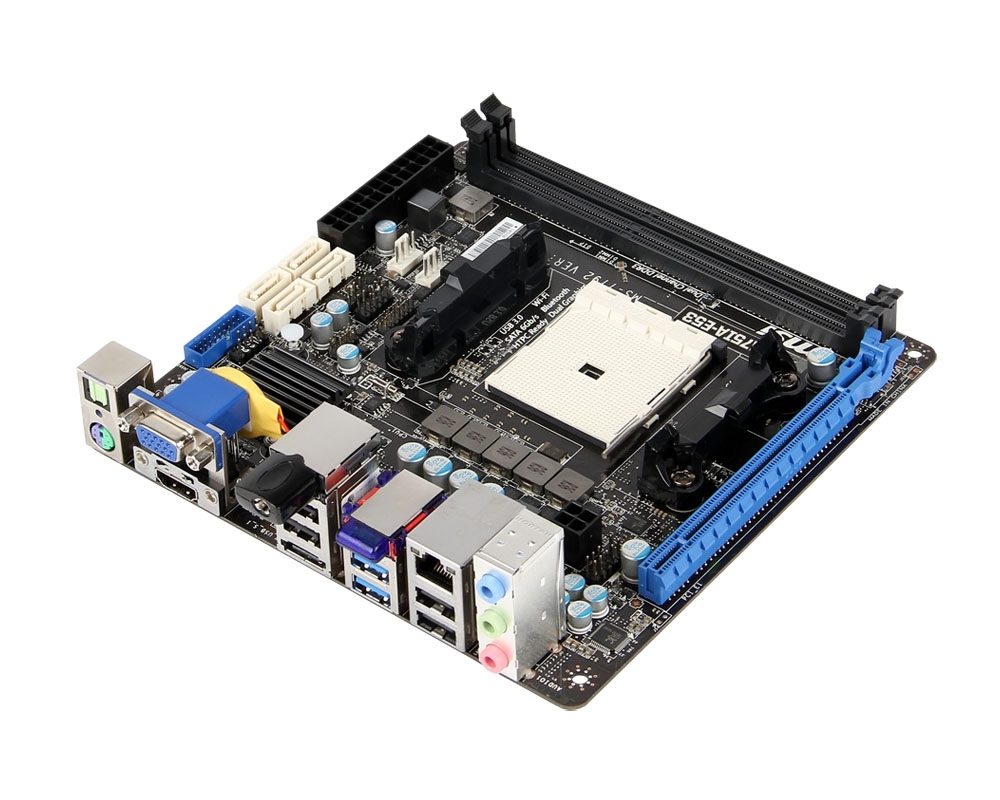

Model: MSI FM2-A75IA-E53
Specifications
| Socket | FM2 |
| CPU Compatibility | AMD A10/A8/A6/A4-series |
| Form Factor | Mini-ITX |
| Chipset Manufacturer | AMD |
| Chipset | A75 |
| Wired Network Connectivity | Gigabit Networking + 802.11 B/G/N |
| Network Controller | Realtek RTL8111E |
| Audio Controller | Realtek ALC887 |
| Cooling System | Heatsink |
| Color | Black |
Memory Support | |
| Type | DDR3 |
| Maximum Speed | 1866 MHz |
| Number of Slots | 2 |
| Maximum Size per Slot | 16 GB |
| Maximum Amount Supported | 32 GB |
Onboard Video | |
| Chipset Manufacturer | AMD |
| Processor Type | CPU Integrated Graphics |
| Maximum Shared Memory | 2048 MB |
| Maximum HDMI Resolution | 1920x1080 |
| VGA | 1 |
| HDMI | 1 |
External Connections | |
| USB 2.0 | 4 |
| USB 3.2 Gen 1 (USB 3.0) | 2 |
| PS/2 Keyboard | Yes |
| Audio Out | Stereo |
| Audio In | Line-In/Microphone |
| S/PDIF | Optical |
| External SATA | 1 |
| LAN (RJ45) | 1 |
| Wireless Antenna Port | Yes |
Internal Connections | |
| USB 2.0 | 1 (providing 2 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| SATA III 6.0Gbps | 4 |
| Serial (Com) | 1 |
| TPM (module sold separately) | 1 |
SATA Controllers | |
| SATA III 6.0Gbps Controller 1 | AMD A75 |
Expansion Slots | |
| Slot 1 | PCI Express 2.0 x16 |
Additional Information | |
| RAID Support | 0/1/10 |
| Bluetooth | Yes (3.0) |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | Yes |
Dimensions | |
| Height | 170 mm (6.7 in) |
| Width | 170 mm (6.7 in) |
MSI FM2-A75IA-E53 FM2 AMD A75 (Hudson D3) HDMI SATA 6Gb/s USB 3.0 Mini ITX AMD Motherboard
