MSI MEG X570 Unify

Motherboard

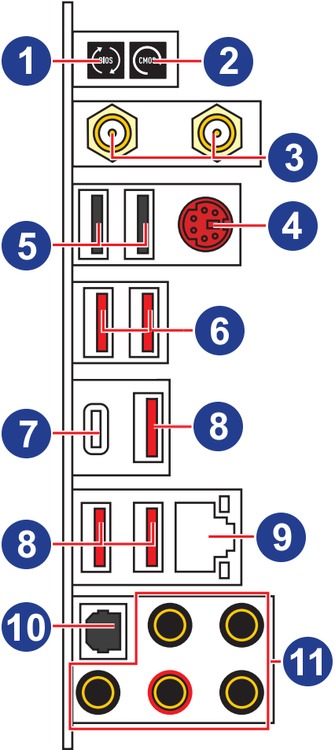

[ Rear Ports ][ Schematic ]

MSI MEG X570 Unify Picture 65729MSI MEG X570 Unify Picture 65731MSI MEG X570 Unify Picture 65730MSI MEG X570 Unify Picture 65728MSI MEG X570 Unify Picture 65725
The MSI MEG X570 Unify is an ATX motherboard for AMD's 3rd generation Ryzen processors. It offers a nice combination of features, I/O ports, and build quality.

In terms of connectivity, this board is well equipped with eight USB ports (one of which is a Type C), wired and wireless networking, and both digital and analog audio outputs. It also has a legacy PS/2 port for an older style keyboard or mouse.

Internally this motherboard has four DDR4 memory slots, supporting up to 128GB of RAM, and four SATA III ports plus three M.2 slots for connecting drives. Five PCI-Express 4.0 slots of various sizes are available to handle a wide range of expansion cards.
Model: MSI MEG X570 UNIFY

Specifications:
spacer
Socket  AM4
CPU Compatibility  AMD Ryzen
Form Factor  ATX
Chipset Manufacturer  AMD
Chipset  X570
Network Connectivity  2.5G Networking + WiFi 6
Network Controller  Realtek RTL8125 + Intel AX200
Audio Controller  Onboard Realtek ALC1220 HD Audio
Cooling System  Heatsink and Fan
Number of Fans  1
Color  Black
Memory Support
Type  DDR4 ECC
Maximum Speed  3200 MHz
Number of Slots  4
Maximum Size per Slot  32 GB
Maximum Amount Supported  128 GB
External Connections
USB 2.0  2
USB 3.2 Gen 1 (USB 3.0)  2
USB 3.2 Gen 2 (USB 3.1)  3
USB 3.2 Type C  1
Audio Out  Surround Sound (7.1)
Audio In  Line-In/Microphone
S/PDIF  Optical
LAN (RJ45)  1
Wireless Antenna Port  Yes
Internal Connections
USB 2.0  2 (providing 4 ports)
USB 3.2 Gen 1 (USB 3.0)  2
USB 3.2 Gen 1 Type C  1
SATA III 6.0Gbps  4
M.2 Connector  3
M.2 Support  x2 42-80mm NVMe (Gen4) + SATA, x1 42-110mm NVMe (Gen4)
TPM (module sold separately)  1
Compatible TPM  MSI 914-4136-105
SATA Controllers
SATA III 6.0Gbps Controller 1  AMD X570
Expansion Slots
Slot 1  Slot not available on this board
Slot 2  PCI Express 4.0 x16
Slot 3  Slot not available on this board
Slot 4  PCI Express 4.0 x1
Slot 5  PCI Express 4.0 x8 in a x16 size
Slot 6  PCI Express 4.0 x1
Slot 7  PCI Express 4.0 x4 in a x16 size
Additional Information
SLI Compatible  Yes
Crossfire Compatible  Yes
RAID Support  0,1,10
Bluetooth  Yes (5.0)
Dual GPU Slot Spacing  3-Slot
Integrated IO Shield  Yes
BIOS Features
UEFI BIOS  Yes
EZ Flash  Yes
OC Profiles  Yes
Dimensions
Height  305 mm (12.0 in)
Width  244 mm (9.6 in)
