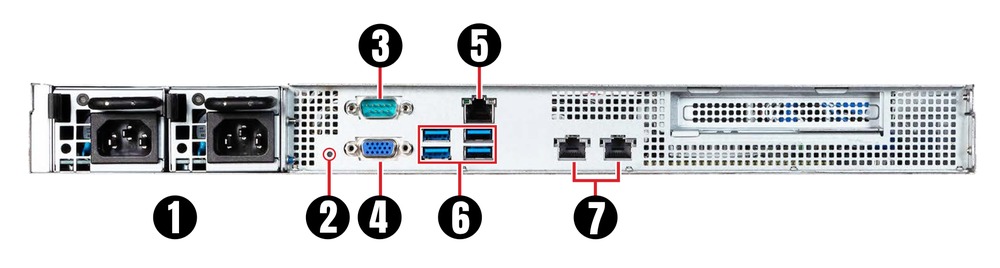

MSI S1102-01 EPYC 4005 105W 1U Ports
Power Input: Input for connecting power supply to the device.
UID Button: Press to turn both front and rear Unit Identification (UID) Lights on / off.
Serial Port: 9-pin RS-232 port for connecting serial data devices (also known as a COM port).
VGA Out Port: Video Graphics Adapter (VGA) port for outputting analog video.
IPMI LAN Port: RJ-45 plug for remote management of computer via IPMI (Intelligent Platform Management Interface).
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
10G LAN Ports (RJ-45): RJ-45 plugs for connecting to a wired Local Area Network (LAN) via Ethernet at up to 10 Gbps.

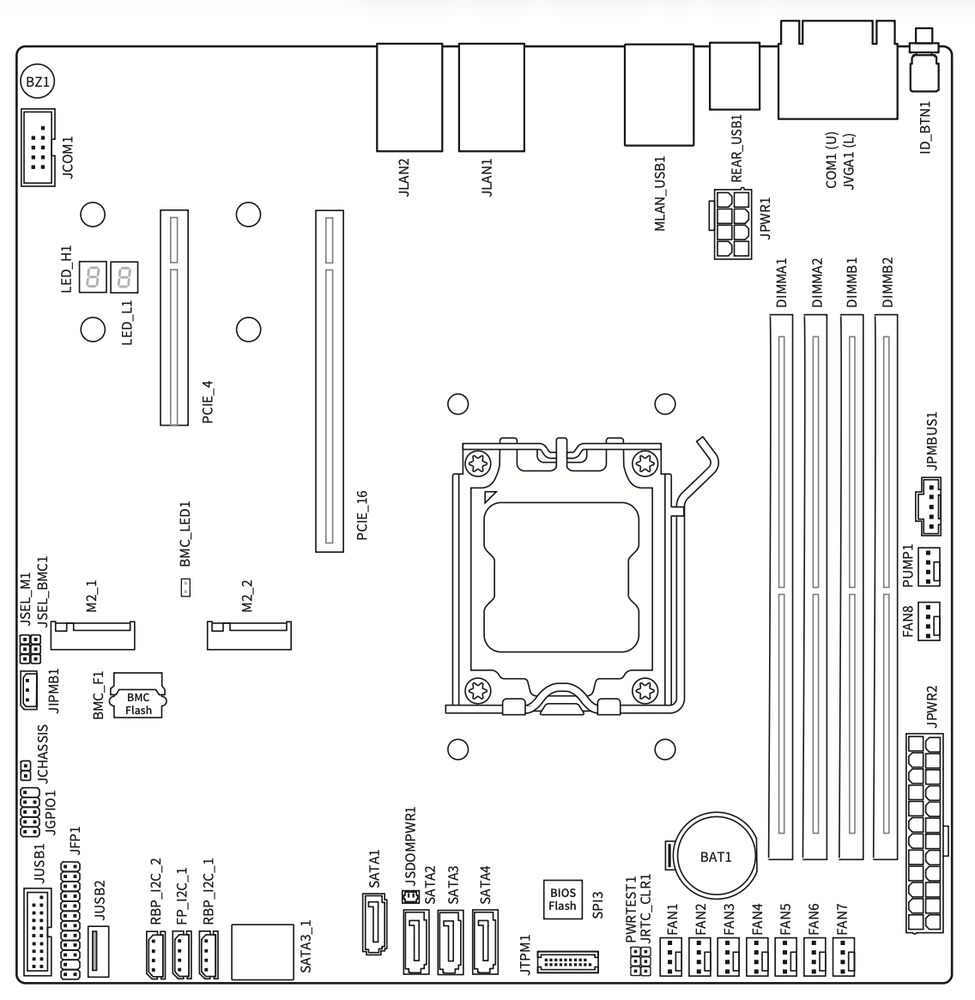

MSI S1102-01 EPYC 4005 105W 1U Schematic
Storage options include two internal M.2 slots for SSDs and four front-accessible SATA drive bays for HDDs or SSDs. We generally recommend putting the OS on one of the M.2 slots and then using the easy-access bays in the front for storage as needed.
External connectivity consists of six USB ports (2 on the front and 4 in back), dual 10GB Ethernet, and a port for remote management. There is also a single PCIe 4.0 x16 slot for additional networking or a single-slot GPU. Dual 450W power supplies provide redundancy and strengthen uptime.
Model: MSI S1102-01
Specifications
| Socket | AM5 |
| CPU Compatibility | Ryzen 7000/9000, EPYC 4004/4005 up to 105W |
| Form Factor | 1U |
| Chipset Manufacturer | AMD |
| Chipset | B650 |
| Wired Network Connectivity | Dual 10G Networking |
| Network Controller | Intel X710-AT2 |
| Cooling System | Heatsink and Fan |
| Number of Fans | 4x 40mm |
| Color | Black |
| Windows Support | Windows 11 |
| Linux Support | Yes |
Memory Support | |
| Type | DDR5 |
| Maximum Speed | 5600 MHz |
| Number of Slots | 4 |
| Maximum Size per Slot | 48 GB |
| Maximum Amount Supported | 192 GB |
Onboard Video | |
| Chipset Manufacturer | ASpeed |
| Processor Type | AST2600 |
| VGA | 1 |
External Connections | |
| USB 3.2 Gen 1 (USB 3.0) | 4 |
Internal Connections | |
| mSATA II 3.0Gbps | 2 |
| M.2 Connector | 2 |
| M.2 Support | 2x 80/110mm PCIe 4.0 |
| Maximum M.2 Length | 110 mm (4.3 in) |
Expansion Slots | |
| Slot 1 | PCI Express 4.0 x16 |
Additional Information | |
| Integrated IO Shield | Yes |
| Remote Management | Onboard |
| Includes Rail Kit | Yes |
| Hearing Protection Advised | Yes |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | No |
| OC Profiles | No |
Power Supply | |
| Wattage at 120V | 450 W |
| Redundancy | 1+1 |
