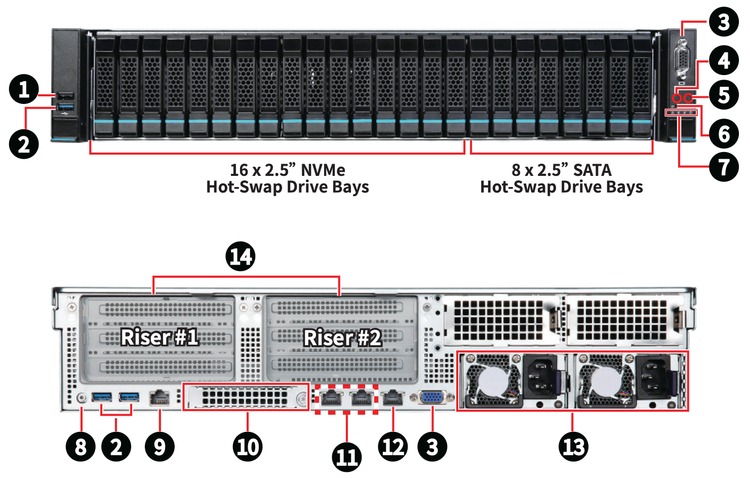

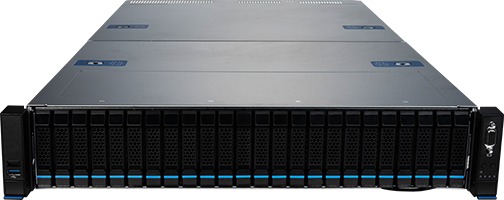

MSI S2206-04 Dual EPYC 24-bay 2U Server Ports
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
VGA Out Port: Video Graphics Adapter (VGA) port for outputting analog video.
Power Switch: On/off button for the device.
UID Button: Press to turn both front and rear Unit Identification (UID) Lights on / off.
Reset Switch: Immediately hard-restarts system. Last resort only, as it will lose unsaved data and may corrupt OS.
HDD LED: Light that turns on when there is drive activity.
UID Button: Press to turn both front and rear Unit Identification (UID) Lights on / off.
Serial RJ45 Port: Serial console port with RJ45 interface.
OCP 3.0 Mezzanine Card Slot: Slot for PCIe expansion devices in OCP form factor
LAN Ports (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 100 Mbps.
IPMI LAN Port: RJ-45 plug for remote management of computer via IPMI (Intelligent Platform Management Interface).
Power Input: Input for connecting power supply to the device.

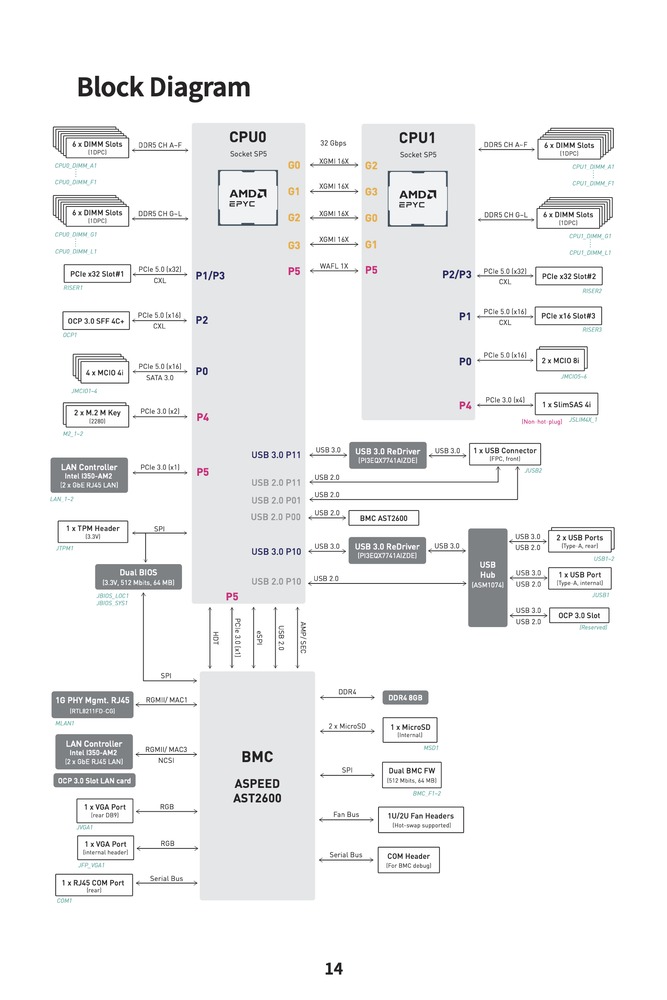

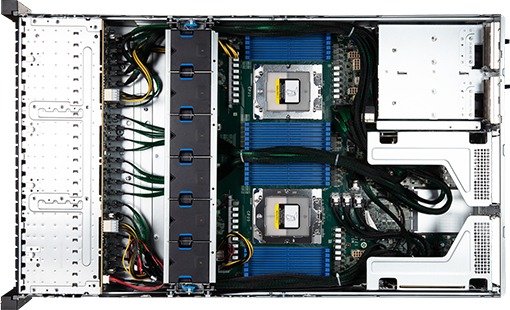

MSI S2206-04 Dual EPYC 24-bay 2U Server Schematic
Storage options include two internal M.2 slots, and sixteen front-accessible hot-swap bays for U.2 NVMe SSDs, and eight front hot-swap bays for SATA SSDs. We generally recommend putting the OS on one of the M.2 slots and then using the easy-access bays in the front for storage as needed.
External connectivity consists of four USB ports (2 each in front and back) and a port for remote management. There are also two built-in 1G Ethernet ports, an OCP 3.0 slot for a dedicated NIC, and three PCIe 5.0 x16 slots for additional networking or other expansion cards.

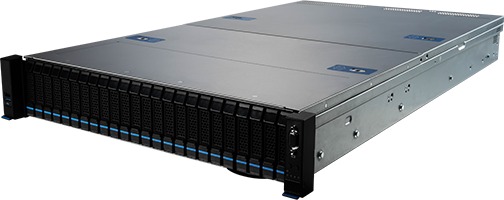

Model: MSI S2206-04
Specifications
| Socket | SP5 |
| CPU Compatibility | AMD EPYC 9004/9005 series (up to 360W) |
| Form Factor | 2U |
| Chipset Manufacturer | AMD |
| Wired Network Connectivity | Dual Gigabit Networking |
| Network Controller | Intel I350 |
| Cooling System | Heatsink and Fan |
| Number of Fans | 6 |
| Color | Black |
| Windows Support | Windows Server 2025 |
| Linux Support | Yes |
Memory Support | |
| Type | DDR5 ECC Registered |
| Maximum Speed | 6400 MHz |
| Number of Slots | 24 |
| Maximum Size per Slot | 96 GB |
| Maximum Amount Supported | 2304 GB |
Onboard Video | |
| Chipset Manufacturer | ASpeed |
| Processor Type | AST2600 |
| VGA | 1 |
External Connections | |
| USB 2.0 | 1 |
| USB 3.2 Gen 1 (USB 3.0) | 3 |
| LAN (RJ45) | 2 |
| Mgmt LAN (RJ45) | 1 |
| Serial (COM) Port | 1 |
Internal Connections | |
| M.2 Connector | 2 |
| M.2 Support | 2x 80mm PCIe 3.0 x2 |
| Maximum M.2 Length | 80 mm (3.1 in) |
| TPM (module sold separately) | 1 |
| Compatible TPM | MSI TPM20-IRS |
Expansion Slots | |
| Slot 1 | PCI Express 5.0 x16 |
| Slot 2 | PCI Express 5.0 x8 in a x16 size |
| Slot 3 | PCI Express 5.0 x8 in a x16 size |
| Slot 4 | OCP 3.0 |
Additional Information | |
| SLI Compatible | No |
| Crossfire Compatible | No |
| Integrated IO Shield | Yes |
| Remote Management | Onboard |
| Includes Rail Kit | Yes |
| Hearing Protection Advised | Yes |
BIOS Features | |
| UEFI BIOS | Yes |
Dimensions | |
| Height | 438 mm (17.2 in) |
| Width | 87 mm (3.4 in) |
| Depth | 770 mm (30.3 in) |
| Net Weight | 20 kg (44.1 lbs) |
Power Supply | |
| Input Voltage | 100-240 Vac |
| Wattage at 120V | 1600 W |
| Wattage at 240V | 1600 W |
| Redundancy | 1+1 |
