The MSI S3066X171RAU12 is a 1U rackmount server built to offer CPU compute along with built-in storage capabilities. It utilizes an Intel Xeon 6 processor, which supports a massive number of PCI-Express Gen 5 lanes as well as 8 DDR5 memory channels - ensuring plenty of bandwidth and connectivity for various networking options and several NVMe solid-state drives.

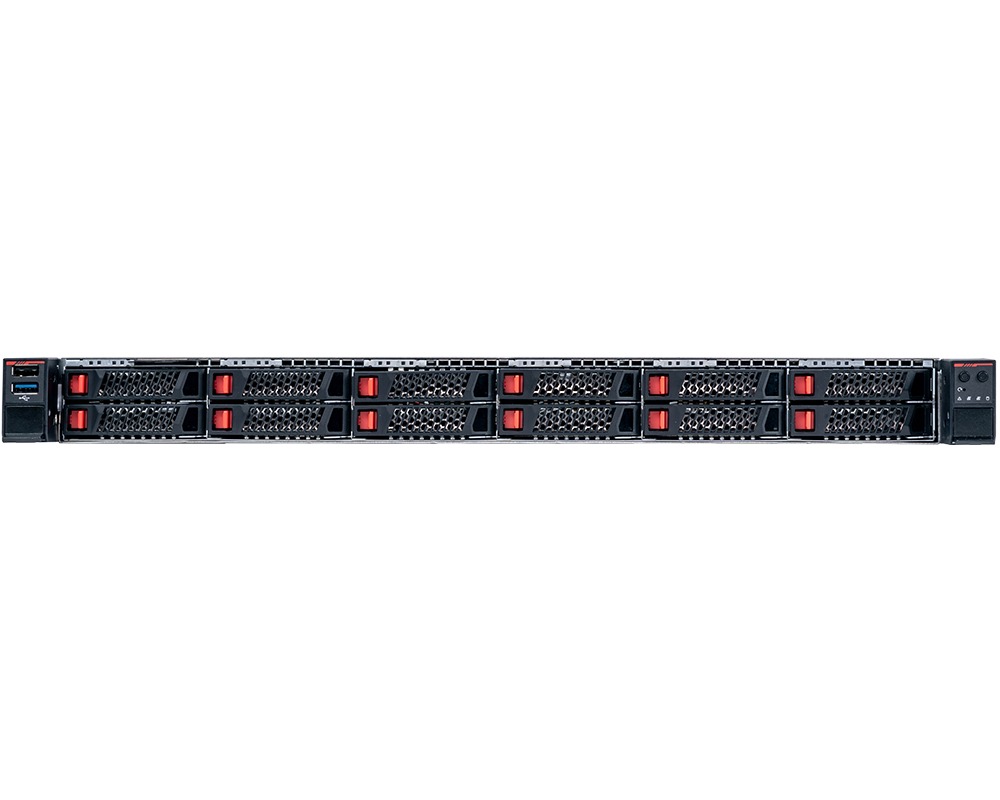

Storage options include two internal M.2 slots for SSDs and twelve front-accessible hot-swap bays for U.2 NVMe SSDs. We generally recommend putting the OS on one of the M.2 slots and then using the easy-access bays in the front for storage as needed.

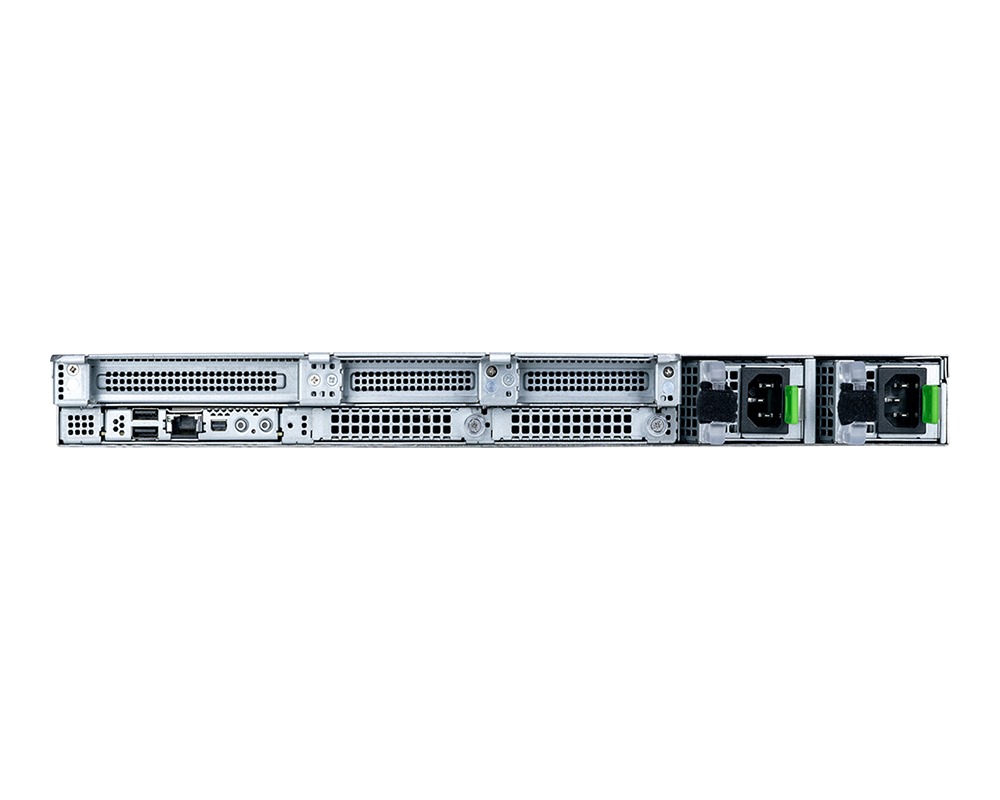

External connectivity consists of four USB ports (2 each in front and back) and a port for remote management. While there is no built-in networking, there are two OCP 3.0 slots for dedicated NICs. There are also three PCIe 5.0 x16 slots for additional networking or other expansion cards.
Storage options include two internal M.2 slots for SSDs and twelve front-accessible hot-swap bays for U.2 NVMe SSDs. We generally recommend putting the OS on one of the M.2 slots and then using the easy-access bays in the front for storage as needed.
External connectivity consists of four USB ports (2 each in front and back) and a port for remote management. While there is no built-in networking, there are two OCP 3.0 slots for dedicated NICs. There are also three PCIe 5.0 x16 slots for additional networking or other expansion cards.
Model: MSI S3066X171RAU12
Specifications
| Socket | 4710 |
| CPU Compatibility | Xeon 6700E, 6500P, and 6700P series (up to 350W TDP) |
| Form Factor | 1U |
| Cooling System | Heatsink and Fan |
| Number of Fans | 8 |
| Color | Black |
| Windows Support | Windows Server 2025 |
| Linux Support | Yes |
Memory Support | |
| Type | DDR5 ECC Registered |
| Maximum Speed | 6400 MHz |
| Number of Slots | 16 |
| Maximum Size per Slot | 256 GB |
| Maximum Amount Supported | 4096 GB |
Onboard Video | |
| Chipset Manufacturer | ASpeed |
| Processor Type | AST2600 |
| Maximum Resolution | 1920x1200 |
| Mini DisplayPort | 1 |
| Notes: | Adapting to non-DP may require an active adapter |
External Connections | |
| USB 2.0 | 2 |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| Mgmt LAN (RJ45) | 1 |
| Serial (COM) Port | 1 |
Internal Connections | |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| M.2 Connector | 2 |
| M.2 Support | 2x 110mm PCIe 5.0 (x2) |
| Maximum M.2 Length | 110 mm (4.3 in) |
| TPM (module sold separately) | 1 |
| Compatible TPM | MSI TPM20-IRS |
| VROC Key Header | Yes |
Expansion Slots | |
| Slot 1 | PCI Express 5.0 x16 |
| Slot 2 | PCI Express 5.0 x16 |
| Slot 3 | PCI Express 5.0 x16 |
Additional Information | |
| RAID Support | RAID 0/1/5/10 (VROC Key Required) |
| Remote Management | Included |
| Includes Rail Kit | Yes |
| Hearing Protection Advised | Yes |
BIOS Features | |
| UEFI BIOS | No |
| EZ Flash | No |
| OC Profiles | No |
Dimensions | |
| Height | 43 mm (1.7 in) |
| Width | 438 mm (17.2 in) |
| Depth | 770 mm (30.3 in) |
| Net Weight | 22.1 kg (48.7 lbs) |
Power Supply | |
| External Connector | C13 |
| Input Voltage | 100-240 Vac |
| Wattage at 120V | 1000 W |
| Wattage at 240V | 1500 W |
| Redundancy | 1+1 |
