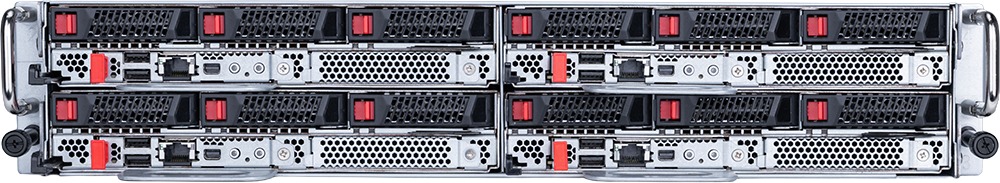

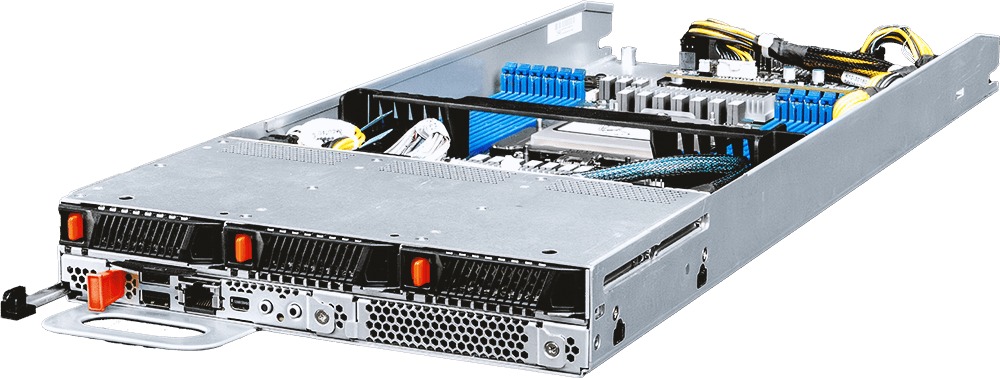

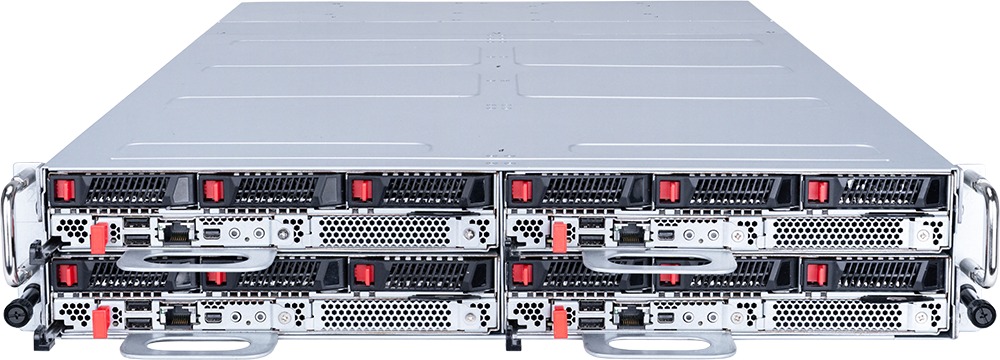

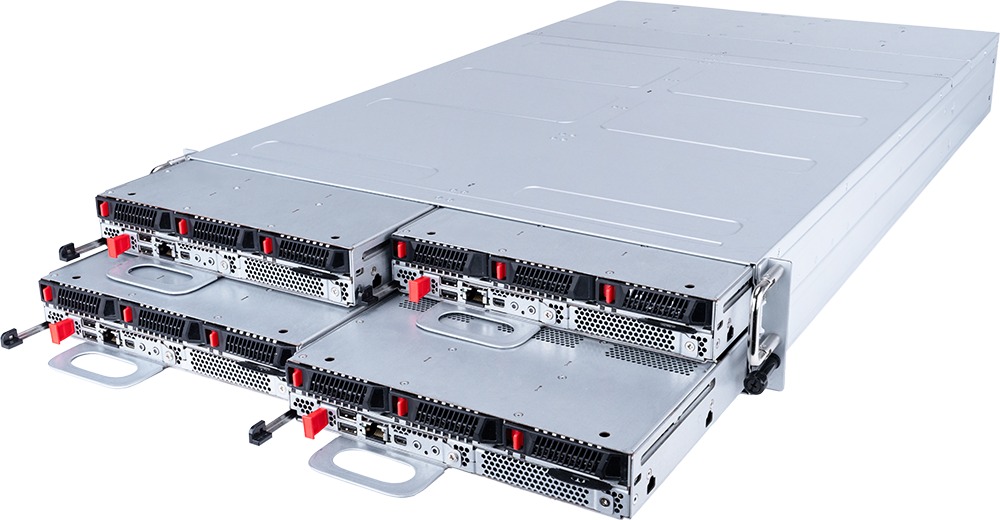

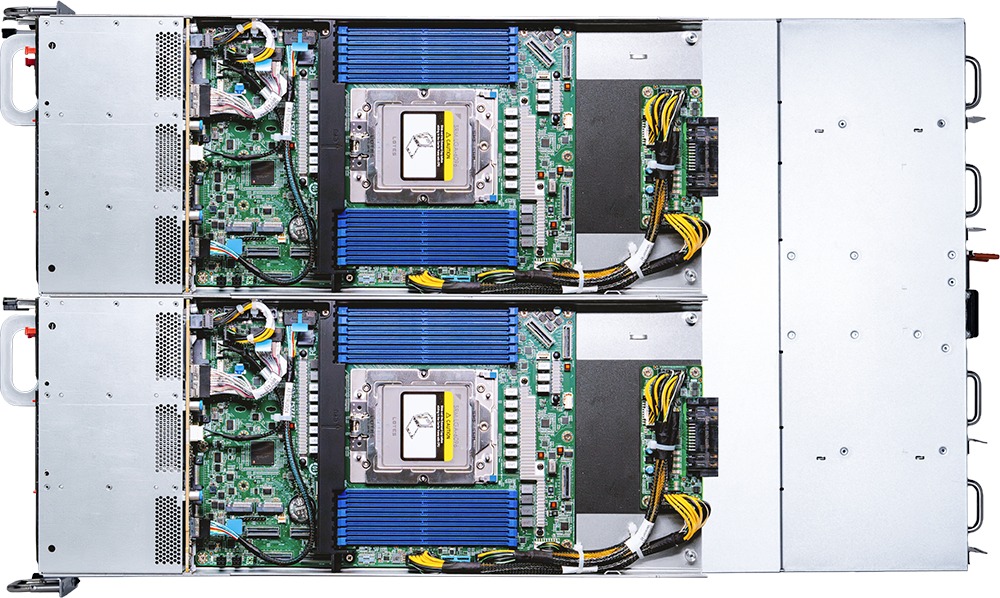

The MSI S4051D270RAU3-X4 is a 2U rackmount that is actually home to four independent server nodes. Each node supports an AMD EPYC 9005 processor, up to 2TB of memory, two M.2 drives, three U.2 drives, and an OCP network adapter. They all have their own I/O connectivity on the front: two USB ports, an RJ45 for remote management, and DisplayPort output in case local management is needed. A pair of high-wattage, redundant power supplies handles all four systems.
Model: MSI S4051D270RAU3-X4
Specifications
| Socket | SP5 |
| CPU Compatibility | EPYC 9004/9005 Series (up to 400W) |
| Form Factor | 2U |
| Chipset Manufacturer | AMD |
| Cooling System | Passive Heatsink |
| Number of Fans | 4 |
| Color | Black |
| Windows Support | Windows Server 2025 |
| Linux Support | Yes |
Memory Support | |
| Type | DDR5 ECC Registered |
| Maximum Speed | 6400 MHz |
| Number of Slots | 12 |
| Maximum Size per Slot | 256 GB |
| Maximum Amount Supported | 3072 GB |
Onboard Video | |
| Chipset Manufacturer | ASpeed |
| Processor Type | AST2600 |
| Maximum Resolution | 1920x1200 |
| Mini DisplayPort | 1 |
External Connections | |
| USB 2.0 | 1 |
| Mgmt LAN (RJ45) | 1 |
| Serial (COM) Port | 1 |
| BIOS Flashback | No |
Internal Connections | |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| M.2 Connector | 2 |
| M.2 Support | 2x 80-110mm PCIe 3.0 x2 |
| Maximum M.2 Length | 110 mm (4.3 in) |
| TPM (module sold separately) | 1 |
| Compatible TPM | MSI TPM20-IRS |
Additional Information | |
| Integrated IO Shield | Yes |
| Remote Management | Onboard |
| Includes Rail Kit | Yes |
| Hearing Protection Advised | Yes |
BIOS Features | |
| UEFI BIOS | No |
| EZ Flash | No |
| OC Profiles | No |
Power Supply | |
| External Connector | C20 |
| Input Voltage | 100-240 Vac |
| Wattage at 120V | 1008 W |
| Wattage at 240V | 2700 W |
| Redundancy | 1+1 |
Features
- Three PCIe 5.0 x4 U.2 hot-swap bays per node
- Each node has an OCP 3.0 slot for NIC support

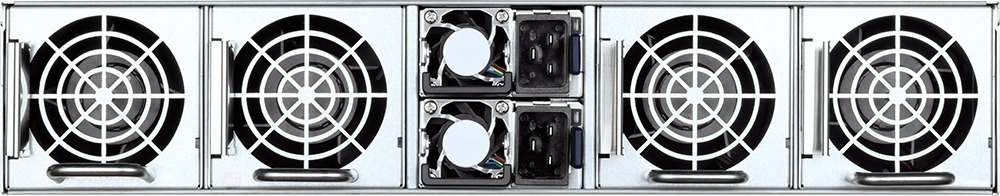

- PSU is shared between nodes
