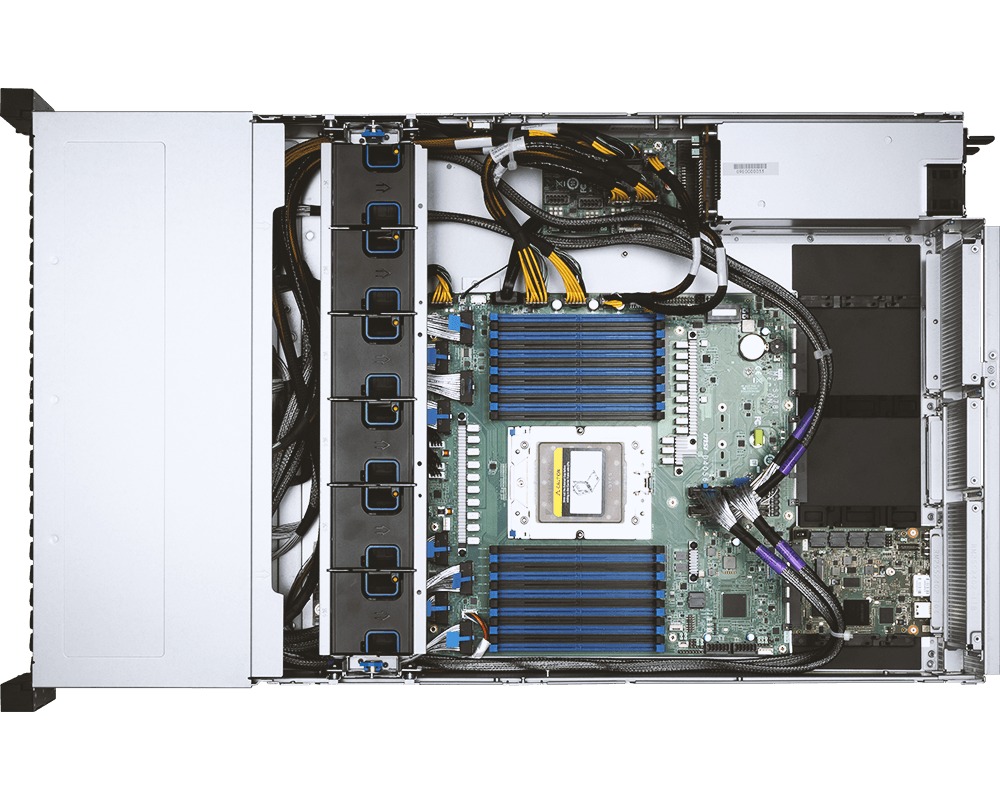

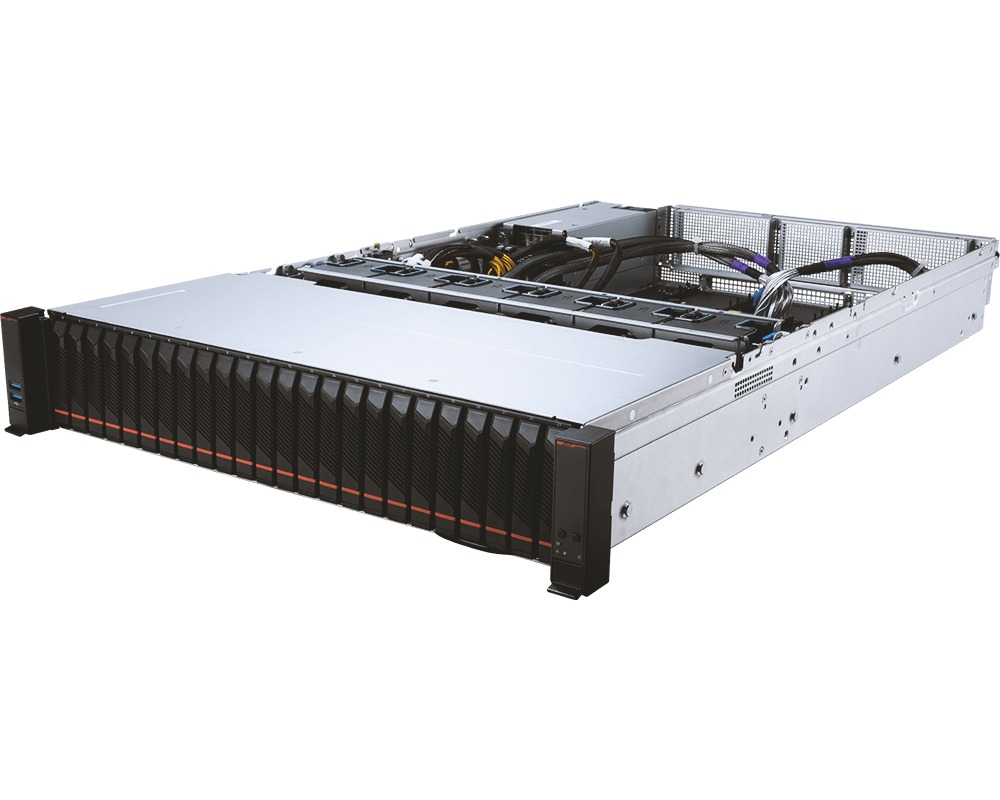

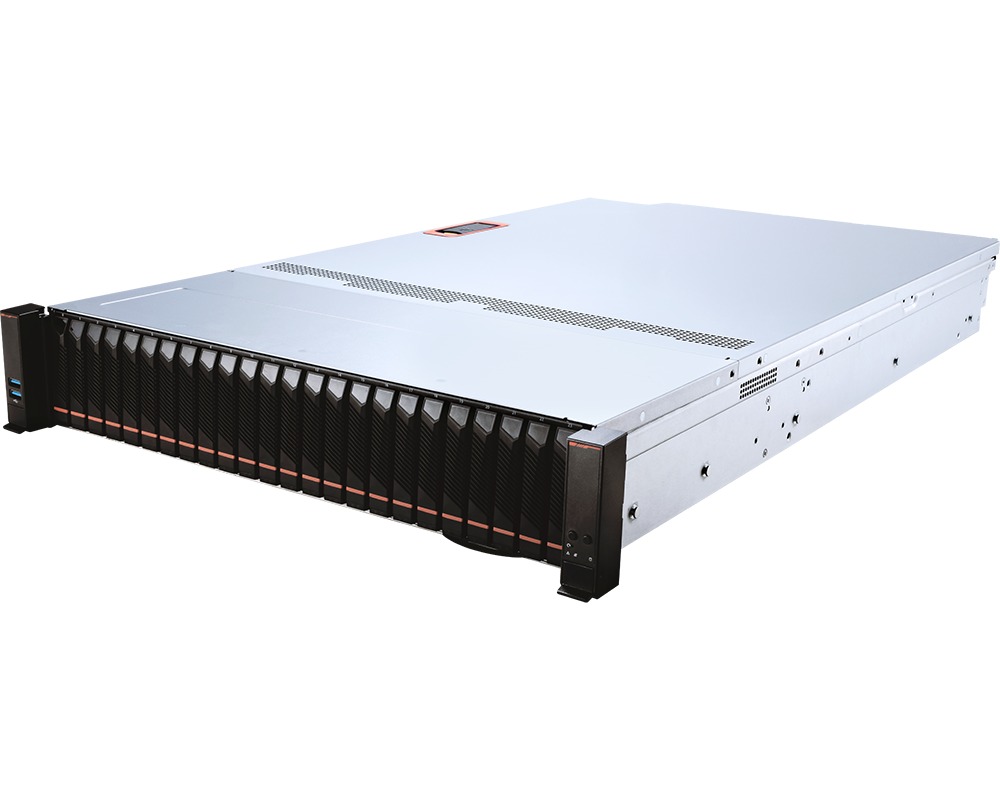

The MSI S4056X171RAU12 is a 2U rackmount server offering CPU compute with expansive built-in storage capabilities. It utilizes an AMD EPYC 9005 Series processor, which supports a massive 128 PCI-Express Gen 5 lanes as well as 12 DDR5 memory channels - ensuring plenty of bandwidth and connectivity for various networking options and a host of NVMe solid-state drives.

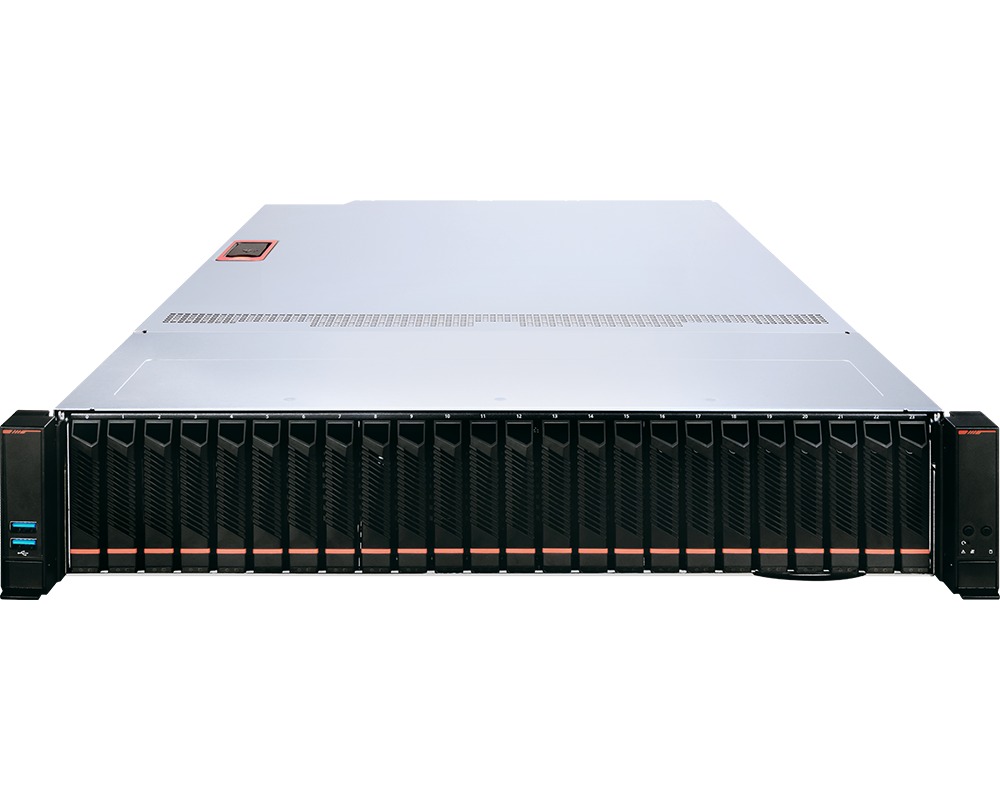

Storage options include two internal M.2 slots for SSDs and twenty four front-accessible hot-swap bays for U.2 NVMe SSDs. We generally recommend putting the OS on one of the M.2 slots and then using the easy-access bays in the front for storage as needed.
External connectivity consists of four USB ports (2 each in front and back) and a port for remote management. While there is no built-in networking, there are two OCP 3.0 slots for dedicated NICs.
Storage options include two internal M.2 slots for SSDs and twenty four front-accessible hot-swap bays for U.2 NVMe SSDs. We generally recommend putting the OS on one of the M.2 slots and then using the easy-access bays in the front for storage as needed.
External connectivity consists of four USB ports (2 each in front and back) and a port for remote management. While there is no built-in networking, there are two OCP 3.0 slots for dedicated NICs.
Model: MSI S4056X271RAU24
Specifications
| Socket | SP5 |
| CPU Compatibility | EPYC 9004 and 9005 (up to 500W) |
| Form Factor | 2U |
| Number of Fans | 6 |
Memory Support | |
| Type | DDR5 ECC Registered |
| Maximum Speed | 5200 MHz |
| Number of Slots | 24 |
| Maximum Size per Slot | 256 GB |
| Maximum Amount Supported | 6144 GB |
Onboard Video | |
| Chipset Manufacturer | ASpeed |
| Processor Type | AST2600 |
| Maximum Resolution | 1920x1200 |
| Mini DisplayPort | 1 |
External Connections | |
| USB 2.0 | 1 |
| USB 3.2 Gen 1 (USB 3.0) | 2 |
| Mgmt LAN (RJ45) | 1 |
| Serial (COM) Port | 1 |
Internal Connections | |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| M.2 Connector | 2 |
| M.2 Support | 2x 80-110mm PCIe 3.0 |
| Maximum M.2 Length | 110 mm (4.3 in) |
| TPM (module sold separately) | 1 |
| Compatible TPM | MSI TPM20-IRS |
| VROC Key Header | No |
| Notes: | 8x MCIO headers |
Additional Information | |
| Remote Management | Included |
| Includes Rail Kit | Yes |
| Hearing Protection Advised | Yes |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | No |
| OC Profiles | No |
Dimensions | |
| Height | 87 mm (3.4 in) |
| Width | 438 mm (17.2 in) |
| Depth | 764 mm (30.1 in) |
Power Supply | |
| Input Voltage | 100-240 Vac |
| Wattage at 120V | 1000 W |
| Wattage at 240V | 2000 W |
| Redundancy | 1+1 |
External Drive Bays

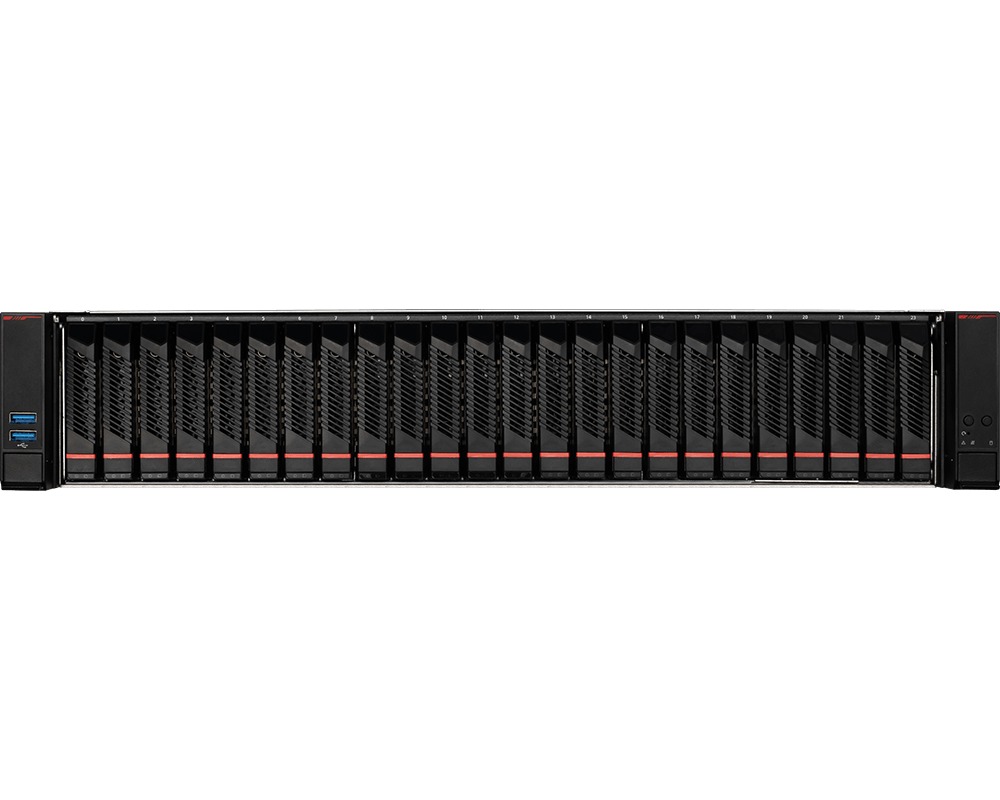

Front:
24x 2.5" hot-swap bays (NVMe)
- NVMe via U.2, PCIe 5.0 link

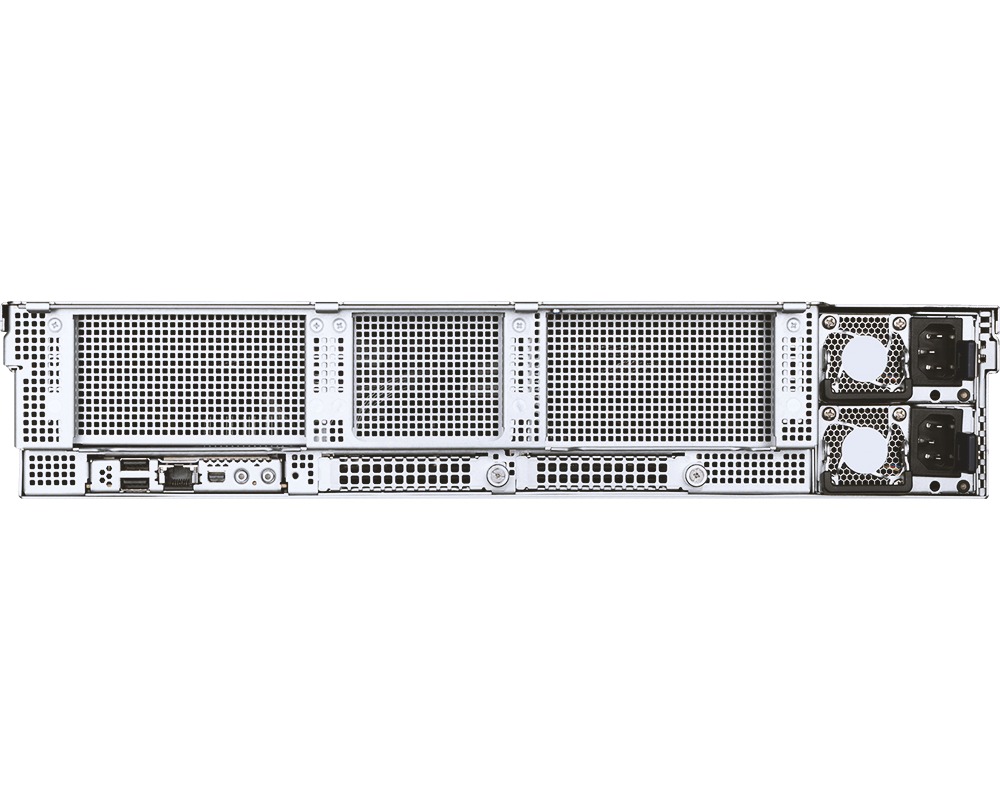

Rear USB 2.0 ports are configured as:
Upper: COM via USB
Lower: USB 2.0
