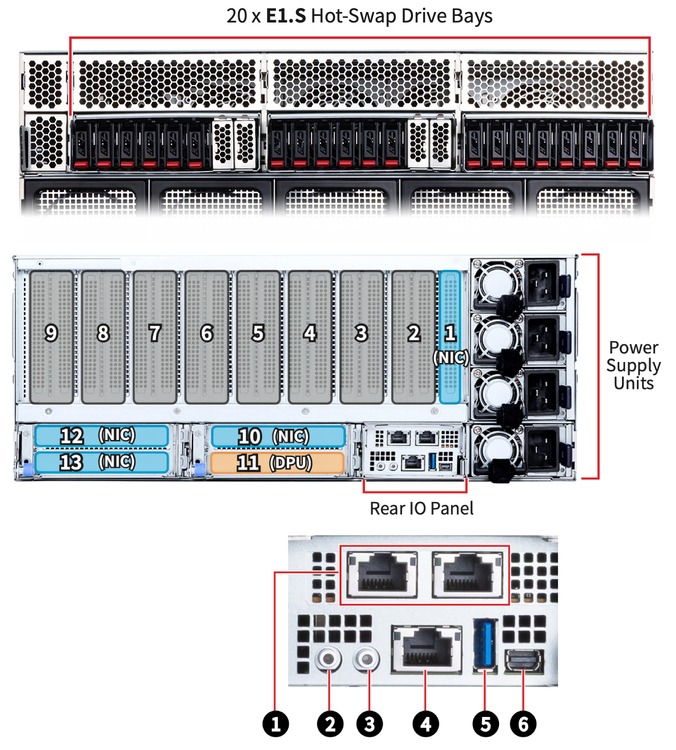

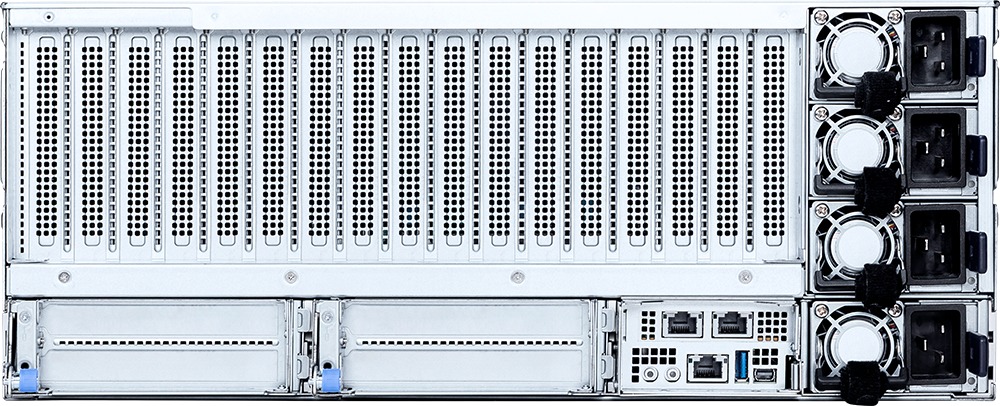

MSI S5063G480RAE20 Xeon Octo GPU 4U Server Ports
10G LAN Ports (RJ-45): RJ-45 plugs for connecting to a wired Local Area Network (LAN) via Ethernet at up to 10 Gbps.
Power Switch: On/off button for the device.
UID Button: Press to turn both front and rear Unit Identification (UID) Lights on / off.
iKVM LAN Port (RJ-45): RJ-45 plug for remote management of computer via iKVM (Keyboard/Video/Mouse over IP).
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
Mini Displayport Out: Mini DisplayPort for outputting digital video and audio. May require an adapter for some monitors.

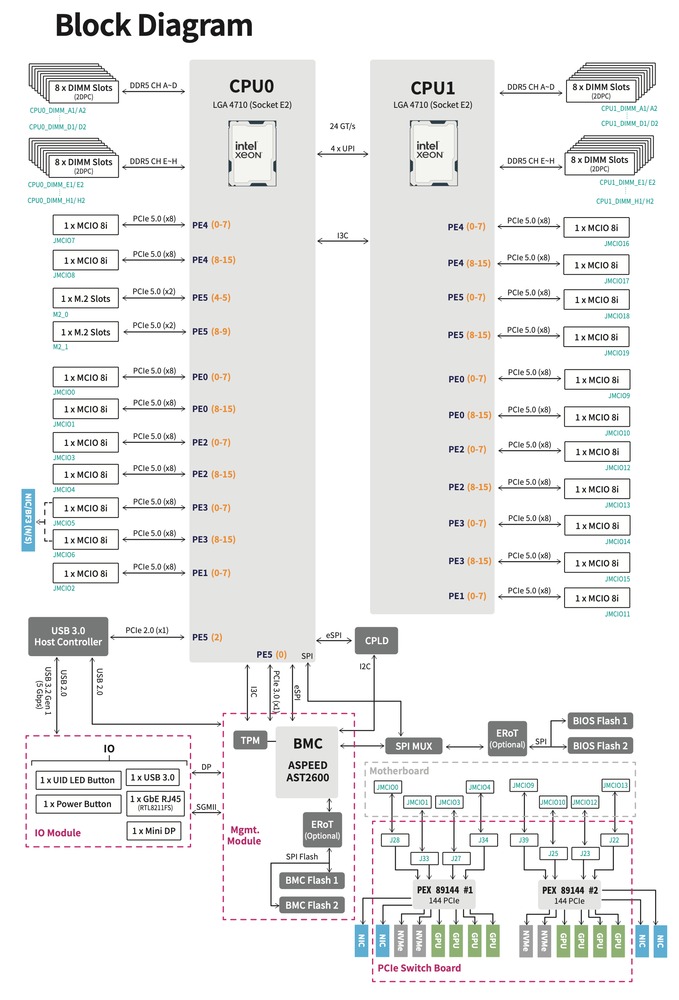

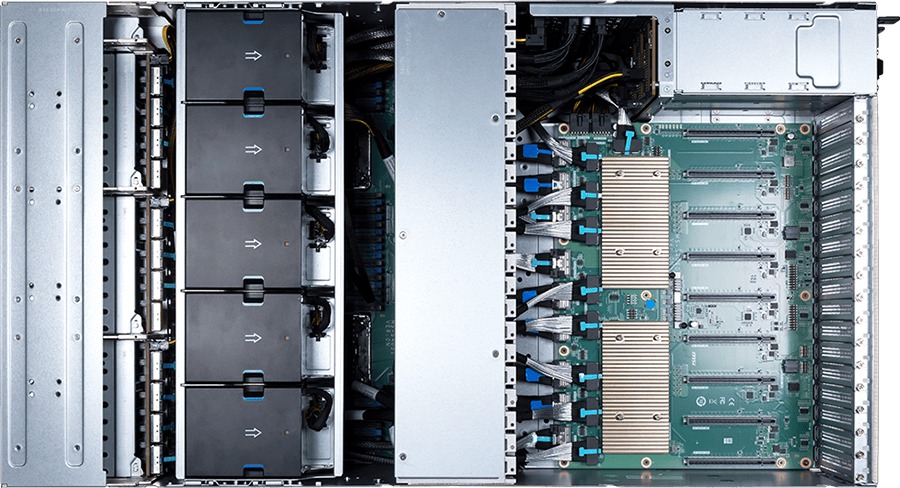

MSI S5063G480RAE20 Xeon Octo GPU 4U Server Schematic
Storage options include two internal M.2 slots for SSDs and twenty front-accessible E1.S bays for high-speed NVMe SSDs. We generally recommend putting the OS on one of the M.2 slots and then using the E1.S bays for storage as needed.
External connectivity consists of a single USB port, dual 10G Ethernet, and a port for remote management. Internally there are eight PCIe 5.0 x16 slots for dual-width GPUs of up to 600W each, along with five more PCIe 5.0 slots for various NICs or other expansion cards.

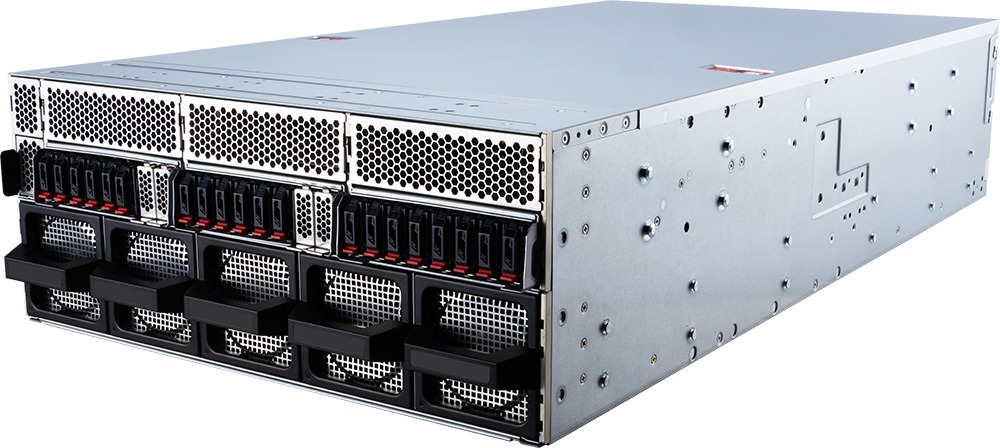

Model: MSI S5063G480RAE20
Specifications
| Socket | Dual 4710 |
| CPU Compatibility | Xeon 6700E, 6500P, and 6700P Series (up to 350W TDP) |
| Form Factor | 4U |
| Wired Network Connectivity | Dual 10GbE RJ45 |
| Network Controller | Intel X710-AT2 |
| Cooling System | Heatsink and Fan |
| Number of Fans | 10 |
| Color | Black |
| Windows Support | Windows Server 2025 |
| Linux Support | Yes |
Memory Support | |
| Type | DDR5 ECC Registered |
| Maximum Speed | 6400 MHz |
| Number of Slots | 32 |
| Maximum Size per Slot | 256 GB |
| Maximum Amount Supported | 8192 GB |
Onboard Video | |
| Chipset Manufacturer | ASpeed |
| Processor Type | AST2600 |
| Maximum Resolution | 1920x1200 |
| Mini DisplayPort | 1 |
| Notes: | Adapting to non-DP may require an active adapter |
External Connections | |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| LAN (RJ45) | 2 |
| Mgmt LAN (RJ45) | 1 |
| E1.S Slot | 20 |
| E1.S PCIe Generation | 5.0 |
Internal Connections | |
| M.2 Connector | 2 |
| M.2 Support | 2x 80-110mm PCIe 5.0 x2 |
| Maximum M.2 Length | 110 mm (4.3 in) |
| VROC Key Header | Yes |
| Notes: | Has integrated hardware TPM |
Expansion Slots | |
| Slot 1 | PCI Express 5.0 x16 |
| Slot 2 | PCI Express 5.0 x16 |
| Slot 3 | PCI Express 5.0 x16 |
| Slot 4 | PCI Express 5.0 x16 |
| Slot 5 | PCI Express 5.0 x16 |
| Slot 6 | PCI Express 5.0 x16 |
| Slot 7 | PCI Express 5.0 x16 |
| Slot 8 | PCI Express 5.0 x16 |
| Slot 9 | PCI Express 5.0 x16 |
| Slot 10 | PCI Express 5.0 x16 |
| Slot 11 | PCI Express 5.0 x16 |
| Slot 12 | PCI Express 5.0 x16 |
| Slot 13 | PCI Express 5.0 x16 |
Additional Information | |
| RAID Support | 0/1/5/10 (with VROC key) |
| Integrated IO Shield | Yes |
| Remote Management | Onboard |
| Includes Rail Kit | Yes |
| Hearing Protection Advised | Yes |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | No |
| OC Profiles | No |
Dimensions | |
| Height | 175 mm (6.9 in) |
| Width | 438.5 mm (17.3 in) |
| Depth | 800 mm (31.5 in) |
| Net Weight | 39.34 kg (86.7 lbs) |
Power Supply | |
| External Connector | C20 |
| Input Voltage | 100-240 Vac |
| Wattage at 120V | 1200 W |
| Wattage at 240V | 3200 W |
| Redundancy | 3+1 |

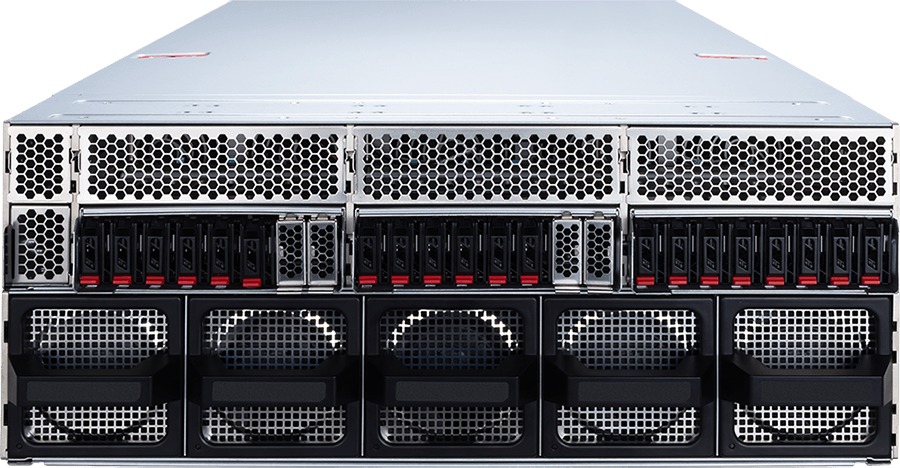

External Drive Bays
Front Bays:
20x E1.S hot-swap bays (NVMe, PCIe 5.0 x4)
Expansion Slots
13 Slots Total
Rear:
8x PCIe 5.0 x16 FHFL double wide slots for GPUs
1x PCIe 5.0 x16 FHFL single wide slot for NIC, by GPU slots
4x PCIe 5.0 x16 FHFL single wide slots for NIC, below GPU slots. 1 DPU supported.
Aspeed graphics may require an active adapter if a non-DP output is desired
