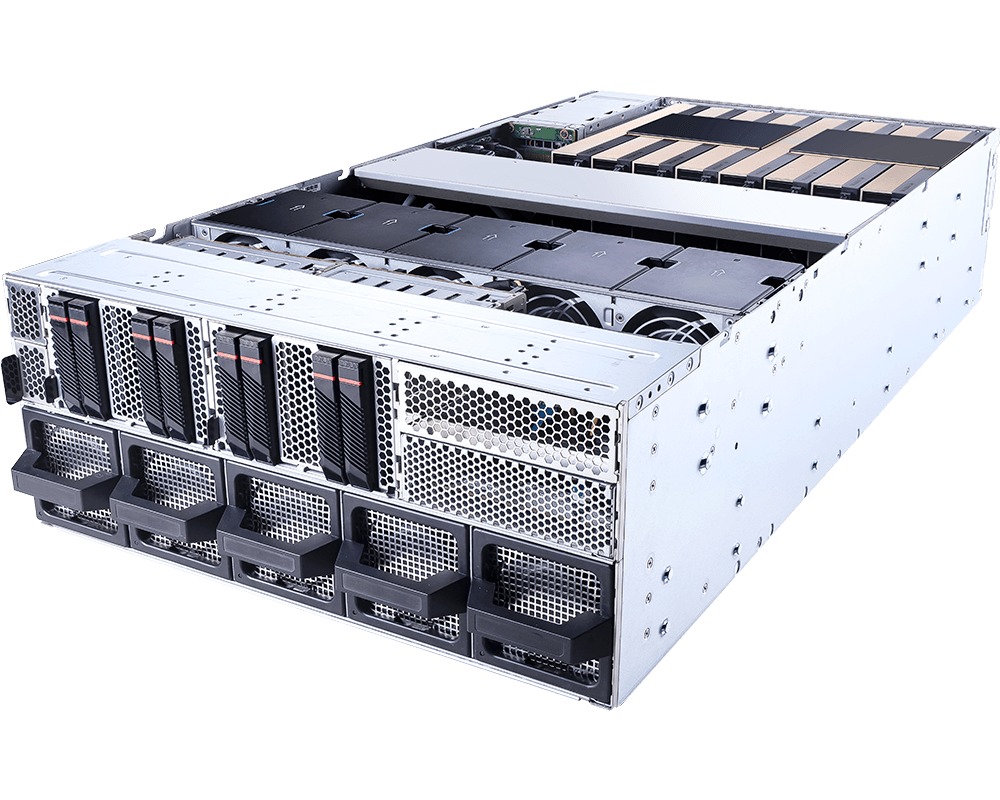

The MSI S6053G480RAU8 is a 4U rackmount server designed for extreme GPU compute with NVIDIA MGX technology. It utilizes a pair of AMD EPYC 9005 Series processors, which each support 128 PCI-Express Gen 5 lanes as well as 12 DDR5 memory channels. That combination ensures plenty of bandwidth and connectivity for running up to eight dual-slot GPUs, high-speed networking, and a few NVMe solid-state drives.

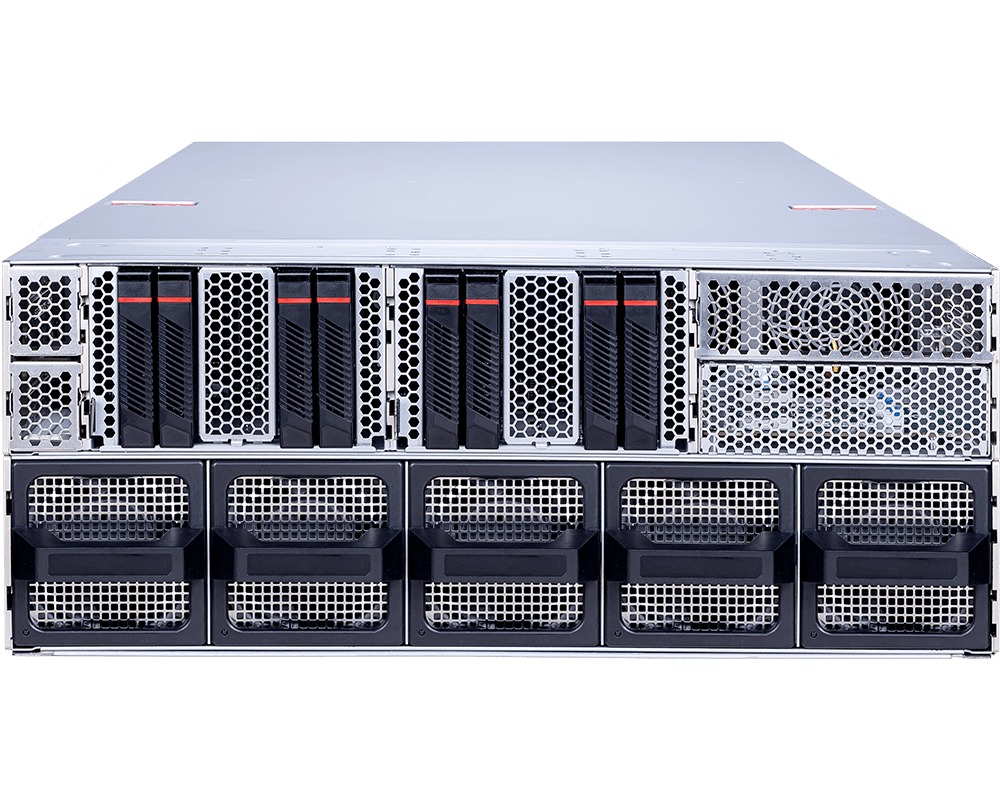

Storage options include two internal M.2 slots for SSDs and eight front-accessible, hot-swap U.2 bays for high-speed NVMe SSDs. We generally recommend putting the OS on one of the M.2 slots and then using the front bays for storage as needed.

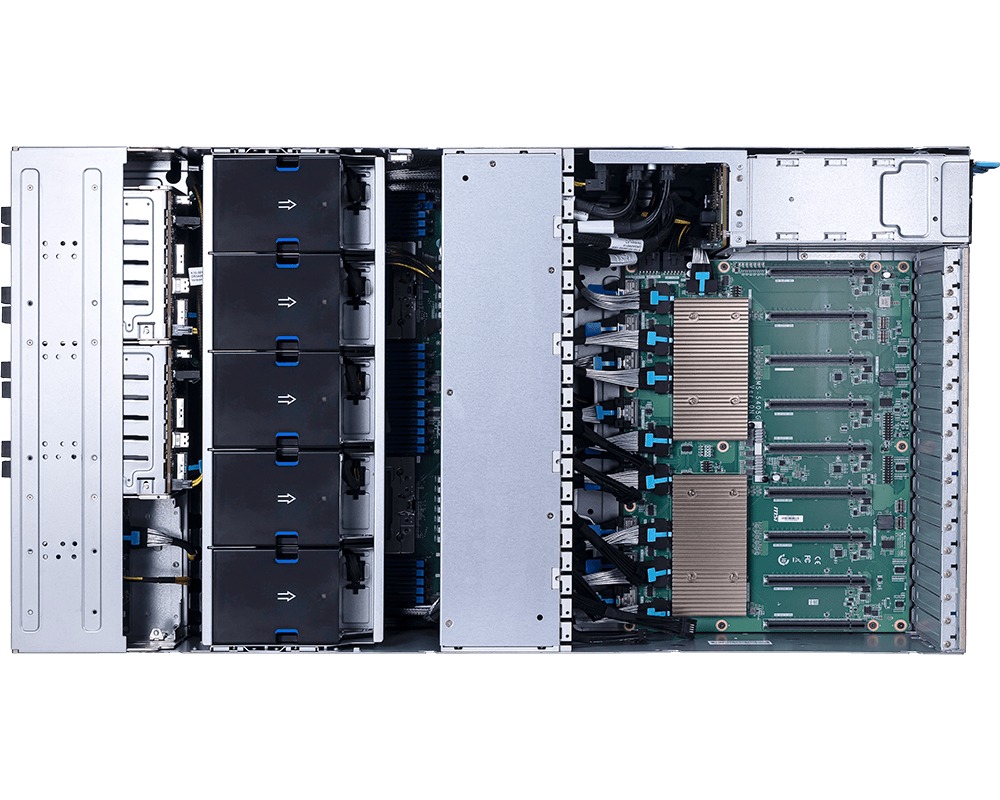

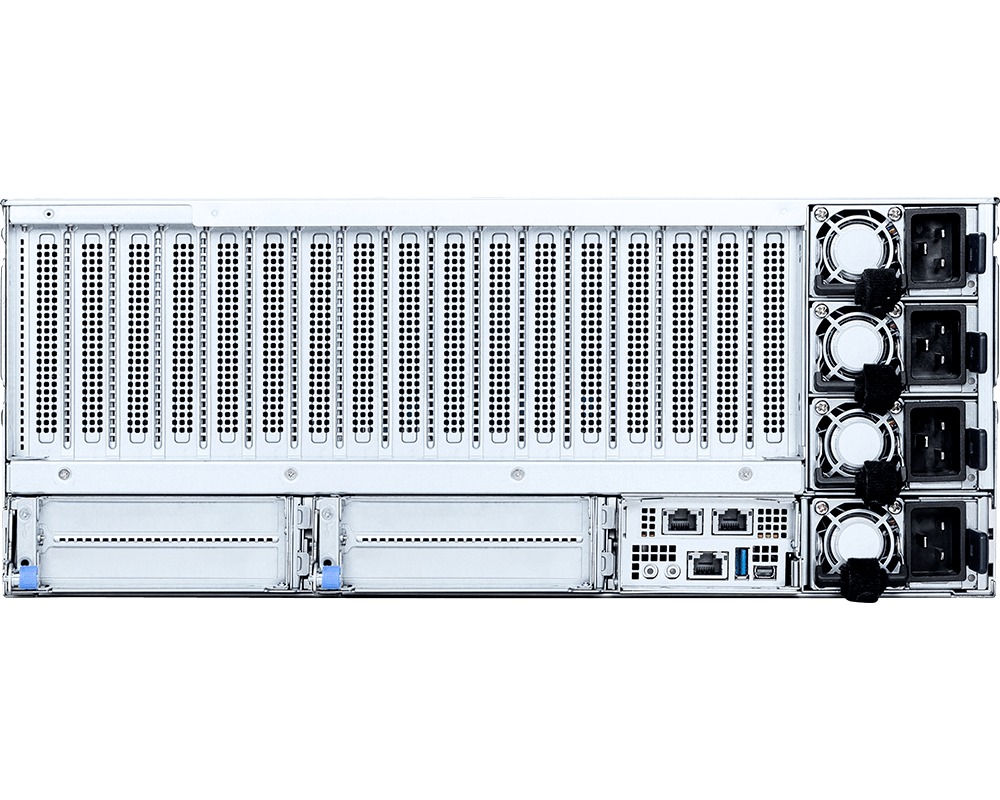

External connectivity consists of a single USB port, dual 10G Ethernet, and a port for remote management. Internally there are eight PCIe 5.0 x16 slots for dual-width GPUs of up to 600W each, along with five more PCIe 5.0 slots for various NICs or other expansion cards.
Storage options include two internal M.2 slots for SSDs and eight front-accessible, hot-swap U.2 bays for high-speed NVMe SSDs. We generally recommend putting the OS on one of the M.2 slots and then using the front bays for storage as needed.
External connectivity consists of a single USB port, dual 10G Ethernet, and a port for remote management. Internally there are eight PCIe 5.0 x16 slots for dual-width GPUs of up to 600W each, along with five more PCIe 5.0 slots for various NICs or other expansion cards.
Model: MSI S6053G480RAU8
Specifications
| Socket | SP5 |
| CPU Compatibility | Dual AMD EPYC? 9005 series processors, up to TDP 500W |
| Form Factor | 4U |
| Wired Network Connectivity | Dual 10GbE RJ45 |
| Network Controller | Intel X710-AT2 |
| Cooling System | Heatsink and Fan |
| Number of Fans | 10 |
| Windows Support | Windows Server 2025 |
| Linux Support | Yes |
Memory Support | |
| Type | DDR5 ECC Registered |
| Maximum Speed | 6400 MHz |
| Number of Slots | 24 |
| Maximum Size per Slot | 256 GB |
| Maximum Amount Supported | 6144 GB |
Onboard Video | |
| Chipset Manufacturer | ASpeed |
| Processor Type | AST2600 |
| Maximum Resolution | 1920x1200 |
| Mini DisplayPort | 1 |
| DisplayPort Version | 1.1 |
| Notes: | Adapting to non-DP may require an active adapter |
External Connections | |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| LAN (RJ45) | 2 |
| Mgmt LAN (RJ45) | 1 |
Internal Connections | |
| M.2 Connector | 2 |
| M.2 Support | 2x 80-110mm PCIe 3.0 x2 |
| Maximum M.2 Length | 110 mm (4.3 in) |
| Notes: | On-board TPM 2.0 |
Expansion Slots | |
| Slot 1 | PCI Express 5.0 x16 |
| Slot 2 | PCI Express 5.0 x16 |
| Slot 3 | PCI Express 5.0 x16 |
| Slot 4 | PCI Express 5.0 x16 |
| Slot 5 | PCI Express 5.0 x16 |
| Slot 6 | PCI Express 5.0 x16 |
| Slot 7 | PCI Express 5.0 x16 |
| Slot 8 | PCI Express 5.0 x16 |
| Slot 9 | PCI Express 5.0 x16 |
| Slot 10 | PCI Express 5.0 x16 |
| Slot 11 | PCI Express 5.0 x16 |
| Slot 12 | PCI Express 5.0 x16 |
| Slot 13 | PCI Express 5.0 x16 |
Additional Information | |
| RAID Support | Controller Required |
| Remote Management | Onboard |
| Includes Rail Kit | Yes |
| Hearing Protection Advised | Yes |
BIOS Features | |
| UEFI BIOS | No |
| EZ Flash | No |
| OC Profiles | No |
Dimensions | |
| Height | 175 mm (6.9 in) |
| Width | 438.5 mm (17.3 in) |
| Depth | 800 mm (31.5 in) |
| Net Weight | 40.92 kg (90.2 lbs) |
Power Supply | |
| External Connector | C20 |
| Input Voltage | 100-240 Vac |
| Wattage at 120V | 1200 W |
| Wattage at 240V | 3200 W |
| Redundancy | 3+1 |
