The MSI S6053G481RAU8 is a 4U rackmount server designed for extreme GPU compute with NVIDIA MGX technology. It utilizes a pair of AMD EPYC 9005 Series processors, which each support 128 PCI-Express Gen 5 lanes as well as 12 DDR5 memory channels. That combination ensures plenty of bandwidth and connectivity for running up to eight dual-slot GPUs, high-speed networking, and a few NVMe solid-state drives.
Storage options include two internal M.2 slots for SSDs and eight front-accessible, hot-swap U.2 bays for high-speed NVMe SSDs. We generally recommend putting the OS on one of the M.2 slots and then using the front bays for storage as needed.

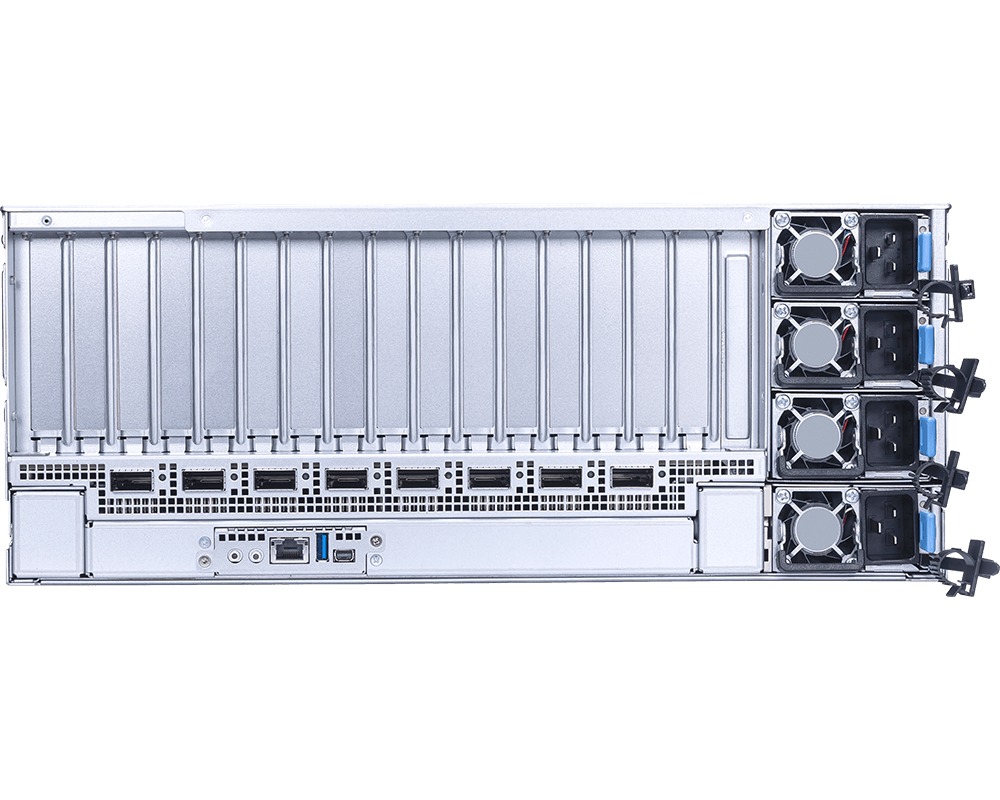

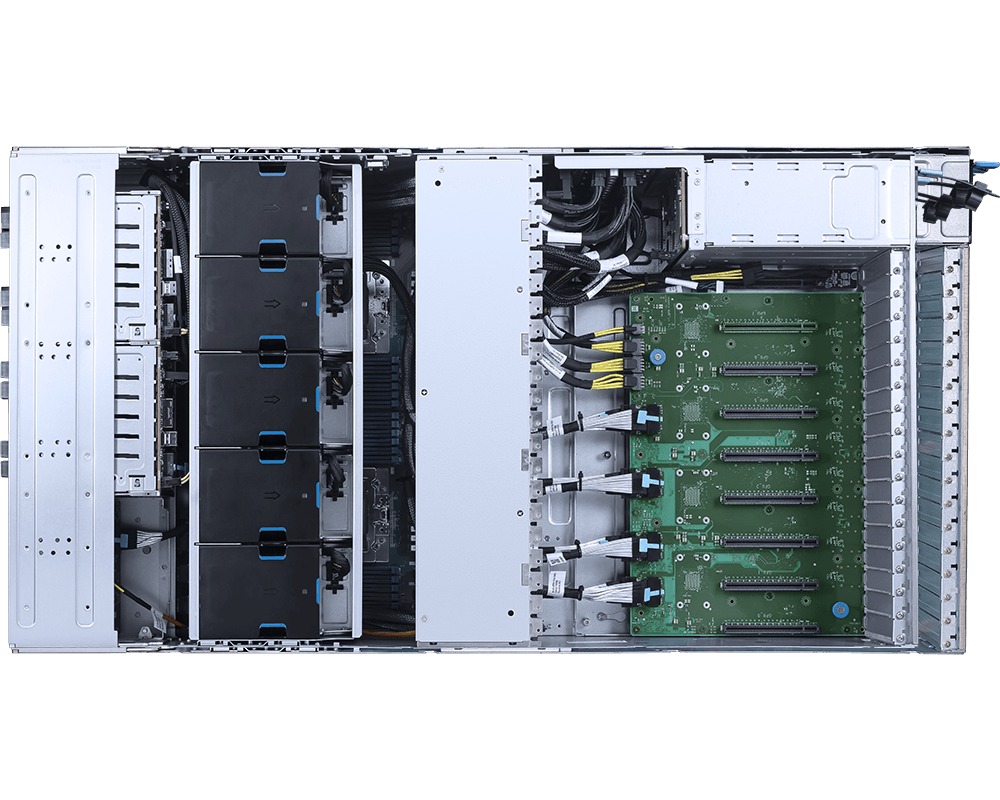

External connectivity consists of a single USB port, four incredibly fast 400G SQFP connectors, and a port for remote management. Internally there are eight PCIe 5.0 x16 slots for dual-width GPUs of up to 600W each.
Storage options include two internal M.2 slots for SSDs and eight front-accessible, hot-swap U.2 bays for high-speed NVMe SSDs. We generally recommend putting the OS on one of the M.2 slots and then using the front bays for storage as needed.
External connectivity consists of a single USB port, four incredibly fast 400G SQFP connectors, and a port for remote management. Internally there are eight PCIe 5.0 x16 slots for dual-width GPUs of up to 600W each.
Model: MSI S6053G481RAU8
Specifications
| Socket | SP5 |
| CPU Compatibility | AMD EPYC 9005 (Up to 500W) |
| Form Factor | 4U |
| Chipset Manufacturer | AMD |
| Chipset | SoC |
| Wired Network Connectivity | 8x NVIDIA ConnectX-8 400G QSFP |
| Cooling System | Heatsink and Fan |
| Number of Fans | 10 |
| Color | Black |
| Windows Support | Windows Server 2025 |
| Linux Support | Yes |
Memory Support | |
| Type | DDR5 ECC Registered |
| Maximum Speed | 6400 MHz |
| Number of Slots | 24 |
| Maximum Size per Slot | 256 GB |
| Maximum Amount Supported | 6144 GB |
Onboard Video | |
| Chipset Manufacturer | ASpeed |
| Mini DisplayPort | 1 |
| Notes: | Adapting to non-DP may require an active adapter |
External Connections | |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| Mgmt LAN (RJ45) | 1 |
Internal Connections | |
| M.2 Connector | 2 |
| M.2 Support | 2x 80-110mm (PCIe 3.0 x2) |
| Maximum M.2 Length | 110 mm (4.3 in) |
| TPM (module sold separately) | 1 |
| Compatible TPM | MSI TPM20-IRS |
Expansion Slots | |
| Slot 1 | PCI Express 6.0 x16 |
| Slot 2 | PCI Express 6.0 x16 |
| Slot 3 | PCI Express 6.0 x16 |
| Slot 4 | PCI Express 6.0 x16 |
| Slot 5 | PCI Express 6.0 x16 |
| Slot 6 | PCI Express 6.0 x16 |
| Slot 7 | PCI Express 6.0 x16 |
| Slot 8 | PCI Express 6.0 x16 |
| Slot 9 | PCI Express 5.0 x16 |
Additional Information | |
| Remote Management | Onboard |
| Includes Rail Kit | Yes |
| Hearing Protection Advised | Yes |
BIOS Features | |
| UEFI BIOS | No |
| EZ Flash | No |
| OC Profiles | No |
Dimensions | |
| Height | 175 mm (6.9 in) |
| Width | 439 mm (17.3 in) |
| Depth | 800 mm (31.5 in) |
| Net Weight | 40.92 kg (90.2 lbs) |
Power Supply | |
| External Connector | C20 |
| Input Voltage | 100-240 Vac |
| Wattage at 120V | 1200 W |
| Wattage at 240V | 3200 W |
| Redundancy | 3+1 |
Features
- Environment
- Operating Temperature: 10C ~ 35C (50F ~ 95F)
- Operating Humidity: 8% to 85% (non-condensing)
- Non-operating Temperature: -30C ~ 60C (-40F to 140F)
- Non-operating Relative Humidity: 8% to 90% (non-condensing)
- Drive Bays

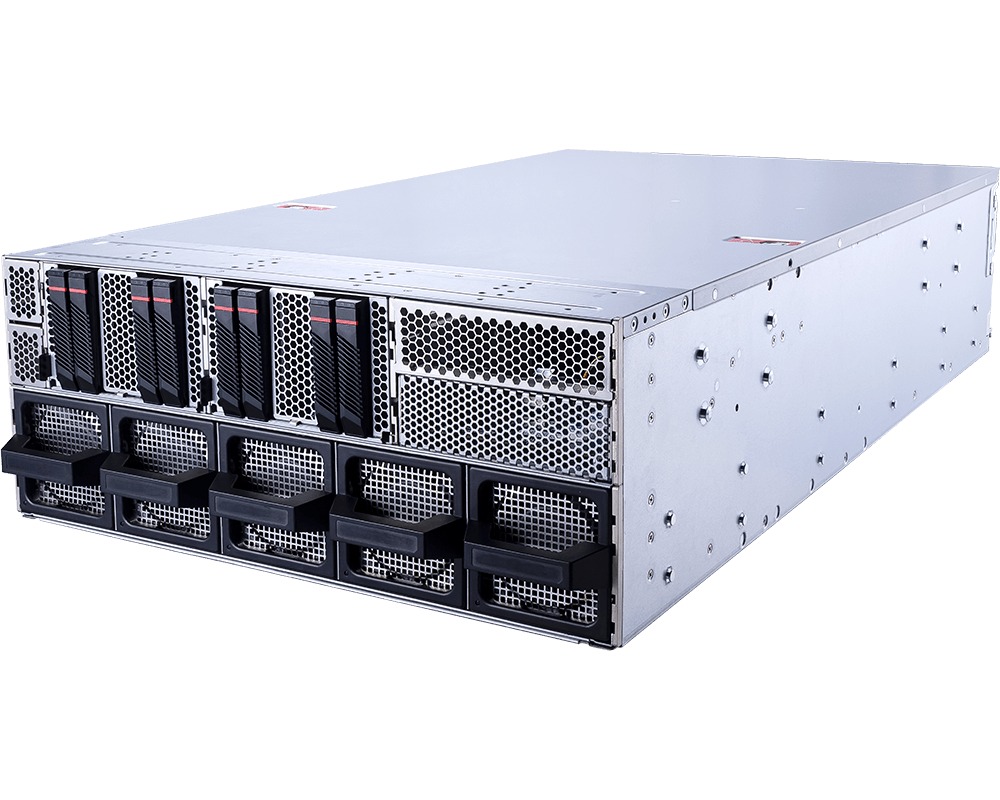

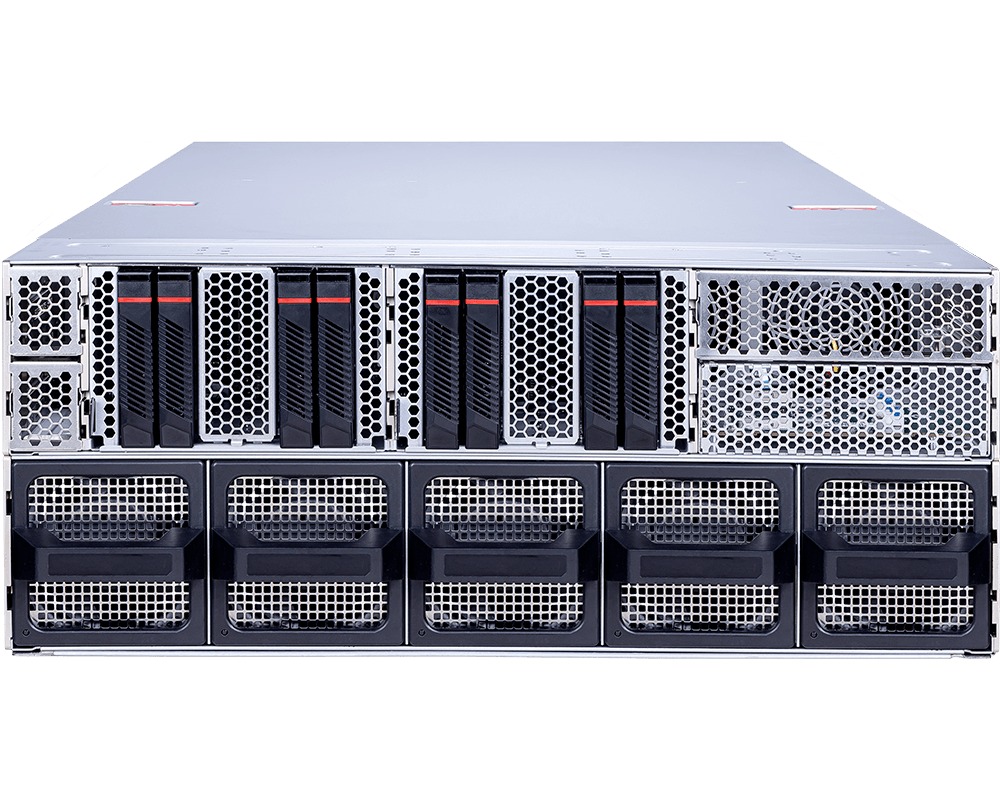

- (8) Front hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays (4 from CPU0, 4 from CPU1)
- Important Note: This server does not support standard size GPU expansion slots. Ensure your accelerator comes with the necessary short bracket.
