MSI XpertStation WS300 (DGX Station)

Motherboard

MSI XpertStation WS300 (DGX Station) Main Picture


MSI XpertStation WS300 (DGX Station) Picture 97470
The XpertStation is MSI's variant of NVIDIA's DGX Station platform, which is a full tower workstation for AI development, model fine-tuning, and inference. It is most noteworthy for featuring the massive GB300 superchip, made up of a powerful Blackwell-architecture GPU with 252GB of high-bandwidth memory and an ARM-based CPU that features another 496GB of slower DDR5 memory. Those can be pooled to run huge AI models, though large models will run a bit slower when utilizing the lower-speed DDR5.

Unlike the smaller DGX Spark, this system has some room for additional internal components. For users who want high-performance graphics, a dedicated video card can be installed. There are also two unused M.2 slots for more storage and a slot for a WiFi module. A 10Gb Ethernet port is built-in, along with dual 400G ConnectX-8 QSFP ports for high-speed networking. A few USB and audio ports are also available, for peripherals.

In terms of software, the XpertStation comes with an NVIDIA-customized version of Ubuntu Linux, branded as DGX OS, as well as NVIDIA development tools pre-installed.

Model: MSI WS300T60L

Specifications

Chipset Manufacturer NVIDIA
Wired Network Connectivity 10GbE RJ45 + Dual NVIDIA ConnectX-8 400G QSFP
Cooling System Liquid
Number of Fans 7
Color Black
Linux Support Yes
Memory Support
Type LPDDR5X
Included Capacity 496GB
Onboard Video
Chipset Manufacturer NVIDIA
Processor Type Blackwell Ultra
Onboard Memory 252GB MB
Maximum Resolution 1024 x 768
Mini DisplayPort 1

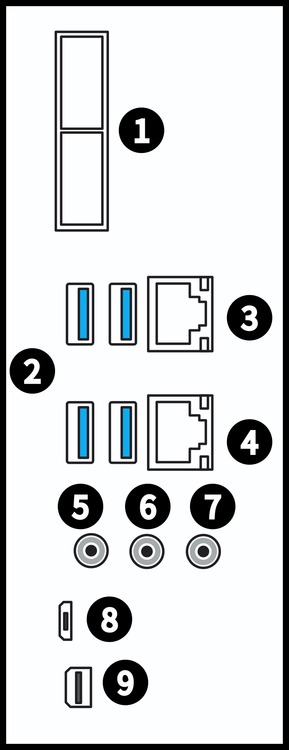

External Connections
USB 3.2 Gen 2 (USB 3.1) 6
USB 3.2 Gen 2 Type C 2
Audio Out Stereo
Audio In Line-In/Microphone
LAN (RJ45) 1
Mgmt LAN (RJ45) 1
Internal Connections
M.2 Connector 4
M.2 Support 2x 80mm PCIe 5.0, 2x 80mm PCIe 6.0
Maximum M.2 Length 80 mm (3.1 in)
Expansion Slots
Slot 1 PCI Express 5.0 x16
Slot 3 PCI Express 5.0 x8 in a x16 size
Slot 4 PCI Express 5.0 x8 in a x16 size
Additional Information
Integrated IO Shield Yes
Remote Management Onboard
BIOS Features
UEFI BIOS Yes
EZ Flash No
OC Profiles No
Dimensions
Height 529 mm (20.8 in)
Width 246 mm (9.7 in)
Depth 571 mm (22.5 in)
Power Supply
External Connector C20
Input Voltage 100-240 Vac
Wattage at 120V 1600 W
Wattage at 240V 1600 W
Redundancy None
Integrated CPU
Total Number of Cores 72

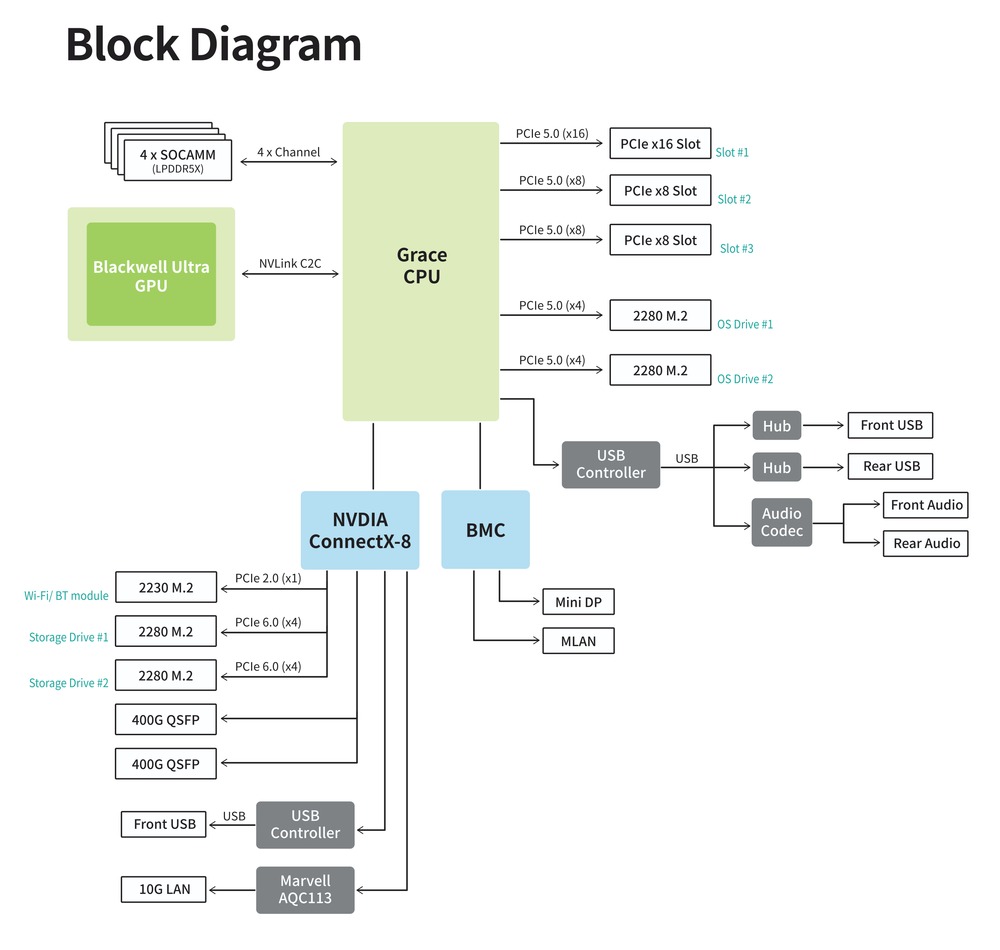

2x PCIe 5.0 M.2 slots are pre-populated with boot drives, connected to CPU.

2x PCIe. 6.0 M.2 slots are available for expansion, connected to CX8 chipset.
