Puget B560i 15.6-inch Notebook w/ Intel UMA

Motherboard

Puget B560i 15.6-inch Notebook w/ Intel UMA Picture 26599Puget B560i 15.6-inch Notebook w/ Intel UMA Picture 26387Puget B560i 15.6-inch Notebook w/ Intel UMA Picture 26388Puget B560i 15.6-inch Notebook w/ Intel UMA Picture 26390Puget B560i 15.6-inch Notebook w/ Intel UMA Picture 29591Puget B560i 15.6-inch Notebook w/ Intel UMA Picture 29592
Model: Clevo W650SZ

Specifications:
spacer
Socket  PGA947
CPU Compatibility  Intel 4th Generation Mobile Processors up to 47W
Form Factor  Notebook
Chipset Manufacturer  Intel
Chipset  HM86
Network Connectivity  Gigabit Networking
Network Controller  Realtek 8167
Audio Controller  VIA High Definition Audio
Cooling System  Heatsink and Fan
Number of Fans  1
Color  Black
Notebook-Display
Screen Size  15.6 Inch
Widescreen  Yes
Memory Support
Type  DDR3
Maximum Speed  1600 MHz
Number of Slots  2
Maximum Size per Slot  8 GB
Maximum Amount Supported  16 GB
Onboard Video
Chipset Manufacturer  Intel
Processor Type  Integrated
VGA  1
HDMI  1
HDMI Version  1.4a

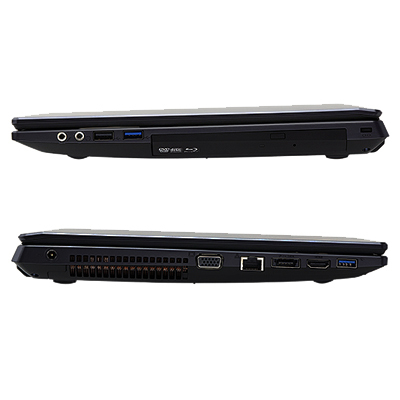

External Connections
USB 2.0  1
USB 3.0  3
Audio Out  Stereo
Audio In  Line-In/Microphone
External SATA  1
LAN (RJ45)  1
Memory Card Reader  MMC/RSMMC/MS/MS Pro/MS Duo/SD/Mini SD/SDHC/SDXC
Internal Connections
SATA III 6.0Gbps  2
mSATA III 6.0Gbps  1
SATA Controllers
SATA III 6.0Gbps Controller 1  Intel HM86
Additional Information
SLI Compatible  No
Crossfire Compatible  No
Built-in Webcam  2.0Mpx
Built-in Microphone  Yes
BIOS Features
UEFI BIOS  No
EZ Flash  No
OC Profiles  No
Puget Measured Battery Life
Idle (Screen On)  285 Minutes
Movie Playback  210 Minutes
3D Graphics  158 Minutes
Dimensions
Height  31 mm (1.2 in)
Width  374 mm (14.7 in)
Depth  252 mm (9.9 in)
Net Weight  2.5 kg (5.5 lbs)
AC Adapter Input
Voltage  100-240 Vac
Frequency  50-60 Hz
AC Adapter Output
DC Voltage  19 V
Amperage  4.74 A

Wireless and Bluetooth are purchased separately (unit only has 2 wifi antenna, and as such is not compatible with all WiFi cards)

Can output to both external display ports as well as the integrated display at the same time

Does NOT support RAID or Intel Smart Response Technology (SSD Caching)




with the Puget B560i 15.6-inch Notebook w/ Intel UMA.
