Puget M550i 15-inch Notebook (Glossy Screen)

Motherboard

Puget M550i 15-inch Notebook (Glossy Screen) Picture 19938Puget M550i 15-inch Notebook (Glossy Screen) Picture 19832Puget M550i 15-inch Notebook (Glossy Screen) Picture 19939Puget M550i 15-inch Notebook (Glossy Screen) Picture 19834Puget M550i 15-inch Notebook (Glossy Screen) Picture 19835Puget M550i 15-inch Notebook (Glossy Screen) Picture 19836Puget M550i 15-inch Notebook (Glossy Screen) Picture 19837Puget M550i 15-inch Notebook (Glossy Screen) Picture 19838
Model: Clevo P150EM

Specifications:
spacer
Socket  PGA988
CPU Compatibility  Intel Core i5/i7 Mobile
Form Factor  Notebook
Chipset Manufacturer  Intel
Chipset  HM77
Network Connectivity  Gigabit Networking
Network Controller  Realtek Ethernet
Audio Controller  Realtek High Definition Audio
Cooling System  Heatsink and Fan
Number of Fans  2
Color  Black
Notebook-Display
Screen Size  15.6 Inch
Widescreen  Yes
Native Resolution  Full HD (1920x1080)
Surface  Glossy Finish
Memory Support
Type  DDR3 SODIMM
Maximum Speed  1600 MHz
Number of Slots  4
Maximum Size per Slot  8 GB
Maximum Amount Supported  32 GB
Onboard Video
Chipset Manufacturer  Intel
Processor Type  CPU Integrated Graphics
DVI  1
HDMI  1
HDMI Version  1.4a
DisplayPort  1
DisplayPort Version  1.1

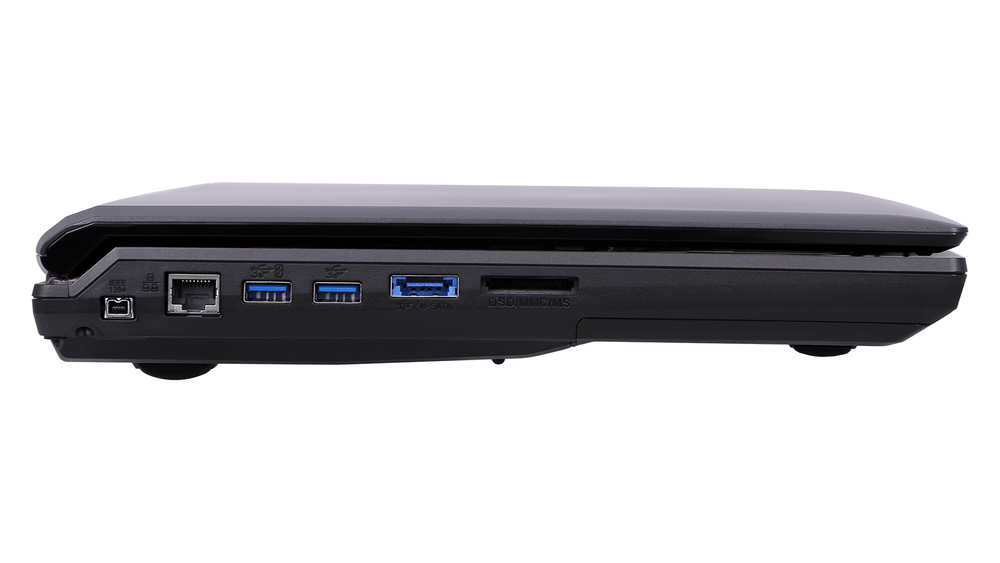

External Connections
USB 2.0  1
USB 3.0  3
Firewire  1
Audio Out  Surround Sound (7.1)
Audio In  Line-In/Microphone
S/PDIF  Optical
External SATA  1
LAN (RJ45)  1
Memory Card Reader  MMC/RSMMC/MS/MS Pro/MS Duo/SD/Mini SD/SDHC/SDXC
Fingerprint Reader  Yes
Internal Connections
SATA II 3.0Gbps  1
SATA III 6.0Gbps  1
mSATA II 3.0Gbps  1
SATA Controllers
SATA II 3.0Gbps Controller 1  Intel HM77
SATA III 6.0Gbps Controller 1  Intel HM77
mSATA II 3.0Gbps Controller 1  Intel HM77
Additional Information
SLI Compatible  No
Crossfire Compatible  No
RAID Support  0,1
Built-in Webcam  2.0Mpx
BIOS Features
UEFI BIOS  No
EZ Flash  No
OC Profiles  No
Dimensions
Height  43 mm (1.7 in)
Width  376 mm (14.8 in)
Depth  256 mm (10.1 in)
Net Weight  3.1 kg (6.8 lbs)
AC Adapter Input
Voltage  100-240 Vac
Frequency  50-60 Hz
AC Adapter Output
DC Voltage  19 V
Amperage  9.47 A

Features:

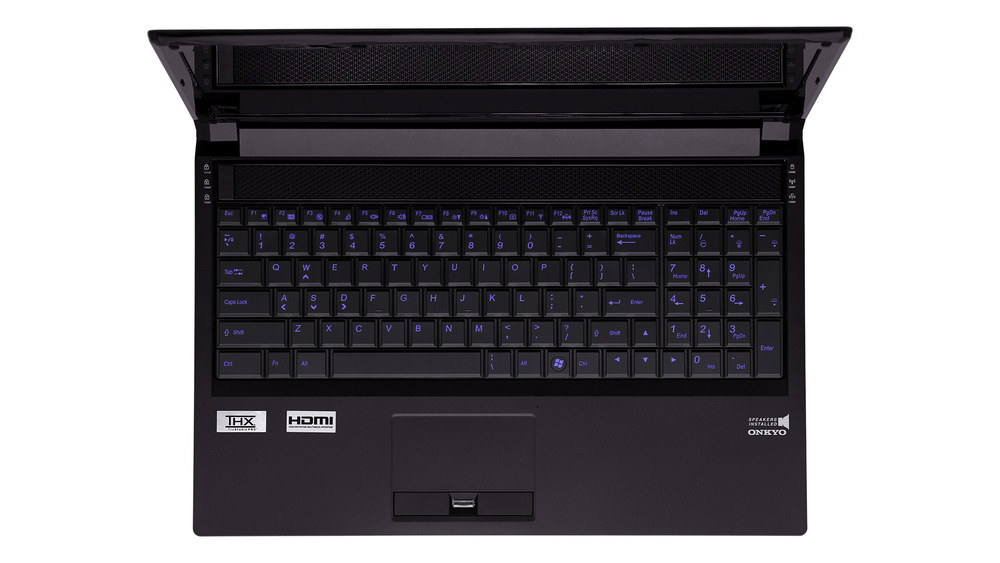

  • Illuminated Full size keyboard with numeric pad W/A/S/D gaming key
  • One changeable 2.5" 9.5mm(H) SATA HDD
  • Integrated touchpad with Multi‐gesture and Scrolling function

Video card, wireless and Bluetooth are purchased separately.

Bluetooth functionality is disabled on startup by default and must be enabled with the function keys.

Unit allows for two concurrent displays at once (built-in screen plus one external display).

At Puget Systems we have tested DVI output at 1920x1200, and DisplayPort output at 2560x1600.




with the Puget M550i 15-inch Notebook (Glossy Screen).
