Puget M750i 17-inch Notebook (Glossy Screen)

Motherboard

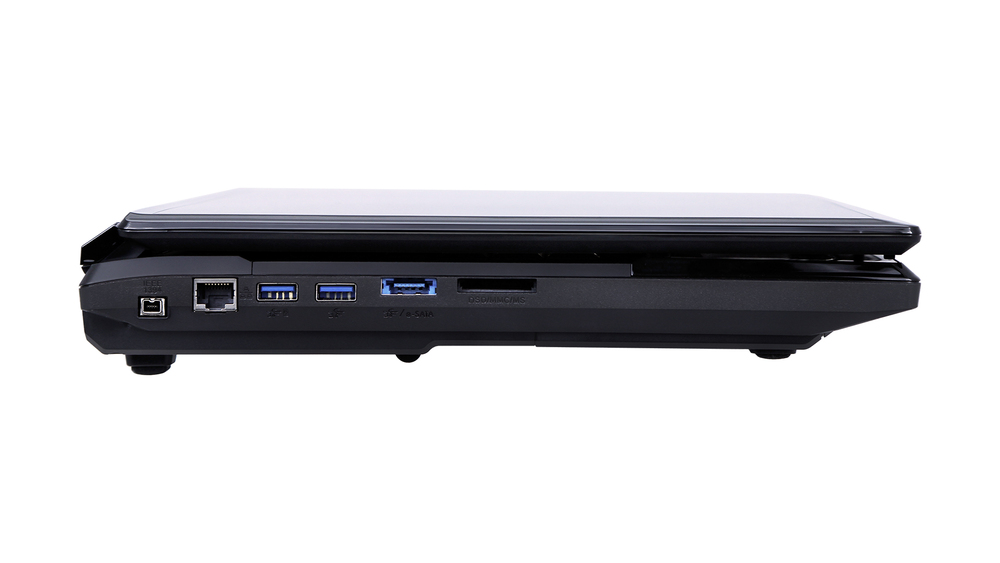

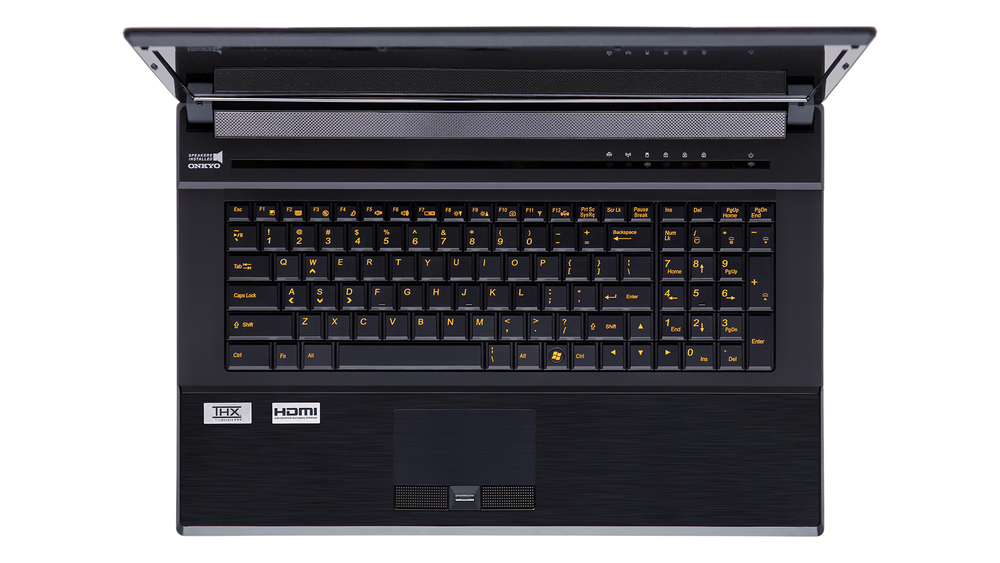

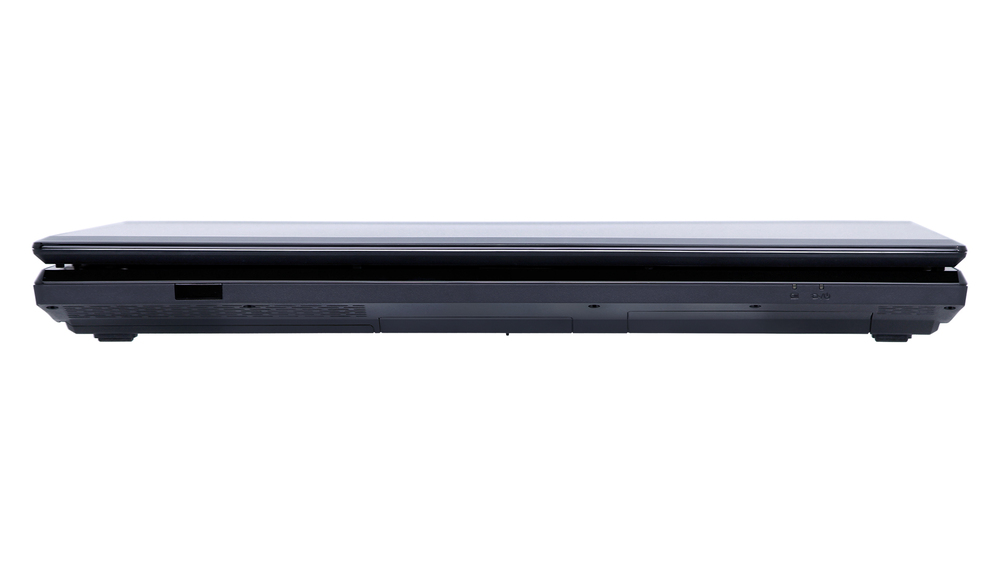

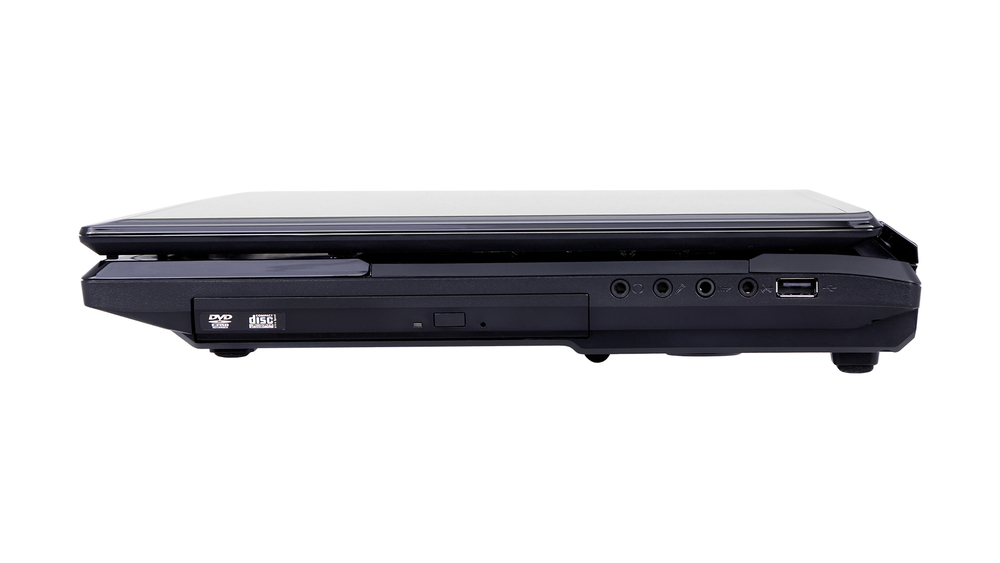

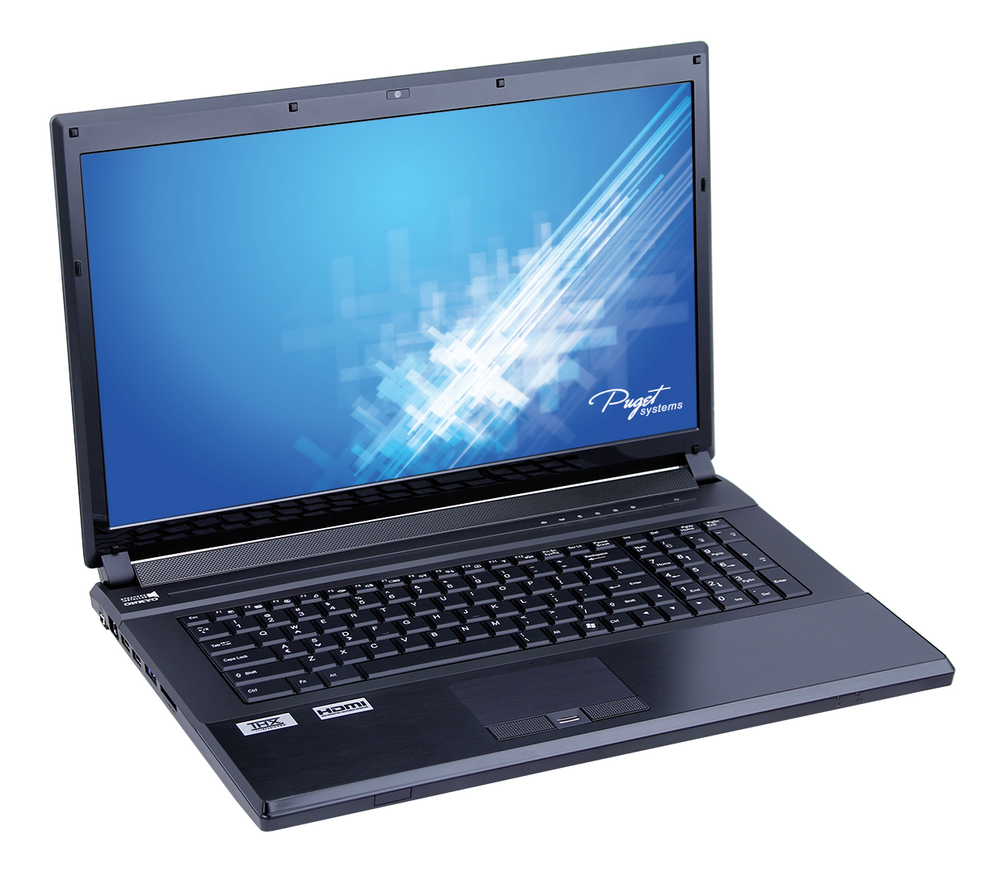

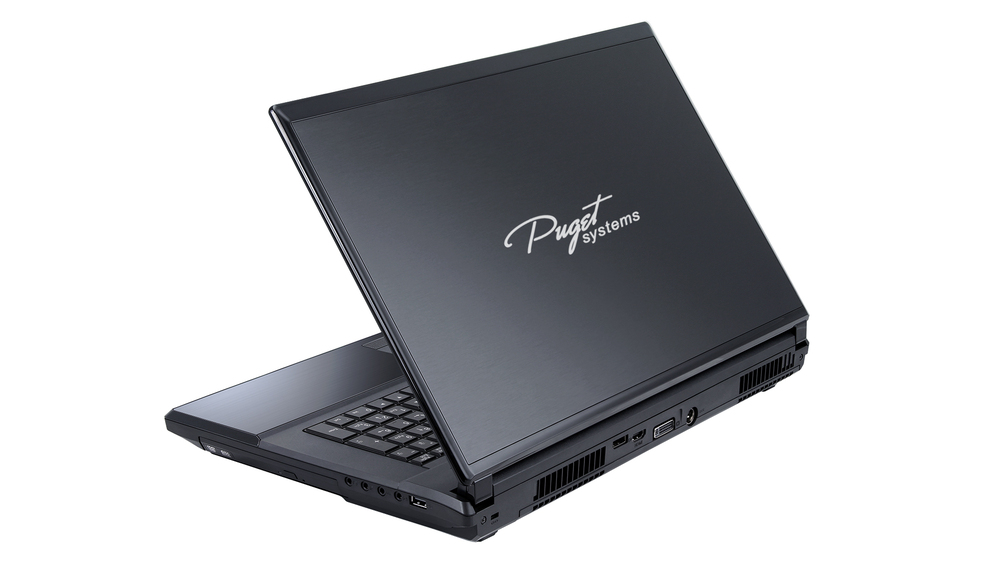

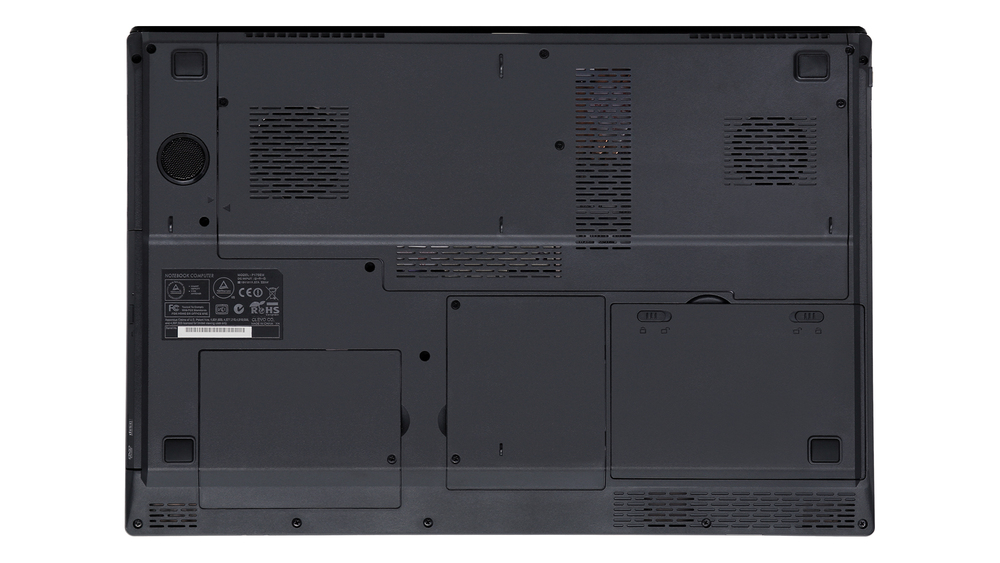

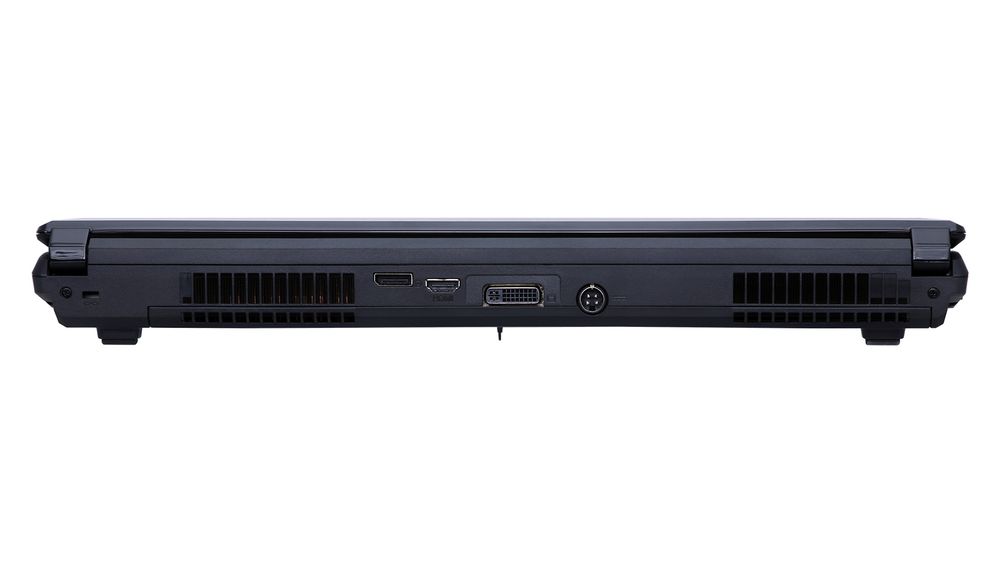

Puget M750i 17-inch Notebook (Glossy Screen) Picture 19940Puget M750i 17-inch Notebook (Glossy Screen) Picture 19840Puget M750i 17-inch Notebook (Glossy Screen) Picture 19941Puget M750i 17-inch Notebook (Glossy Screen) Picture 19842Puget M750i 17-inch Notebook (Glossy Screen) Picture 19843Puget M750i 17-inch Notebook (Glossy Screen) Picture 19844Puget M750i 17-inch Notebook (Glossy Screen) Picture 19845Puget M750i 17-inch Notebook (Glossy Screen) Picture 19846
Model: Clevo P170EM

Specifications:
spacer
Socket  PGA988
CPU Compatibility  Intel Core i5/i7 Mobile
Form Factor  Notebook
Chipset Manufacturer  Intel
Chipset  HM77
Network Connectivity  Gigabit Networking
Network Controller  Realtek Ethernet
Audio Controller  Realtek High Definition Audio
Cooling System  Heatsink and Fan
Number of Fans  2
Color  Black
Notebook-Display
Screen Size  17.3 Inch
Widescreen  Yes
Native Resolution  Full HD (1920x1080)
Surface  Glossy Finish
Memory Support
Type  DDR3 SODIMM
Maximum Speed  1600 MHz
Number of Slots  4
Maximum Size per Slot  8 GB
Maximum Amount Supported  32 GB
Onboard Video
Chipset Manufacturer  Intel
Processor Type  CPU Integrated Graphics
DVI  1
HDMI  1
DisplayPort  1
External Connections
USB 2.0  1
USB 3.0  3
Firewire  1
Audio Out  Surround Sound (7.1)
Audio In  Line-In/Microphone
S/PDIF  Optical
External SATA  1
LAN (RJ45)  1
Memory Card Reader  MMC/RSMMC/MS/MS Pro/MS Duo/SD/Mini SD/SDHC/SDXC
Fingerprint Reader  Yes
Internal Connections
SATA II 3.0Gbps  1
SATA III 6.0Gbps  2
mSATA II 3.0Gbps  1
SATA Controllers
SATA II 3.0Gbps Controller 1  Intel HM77
SATA III 6.0Gbps Controller 1  Intel HM77
mSATA II 3.0Gbps Controller 1  Intel HM77
Additional Information
SLI Compatible  No
Crossfire Compatible  No
RAID Support  0,1
Built-in Webcam  2.0Mpx
BIOS Features
UEFI BIOS  No
EZ Flash  No
OC Profiles  No
Dimensions
Height  46 mm (1.8 in)
Width  412 mm (16.2 in)
Depth  276 mm (10.9 in)
Net Weight  3.9 kg (8.6 lbs)
AC Adapter Input
Voltage  100-240 Vac
Frequency  50-60 Hz
AC Adapter Output
DC Voltage  19 V
Amperage  11.57 A

Features:
  • Illuminated Full size keyboard with numeric pad W/A/S/D gaming key
  • Two changeable 2.5in 9.5mm(H) SATA HDDs
  • Integrated touchpad with Multi‐gesture and Scrolling function

Video card, wireless and Bluetooth are purchased separately.

Bluetooth functionality is disabled on startup by default and must be enabled with the function keys.

Unit allows for two concurrent displays at once (built-in screen plus one external display).

At Puget Systems we have tested DVI output at 1920x1200, and DisplayPort output at 2560x1600.




with the Puget M750i 17-inch Notebook (Glossy Screen).
