Puget M760i 17-inch Notebook

Motherboard

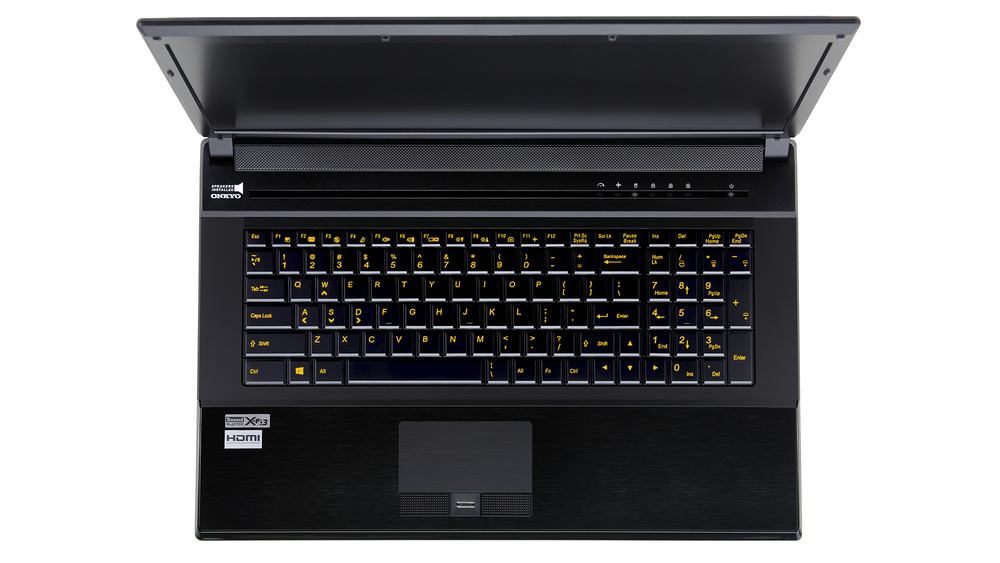

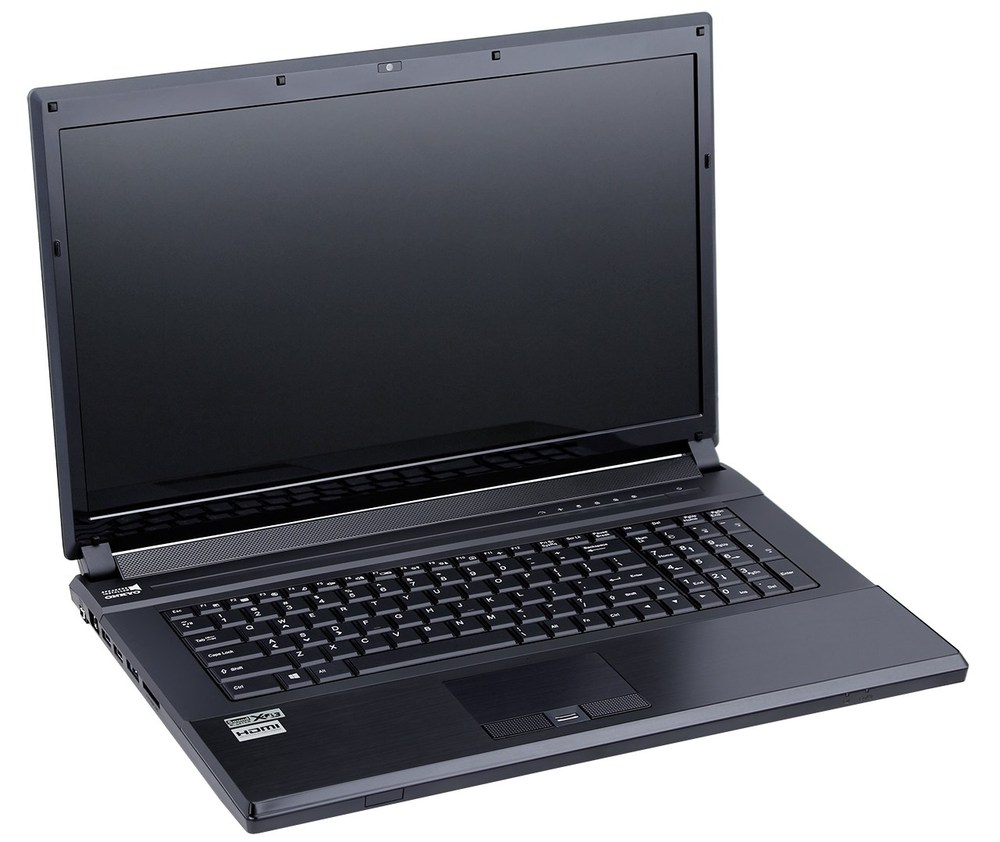

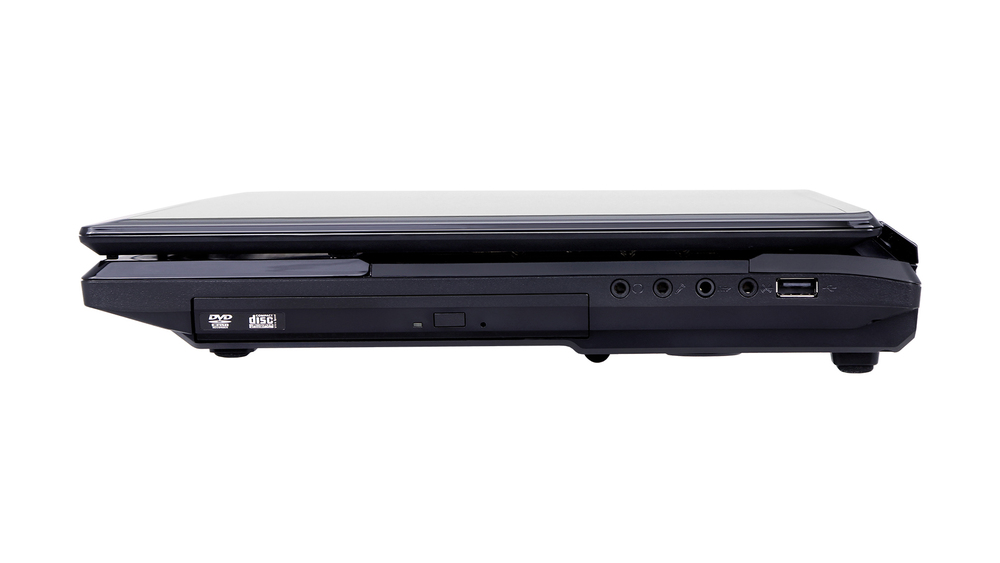

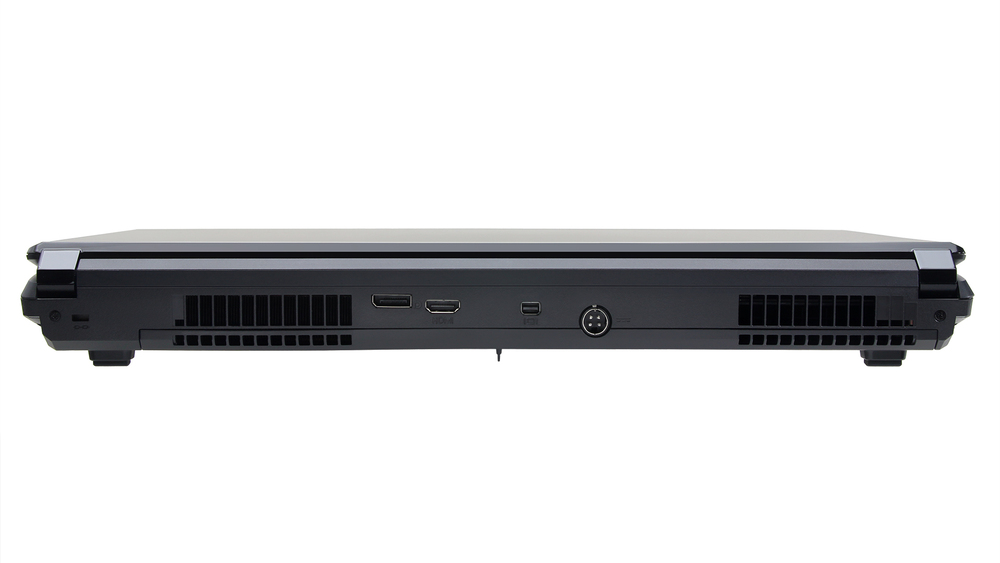

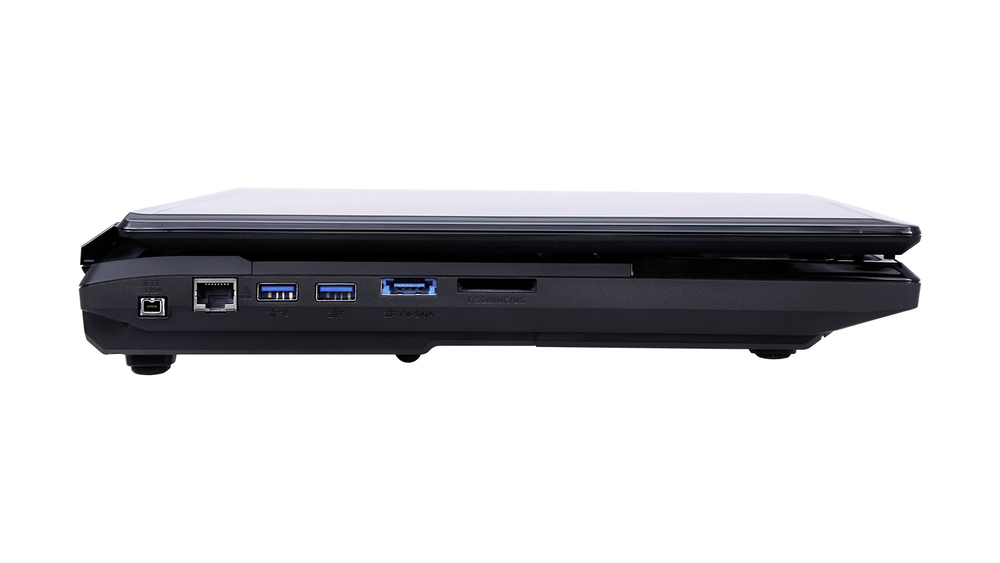

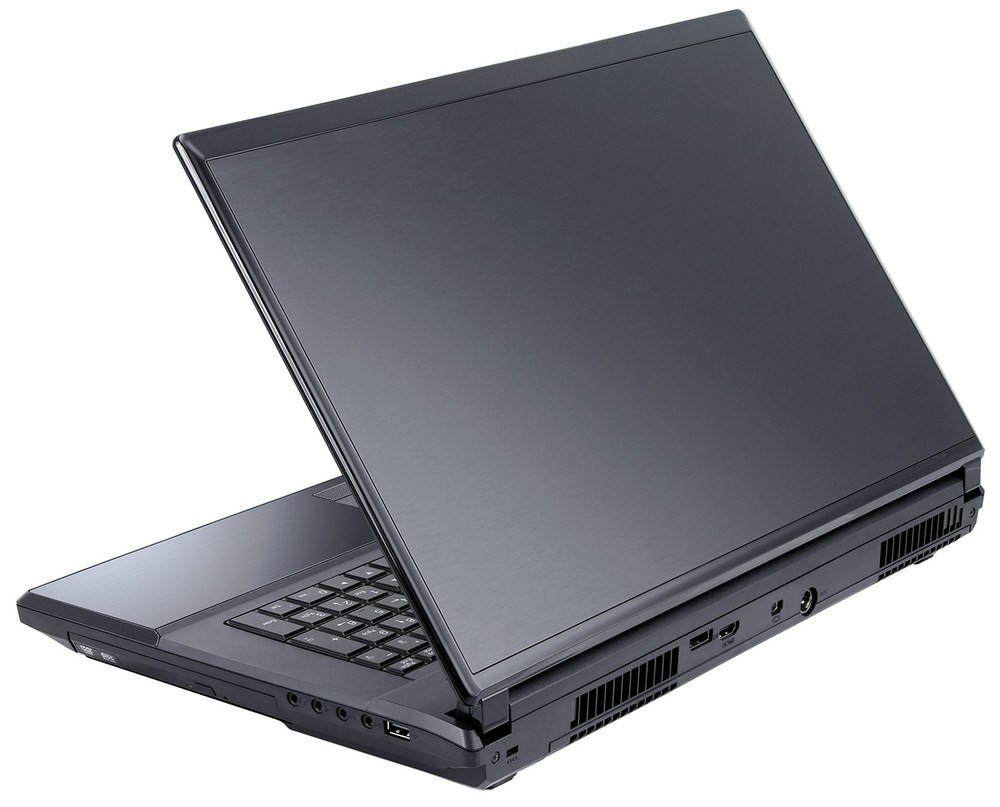

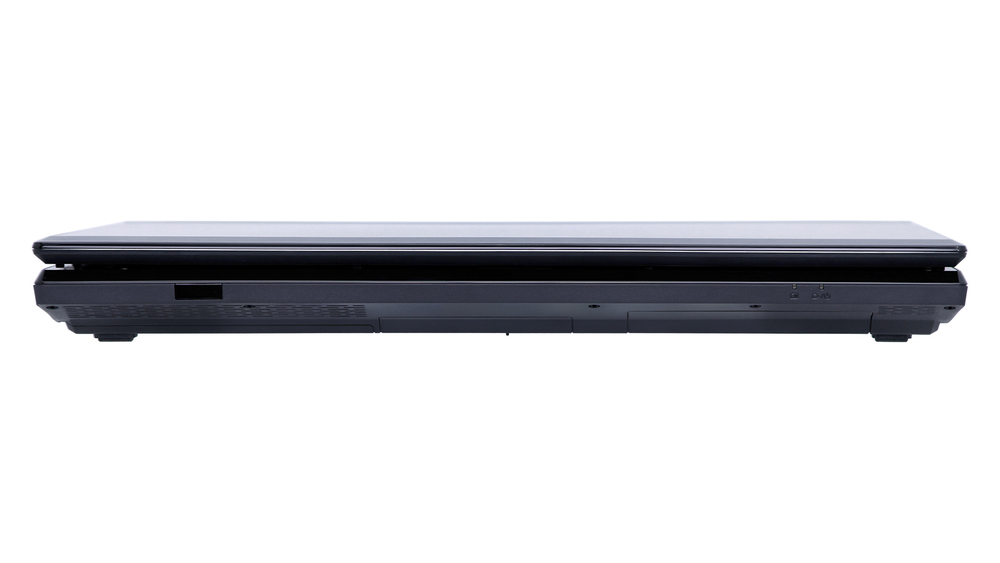

Puget M760i 17-inch Notebook Picture 36628Puget M760i 17-inch Notebook Picture 36629Puget M760i 17-inch Notebook Picture 36630Puget M760i 17-inch Notebook Picture 36631Puget M760i 17-inch Notebook Picture 36632Puget M760i 17-inch Notebook Picture 36633Puget M760i 17-inch Notebook Picture 36634
Model: Clevo P170SM

Specifications:
spacer
Socket  PGA947
CPU Compatibility  Intel 4th Generation Mobile Processors
Form Factor  Notebook
Chipset Manufacturer  Intel
Chipset  HM87
Network Connectivity  Gigabit Networking
Cooling System  Heatsink and Fan
Number of Fans  2
Color  Black
Notebook-Display
Screen Size  17.3 Inch
Widescreen  Yes
Memory Support
Type  DDR3 SODIMM
Maximum Speed  1600 MHz
Number of Slots  4
Maximum Size per Slot  8 GB
Maximum Amount Supported  32 GB
Onboard Video
Chipset Manufacturer  Intel
Processor Type  CPU Integrated Graphics
HDMI  1
HDMI Version  1.4a
DisplayPort  1
Mini DisplayPort  1
DisplayPort Version  1.2
External Connections
USB 2.0  1
USB 3.0  3
Firewire  1
Audio Out  Surround Sound (7.1)
Audio In  Line-In/Microphone
S/PDIF  Optical
External SATA  1
LAN (RJ45)  1
Memory Card Reader  MMC/RSMMC/MS/MS Pro/MS Duo/SD/Mini SD/SDHC/SDXC
Fingerprint Reader  Yes
Internal Connections
SATA III 6.0Gbps  3
mSATA III 6.0Gbps  1
SATA Controllers
SATA III 6.0Gbps Controller 1  Intel HM87
mSATA III 6.0Gbps Controller 1  Intel HM87
Additional Information
SLI Compatible  No
Crossfire Compatible  No
RAID Support  0,1
Built-in Webcam  2.0Mpx
Built-in Microphone  Yes
BIOS Features
UEFI BIOS  No
EZ Flash  No
OC Profiles  No
Puget Measured Battery Life
Idle (Screen On)  138 Minutes
Movie Playback  108 Minutes
3D Graphics  61 Minutes
Dimensions
Height  46 mm (1.8 in)
Width  412 mm (16.2 in)
Depth  276 mm (10.9 in)
Net Weight  3.9 kg (8.6 lbs)
AC Adapter Input
Voltage  100-240 Vac
Frequency  50-60 Hz
AC Adapter Output
DC Voltage  19.5 V
Amperage  11.8 A

Features:

Video card, wireless and Bluetooth are purchased separately.

Unit allows for three concurrent displays at once. Either the built-in screen plus two external displays or three external displays if built-in screen is disabled.

Allows two 2.5in hard drives plus one mSATA hard drive

Supports Intel Smart Response Technology (SSD Caching)
