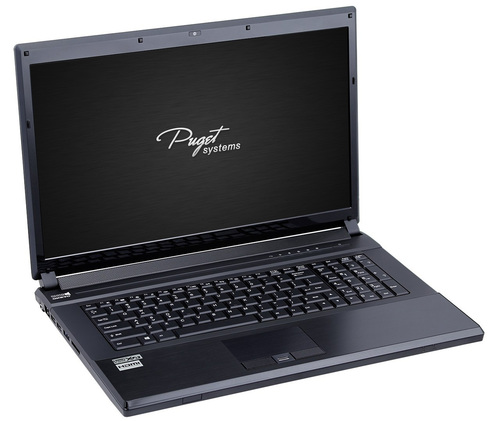

Model: Clevo P170SM-A
Specifications
| Socket | PGA947 |
| CPU Compatibility | Intel 4th Generation Mobile Processors |
| Form Factor | Notebook |
| Chipset Manufacturer | Intel |
| Chipset | HM87 |
| Wired Network Connectivity | Gigabit Networking |
| Cooling System | Heatsink and Fan |
| Number of Fans | 2 |
| Color | Black |
Notebook-Display | |
| Screen Size | 17.3 Inch |
| Widescreen | Yes |
Memory Support | |
| Type | DDR3 SODIMM |
| Maximum Speed | 1600 MHz |
| Number of Slots | 4 |
| Maximum Size per Slot | 8 GB |
| Maximum Amount Supported | 32 GB |
Onboard Video | |
| Chipset Manufacturer | Intel |
| Processor Type | CPU Integrated Graphics |
| HDMI | 1 |
| HDMI Version | 1.4a |
| DisplayPort | 1 |
| Mini DisplayPort | 1 |
| DisplayPort Version | 1.2 |
External Connections | |
| USB 2.0 | 1 |
| USB 3.2 Gen 1 (USB 3.0) | 3 |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| S/PDIF | Optical |
| External SATA | 1 |
| LAN (RJ45) | 1 |
| Memory Card Reader | MMC/RSMMC/MS/MS Pro/MS Duo/SD/Mini SD/SDHC/SDXC |
| Fingerprint Reader | Yes |
| Firewire | 1 |
Internal Connections | |
| SATA III 6.0Gbps | 3 |
| mSATA III 6.0Gbps | 2 |
SATA Controllers | |
| SATA III 6.0Gbps Controller 1 | Intel HM87 |
| mSATA III 6.0Gbps Controller 1 | Intel HM87 |
Additional Information | |
| SLI Compatible | No |
| Crossfire Compatible | No |
| RAID Support | 0,1 |
| Built-in Webcam | 2.0Mpx |
| Built-in Microphone | Yes |
BIOS Features | |
| UEFI BIOS | No |
| EZ Flash | No |
| OC Profiles | No |
Puget Measured Battery Life | |
| Idle (Screen On) | 242 Minutes |
| Movie Playback | 222 Minutes |
| 3D Graphics | 60 Minutes |
Dimensions | |
| Height | 46 mm (1.8 in) |
| Width | 412 mm (16.2 in) |
| Depth | 276 mm (10.9 in) |
| Net Weight | 3.9 kg (8.6 lbs) |
Power Supply | |
| Input Voltage | 100-240 Vac |
| Wattage at 120V | 50-60 W |
AC Adapter Output | |
| DC Voltage | 19.5 V |
| Amperage | 11.8 A |
Features

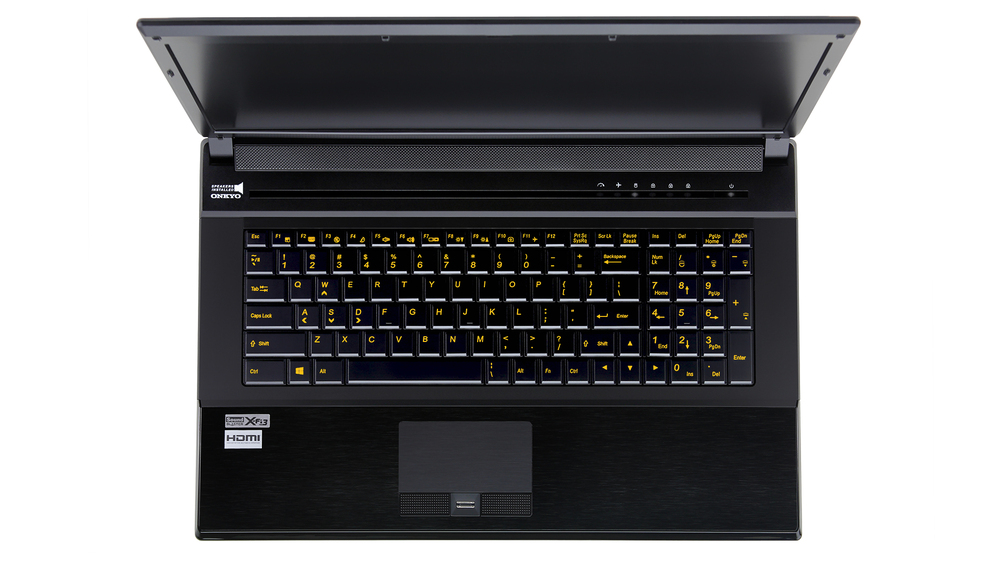

- Illuminated Full size keyboard with numeric pad W/A/S/D gaming key
Video card, wireless and Bluetooth are purchased separately.
Unit allows for three concurrent displays at once. Either the built-in screen plus two external displays or three external displays if built-in screen is disabled.
Allows two 2.5in hard drives plus two mSATA hard drive
Supports Intel Smart Response Technology (SSD Caching)
Battery life testing performed with:
- Windows 8.1 Pro
- Intel 4800MQ
- 2x Kingston SODIMM DDR3-1600 8GB
- Samsung 840 Pro 512GB
- NVIDIA GTX 860M 4GB
- Intel WiFi 7260
- Entertainment power setting
- 80% screen brightness
- Heavy Load/Gaming test using Unigine Heaven 4.0 Pro at 1920x1080, Medium settings, 2x AA
