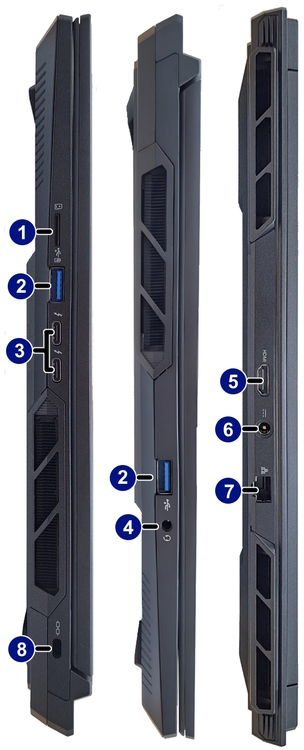

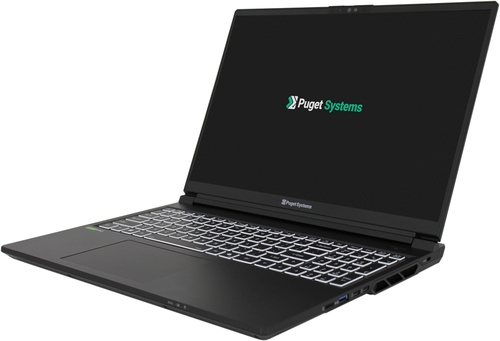

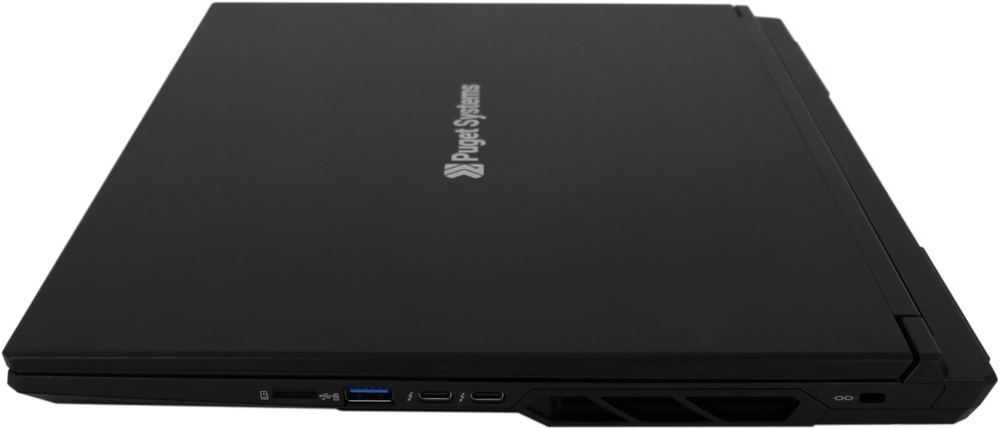

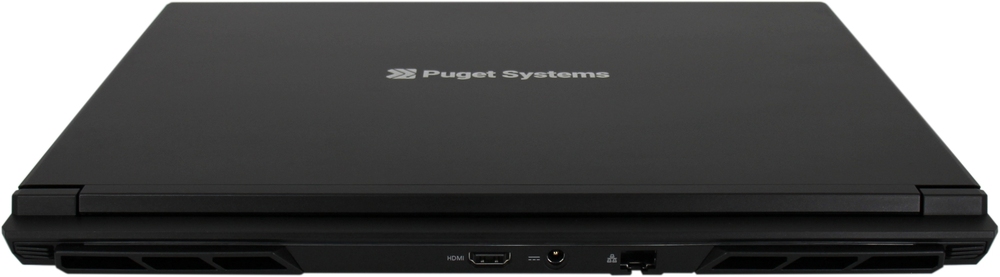

Puget Systems C162-G Core Ultra 9 290HX Plus 16-Inch Notebook Ports
SD Card Reader: Supports SDXC w/ UHS-II
USB 3.2 Gen 2 (USB 3.1) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 and older devices (10 Gb/s).
Thunderbolt 4 Port: Thunderbolt 4 port capable of up to 40Gbps. Also compatible with USB devices.
Combo 3.5mm Audio Jack: Audio Jack that supports 3.5mm headphones/microphones.
HDMI 2.1: Outputs digital video and audio at up to 8K resolution (7680x4320) at 60hz.
Power Input: Input for connecting power supply to the device.
2.5G LAN (RJ45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 2.5 Gb
Kensington Lock: Kensington anti-theft security slot.
For connectivity, this laptop PC has two USB 3.2 and two Thunderbolt 4 ports, HDMI for an external monitor, a combined headphone and mic jack, as well as 2.5Gb Ethernet, WiFi 7, and Bluetooth 5.4 for networking. A pair of powerful cooling fans are built into the system, which will adjust speed based on the workload, power draw, and temperature.
Please note that running on battery will limit CPU and GPU speeds so, while this system is portable, it must be plugged in for best performance.
Model: Clevo X560WNT1-G
Specifications
| CPU Compatibility | Intel Core Ultra 9 290HX |
| Form Factor | Notebook |
| Chipset Manufacturer | Intel |
| Chipset | HM870 |
| Wired Network Connectivity | 2.5GbE RJ45 |
| Wireless Network Connectivity | WiFi 7 |
| Network Controller | Killer E3100X, Intel BE200 |
| Audio Controller | Onboard Realtek HD Audio |
| Cooling System | Heatsink and Fan |
| Number of Fans | 2 |
| Color | Black |
| Windows Support | Windows 11 |
| Linux Support | No |
Notebook-Display | |
| Screen Size | 16 Inch |
| Native Resolution | WQXGA (2560x1600) |
| Surface | Matte Finish |
Memory Support | |
| Type | DDR5 SODIMM |
| Maximum Speed | 6400 MHz |
| Number of Slots | 2 |
| Maximum Size per Slot | 48 GB |
| Maximum Amount Supported | 96 GB |
Onboard Video | |
| Chipset Manufacturer | NVIDIA |
| Processor Type | NVIDIA GeForce RTX 5090 Mobile |
| Onboard Memory | 24,576 MB |
| Maximum HDMI Resolution | 4096x3112 |
| HDMI | 1 |
| HDMI Version | 2.1 |
| Thunderbolt | 2 |
| Notes: | 2x Thunderbolt 4, Supports 4x Total Simultaneous Displays |
External Connections | |
| USB 3.2 Gen 2 (USB 3.1) | 2 |
| Audio Out | Stereo |
| Audio In | Line-In/Microphone |
| LAN (RJ45) | 1 |
| Memory Card Reader | SDXC w/ UHS-I |
| Thunderbolt Ports | 2 |
| Thunderbolt Version | 4 |
Internal Connections | |
| M.2 Connector | 3 |
| M.2 Support | 1x 80mm PCIe 5.0, 2x 80mm PCIe 4.0 |
| Maximum M.2 Length | 80 mm (3.1 in) |
Additional Information | |
| Built-in Webcam | Yes |
| Built-in Microphone | Yes |
| Bluetooth | Yes (5.4) |
BIOS Features | |
| UEFI BIOS | Yes |
Dimensions | |
| Height | 19.9 mm (0.8 in) |
| Width | 355.8 mm (14.0 in) |
| Depth | 271 mm (10.7 in) |
| Net Weight | 2.25 kg (5.0 lbs) |
Power Supply | |
| Input Voltage | 100-240 Vac |
| Wattage at 120V | 280 W |
| Wattage at 240V | 280 W |
AC Adapter Output | |
| DC Voltage | 20 V |
| Amperage | 14 A |
Additional Specs
- Aluminum Chassis
- Multi Color Backlight Keyboard
- Large Glass Touchpad
- 2M FHD Hello Camera
- Firmware TPM
- Removable Wi-Fi / BT
- 16-inch WQXGA 16x10 Display
- 100% sRGB, 78% AdobeRGB, 73% NTSC
- 600-nits
- 240Hz
- WVA Panel
- G-Sync
- Wide View Angle
- Matte Finished
- 100% sRGB, 78% AdobeRGB, 73% NTSC
- 4 Cell Lithium-Polymer Battery 80Wh (5100mAh @ ~15.48V)
- PD 3.0 Charging (100W)
- Full Performance available only when connected to 280W AC adapter
- 280W AC ADAPTER (120V/220V, sent with USA 3-prong power cable)
- Dimensions: 6x3x1 Inches
- Weight: 1.1lbs / 0.50kg
- Dimensions: 6x3x1 Inches
