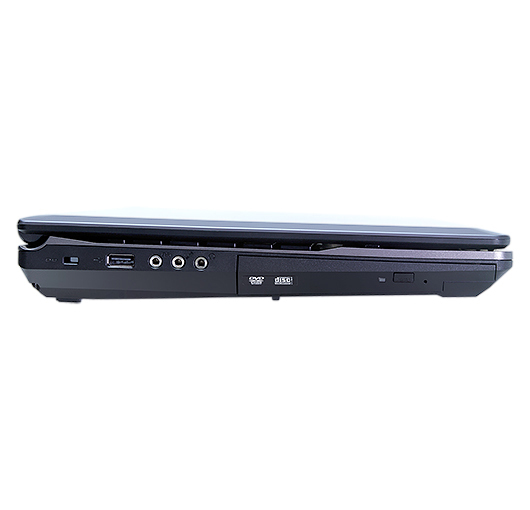

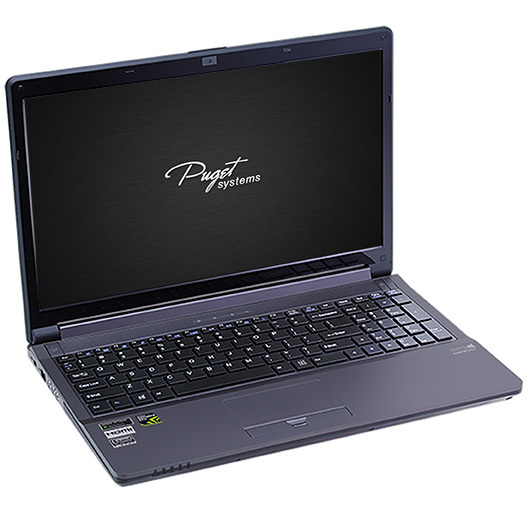

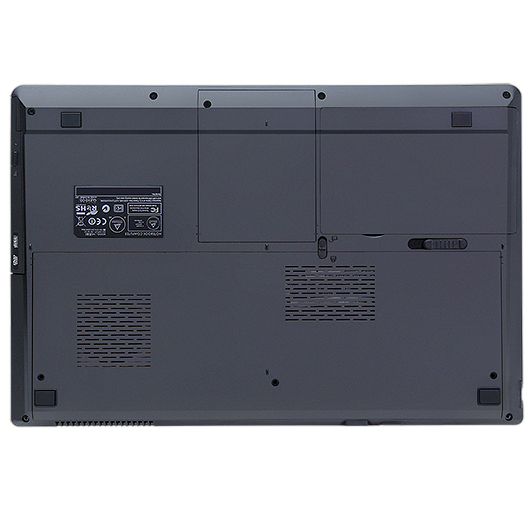

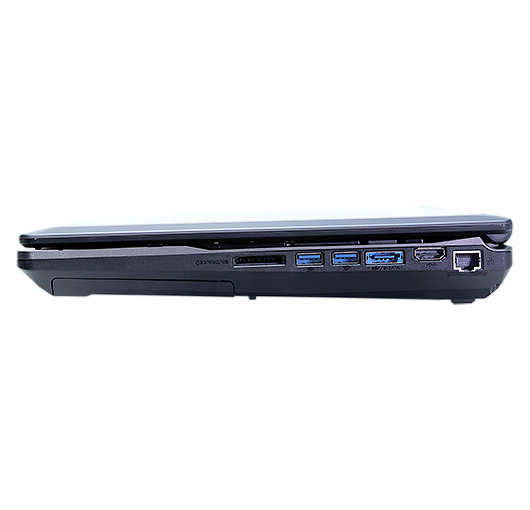

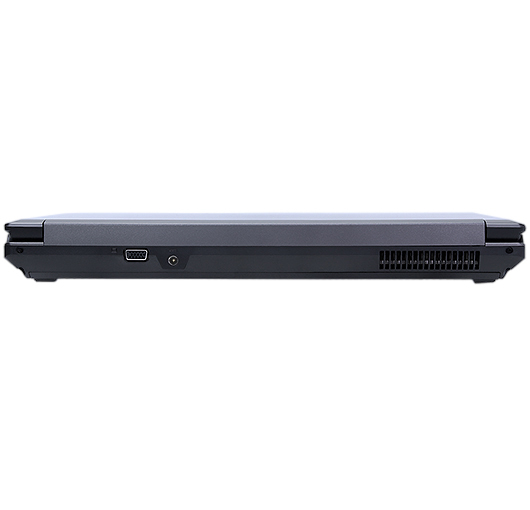

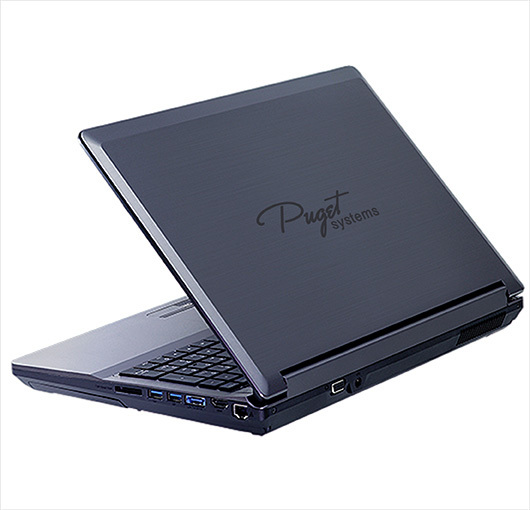

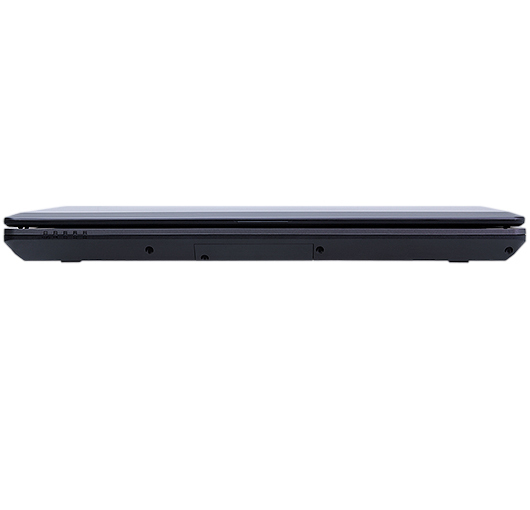

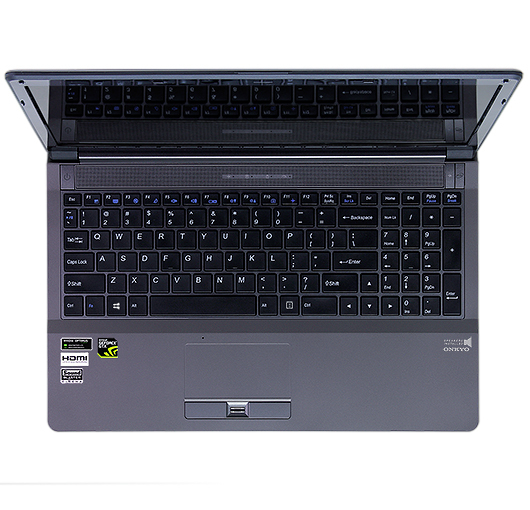

Puget V560i 15.6-inch Notebook w/ GTX 765M

Motherboard

Puget V560i 15.6-inch Notebook w/ GTX 765M Picture 24709Puget V560i 15.6-inch Notebook w/ GTX 765M Picture 24708Puget V560i 15.6-inch Notebook w/ GTX 765M Picture 24129Puget V560i 15.6-inch Notebook w/ GTX 765M Picture 24130Puget V560i 15.6-inch Notebook w/ GTX 765M Picture 24131Puget V560i 15.6-inch Notebook w/ GTX 765M Picture 24132Puget V560i 15.6-inch Notebook w/ GTX 765M Picture 24133Puget V560i 15.6-inch Notebook w/ GTX 765M Picture 24134
Model: Clevo W350STQ

Specifications:
spacer
Socket  PGA947
CPU Compatibility  Intel 4th Generation Mobile Processors up to 47W
Form Factor  Notebook
Chipset Manufacturer  Intel
Chipset  HM87
Network Connectivity  Gigabit Networking
Cooling System  Heatsink and Fan
Number of Fans  1
Color  Black
Notebook-Display
Screen Size  15.6 Inch
Widescreen  Yes
Memory Support
Type  DDR3 SODIMM
Maximum Speed  1600 MHz
Number of Slots  3
Maximum Size per Slot  8 GB
Maximum Amount Supported  24 GB
Onboard Video
Chipset Manufacturer  nVidia
Processor Type  Geforce GTX 765M
Onboard Memory  2048 MB
Maximum Resolution  3840x2160
VGA  1
HDMI  1
HDMI Version  1.4a
External Connections
USB 2.0  1
USB 3.0  3
Audio Out  Stereo
Audio In  Line-In/Microphone
External SATA  1
LAN (RJ45)  1
Memory Card Reader  MMC/RSMMC/MS/MS Pro/MS Duo/SD/Mini SD/SDHC/SDXC
Fingerprint Reader  Yes
Internal Connections
SATA III 6.0Gbps  3
mSATA III 6.0Gbps  1
SATA Controllers
SATA III 6.0Gbps Controller 1  Intel HM87
mSATA III 6.0Gbps Controller 1  Intel HM87
Additional Information
SLI Compatible  No
Crossfire Compatible  No
RAID Support  0,1
Built-in Webcam  2.0Mpx
Built-in Microphone  Yes
BIOS Features
UEFI BIOS  No
EZ Flash  No
OC Profiles  No
Puget Measured Battery Life
Idle (Screen On)  151 Minutes
Movie Playback  131 Minutes
3D Graphics  59 Minutes
Dimensions
Height  43 mm (1.7 in)
Width  374 mm (14.7 in)
Depth  250 mm (9.8 in)
Net Weight  2.7 kg (6.0 lbs)
AC Adapter Input
Voltage  100-240 Vac
Frequency  50-60 Hz
AC Adapter Output
DC Voltage  19.5 V
Amperage  6.15 A

Wireless and Bluetooth are purchased separately.

Switchable graphics button:
Green - Conserve Power Mode - Limit system to Intel graphics only
Orange - Performance Mode - Automatically select which graphics (Intel or NVIDIA) to use. By default the Intel graphics will be used, but will automatically switch to the NVIDIA graphics for higher-end 3D applications

Can output to both external display ports as well as the integrated display at the same time

Allows two 2.5in hard drives plus one mSATA hard drive

Supports Intel Smart Response Technology (SSD Caching)




with the Puget V560i 15.6-inch Notebook w/ GTX 765M.
