Puget V750i 17-inch Notebook w/ GT 650M (Glossy Screen)

Motherboard

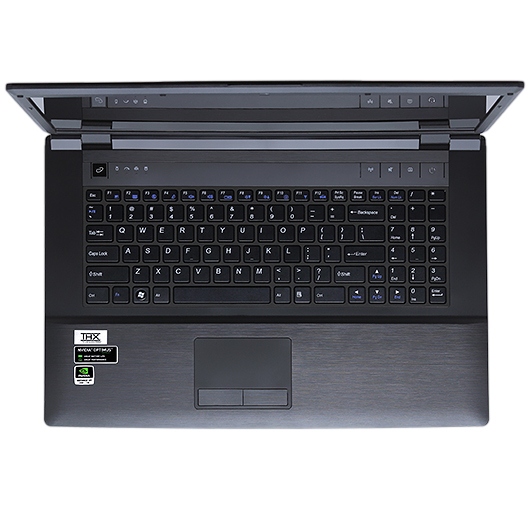

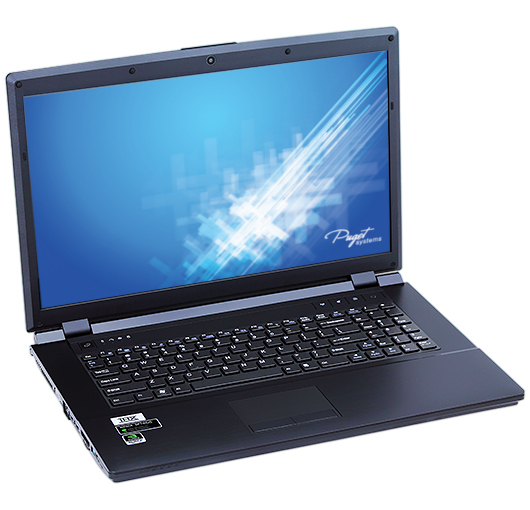

Puget V750i 17-inch Notebook w/ GT 650M (Glossy Screen) Main Picture


Puget V750i 17-inch Notebook w/ GT 650M (Glossy Screen) Picture 20032Puget V750i 17-inch Notebook w/ GT 650M (Glossy Screen) Picture 20014Puget V750i 17-inch Notebook w/ GT 650M (Glossy Screen) Picture 20021Puget V750i 17-inch Notebook w/ GT 650M (Glossy Screen) Picture 20015Puget V750i 17-inch Notebook w/ GT 650M (Glossy Screen) Picture 20016Puget V750i 17-inch Notebook w/ GT 650M (Glossy Screen) Picture 20017Puget V750i 17-inch Notebook w/ GT 650M (Glossy Screen) Picture 20018Puget V750i 17-inch Notebook w/ GT 650M (Glossy Screen) Picture 20019

Model: Clevo W170ER

Specifications

Socket PGA988
CPU Compatibility Intel Core i5/i7 Mobile
Form Factor Notebook
Chipset Manufacturer Intel
Chipset HM76
Network Connectivity Gigabit Networking
Network Controller Realtek Ethernet
Audio Controller Realtek High Definition Audio
Cooling System Heatsink and Fan
Number of Fans 1
Color Black
Notebook-Display
Screen Size 17.3 Inch
Widescreen Yes
Native Resolution Full HD (1920x1080)
Surface Glossy Finish
Memory Support
Type DDR3 SODIMM
Maximum Speed 1600 MHz
Number of Slots 2
Maximum Size per Slot 8 GB
Maximum Amount Supported 16 GB
Onboard Video
Chipset Manufacturer nVidia
Processor Type Geforce GT 650M
Onboard Memory 1024 MB
Maximum Resolution 3840x2160
VGA 1
HDMI 1

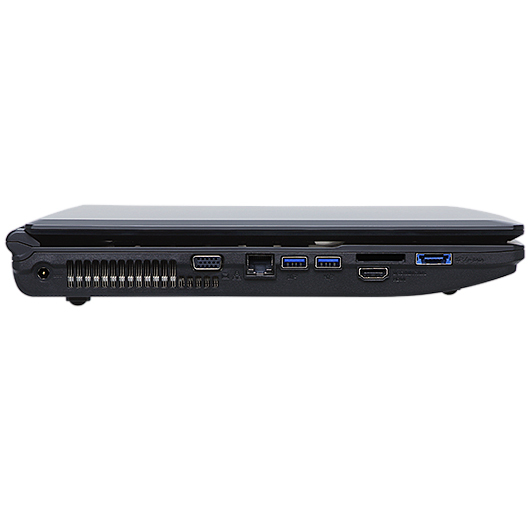

External Connections
USB 2.0 1
USB 3.2 Gen 1 (USB 3.0) 2
Audio Out Surround Sound (5.1)
Audio In Line-In/Microphone
External SATA 1
LAN (RJ45) 1
Memory Card Reader MMC/RSMMC/MS/MS Pro/MS Duo/SD/Mini SD/SDHC/SDXC
Fingerprint Reader No
Internal Connections
SATA II 3.0Gbps 1
SATA III 6.0Gbps 2
SATA Controllers
SATA II 3.0Gbps Controller 1 Intel HM76
SATA III 6.0Gbps Controller 1 Intel HM76
Additional Information
SLI Compatible No
Crossfire Compatible No
Built-in Webcam 2.0Mpx
BIOS Features
UEFI BIOS No
EZ Flash No
OC Profiles No
Dimensions
Height 42 mm (1.7 in)
Width 413 mm (16.3 in)
Depth 278 mm (10.9 in)
Net Weight 3.2 kg (7.1 lbs)
AC Adapter Input
Voltage 100-240 Vac
Frequency 50-60 Hz
AC Adapter Output
DC Voltage 19 V
Amperage 4.74 A
