Model: Shuttle SD31P
Features
- Dual Core --increased multitasking performance.
- Extended Memory 64 Technology (EM64T) --support for 64-bit extended operating systems, such as Microsoft Windows XP Professional x64 Edition.
- Hyper-Threading Technology --multi-threaded applications.
- Execute Disable (XD) technology --increased protection from malicious software.
- Enhanced Intel SpeedStep Technology --reduced power consumption and fan noise.
Processor: Intel LGA775 Pentium D
Memory: Dual-channel DDR2 667/533(2) DIMM slots (2GB max)

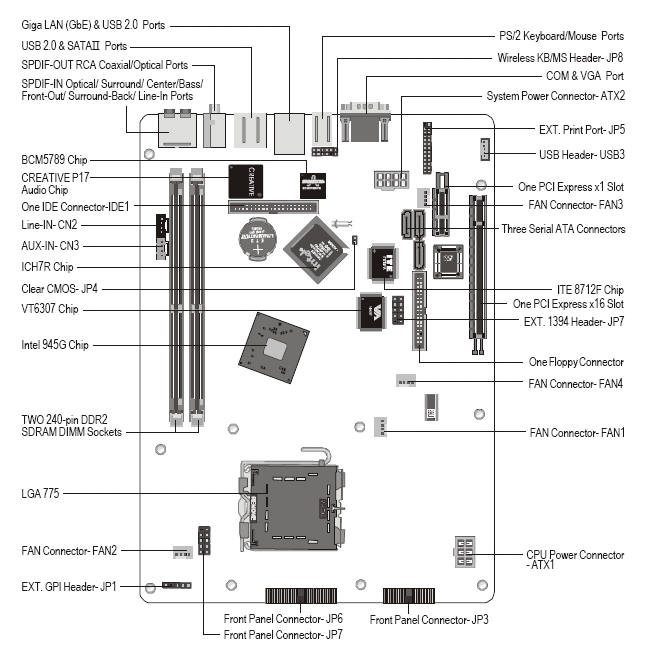

Motherboard: FD31 (proprietary)Intel 945G + ICH7-R chipset1066/800/533 MHz FSB(1) x1 PCI Express slot
Graphics: Intel Graphics Media Accelerator 950(1) x16 PCI Express slot
Audio: 8-channel audioDigital (SPDIF) audio portsAnalog audio ports
Network: Gigabit LAN
Storage: (4) Serial ATA 300 headersRAID (0, 1, 5, 10) with Intel Matrix Storage Technology(1) FDD header(1) IDE header(1) 5.25#34; storage bay(3) 3.5#34; storage bays
Front-panel I/O: 8-in-1 card reader(2) USB 2.0 portsFireWire portMicrophone portHeadphone portPower buttonReset button
Rear-panel I/O: PS/2 Keyboard socketPS/2 Mouse socket(4) USB 2.0 portsGigabit LAN (RJ-45)8-channel audio outSPDIF I/O portsCoaxial Audio portLine-inSerial portCMOS Reset buttonSATA hot plug portOptional Parallel port
Silent X (system cooling): Integrated Cooling Engine (ICE)Intelligently-engineered airflow mechanics
Power Supply: Silent X 350W
Dimensions (L x W x H, mm): 325 x 220 x 210
Weight (net / gross; kg, lbs): 4.25 (9.35) / 6.05 (13.31)
With its support for high-end Intel dual core and 64-bit processors, and advanced integrated audio/visual components, the XPC SD31P is the ideal platform for business users and gamers looking to build cost-effective high-performance solutions in an ergonomic enclosure one-third the size of a standard desktop PC.
Incorporating a full-spectrum of cutting-edge technology including Intel's 945G chipset, GMA 950 media accelerator, and the Sound Blaster Live! 24-bit, a 7.1 channel EAX high-definition audio solution from Creative Labs, the XPC SD31P delivers advanced features to users looking to combine the benefits of Intel's newest processors with Shuttle's award-winning small form factor technology.
Based on the Intel 945G + ICH7-R chipset, the XPC SD31P is the first SFF computer optimized to support new Intel 600 and 800 sequence processors delivering innovative features and new benefits for both home and business.
Memory Architecture
Support for dual-channel DDR2 memory technology at 667 MHz (up to 10.7 GB/s of peak memory bandwidth) gives greater platform performance and memory flexibility.
Intel Flex Memory Technology facilitates easier upgrades by allowing different memory sizes to be populated and remain in dual-channel mode.
Intel Graphics Media Accelerator 950
The Intel GMA 950 graphics core features a number of optimizations tailored to emerging technologies in the multimedia market. Smooth standard and high definition video playback, enhanced modes for widescreen flat panels and high-definition displays, and optimized Microsoft DirectX 9.0 3D, enable the XPC SD31P deliver an intense, realistic visual experience without requiring a separate graphics card.
Creative Labs Sound Blaster Live! 24-bit EAX high-definition 7.1 audio processor
The XPC SD31P with the Sound Blaster Live! 24-bit EAX high-definition 7.1 hardware audio processor produces multi-directional sound ideal for home theater environments. Hardware sound processing reduces CPU utilization by up to 300% compared to software codecs.
SATA hot-plug
This model offers ample I/O connectivity, and then some. Features, such as the Clear CMOS button and Wireless LAN perforation, are Shuttle exclusives, not seen in other small form factor computers. Further, the XPC SD31P also includes a hot-plug SATA connector on the back panel to allow future storage upgrades.
Silent X Technology
Integrated Silent X cooling and noise reduction technologies deliver optimized cooling for exceptional stability, comfort and reliability. Optimized cooling features, including programmable smart fans and best-of-class airflow, make the XPC SD31P ideal for use in any setting--home, office, dorm--because it's "Super Quiet, Super Cool."
Integrated Cooling Engine (ICE) Module
Designed for the P-chassis, the 4G Integrated Cooling Engine (ICE) in this model is based on the same concept that made the first XPCs a consumer success. The ICE heat-pipe module uses convection cooling to transfer heat away from the processor. Copper tubing, coated in nickel and filled with distilled water of specific pH provides the conduit through which heat passes to a radiator and is dissipated out of the system. A quiet, speed controlled 92mm ducted fan covers the radiator, providing both processor cooling and case exhaust.
350 Watt Power Supply
First seen in the SB81P, this 350W PSU delivers 100 Watts more than previous PSUs whilst maintaining whisper quiet operation. Tested in our acoustic lab from a distance of 50cm--to create an environment similar to actual usage (many competitors take measurements at 1M)--the Shuttle Silent X 350W PSU in the XPC SD31P operates at just 27dB under normal load. For performance users, this 350W PSU now includes a PCI-Express power connector to run the latest power hungry graphics cards.
Airflow
The XPC SD31P includes our revolutionary approach to airflow design. Three independent cooling zones--CPU, HDD and Case--ensure that cool air is delivered to critical components.
From above, the airflow in the P-chassis shows several different intake points designed to keep cool air continually and evenly flowing over critical components, as opposed to recalculating warm, stale air. For more information and illustrations of the XPC SD31P's airflow system, please visit.
Smart Fan
Smart Fan incorporates linear control metrics to provide optimal cooling. Under normal conditions, Smart Fan keeps fan speeds low, minimizing acoustic noise. When the load increases, Smart Fan increases fan speeds to provide optimal cooling. Users can customize Shuttle's Smart Fan settings to precisely match their desired temperature and fan speed metrics.
P Chassis

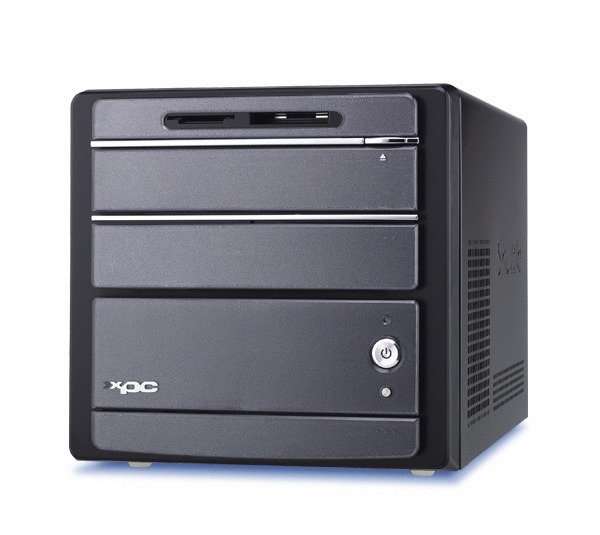

The XPC SD31P uses the new P chassis, a member of Shuttle's fifth generation XPC chassis family. The Shuttle P chassis has been designed with two major principles in mind; refined ergonomic styling and easy installation
Stealth drive doors
The P's clean facia is thanks to three well-integrated stealth bay covers. The optical drive, floppy drive and front media ports can all be hidden from view when not in use providing superior style and visual appeal.
Internal design innovation
The redesigned internal structure of the P-chassis allows for three 3.5-inch drives and one 5.25-inch drive. The internal drive rack offers space for one 3.5-inch and one 5.25-inch drive with the other bays located in the top portion of the chassis. The rack's 3.5-inch bay can be used to install a FDD or a legacy HDD if desired, making the P-chassis incredibly expandable and flexible.
Toolless drive installation
The Piece de la Resistance of the P-chassis are its toolless drive mounting brackets. New to the XPC, these brackets make installing drives a breeze. Further, installation of a HDD in the rack mount requires no brackets whatsoever; just drop the HDD in the rack (four-pins in the bottom of the rack and compression clips hold the drive securely in place). Refer to the manual for instructions on using these mounting brackets.
Integrated cable management
To help improve airflow and reduce noise and vibrations, all cables have been pre-installed and clipped in place. All you need to do is add the components and you have a powerful and tidy machine.
8-in-1 Card Reader
A standard feature in the P-chassis, this card reader features support for eight standard memory formats and provides transfer rates of up to 480Mb/s (USB 2.0). Supported format include; Compact Flash I (CF I), Compact Flash II (CF II), IBM Microdrive (MD), Smart Media Card (SM/SMC), Secure Digital card (SD), Multi Media Card (MMC), Memory Stick (MS), Memory Stick Pro (MSP).
