Note: This unit comes with a PCI-E x16 slot and a PCI-E x1 slot -- there is no standard PCI slot for a common sound card or controller.
Model: Shuttle SN25P
Features
- AMD Athlon#153; 64 (939) Processor support - 2000MT/s system bus with HyperTransport#153; link
- NVIDIA#174; NFORCE#153;4 Ultra MCP - NVIDIA RAID, Gigabit Ethernet, Hardware Firewall
- NVIDIA SATA/PATA RAID - Improve data integrity with multi-bus (SATA/PATA) RAID (0, 1, JBOD)
- Silent X Cooling And Noise Reduction Technology - ICE heat-pipe module, Silent X350W PSU, Active Airflow
- Tooless installation - Toolless drive brackets and pre-installed thin, fl at cables provide easy installation
Processor support: AMD Athlon 64/FX (Socket 939) Processors
Memory: Dual-channel DDR 400/333(2) DIMM slots (2GB max)

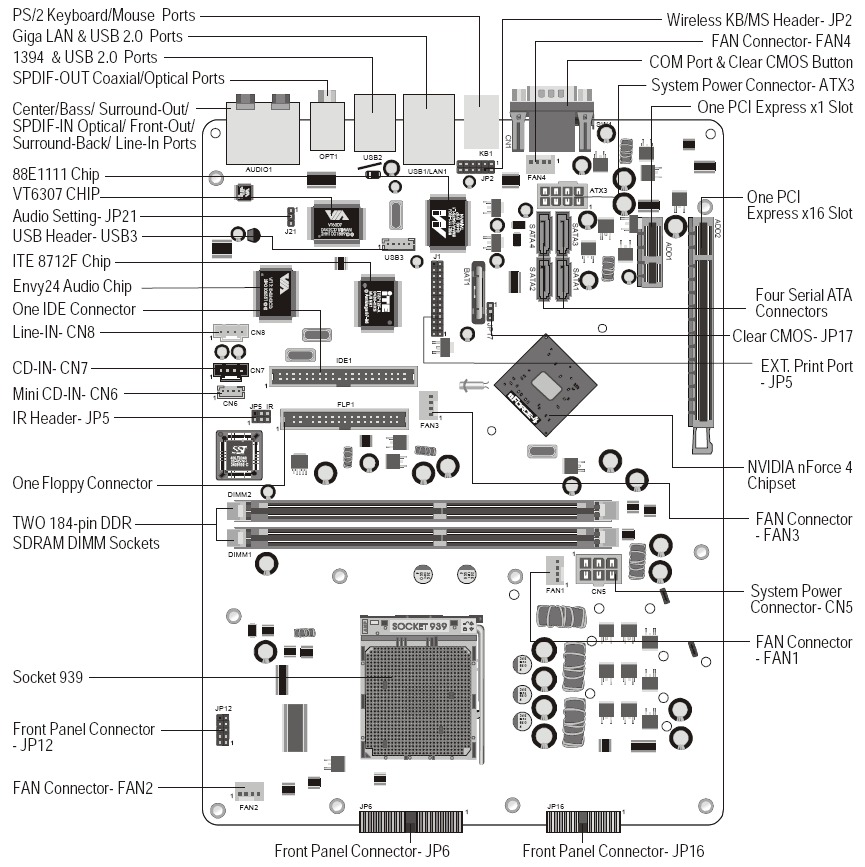

Motherboard: FN25 (proprietary)NVIDIA nForce4 Ultra MCP1GHz (2000MT/s) HyperTransport enhancedSystem Bus(1) x1 PCI-E slot
Graphics: x16 PCI-E Slot
Audio: 8-channel audioDigital (SPDIF) audio portsAnalog audio ports
Network: Gigabit LAN
8-in-1 Memory Card Reader: CF I/II, MS, MSP, SD, MMC, SM, MD
Storage: (1) ATA133 headers(4) Serial ATA 300 headersNVIDIA RAID (0, 1, JBOD)(1) FDD header(1) 5.25#34; storage bay(3) 3.5#34; storage bays
Front-panel I/O: (2) USB 2.0 ports(1) FireWire port(1) Microphone port(1) Headphone port8-in-1 card readerPower button
Reset button

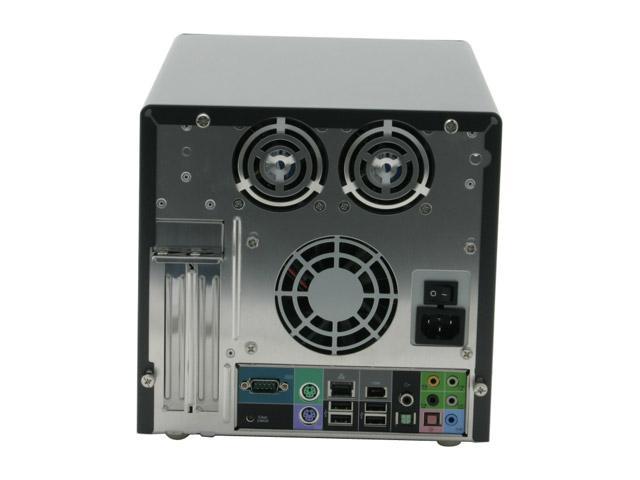

Rear-panel I/O: (1) PS/2 Keyboard socket
(1) PS/2 Mouse socket
(4) USB 2.0 ports
(1) FireWire 400 port
(1) Gigabit LAN (RJ-45)
8-channel audio out
SPDIF I/O ports
Coaxial Audio port
Line-in
Serial port
CMOS Reset button
Silent X (system cooling): Integrated Cooling Engine (ICE)
Intelligently-engineered airflow mechanics
Power Supply: Silent X 350W
Dimensions (L x W x H, mm): 320 x 210 x 220
Weight (net / gross; kg, lbs): 4.25 (9.35) / 6.05 (13.31)
The XPC SN25P takes small form factor (SFF) computer design to the next plane. With support for revolutionary AMD Athlon64-bit processors as well as scalable PCI-E graphics interface, this machine delivers the performance you need to power your cutting-edge lifestyle--Game play, workflow, and entertainment!
The first SFF with both HyperTransport, PCI-E
Featuring the NVIDIA nForce4 Ultra media and communications processor, the XPC SN25P is optimized to deliver exceptional system performance, security and storage options for high-performance computing environments. Key features of the NVIDIA nForce4 Ultra Express chipset for both consumer and corporate market segments:
AMD Athlon 64 processors
- 1GHz system bus
- HyperTransport
- Socket 939
NVIDIA RAID
- SATA/PATA drives
- Easy-to-use interface
ActiveArmor Secure Networking
- Hardware Firewall
- Reduces CPU overhead
- Native gigabit controller
PCI Express interface
- Reduces CPU
- 8.0GB/s of Bandwidth
- Additional power rail
8-channel audio
The SN25P integrates the VIA Envy24PT multi-channel audio controller to deliver high-fidelity audio. Enabling 24-bit resolution and 96KHz sampling rates, the VIA Envy24PT provides support for the latest audio content through its analog and digital interfaces. Further, this model features 8-channel outputs enabling support for the latest Dolby Digital EX and DTS ES DVD-Video soundtracks.
Advanced I/O
Enclosed in the renowned P-chassis, this XPC is a masterpiece of integration and style. Beautifully integrated 8-in-1 card reader delivers exceptional storage and connectivity flexibility. With FireWire 400, USB 2.0 and SPDIF digital audio I/O built-in, it's easy to connect all of your peripherals. Further, with Gigabit LAN built-in and optional 802.11g WLAN, the XPC SN25P offers a full palate of options to share your digital files - audio, video and pictures.
Silent X Technology
Integrated Silent X cooling and noise reduction technologies deliver optimized cooling for exceptional stability, comfort and reliability. Optimized cooling features, including programmable smart fans and best-of-class airflow, make the XPC SN25P ideal for use in any setting-home, office, dorm-because it's "Super Quiet, Super Cool."
Integrated Cooling Engine (ICE) Module
Redesigned for the P-chassis, the 4G Integrated Cooling Engine (ICE) in this model is based on the same concept that made the first XPC's a consumer success. The ICE heat-pipe module uses convection cooling to transfer heat away from the processor. Copper tubing, coated in nickel and filled with distilled water of specific pH provides the conduit through which heat passes to a radiator and is dissipated out of the system. A quiet, speed controlled 80mm ducted fan covers the radiator, providing both processor cooling and case exhaust. Improving on the standard ICE module that's a part of earlier XPC's, the P-series ICE module uses two fans in push-pull mode to more efficiently pass cool air over the ICE radiators fins. This makes it possible to deliver up to 50CFM. Further, both fans are PWM spec-which delivers finely tunable, linear fan speed control-and controllable in BIOS.
350 Watt Power Supply
Customize your XPC with the latest high-end components and still have power to spare. Featuring a 350W PSU--100 Watts more than previous PSUs-- this XPC is powerful and quiet. Tested in our acoustic lab from a distance of 50cm-to create an environment similar to actual usage (many competitors take measurements at 1M)-the Shuttle Silent X 350W PSU in the XPC SN25P operates at just 27dB under normal load.
Airflow
Three independent cooling zones-CPU, HDD and Case-ensure that cool air is delivered to critical components.

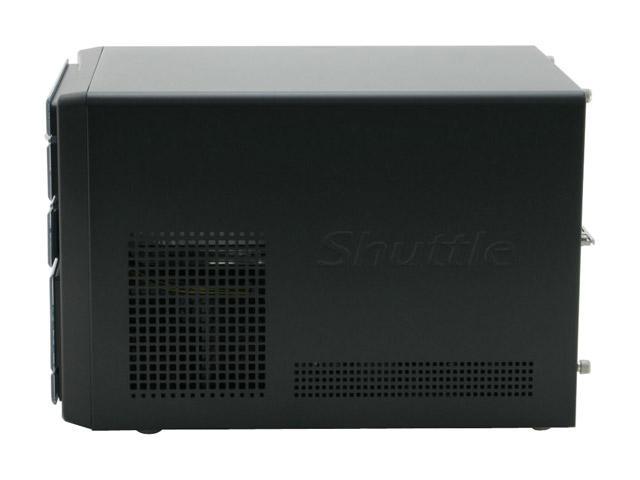

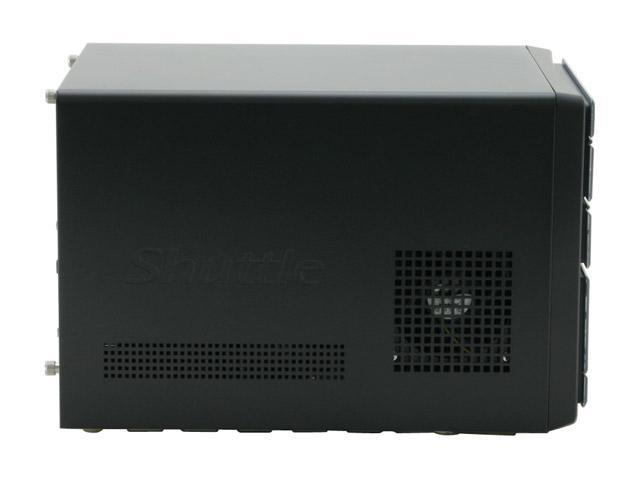

The airflow in the P-chassis features several different intake points designed to keep cool air continually and evenly flowing over critical components, as opposed to recirculating warm, stale air. For more information and illustrations of the XPC SN25P's airflow system, visit: http://sys.us.shuttle.com/ModelsP_4.aspx# Further, the underside of the P-chassis has more air intake points designed to keep the motherboard cool and stable. The underside edge is lined with intake points. Other intake points are also located on the underside of the machine to improve motherboard cooling.
Smart Fan
Smart Fan incorporates linear control metrics to provide optimal cooling. Under normal conditions, Smart Fan keeps fan speed low, minimizing acoustic noise. When the load increases, Smart Fan increases fan speed to provide optimal cooling. Users can customize Shuttle's Smart Fan settings to precisely match their desired temperature and fan speed metrics.
Damping
Mechanical damping is a simple yet highly-effective technique to reduce the overall noise of the XPC SN25P. The four rubber dampers integrated into this advanced SFF computer are designed to reduce the vibration of installed, third-party components, such as optical and hard drives, by absorbing energy produced by these components-a simple and cost-effective method that produces remarkable results.
P Chassis

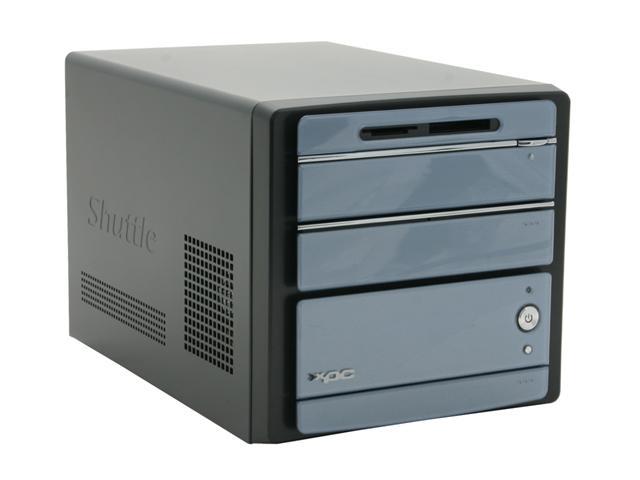

Stealth drive doors
The P's clean facia is thanks to three well-integrated stealth bay covers. The optical drive, floppy drive and front media ports can all be hidden from view when not in use providing superior style and visual appeal.

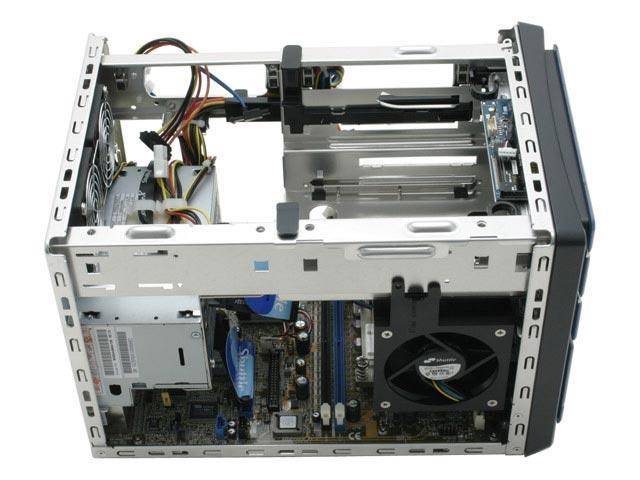

Internal design innovation
The redesigned internal structure of the P-chassis allows for three 3.5-inch drives and one 5.25-inch drive. The internal drive rack offers space for one 3.5-inch and one 5.25-inch drive with the other bays located in the top portion of the chassis. The rack's 3.5-inch bay can be used to install a FDD or a legacy HDD if desired, making the P-chassis incredibly expandable and flexible.

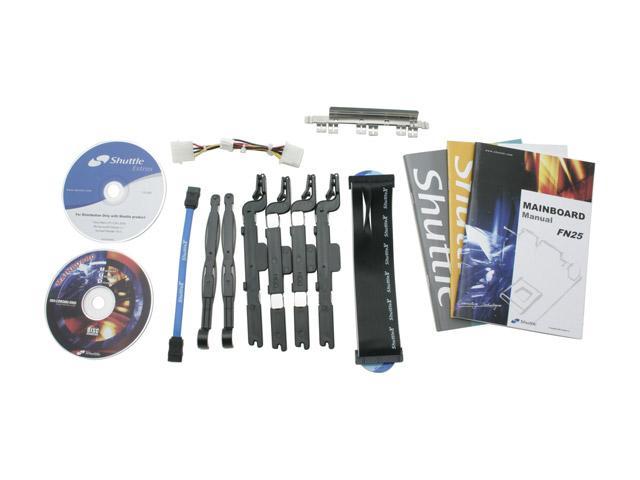

Toolless drive installation
The Piece de la Resistance of the P-chassis are its toolless drive mounting brackets. New to the XPC, these brackets make installing drives a breeze. Further, installation of a HDD in the rack mount requires no brackets whatsoever; just drop the HDD in the rack (four-pins in the bottom of the rack and compression clips hold the drive securely in place). Refer to the manual for instructions on using these mounting brackets.
Integrated cable management
All been pre-installed and clipped in place. All you need to do is add the components and you have a powerful and tidy machine.
8-in-1 Card Reader
A standard feature in the P-chassis, this card reader features support for eight standard memory formats and provides transfer rates of up to 480Mb/s (USB 2.0). Supported format include; Compact Flash I (CF I), Compact Flash II (CF II), IBM Microdrive (MD), Smart Media Card (SM/SMC), Secure Digital card (SD), Multi Media Card (MMC), Memory Stick (MS), Memory Stick Pro (MSP).
