Model: Shuttle SN26P
Features
- SN26P motherboard
NVIDIA nForce4 SLI
1GHz FSB with HyperTransport link
Dual-channel DDR 400 memory (2GB max)
PCI Express x16 graphics (2 slots)
GeForce 7800 series support
Serial ATA (4 headers support NCQ and 3Gb/s)
NVIDIA MediaShield SATA/PATA RAID technology
Gigabit LAN with NVIDIA ActiveArmor Firewall
Via Envy24PT hardware audio - Silent X Technology
4G Integrated Cooling Engine (ICE)
Silent X 350W PSU
Airflow cooling mechanics
Smart Fan - Case
Shuttle P Chassis
Stealth drive doors
Preinstalled drive/power cables
Toolless drive brackets
8-in-1 card reader
Form Factor: Shuttle Form FactorP series chassis
Processor: AMD Athlon 64/FX/X2 SupportSocket 9391GHz system bus with 2000MT/s HyperTransport
Chipset: NVIDIA nForce4 SLI
Sli Support: NVIDIA GeForce 7800 series
Memory: (2) 184 pin 333/400 DDR DIMM slots1GB per DIMM, max 2GB capacityDual-channel memory controller
Audio: VIA Envy24PT7.1 Channel H/W audioDigital SPDIF I/O
Gigabit Ethernet: Marvell PHY 88E111110/100/1000 Mb/s operationSupports Wake-on LAN
Firewire 400: VIA VT6307Support 400Mb/s, 200Mb/s, 100Mb/s transfer rate
Raid Support: Integrated NVIDIA MediaShield RAIDSATA/PATA RAIDSupport RAID 0,1, JBOD

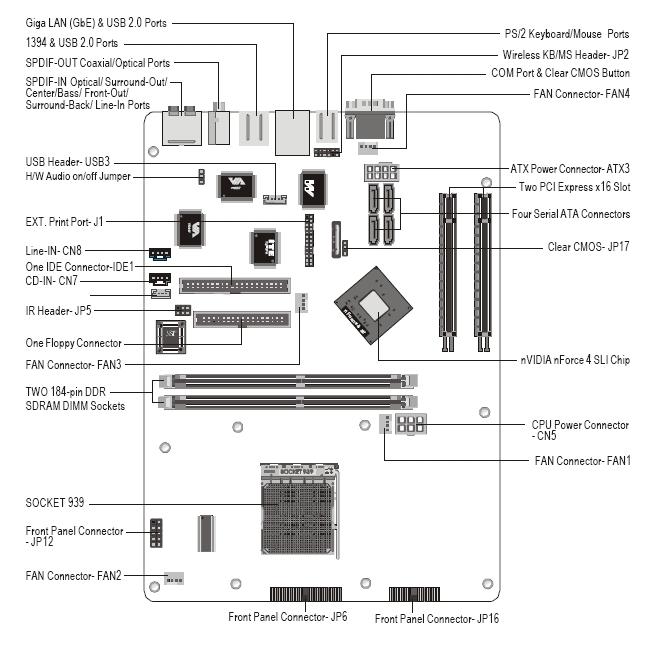

Onboard Headers & Connectors: (1) ATA133 IDE connectors(1) Floppy connector(4) Fan connectors(1) CD in header(1) Parallel port header(1) Wireless keyboard/mouse connector(4) SATA connectors(1) Line in header(3) USB 2.0 headers(1) 8pin 12V power connector(1) 6 pin 12V power connector(1) IrDA headerClear CMOS jumper

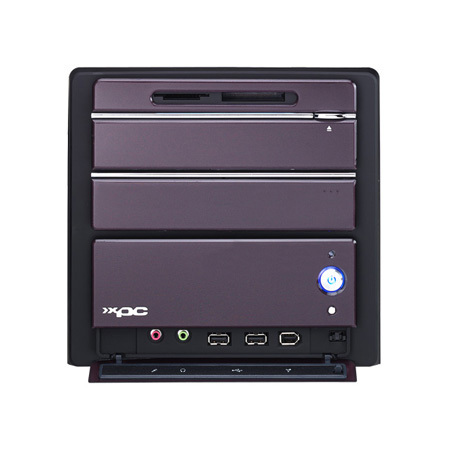

Front Panel: (1) Power button(1) Reset button(2) USB 2.0 ports(1) FireWire port(1) Microphone(1) Headphones(1) 8-in-1 card reader

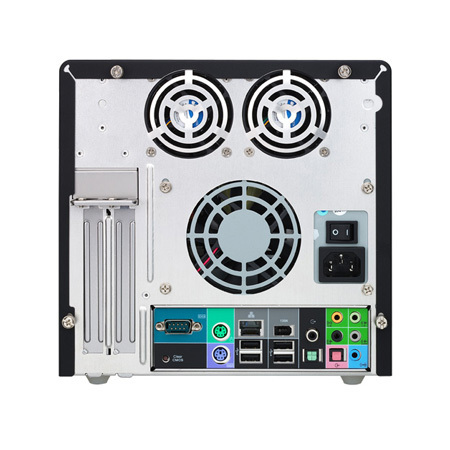

Back Panel: (4) DVI-I ports (2 active)(2) TV-out connectors (1 active)(1) PS2 Keyboard/Mouse(1) Serial Port(4) USB 2.0 ports(1) FireWire port(1) Gigabit (RJ-45) LAN port(1) Audio - Front /Center- out/Surr/Surr-back(1) Line in(1) Optical SPDIF in/out(1) Coaxial RCA connector(1) Clear CMOS
Expansion Bay: 2x3.5" bays (Hiden Bays, for HD only)1x5.25" bay
Dimensions: 325(L) x 220(W) x 210(H) mm
Power: Output
Accessories: User Manuals and driver CDsCables and connectorsHeatsink compoundFront Feet / Mounting brackets

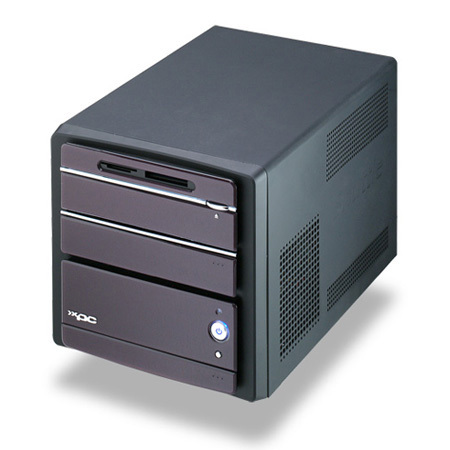

The XPC SN26P combines the power and performance of NVIDIA SLI with Shuttle's award winning small form factor technology. This cutting-edge small form factor computer has been engineered to meet the performance needs of the world's most demanding gamers. Powerful, portable and cool. The XPC SN26P is the ultimate gaming system.
Features
The XPC SN26P supports the entire range of AMD socket 939 processors:
Athlon 64 X2 - advanced dual core technology for multitasking and digital media
Athlon 64 FX - extreme performance and overclocking for gaming
Athlon 64 - high performance 64 and 32-bit features for mainstream users
NVIDIA nForce4 SLI
Featuring the NVIDIA nForce4 SLI chipset the XPC SN26P delivers the ultimate in gaming performance.
Highly optimized for gaming environments the NVIDIA nForce4 SLI chipset features:
AMD Athlon 64/FX/X2 processor support - 1GHz system bus - HyperTransport - Socket 939
NVIDIA MediaShield storage technology - RAID 0 RAID 1 and JBOD - SATA/PATA drive support - SATA NCQ and 3Gb/s support - Easy-to-use interface
NVIDIA ActiveArmor Hardware Firewall - Reduces CPU overhead - Native gigabit controller
PCI Express interface - x16 graphics slot - 8.0GB/s of Bandwidth - supports NVIDIA GeForce series 7
NVIDIA MediaShield storage technology
Unique support for four SATA and 1 ATA-133 drives gives the XPC SN26P the storage edge over competing SFF solutions. Cross platform (SATA and PATA) RAID 0, RAID 1 and JBOD support (RAID 0+1 is also supported) provides flexible data security and performance. With the performance boost of RAID games can launch faster, and levels load more quickly. The XPC SN26P gets you into the action all guns blazing.
NVIDIA ActiveArmor Hardware firewall
NVIDIA ActiveArmor Firewall adds a protection to the XPC SN26P??s Gigabit Ethernet connection by filtering out any unauthorized or suspicious traffic. Easy to set up and fast to configure, NVIDIA ActiveArmor Firewall helps keep you safe when playing online or at LAN parties.
PCI Express interface with SLI
The XPC SN26P supports the latest PCI Express graphics cards to deliver the power needed to enjoy the next-generation games. The x16 PCI Express bus delivers over 4GBps in both upstream and downstream data transfers allowing games to be more visually stunning with larger levels, more complex architecture and higher quality textures.
NVIDIA SLI technology allows gamers to double the graphics processing power within the XPC SN26P for higher frame rates, higher resolutions, and higher performance when using image-enhancing features such as anti-aliasing and anisotropic filtering. The best frame rates, the best image quality, the best features. Play the best with the XPC SN26P.
VIA Envy24PT audio
The XPC SN26P integrates the VIA Envy24PT multi-channel audio controller to deliver high-fidelity audio. Enabling 24-bit resolution and 96KHz sampling rates, the VIA Envy24PT provides support for the latest audio content through its analog and digital interfaces. Further, this model features 7.1-channel outputs enabling support for the latest Dolby Digital EX and DTS ES DVD-Video soundtracks.
This XPC delivers high-intensity sound effects, adrenalin pumping music, and multidirectional audio, for a fully immersive gaming environment. Get into the game with the XPC SN26P. Graphics Card Compatibility.
The XPC SN26P has all the connectivity options a gamer needs, and then some. Dual PCI Express graphics slots for advanced graphics, and multi-channel audio ports for true surround sound combine to deliver the ultimate audio-visual experience of any small form factor system. The XPC SN26P offers several options to connect to others for LAN and Internet multiplayer gaming, including FireWire, high-speed Gigabit LAN, or even wireless [With optional XPC Accessory PN18 Wireless LAN module]. Finally, 4 USB 2.0allows gamers to attach multiple gaming peripherals such as gamepads, steering wheels, joysticks, and Internet chat headsets.
P Chassis
The XPC SN26P uses the new P chassis, a member of Shuttle's fifth generation XPC chassis family. The Shuttle P chassis has been designed with two major principles in mind, refined ergonomic styling and easy installation

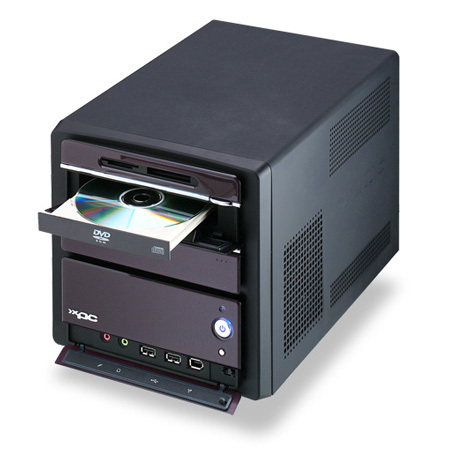

Stealth drive doors
The P's clean fascia is thanks to three well-integrated stealth bay covers. The optical drive and front media ports can all be hidden from view when not in use providing superior style and visual appeal.
Internal design innovation
The redesigned internal structure of the P chassis allows for two 3.5-inch drives and one 5.25-inch drive. The internal drive rack offers space for one 3.5-inch and one 5.25-inch drive with another other bay located in the top portion of the chassis. The rack's 3.5-inch bay can be used to install a HDD if desired, making the P chassis incredibly expandable and flexible.
Toolless drive installation
P chassis XPCs are based on Shuttle's innovative toolless installation system. Thumb screws, clip-on components, and easy-to-use drive brackets make setting up and configuring the XPC a snap, without the need for even a screwdriver.
Integrated cable management
To ease installation, improve airflow within the system, and reduce vibrations and noise, all cables within the P chassis are pre-installed, wrapped and clipped securely to the chassis frame. All that is needed is to add the components to create a powerful and tidy machine.
8-in-1 card reader
A standard feature in the P chassis, this card reader features support for 8 different memory formats. (Compact Flash I (CF I), Compact Flash II (CF II), IBM Microdrive (MD), Smart Media Card (SM/SMC), Secure Digital card (SD), Multi Media Card (MMC), Memory Stick (MS), and Memory Stick Pro (MSP). Operating at 480Mb/s (USB 2.0), this value added component makes it easy to transfer files to and from digital music players, cameras, and other multimedia devices.
