Shuttle ST61G4 Base System

Motherboard

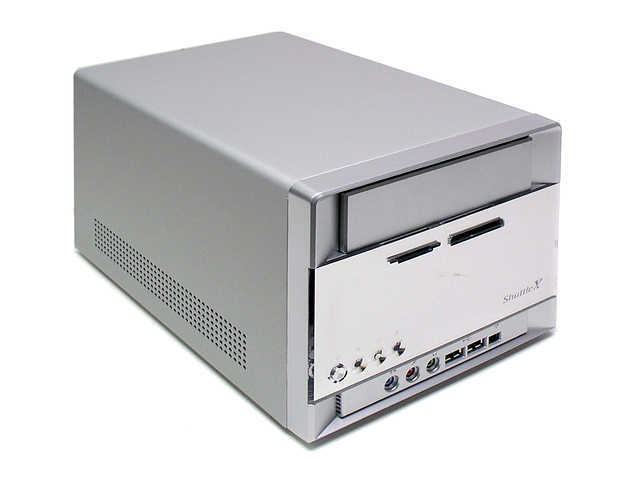

Shuttle ST61G4 Base System Main Picture


Shuttle ST61G4 Base System Picture 3335Shuttle ST61G4 Base System Picture 3337Shuttle ST61G4 Base System Picture 3338Shuttle ST61G4 Base System Picture 3339Shuttle ST61G4 Base System Picture 3340

Specifications

Form Factor Shuttle/Socket 478
Chipset ATI RS300/IXP150

Memory Type: DDR400/333/266/200
Max CPU: Intel Pentium 4 3.4E
Max Memory: 2 GB
Memory Slots: 2
AGP: 8x
# PCI: 1
Onboard Items: Audio/LAN/USB2/Flash Reader/Video
Hard Drive Support: 2xUDMA100/2xSATA RAID

Compact, sturdy aluminum case.

Dimensions: 300 (L) x 200 (W) x 185 (H)
Weight: 2.4Kg (N.W), 3.55Kg (G.W)
