Model: Supermicro 5015M-MR
Features
- Up to 8GB unbuffered,
ECC DDRII 667/533 SDRAM - 1 (x8) PCI-Express OR
1x 64-bit 133MHz PCI-X Slot - 2x Intel 82573V (Tekoa) PCI-e Gigabit
LAN Ports - ATI RageXL Graphics
- 1x 3.5" Internal Drive Bay
- 260W Power Supply

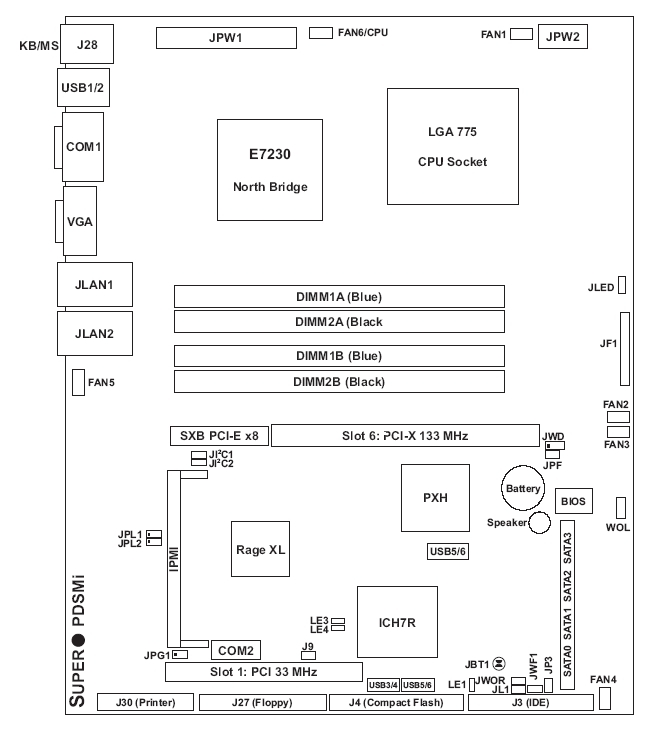

Motherboard: Super PDSMi
Internal Bay: 1x 3.5#34; internal SATA drive bay
CD-ROM: TEAC Slim 24x CD-ROM drive
Fans: 2x 16cm 3-pin Nidec Counter-rotating Fans
AC Voltage: Thermal control 260W AC power supply with PFC[ 24-pin, (4-pin=12V) ]100 - 240V, 60-50Hz, 5-3 Amp
DC Output: 5V + 3.3V less than or equal to 140W
5V: 25.0 amp
5V standby: 2.0 amp
12V: 18.0 amp
-12V: 1.0 amp
3.3V: 15.0 amp
CPU: Monitors for CPU Cores (+1.8V, +3.3V, +5, +/-12V, +3.3V/+5V Standby, VBAT)CPU Core 4-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6000VAdjustable CPU clock frequency ratio
FAN: Fan Speed ControlFans with tachometer monitoringStatus monitor with firmware speed controlLow noise fan speed controlStatus monitor for on/off controlSupport 3-pin fans (without speed control)Pulse Width Modulated (PWM) fan connector
Temperature: Monitoring for CPU and chassis environmentCPU thermal trip support
LED: +5V Standby Alert LEDSuspend-state indicator LED
Other Features: Chassis Intrusion Detection
BIOS Type: 8Mb Flash EEPROM with Phoenix BIOS
BIOS Features: Plug and Play (PnP)APM 1.2DMI 2.3 supportPCI 2.2ACPI 1.0USB Keyboard support
MBD-PDSMi-B: Super PDSMi Motherboard
CSE-512F-260(B): 1U SC512F-260 Chassis (B = Black)
CBL-0061: 35cm SATA Cable
FAN-0087: 16cm 3-pin Nidec Counter-rotating Fans
SNK-P0016: 1U Passive Heatsink
MNL-0809: SS5015M-MR User#39;s Manual
CDM-TEAC-24(B): Slim 24x TEAC CD-ROM Drive
PWS-0055: SP262-1S 260W 1U Power Supply
CSE-RR1U-Xi: 1U 1-Slot PCI-X Riser
CSE-PT97: Air Shroud
CSE-RR1U-ELi: 1U Universal (SXB-E) Slot to PCI-E Slot Riser Card for PDSMi
CPU: Single LGA775 ZIF SocketSupports an Intel Pentium D (Smithfield Dual Core) processorSupports an Intel Pentium Extreme Edition processorSupports an Intel Pentium 4 processorSupports an Intel Pentium 4 Extreme Edition processorSupports an Intel Celeron D processorHyper-Threading (HT) capable2MB / 1MB L2 Cache
System Bus: 1066 / 800 / 533 MHz system bus
Memory Capacity: Four 240-pin DIMM socketsSupports up to 8 GB of unbuffered, ECC DDRII 667/533MHz memory (Dual Channel)
Memory Type: DDRII 667/533MHz unbuffered, ECC SDRAM, 240-pin gold-plated DIMMs
DIMM Sizes: 256 MB, 512 MB, 1 GB, 2GB
Memory Voltage: 1.8 V only
Chipset: Intel E7230 (Mukilteo) Smithfield chipsetICH7R + PXH-V + Intel 82573V
Serial ATA: Intel ICH7R SATA controller built-inRAID 0, 1, 5, 10
IPMI: 1U support for Intelligent Platform Management Interface v.2.0 (Optional
Network Controllers: Dual-port Intel 82573V Gigabit PCI-Express Ethernet (Tekoa)Supports 10Base-T, 100Base-TX, 1000BASE-TX, RJ45 output
VGA: On-board ATI RageXL graphics, 8MB
Super I/O: Winbond 83627EHF chip
Clock Generator: CK410
PCI-Express / PCI-X: 1x Universal (SXB-E) Slot for Riser (x1) [ 1x 64-bit PCI-X 133MHz Slot ] OR [ 1 (x8) PCI-Express Slot ] (Optional)
Serial ATA: Four Serial ATA ports (3 Gbps performance)Four SATA hard drives supported
IDE: One EIDE channel supports up to two UDMA IDE devicesIDE Master / Slave 2 portsSupports UDMA Mode 5, PIO Mode 4, and ATA/100White Connector for Compact Flash (CF) card only
Floppy: 1 Floppy controller; 1.44 MB
LAN: 2x RJ45 LAN port
USB: USB 2.0 compliant / 1.1 compatible2x Front USB ports2x rear ports
VGA: 1x VGA Port
Keyboard / Mouse: PS/2 keyboard and mouse ports
Serial Ports: 1x Fast UART 16550 serial port1x Header
Parallel Port: 1x ECP / EEP Parallel Header
Form Factor: 1U Rackmount
Model: SC512F-260(For SuperServers Only)
Height: 1.7#34; (43mm)
Width: 16.8#34; (427mm)
Depth: 14.0#34; (356mm)
Gross Weight: 17 lbs (7.7kg)
Available Colors: Beige, Black
Buttons: Power On/Off buttonSystem Reset button
LEDs: Power LEDHard drive activity LED2x Network activity LEDsSystem Overheat LED
Ports: 2x USB Ports (2.0 Ready)
Supermicro's 1U Pentium D servers supports the latest dual-core architecture that delivers unmatched multi-tasking capabilities in an uni-processor environment. Designed to get the most performance features for the buck, it supports two PCI-X or express expansion slots, up to 8GB of DDRII memory, 4 SATA/SCSI HDDs, optional redundant power supply, and the list goes on. These servers are best used in high-availability cluster systems or databases.
