Model: Supermicro 5015P-TR
Features
- Up to 8GB unbuffered,
ECC DDRII 667/533/400 SDRAM - 1 (x4) PCI-Express Slot OR
1x 64-bit 133MHz PCI-X Slot,
1x 64-bit 100MHz PCI-X Slot,
1x IPMI Slot - 2x Intel 82573V (Tekoa) PCI-e Gigabit
LAN Ports - 4 x 1" Hot-swap SATA Drive Bays
- Redundant 400W Hot-swap Power
Supply with I2C for Remote Management

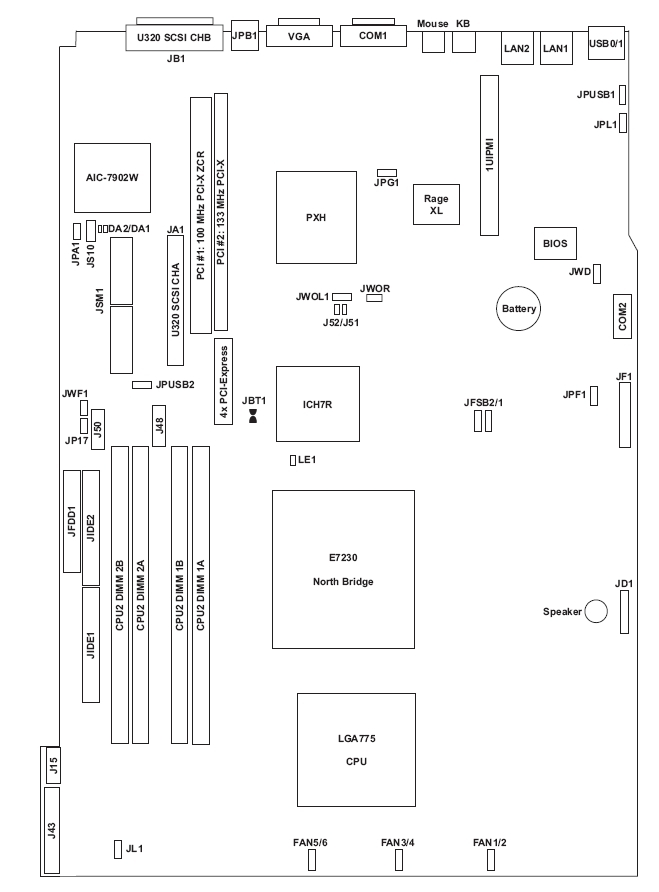

Motherboard: Super PDSMP-i
Hot-swap: 4x 1#34; Hot-swap SATA drive bays
Floppy: TEAC 3.5#34; 1.44MB Slim Floppy Drive
DVD-ROM: Panasonic Slim 8x DVD-ROM drive
Backplane: 1x SAS Hard Drive Backplane
Fans: 3x 4cm 12,000 RPM Nidec dual blade fans
AC Voltage: 100 - 240V, 50-60Hz, 6A-3A Amp400W AC power supply with PFC
5V: 24 Amp
5V standby: 4 Amp
12V: 32 Amp
-12V: 0.6 Amp
3.3V: 21 Amp
CPU: Monitors for CPU Cores (+1.8V, +3.3V, +5, +/-12V, +3.3V/+5V Standby, VBAT)CPU Core 4-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6000V
FAN: Fan Speed ControlTotal of four proprietary fan headers4 fans with tachometer monitoringStatus monitor with firmware speed controlLow noise fan speed control
Temperature: Monitoring for CPU and chassis environmentCPU thermal trip supportThermal Monitor (TM2) Support
LED: CPU / System Overheat LED+5V standby alert LEDSuspend-state indicator LED
Other Features: Chassis Intrusion DetectionChassis Intrusion Header
BIOS Type: 8Mb Flash EEPROM with Phoenix BIOS
BIOS Features: Plug and Play (PnP)APM 1.2DMI 2.3 supportPCI 2.2ACPI 1.0Hardware BIOS Virus protectionUSB Keyboard support
MBD-PDSMP-i-B: Super PDSMP-i Motherboard
CSE-816T-R400(B): 1U SC816T-R400 Chassis (B = Black)
CBL-0096: 18#34; SATA Cable
FAN-0085: 12,000 RPM Nidec Dual Blade Fan
CSE-PT39(B): 1#34; Hard Drive Trays
CSE-SAS-814: 1U 4 x 1#34; SAS Backplane
SNK-P0011: 1U LGA775 P4, Passive Heatsink
Item: SS5015P-TR User#39;s Manual
CSE-PT51: 1U Mounting Rail Kit
FPD-TEAC-S(B): TEAC 3.5#34; 1.44MB Slim Floppy Drive (B = Black)
DVM-PNSC-824(B): Slim Panasonic 8x DVD-ROM Drive (B = Black)
PWS-0064: SP400-1R 400W 1U power supply
CSE-RR1U-X: 1U 1-Slot 64-bit 3.3V PCI-X - Left Side Full-height Full-length
CSE-RR1U-XR: 1U 1-Slot 64-bit 3.3V PCI-X - Right Side Full-height Full-length
CSE-RR1U-ER: 1U 1-Slot PCI-Express - Right Side Full-height Full-length
CSE-PTFB-814-01(B): Front Cover Bezel (B = Black)
CPU: Single LGA775 ZIF SocketSupports an Intel Pentium D (Smithfield Dual Core) processorSupports an Intel Pentium Extreme Edition processorSupports an Intel Pentium 4 processorSupports an Intel Pentium 4 Extreme Edition processorSupports an Intel Celeron D processorHyper-Threading (HT) capable1MB L2 Cache
System Bus: 1066 / 800 / 533 MHz system bus
Memory Capacity: Four 240-pin DIMM socketsSupports up to 8 GB of unbuffered, ECC DDRII 667/533/400MHz memory (Single / Dual Channel)
Memory Type: DDRII 667/533/400MHz unbuffered, ECC SDRAM, 240-pin gold-plated DIMMs
DIMM Sizes: 256 MB, 512 MB, 1 GB, 2GB
Memory Voltage: 1.8 V only
Chipset: Intel E7230 (Mukilteo) Smithfield chipsetICH7R + PXH + Intel 82573V
Serial ATA: Intel ICH7R SATA controller built-inRAID 0, 1, 5, 10
IPMI: 1U support for Intelligent Platform Management Interface v.2.0 (Optional
Network Controllers: Dual-port Intel 82573V Gigabit PCI-Express Ethernet (Tekoa)Supports 1000BASE-TX, RJ45 output
VGA: On-board ATI RageXL graphics, 8MB
Super I/O: Winbond 83627HF chip
PCI-Express / PCI-X: 1 x Universal (SXB-E) slot for [1 (x4) PCI-E Slot] OR [1x 64-bit PCI-X 133MHz slot]1 x 64-bit PCI-X 100MHz slot (ZCR Support)1 x 1U IPMI Slot
Serial ATA: Four Serial ATA ports (3 Gbps performance)Four SATA hard drives supported
IDE: One EIDE channel supports up to two UDMA IDE devicesIDE Master / Slave 2 portsSupports UDMA Mode 5, PIO Mode 4, and ATA/100
Floppy: 1 Floppy controller; 1.44 MB, 2.88 MB, 3-mode support
LAN: 2x RJ45 LAN port
USB: 6x USB 2.0 compliant / 1.1 compatible4 internal USB headers2 rear ports
VGA: 1x VGA port
Keyboard / Mouse: PS/2 keyboard and mouse ports
Serial Ports: 2x Fast UART 16550 serial header
Form Factor: 1U Rackmount
Model: SC816T-R400
Height: 1.7#34; (43mm)
Width: 16.7#34; (424mm)
Depth: 27#34; (685.8mm)
Gross Weight: 46 lbs (20.9kg)
Available Colors: Beige, Black
Buttons: Power On/Off buttonUID button
LEDs: Power / Power Fail LEDHard drive activity LED2x Network activity LEDsSystem Overheat / Fan Fail LEDUID LED
Ports: N/A
Supermicro's 1U Pentium D servers supports the latest dual-core architecture that delivers unmatched multi-tasking capabilities in an uni-processor environment. Designed to get the most performance features for the buck, it supports two PCI-X or express expansion slots, up to 8GB of DDRII memory, 4 SATA/SCSI HDDs, optional redundant power supply, and the list goes on. These servers are best used in high-availability cluster systems or databases.
