Model: Supermicro 6014H-8
Features
- Up to 16GB DDR 333 SDRAM (or) Up to 32GB DDR 266 SDRAM
- 1 (x8) PCI-Express Expansion Slot OR 1 x 64-bit 133MHz Full-height / length PCI-X Slot
- 1 (x4) on a (x8) PCI-Express Slot OR 1 x 64-bit 133MHz Low-profile PCI-X Slot
- 2 x Intel 82546GB Gigabit Ethernet Ports
- Zero Channel RAID Support
- 4 x 1" Ultra320 SCSI Hot-swap Drive Bays
- 500W Cold-swap Power Supply with I2C for Remote Management

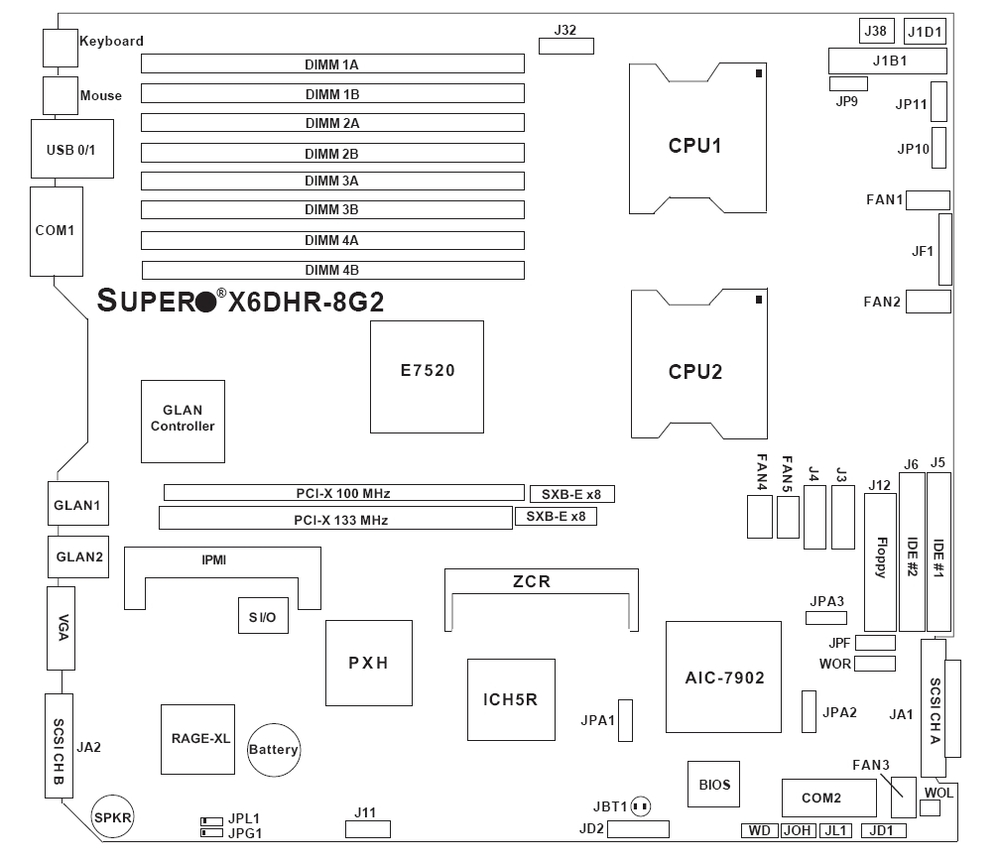

Motherboard: Super X6DHR-8G
Hot-swap: 4x 1#34; Hot-swap Ultra320/160 SCSI drive bays
Floppy: TEAC 3.5#34; 1.44MB Slim Floppy Drive
CD-ROM: TEAC Slim 24x CD-ROM drive
SCSI Backplane: 1x SCA813S 1U SCSI Backplane w/ SAF-TE
Fans: 2x 10cm blower fans
General Power: Cold-swappable 500W AC power supply module w/ PFC[ 20-pin, (4-pin, 8-pin) = 12V ]
AC Voltage: 100 - 240V, 60-50Hz, 10-5 Amp
DC Output: 5V + 3.3V less than or equal to 160W12V Total less than or equal to 39 Amp
5V: 21.0 amp
5V standby: 2.0 amp
12V1: 15.0 amp
12V2: 15.0 amp
12V3: 18.0 amp
12V: 1.0 amp
3.3V: 21.0 amp
CPU: Monitors for CPU Cores, +3.3V, +5V, +/-12V +5V StandbyCPU Core 3-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6VAdjustable CPU clock frequency ratio settings (via BIOS)
FAN: Total of five 3-pin fan headers5x fans with status monitoringStatus monitor with firmware/software on/off controlFan speed control
Temperature: Monitoring for CPU, chassis, environmentCPU thermal trip supportThermal Monitor 2 support
LED: CPU Overheat LEDSystem Overheat LED
Other Features: Chassis intrusion detectionChassis intrusion headerSDDC support
BIOS Type: 8Mb Flash EEPROM with Phoenix BIOS
BIOS Features: Plug and Play (PnP)SMBIOS 2.3APM 1.2DMI 2.1ACPI 1.0Fan Speed Control
MBD-X6DHR-8G-B: Super X6DHR-8G Motherboard
CSE-813S-500(B): 1U SC813S-500 Chassis (B = Black)
CBL-0037-U320: 6#34; Two-drop Ultra320 SCSI Cable
CBL-0040: 13.8#34; Floppy Cable
CBL-0049: Front Panel LED Ribbon Cable
FAN-0059: 100mm Blower Fan
MNL-7xx: SS6014H-8 User#39;s Manual
MNL-0669: Ultra 320 SCSI Manual
CSE-PT51: 1U Mounting Rail Kit
FPD-TEAC-S (B): TEAC 3.5#34; 1.44MB Slim Floppy Drive (B = Black)
CDM-TEAC-24(B): Slim 24x TEAC CD-ROM Drive (B = Black)
CSE-PT813-PD520: 1U Power Distributor Backplane
PWS-0048: SP502-1S Cold-Swappable 500W 1U power supply
CSE-RR1U-X: 1U 1-Slot 64-bit 3.3V PCI-X - Left Side
CSE-RR1U-XLP: 1U 1-Slot 64-bit 3.3V PCI-X Riser - Low-Profile Right Side
CSE-PT39(B): 1#34; SCA Hard Drive Trays
CSE-SCA-813S: SCA813 1U 4 x 1#34; SCSI Backplane w/ SAF-TE
CSE-PTFB-813(B): Front Cover Bezel (B = Black)
CSE-RR1U-EL: 1U PCI-E to PCI-E Riser Card (x8) - Left Side
CSE-RR1U-ELP: 1U SXB-E Slot to PCI-E (x8) Slot - Low Profile Right Side
CPU: Dual 604-pin FC-mPGA4 SocketsSupports up to two Intel 64-bit Xeon processor(s) of the same type below
System Bus: 800 MHz system bus
Operating System Software: Supports 64-bit Operating SystemsSupports 32-bit Operating SystemsOS Compatibility Chart
Memory Capacity: Eight 184-pin DIMM socketsSupports up to 16 GB DDR 333 MHz memory orSupports up to 32 GB DDR 266 MHz memoryDual-channel memory busMemory must be populated in pairsSingle-rank modules are recommended for 6+ DIMM support
Memory Type: DDR333/266MHz buffered (registered) ECC SDRAM 72-bit, 184-pin gold-plated DIMMs
DIMM Sizes: 256 MB, 512 MB, 1GB, 2GB, 4GB
Memory Voltage: 2.5 V only
Error Detection: Corrects single-bit errorsDetects double-bit errors (using ECC memory)Supports Intel x4 Single Device Data Correction (SDDC)
Chipset: Intel E7520 chipsetMCH + ICH5R + PXH +82546GB
SCSI: Adaptec AIC-7902 ControllerDual-Channel Ultra320 SCSIHost RAID 0, 1, 10, JBOD support
RAID: Support for Zero-Channel RAID with Adaptec 2015S ZCR Card (Card not included)
IPMI: Support for Intelligent Platform Management Interface v.2.0 (Optional)
Network Controllers: Intel 82546GB Dual Port Gigabit ControllerSupports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics: ATI Rage XL SVGA PCI video controller with 8 MB of video memory
Super I/O: Winbond 83627HF chip
PCI-Express / PCI-X: 2 x Universal (SXB-E) slots[1 (x8) and 1 (x4) using (x8 slots)] OR[2x 64-bit PCI-X 133MHz slot]
IDE: Dual EIDE channels support up to four UDMA IDE devicesSupports UDMA Mode 5, PIO Mode 4, and ATA/100
Floppy: 1 Floppy controller; 1.44 MB, 2.88 MB
LAN: 2x RJ45 LAN port
USB: 2x USB rear ports2x USB internal headersUSB 2.0 Compliant / 1.1 Compliant
VGA: 1x VGA port
Keyboard / Mouse: PS/2 keyboard and mouse ports
Serial Ports: 2 Fast UART 16550 serial ports
Form Factor: 1U Rackmount
Model: SC813S-500
Height: 1.7#34; (43mm)
Width: 17.2#34; (438mm)
Depth: 25.6#34; (650mm)
Gross Weight: 38.5 lbs (17.5kg)
Available Colors: Beige, Black
Buttons: Power On/Off buttonSystem Reset button
LEDs: Power LEDHard drive activity LED2x Network activity LEDsSystem Overheat LED
Ports: 2x USB Ports (USB 2.0 Ready)
Designed for high-performance servers clustering and business critical applications, these Supermicro 1U rack servers support the latest 800MHz FSB Xeon with EM64T. It features a pair of universal expansion slots that can be utilized for either PCI-X-133/100 or the latest PCI-Express cards to provide outstanding I/O flexibility.
