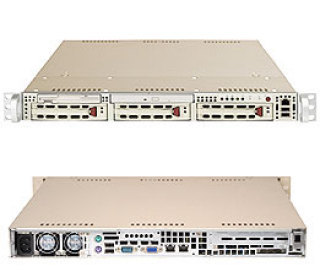

Model: Supermicro AS1020A-8
Specifications
Dimensions | |
| Height | 1.7" (43mm) mm (0.1 in) |
| Width | 16.8" (426mm) mm (0.7 in) |
| Depth | 25.6" (650mm) mm (1.0 in) |
Features
- Dual AMD Opteron 200 Series Processors
- Up to 32GB DDR 200 SDRAM (or) Up to 16GB DDR 333 SDRAM (or) Up to 16GB DDR 400 SDRAM
- 1 x 64-bit 100MHz Full-height, Full-length PCI-X Expansion Slot
- 1 x Broadcom 5704 Dual Port Gigabit Ethernet Controller
- Zero Channel RAID Support
- 3 x 1" Ultra320 SCSI Hot-swap Drive Bays
- 420W Power Supply
Specifications

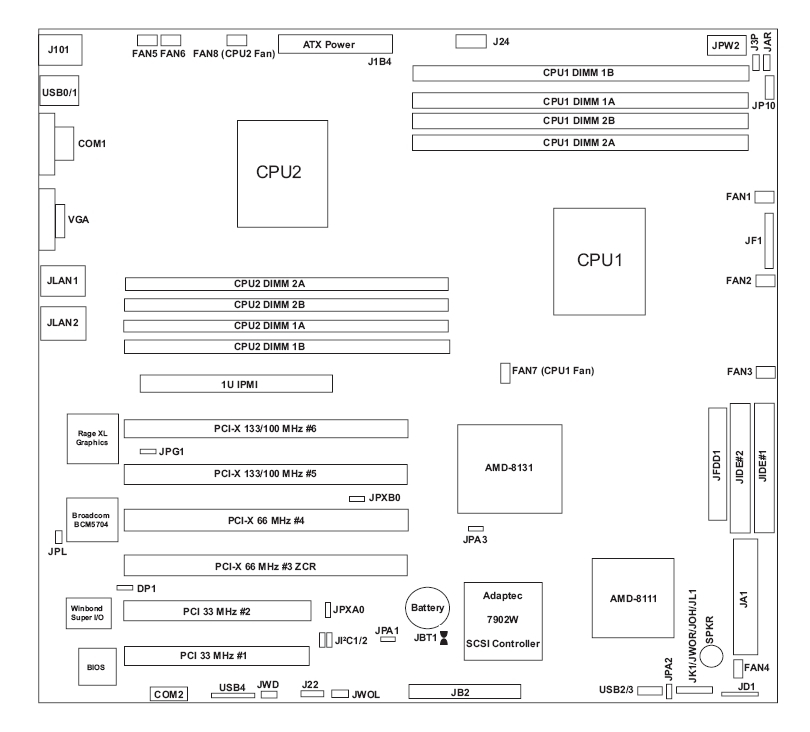

Motherboard: H8DAR-8
Processor/Chipset
CPU: Dual 940-pin ZIF SocketsSupports up to two Dual-Core AMD Opteron 200 Series processor(s)VRM x3
Chipset: HyperTransport LinkAMD 8131 HyperTransport PCI-X TunnelAMD 8111 HyperTransport I/O Hub
System Memory
Memory Capacity: Eight 184-pin DIMM socketsSupports up to 16 GB DDR 400 MHz memory orSupports up to 16 GB DDR 333 MHz memory orSupports up to 32 GB DDR 266 MHz memorySingle or Dual(recommended) channel memoryFor Single CPU
Memory Type: DDR 400/333/266MHz buffered (registered) ECC SDRAM 72-bit, 184-pin gold-plated DIMMs
DIMM Sizes: 256 MB, 512 MB, 1GB, 2GB, 4GB**
Memory Voltage: 2.5 V only
Error Detection: Corrects single-bit errorsDetects double-bit errors (using ECC memory)
On-Board Devices
SCSI: Adaptec AIC-7902W ControllerDual-Channel Ultra320 SCSI with Host RAIDHost RAID 0, 1, 10
Zero Channel RAID: Support for Zero-Channel RAID with Adaptec 2015S SCSI ZCR Card or AOC-SOZCR1 (with SO-DIMM ZCR socket)(Card not included)
IPMI: 1U support Intelligent Platform Management Interface v.2.0+ (Optional
Network Controllers: Broadcom 5704 Dual Port Gigabit Ethernet ControllerSupports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
VGA: ATI Rage XL 8MB PCI Graphics Controller
Expansion Slots
PCI-X: 1 64-bit 100MHz PCI-X full-height, full-length slot
Input / Output
IDE: Dual ATA 133/100 EIDE channels support up to four UDMA IDE devices
Floppy: 1 Floppy port; 1.44 MB, 2.88 MB, 3-mode support
LAN: 2 RJ45 LAN port
USB: FUCIUp to 5 USB Ports 1.1 Compliant
Keyboard / Mouse: PS/2 keyboard and mouse ports
Serial Ports: 2 Fast UART 16550 serial ports
Chassis
Form Factor: 1U Rackmount
Model: SC812S-420C
Dimensions
Gross Weight: 34 lbs (15.4kg)
Color: Beige
Front Panel
Buttons: Power On/Off buttonSystem Reset buttonNMI button
LEDs: Power LEDHard drive activity LED2x Network activity LEDsSystem Overheat LED
Ports: 2x USB Ports1x RJ45 COM Port
Drive Bays
Hotswap: 3 x 1" hot-swap Ultra320/160 SCSI Drive Bays with SAF-TE
Peripheral Drives
Floppy: Sony3.5" 1.44MB Slim Floppy Drive
CD-ROM: TEAC Slim 24x CD-ROM drive
SCSI Backplane
Type: 1x SCA812S 1U SCSI Backplane w/ SAF-TE
System Cooling
Fans: 2x 10cm blower fans
Power Supply
Type: Fixed 420W AC power supply with PFC
AC Voltage: 100 - 240V, 60-50Hz, 7 Amp Max
DC Output: 5V + 3.3V @ Less than or equal to
+5V: 30.0 Amp
+5V standby: 2.0 Amp
+12V: 18.0 Amp
+12V (all): 32.0 Amp Max
-12V: 1.0 Amp
+3.3V: 20.0 Amp
System BIOS
BIOS Type: 4Mb Flash EEPROM with AMI BIOS
BIOS Features: Plug and Play (PnP)SMBIOS 2.3APM 1.2DMI 2.1ACPI 1.0Fan Speed Control
PC Health Monitoring
CPU: Monitors CPU Core Voltages, +3.3V, +5V, +/-12V & +3.3V Standby, HyperTransport voltage 1.2V, memory voltage 2.5V, DDR termination 1.25V, chipset voltage 1.8VUp to 5 fan statusSupports System Management Utility
FAN: Total up to 5-fan status3-pin fan speed control
Temperature: Monitoring for CPU, chassis, environment
LED: Overheat LED
Other Features: Chassis Intrusion Header
Parts List - (Items Included)
MBD-H8DAR-8: Super H8DAR-8 Motherboard
CSE-812S-420C(B): 1U SC812S-420C Chassis (B = Black)
CSE-PT78: Internal Air Shroud
CBL-0037-U320: 6" Two-drop Ultra320 SCSI Cable
CBL-0049: Front Panel LED Ribbon Cable
FAN-0059: 100mm Blower Fan (x2)
BKT-0004: Heatsink Mounting Plate (x2)
BKT-0005: Heatsink Retention (x2)
CSE-PT34: 1U Mounting Rail Kit
FPD-SONY-S(B): Sony 3.5" 1.44MB Slim Floppy Drive (B = Black)
CDM-TEAC-24(B): Slim 24x TEAC CD-ROM Drive (B = Black)
PWS-0053: SP423-1S Cold-Swappable 420W 1U power supply
CSE-RR1U-X: 1U 1-Slot 64-bit PCI-X - Left Side
CSE-PT17(B): 1" SCA Hard Drive Trays (x3)
CSE-SCA-008: 1U SCSI Backplane w/ SAF-TE
Optional Parts List
CSE-PTFB-812(B): Front Cover Bezel (B = Black)
SNK-P0012: Passive Copper Heatsink (For 1U Chassis)
