Model: Supermicro 5025M-4
Features
- Up to 8GB unbuffered, ECC / non-ECC
DDRII 667/533/400 SDRAM - 1 (x4) PCI-Express
2x 64-bit 133MHz PCI-X
2x 64-bit 100MHz PCI-X - 1x Intel 82573V (Tekoa) PCI-e Gigabit
LAN Port - 6 x 1" Hot-swappable U320 SCSI Drive
Bays - 400W Power Supply
Motherboard: Super PDSM4
PCI-Express: 1 (x4) PCI-e slot
PCI - X: 2x 64-bit 133MHz PCI-X (5V) slots2x 64-bit 100MHz PCI-X (5V) slots
Hot-swap: 6x 1#34; SCA Ultra320/160 Hot-swap drives
Peripheral Bay(s): 1x 5.25#34; full-height peripheral bay
SCSI Backplane: 1x 2U SCA Ultra320/160 backplane (with SAF-TE)
Floppy: Panasonic 3.5#34; 1.44MB Floppy Drive
CD-ROM: TEAC Slim 24x CD-ROM drive
Fans: 4x 80mm 3400 RPM fans
General Power: 2U 400W AC power supply with PFC[ 24-pin, (8-pin, 4-pin)=12V) ]
AC Voltage: 100 - 240V, 47 - 63Hz, 7 Amp
DC Output: 12V + 5V + 3.3V less than or equal to 385W
5V: 33.0 Amp
5V standby: 2.0 Amp
-5V: 0.8 Amp
12V: 25.0Amp
-12V: 1.0 Amp
3.3V: 28.0 Amp
CPU: Monitors for CPU Cores (+1.8V, +3.3V, +5, +/-12V, +3.3V/+5V Standby, VBAT)CPU Core 4-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6000VAdjustable CPU clock frequency ratio settings (via BIOS)
FAN: Total of five 4-pin fan headers5x fans with tachometer monitoringStatus monitor with firmware / software speed controlStatus monitor for on/off controlSupport 3-pin fans (with speed control)Low noise fan speed controlPulse Width Modulated (PWM) fan connector
Temperature: Monitoring for CPU and chassis environmentCPU Thermal Trip supportThermal Monitor (TM2) Support
LED: CPU / System Overheat LED+5V standby alert LEDSuspend-state indicator LED
Other Features: Chassis intrusion detectionChassis intrusion header

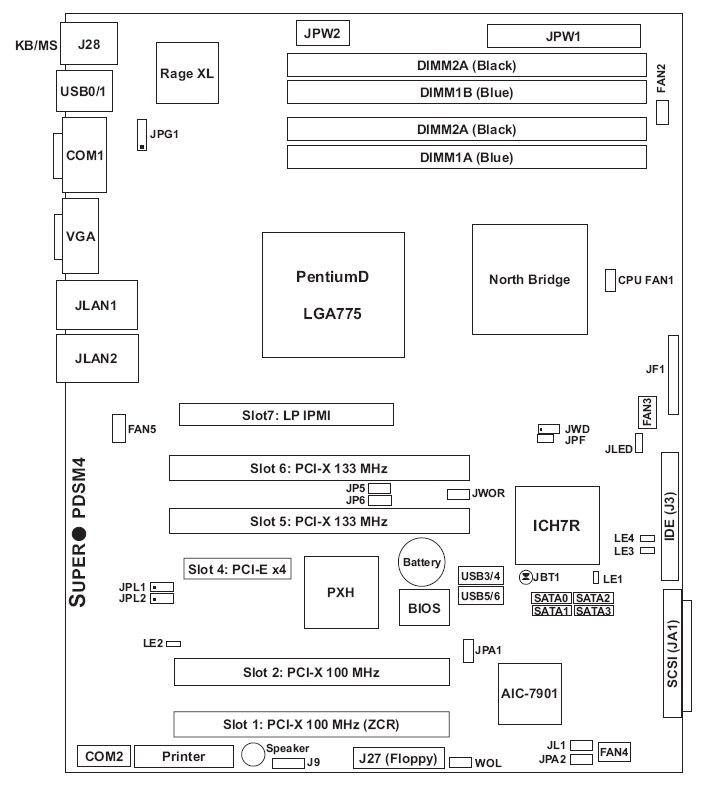

MBD-PDSM4-O: Super PDSM4 Motherboard
CSE-822S-400LP(B): 2U SC822S-400LP Chassis (B = Black)
CBL-033-U320: 9#34; Two-drop SCSI Ultra320 Cable
CBL-0049: Front Panel Control Cable
CBL-0062: 8-pin Power Extension Cable
CBL-0112: Floppy Cable
FAN-0044: 3600 RPM Chassis Cooling Fan
CSE-PT41(B): 5.25#34; Drive Bay (B = Black)
CSE-PT17(B): 1#34; drive carrier tray
CSE-SCA-822S: SCSI Hard Drive Backplane with SAF-TE
CSE-PT25: 2U Chassis Mounting Rails
FPD-PNSC-02 (01): Panasonic 3.5#34; 1.44MB Floppy Drive (01 = Black)
CDM-TEAC-24(B): Slim 24x TEAC CD-ROM Drive (B = Black)
PWS-0027: SP402-2C 400W 2U power supply
CSE-PT32: Power Distributor
CPU: Single LGA775 ZIF SocketSupports an Intel Pentium D (Smithfield Dual Core) processorSupports an Intel Pentium Extreme Edition processorSupports an Intel Pentium 4 (Prescott) processorSupports an Intel Pentium 4 Extreme Edition processorSupports an Intel Celeron D processorHyper-Threading (HT) capable1MB L2 Cache
System Bus: 1066 / 800 / 533 MHz system bus
Memory Capacity: Four 240-pin DIMM socketsSupports up to 8 GB of unbuffered, ECC / non-ECC DDRII 667/533/400MHz memory (Single / Dual Channel)
Memory Type: DDRII 667/533/400MHz unbuffered, ECC / non-ECC SDRAM, 240-pin gold-plated DIMMs
DIMM Sizes: 256 MB, 512 MB, 1 GB, 2GB
Memory Voltage: 1.8 V only
Chipset: Intel E7230 (Mukilteo) chipsetICH7R + PXH-V + Intel 82573V
SATA: Intel ICH7R SATA controller built-inRAID 0, 1, 5, 10
SCSI: Adaptec AIC-7901HostRAID 0, 1, 10 SupportedZCR Support (Optional
IPMI: 2U, 3U, 4U support for Intelligent Platform Management Interface v.2.0, Low Profile (Optional
Network Controllers: Dual-port Intel 82573V Gigabit PCI-Express Ethernet (Tekoa)Supports 1000BASE-T, RJ45 output
Graphics: On-board ATI Rage XL (8MB) graphics
Super I/O: Winbond 83627EHF chip
Clock Generator: CK410
SCSI: U320 Single Channel SCSIAdaptec AIC-7901
IDE: One EIDE channel supports up to two UDMA IDE devicesSupports UDMA Mode 5, PIO Mode 4, and ATA/100
Floppy: 1 Floppy controller; 1.44 MB
LAN: 2x RJ45 LAN port
USB: 6x USB 2.0 compliant / 1.1 compatible2 rear ports, 4 internal headers2 in front (FUCI), 2 in rear
VGA: 1x VGA port ( only)
Keyboard / Mouse: PS/2 keyboard and mouse ports
Serial Port / Header: 1x Fast UART 16550 serial port1x header
Parallel Port: 1x ECP / EEP Parallel Port
BIOS Type: 8Mb Flash EEPROM with Phoenix BIOS
BIOS Features: Plug and Play (PnP)APM 1.2DMI 2.3 supportPCI 2.2ACPI 1.0Hardware BIOS Virus protectionSMBIOS 2.3USB Keyboard supportPCI-X 1.0
Form Factor: 2U Rackmount
Model: SC822S-400LP
Height: 3.5#34; (89mm)
Width: 16.8#34; (426mm)
Depth: 25.6#34; (650mm)
Gross Weight: 49 lbs (22.3kg)
Available Colors: Beige, Black
Buttons: Power On/Off buttonSystem Reset button
LEDs: Power LEDHard drive activity LED2x Network activity LEDsSystem Overheat / Fan Fail LED
Ports: N/A
The SuperServer 5025 series is an entry level 2U server line optimized for small to medium businesses. Based on the new E7230 chipset, the server supports dual core Pentium D processors. Maximizing on performance, reliability and cost-effectiveness, it features up to 8GB DDRII memory support, four 64-bit low-profile PCI-expansions, a powerful 400W power supply and up to six hard drives.
