Model: Supermicro 6024H-82R
Features
- Up to 16GB DDRII-400 SDRAM
- 3 Full-height, Full-length Expansion Slots 1x 64-bit 133MHz PCI-X 2x 64-bit 100MHz PCI-X
- Intel 82546GB Dual-port Gigabit Ethernet Controllers
- 6 x 1" hot-swap Ultra320/160 SCSI Drive Bays
- Redundant 500W power supply with I 2 C for remote management

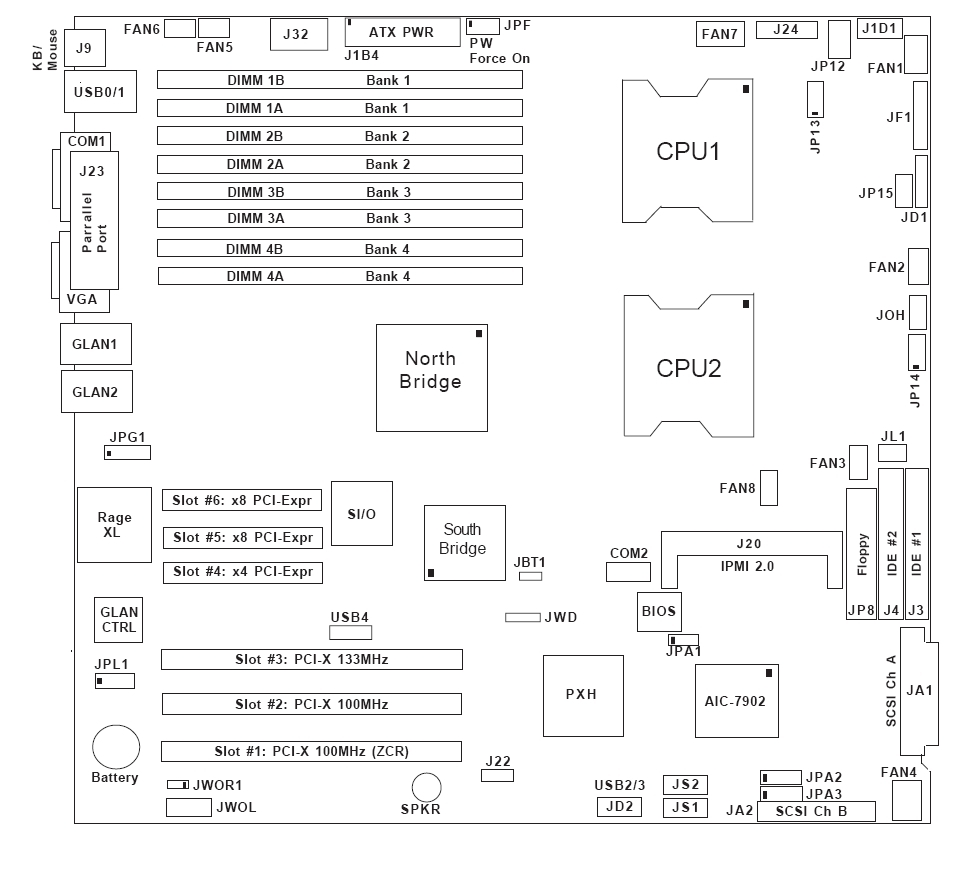

Motherboard: Super X6DH8-G2
PCI-X: 1x 64-bit 133MHz PCI-X (3.3V) slot 2x 64-bit 100MHz PCI-X (3.3V) slots(Via Riser Cards)
Hot-swap: 6x 3.5#34; SCA Hot-swap drive trays
Peripheral Bay(s): 1x 5.25#34; full-height peripheral bay
Floppy: Panasonic 3.5#34; 1.44MB Floppy Drive
CD-ROM: TEAC Slim 24x CD-ROM drive
Type: Single Channel SCSI backplane with SAF-TE
Fans: 4x 80mm 6300 RPM fans Cooling redundancy with fan shroud
Type: 12V Total at less than or equal to 39 Amps
AC Voltage: 100 - 240V, 50/60Hz, 10-5 Amps
DC Output: 5V + 3.3V at less than or equal to160W
+ 5V: 21.0 amps
+ 5V standby: 2.0 amps
+ 12V1: 15.0 amps
+ 12V2: 15.0 amps
+ 12V3: 18.0 amps
- 12V: 1.0 amp
+ 3.3V: 21.0 amps
CPU: Monitors for CPU Cores, +3.3V, +5V, +/-12V +3.3V Standby CPU Core 3-Phase-switching voltage regulator with auto-sense from 0.86V-1.63V
Fans: Total of four 4-pin and four 3-pin fan headers 8x fans with status monitoringStatus monitor with firmware/software on/off control Low noise fan speed control 4x Pulse Width Modulated (PWM) fan connector
Temperature: Monitoring for CPU, chassis, environmentCPU thermal trip support Thermal Monitor 2 support
LEDs: CPU Overheat LEDSystem Overheat LED Suspend-state indicator LED
Other Features: Chassis intrusion detection Chassis intrusion headerSDDC
MBD-X6DH8-G2-O: Super X6DH8-G2 Motherboard
CSE-823S-R500RC(B): 2U SC823S-R500RC Chassis (B = Black)
CSE-PT47: Air Shroud
CBL-037-U320: 6#34; Two-drop SCSI Ultra320 Cable
CBL-0049: Front Panel LED Ribbon Cable
FAN-0070: 6300 RPM Chassis Cooling Fan x 4
CSE-PT41(B): 5.25#34; Drive Bay (B = Black)
CSE-PT25: 2U Chassis Mounting Rails
FPD-PNSC-02 (01): Panasonic 3.5#34; 1.44MB Floppy Drive (01 = Black)
CDM-TEAC-24(B): Slim 24x TEAC CD-ROM Drive (B = Black)
PWS-0049: SP502-2S 500W 2U power supply
CSE-RR2UE-AX: 2U 3-PCI-X Slot, Full-height, Full-length Aactive Riser Card
CSE-PT17(B): 1#34; SCA drive tray x 6
CSE-SCA-822S: 2U SCSI Backplane w/ SAF-TE
SNK-P0010: Passive Copper Heatsink for 2U Chassis [Please refer to Supermircro#39;s Thermal Components Matrix]
CPU: Dual 604-pin FC-mPGA4 SocketsSupports up to two Intel 64-bit Xeon processor(s) of the same type below
System Bus: 800 MHz system bus
Operating System Software: Supports 64-bit Operating Systems Supports 32-bit Operating Systems
Memory Capacity: Eight 240-pin DIMM sockets Supports up to 16 GB DDRII 400MHz memory Dual channel memory bus Memory must be populated in pairsSingle-rank modules are recommended for 6+ DIMM support
Memory Type: DDRII 400MHz buffered (registered) ECC SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes: 256 MB, 512 MB, 1GB, 2GB
Memory Voltage: 1.8 V only
Error Detection: Corrects single-bit errorsDetects double-bit errors (using ECC memory)Supports Intel x4 Single Device Data Correction (SDDC)
Chipset: Intel E7520 chipsetMCH + ICH5R + PXH +82546GB
SCSI: Adaptec AIC-7902 Controller Dual-Channel Ultra320 SCSIHost RAID 0, 1, 10, JBOD support No Zero Channel RAID Support
IPMI: Support for Intelligent Platform Management Interface v.2.0(Optional
Network Controllers: Intel 82546GB Dual Port Gigabit ControllerSupports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics: ATI Rage XL SVGA PCI video controller with 8 MB of video memory
Super I/O: National 87427 chip
IDE: Dual EIDE channels support up to four UDMA IDE devicesSupports UDMA Mode 5, PIO Mode 4, and ATA/100
Floppy: 1 Floppy controller; 1.44 MB, 2.88 MB
LAN: 2x RJ45 LAN port
USB: 2x USB rear ports 3x USB internal headers USB 2.0 Compliant / 1.1 Compliant
VGA: 1x VGA Port
Keyboard / Mouse: PS/2 keyboard and mouse ports
Serial Port / Header: 1 Fast UART 16550 serial port 1 Fast UART 16550 serial header
Parallel Port: 1 ECP/EEP parallel port
BIOS Type: 8Mb Flash EEPROM with Phoenix BIOS
BIOS Features: Plug and Play (PnP) SMBIOS 2.3 APM 1.2 DMI 2.1 ACPI 1.0 Fan Speed Control
Form Factor: 2U Rackmount
Model: SC823S-R500RC
Height: 3.5#34; (89mm)
Width: 16.8#34; (426mm)
Depth: 25.6#34; (650mm)
Gross Weight: 57.5 lbs (26.1kg)
Color: Beige
Buttons: Power On/Off button System Reset button
LEDs: Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED Power fail LED 2x USB Ports (optional)
Ports: 2x USB Ports (optional)
2U 64-bit Xeon SuperServer
Achieving new levels of computing performance, Supermicro's 2U 64-bit Xeon servers offer customers high compatibility and an advanced system architecture ideal for a multi-processing environment. Redundant components and exceptional cooling design provide customers with maximum system uptime.
