Model: Supermicro 6034H-X8R
Features
- Up to 16GB DDRII-400 SDRAM
- 1 (x8) PCI-Express on (x16) Slot, 3 x 64-bit 133MHz PCI-X, 2 x 64-bit 100MHz PCI-X
- Intel 82546GB Dual-port Gigabit Ethernet Controller
- Zero Channel RAID Support
- 8 x 1" hot-swap Ultra320 SCSI Drive Bays (Expandable to 15 Drives)
- Triple-Redundant 760W power supply with Isup2; C For Remote Management

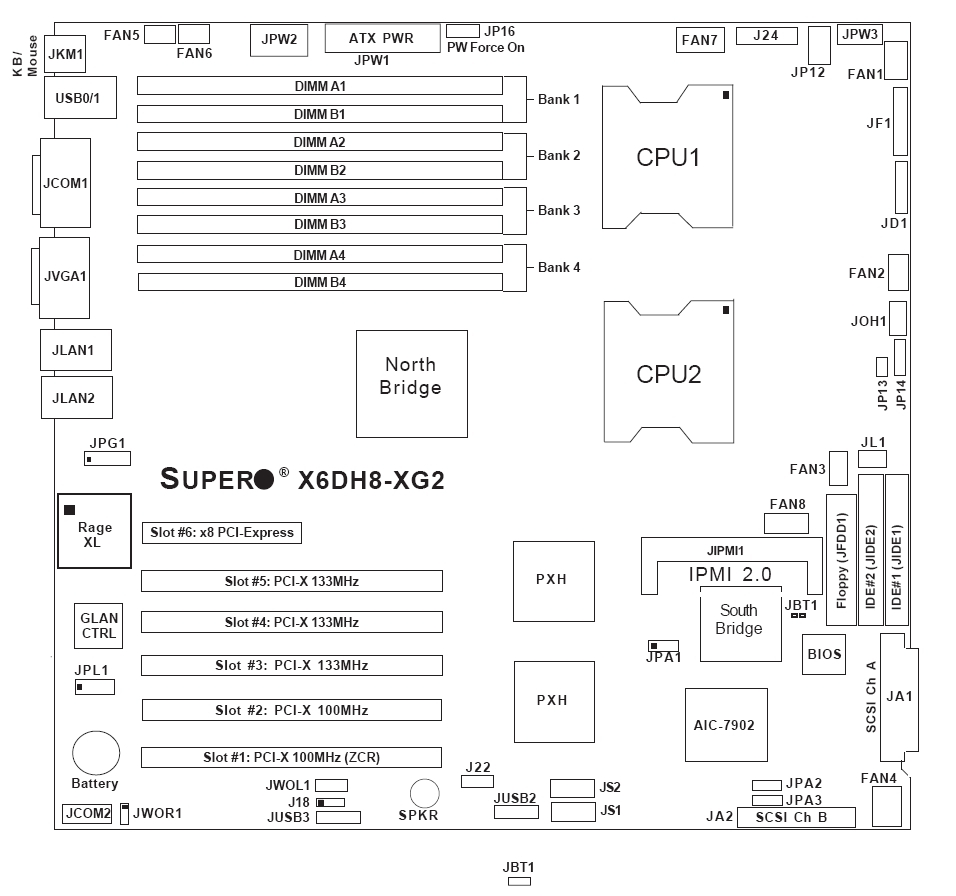

Motherboard: Super X6DH8-XG2
PCI-Express: - 1 (x8) on a (x16) slot
PCI-X: - 3x 64-bit 133MHz PCI-X (3.3V) slot - 2x 64-bit 100MHz PCI-X (3.3V) slots
Hot-swap: 8x 1" SCA Ultra320/160 Hot-swap Drives
Peripheral Bay(s): - 3x 5.25" Peripheral Drive Bay - 1x 5.25" Bay For Floppy Drive
Floppy: TEAC 3.5#34; 1.44MB Floppy Drive (beige / black)
Type: Single Channel SCSI Backplane w/ SAF-TE
Fans: 4x 5000 RPM Hot-swappable Cooling Fans - 2x 5000 RPM Rear Exhaust Fan
Type: 760W Triple-redundant AC power supply w/ PFC [ 24-pin, (4-pin, 8-pin) = 12V ]
AC Voltage: 100 - 240V, 50/60Hz, 14 Amp
DC Output: 5V + 3.3V at less than or equal to 200W
+ 5V: 36.0 amps
+ 5V standby: 3.5 amps
+ 12V1: 18.0 amps
+ 12V2: 18.0 amps
+ 12V3: 19.0 amps
+ 12V4: 19.0 amps
- 12V: 1.0 amps
+ 3.3V: 36.0 amps
CPU: - Monitors for CPU Cores, +3.3V, +5V, +/-12V +5V Standby - CPU Core 3-Phase-switching voltage regulator with auto-sense from 0.83V-0.63V - Adjustable CPU clock frequency ratio settings (via BIOS)
Fans: - Total of four 4-pin and four 3-pin fan headers - 8x fans with status monitoring - Status monitor with firmware/software on/off control - Low noise fan speed control - Pulse Width Modulated (PWM) fan connector
Temperature: - Monitoring for CPU, chassis, environment - CPU thermal trip support - Thermal Monitor 2 support
LEDs: - CPU Overheat LED - System Overheat LED - Suspend-state indicator LED
Other Features: - Chassis intrusion detection - Chassis intrusion header - SDDC
MBD-X6DH8-XG2-O: Super X6DH8-XG2 Motherboard
CSE-833S-R760(B): 3U SC833S-R760 Chassis (B = Black)
CSE-SCA-833S: SCA Single Channel SCSI Backplane
CBL-037-U320: 6" 2-Drop Ultra320 SCSI Cable
CBL-0039: 20" IDE CD-ROM Cable
CBL-0040: 13.8" Floppy Cable
CBL-0049: Front Panel Ribbon Cable
CBL-0084: 6" Split Converter Cable
CSE-PT39(B): 1" SCA drive tray (B = Black) x 8
FAN-0064: 5000 RPM Hot-swappable Cooling Fan x 4
FAN-0062: 5000 RPM Rear Exhaust Fan x 2
CSE-PT29(B): Front Side USB Kit (USB 2.0) - Optional
MNL-0741: SS6034H-X8R User's Manual
CSE-PT50: 3U Chassis Mounting Rails
FPD-TEAC(B): TEAC 3.5" 1.44MB Floppy Drive (B = Black)
CDM-TEAC-24(B): TEAC 24x Slim CDROM Drive (B = Black)
PWS-0050M: SP762-TS Triple Redundant 760W power supply set x 3
CSE-PT45: Air Shroud
CSE-PT44: Air Shroudn
SNK-P0010: Heatsink / Retention x 2 [Please refer to Supermicro#39;s Thermal Components Matrix ]
CSE-PT29(B): Front Side USB Kit (USB 2.0)
CPU: - Dual 604-pin FC-mPGA4 Sockets - Supports up to two Intel 64-bit Xeon processor(s) of the same type below
System Bus: 800 MHz system bus
Operating System Software: - Supports 64-bit Operating Systems - Supports 32-bit Operating Systems
Memory Capacity: - Eight 240-pin DIMM sockets - Supports up to 16 GB DDRII-400 memory - Dual channel memory bus - Memory must be populated in pairs - Single-rank modules are recommended for 6+ DIMM support
Memory Type: DDRII 400MHz buffered (registered) ECC SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes: 256 MB, 512 MB, 1GB, 2GB
Memory Voltage: 1.8 V only
Error Detection: - Corrects single-bit errors - Detects double-bit errors (using ECC memory) - Supports Intel x4 Single Device Data Correction (SDDC)
Chipset: - Intel E7520 chipset - MCH + ICH5R + PXH +82546GB
SCSI: - Adaptec AIC-7902 Controller - Dual-Channel Ultra320 SCSI - Host RAID 0, 1, 10, JBOD support
RAID: Support for Zero-Channel RAID with Adaptec 2010S ZCR Card (Card NOT included)
IPMI: Support for Intelligent Platform Management Interface v.2.0 (Optional
Network Controllers: - Intel 82546GB Dual Port Gigabit Controller - Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics: ATI Rage XL SVGA PCI video controller with 8 MB of video memory
Super I/O: National 87427 chip
Serial ATA: - Two Serial ATA ports - Two SATA hard drives supported
IDE: Dual EIDE channels support up to four UDMA IDE devices - Supports UDMA Mode 5, PIO Mode 4, and ATA/100
Floppy: 1 Floppy controller; 1.44 MB, 2.88 MB
LAN: 2x RJ45 LAN port
USB: - 2x USB rear ports - 3x USB internal headers - USB 2.0 Compliant / 1.1 Compliant
VGA: 1x VGA Port
Keyboard / Mouse: PS/2 keyboard and mouse ports
Serial Ports: 2 Fast UART 16550 serial ports
BIOS Type: 8Mb Flash EEPROM with Phoenix BIOS
BIOS Features: - Plug and Play (PnP) - SMBIOS 2.3 - APM 1.2 - DMI 2.1 - ACPI 1.0 - Fan Speed Control
Form Factor: 3U Rackmount
Model: SC833S-R760
Height: 5.2#34; (132mm)
Width: 17.7#34; (450mm)
Depth: 25.5#34; (647mm)
Gross Weight: 74.5 lbs (33.8kg)
Color: Beige
Buttons: - Power On/Off button - System Reset button - Mute button
LEDs: - Power LED - Hard drive activity LED - 2x Network activity LEDs - System Overheat LED - Power Fail LED
Ports: 2x USB Ports (optional)
3U Xeon SuperServer
Designed to provide outstanding performance with dual Xeon / 64-bit Xeon processors, high memory capacity and fast disk support, the 3U architecture is the latest server line from Supermicro.
Using redundant hardware, 100% redundant cooling design, and optional large disk RAID protection, the 3U servers support high availability storage and mission critical business applications.
