Model: Supermicro 7044A-82
Features
- Up to 16GB DDRII-400 SDRAM
- 1 (x16) 1 (x4) on (x16) slot PCI-Express
1 x 64-bit 133MHz PCI-X
2 x 64-bit 100MHz PCI-X
1 x 32-bit 33MHz PCI Slots - Intel 82546GB Dual-port Gigabit Ethernet Controller
- Zero Channel RAID Support
- 8 x 1" hot-swap Ultra320 SCSI Drive Bays
- 645W Low-Noise Power Supply
- Tower or Rackmount
- PWM Fan Speed Control

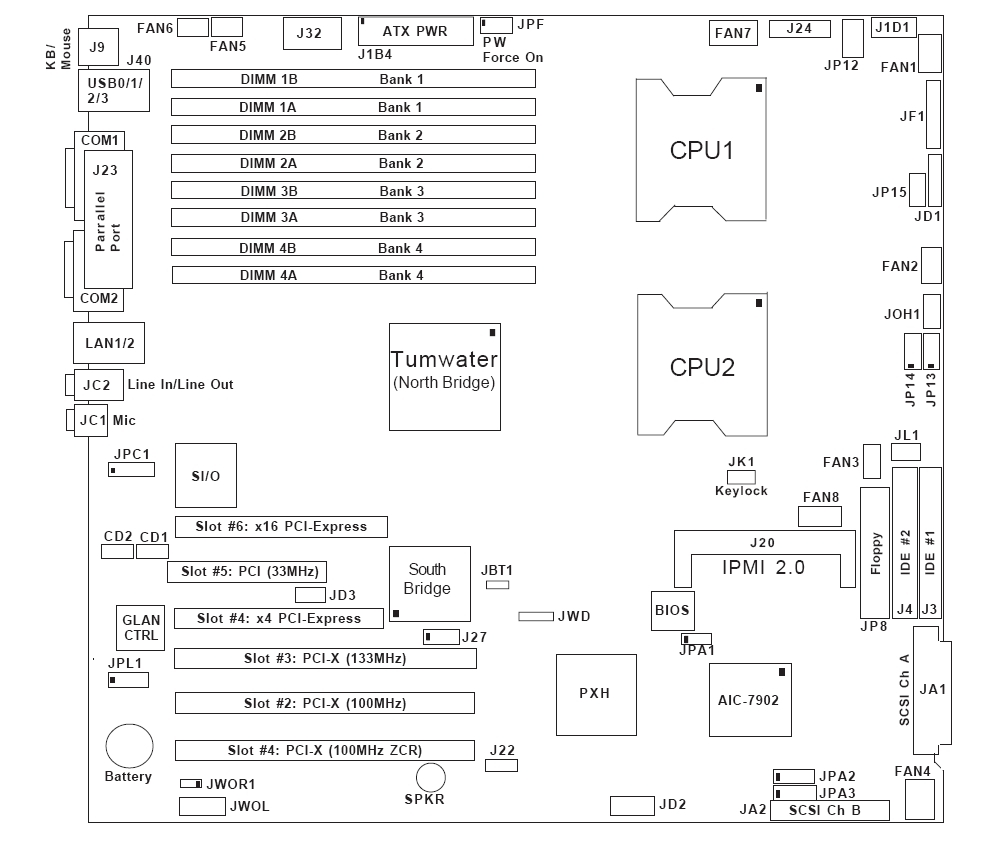

Motherboard: Super X6DA8-G2
Hot-swap: 8x 1" SCA Ultra320/160 Hot-swap Drives
Peripheral Bay(s) [90o Rotatable: - 2x 5.25" Peripheral Drive Bay - 1x 5.25" Bay For Floppy Drive
Floppy: Panasonic 3.5#34; 1.44MB Floppy Drive
Type: Single Channel SCSI Backplane w/ SAF-TE
Fans: 4x 5000 RPM Hot-swappable PWM Cooling Fans
Type: 645W Low-Noise AC power supply with PFC [ 24-pin, (4-pin, 8-pin) = 12V ]
AC Voltage: 100 - 240V, 50/60Hz, 11-5.5 Amps
DC Output: 5V + 3.3V at less than or equal to 160W
+ 5V: 30.0 amps
+ 5V standby: 4.0 amps
+ 12V: 46.0 amps
- 12V: 0.6 amp
+ 3.3V: 30.0 amps
CPU: - Monitors for CPU Cores, +3.3V, +5V, +/-12V +5V Standby - CPU Core 4-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6V - Adjustable CPU clock frequency ratio settings (via BIOS)
Fans: - Total of eight 4-pin fan headers - 8x fans with status monitoring - Low noise fan speed control - Pulse Width Modulated (PWM) fan connector
Temperature: - Monitoring for CPU, chassis, environment - CPU thermal trip support - Thermal Monitor 2 support
LEDs: - CPU Overheat LED - System Overheat LED - Suspend-state indicator LED
Other Features: - Chassis intrusion detection - Chassis intrusion header - SDDC
BIOS Type: 8Mb Flash EEPROM with Phoenix BIOS
BIOS Features: - Plug and Play (PnP) - SMBIOS 2.3 - APM 1.2 - DMI 2.1 - ACPI 1.0 - Fan Speed Control
MBD-X6DA8-G2-O: Super X6DA8-G2 Motherboard
CSE-743S1-645(B): 4U SC743S1-645 Chassis (B = Black)
CSE-SCA-743S1: SCA Single Channel SCSI Backplane
Bezel Filter: Front Bezel Filter
CBL-037-U320: 6#34; 2-Drop Ultra320 SCSI Cable
CBL-0039: 20#34; IDE CD-ROM Cable
CBL-0040: 13.8#34; Floppy Cable
CBL-0087: Front Panel Ribbon Cable (16-pin to 16-pin)
CBL-0084: 6#34; Split Converter Cable
CSE-PT17(B): 1#34; SCA drive tray (B = Black) x 8
FAN-0074: 5000 RPM Hot-swappable Cooling Fan x 4
CSE-PT57: Color Mylar I/O Shield
MNL-0731: SW7044A-82 User#39;s Manual
FPD-PNSC-02 (01): Panasonic 3.5#34; 1.44MB Floppy Drive (01 = Black)
PWS-0060: SP645-PS 645W Low-Noise Power Supply
CSE-PT54: Air Shroud
SNK-P0010: Passive Copper Heatsink for 2U Chassis and above (Please refer to Supermicro#39;s Thermal Components Matrix)
CSE-PT26(B): Chassis Mounting Rails
CPU: - Dual 604-pin FC-mPGA4 Sockets - Supports up to two Intel 64-bit Xeon processor(s) of the same type below
System Bus: 800 MHz system bus
Memory Capacity: - Eight 240-pin DIMM sockets - Supports up to 16 GB DDRII 400MHz memory - Dual channel memory bus - Memory must be populated in pairs - Single-rank modules are recommended for 6+ DIMM support
Memory Type: DDRII 400MHz buffered (registered) ECC SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes: 256 MB, 512 MB, 1GB, 2GB
Memory Voltage: 1.8 V only
Error Detection: - Corrects single-bit errors - Detects double-bit errors (using ECC memory) - Supports Intel x4 Single Device Data Correction (SDDC)
Chipset: - Intel E7525 chipset - MCH + ICH5R + PXH +82546GB
SCSI: - Adaptec AIC-7902 Controller - Dual-Channel Ultra320 SCSI - Host RAID 0, 1, 10, JBOD support
RAID: Support for Zero-Channel RAID with Adaptec 2010S ZCR Card (Card NOT included)
IPMI: Support for Intelligent Platform Management Interface v.2.0 (Optional)
Network Controllers: - Intel 82546GB Dual Port Gigabit Controller - Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio: AC'97 audio CODEC with high quality 6-channel sound
Super I/O: Winbond 83627HF chip
PCI-Express: - 1 (x16) slot - 1 (x4) using (x16 slot)
PCI-X: - 1x 64-bit 133MHz PCI-X (3.3V) slot - 2x 64-bit 100MHz PCI-X (3.3V) slots
PCI: 1x 32-bit 33MHz PCI (5V) slot
Serial ATA: - Two Serial ATA ports - Two SATA hard drives supported
IDE: - Dual EIDE channels support up to four UDMA IDE devices - Supports UDMA Mode 5, PIO Mode 4, and ATA/100
Floppy: 1 Floppy controller; 1.44 MB, 2.88 MB, 3-mode support
LAN: 2x RJ45 LAN port
USB: - 4x USB rear ports - 4x USB internal headers - USB 2.0 Compliant / 1.1 Compliant
Audio: 1x Line In / Line Out / Microphone ports
Keyboard / Mouse: PS/2 keyboard and mouse ports
Serial Ports: 2 Fast UART 16550 serial ports
Parallel Port: 1 ECP/EEP parallel port
Form Factor: - 4U Rackmountable / Tower - Optional Rackmount Kit (CSE-PT26)
Model: SC743S1-645
Height: 7.0#34; (177mm)
Width: 17.1#34; (434mm)
Depth: 25.5#34; (647mm)
Gross Weight: 63 lbs (28.6kg)
Colors: Beige
Buttons: - Power On/Off button - System Reset button
LEDs: - Power LED - Hard drive activity LED - 2x Network activity LEDs - System Overheat / Fan Fail LED - Power Fail LED
Ports: 2x USB Ports
Powered by dual Xeon EM64T processors, Supermicro's versatile tower/4U convertible server has been one of the most popular server/storage platforms on the market today. Designed for industry-leading performance and high data availability, the tower/4U series is optimized for business critical applications such as databases, corporate networking, email and web servers, and NAS.
