Model: Supermicro 7044H-82
Features
- Up to 16GB DDRII-400 SDRAM
- 2 (x8) 1 (x4) PCI-Express, 1 x 64-bit 133MHz PCI-X, 2 x 64-bit 100MHz PCI-X
- Intel 82546GB Dual-port GigabitEthernet Controller
- Zero Channel RAID Support
- 8 x 1" hot-swap Ultra320 SCSI Drive Bays
- 650W Redundant-Cooling Power Supply
- Tower or Rackmount
- 100% Cooling Redundancy

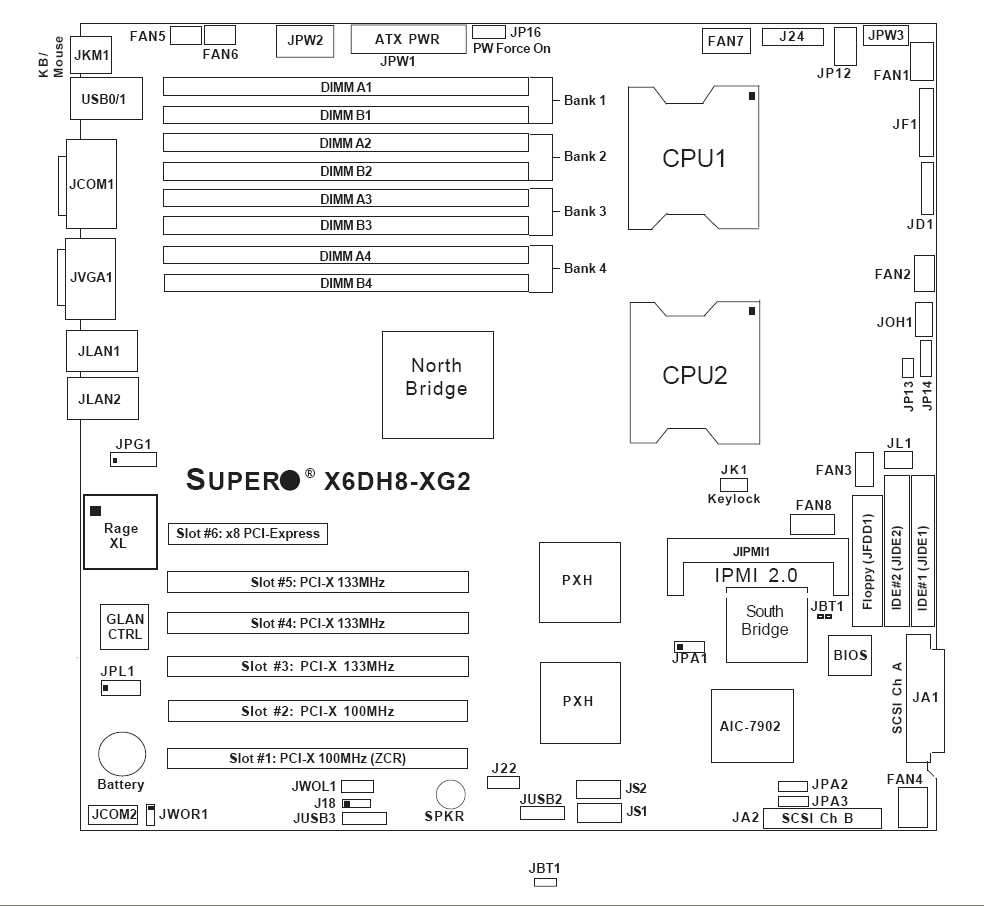

Motherboard: Super X6DH8-G2
SCSI Backplane: Single Channel SCSI Backplane w/ SAF-TE
PCI-Express: 2 (x8) slot1 (x4) slot
PCI-X: 1x 64-bit 133MHz PCI-X (3.3V) slot2x 64-bit 100MHz PCI-X (3.3V) slots
Hot-swap: 8x 1#34; SCA Ultra320/160 Hot-swap Drives
Peripheral Bay(s) [90o Rotatable: 2x 5.25#34; Peripheral Drive Bay1x 5.25#34; Bay For Floppy Drive
Fans: 4x 5000 RPM Hot-swappable Cooling Fans2x 5000 RPM Rear Exhaust Fan
AC Voltage: 100 - 240V, 47-63Hz, 11 Amp
DC Output: 5V + 3.3V #8804; 160W
+5V: 30.0 amp
+5V standby: 4.0 amp
+12V: 46.0 amp
-12V: 0.6 amp
+3.3V: 30.0 amp
CPU: Monitors for CPU Cores, +3.3V, +5V, +/-12V +3.3V StandbyCPU Core 3-Phase-switching voltage regulator with auto-sense from 0.86V-1.63V
FAN: Total of four 4-pin and four 3-pin fan headers8x fans with status monitoringStatus monitor with firmware/software on/off controlLow noise fan speed control4x Pulse Width Modulated (PWM) fan connector
Temperature: Monitoring for CPU, chassis, environmentCPU thermal trip supportThermal Monitor 2 support
LED: CPU Overheat LEDSystem Overheat LEDSuspend-state indicator LED
Other Features: Chassis intrusion detectionChassis intrusion headerSDDC
MBD-X6DH8-G2-O: Super X6DH8-G2 Motherboard
CSE-743S1-650(B): 4U SC743S1-650 Chassis (B = Black)
CSE-SCA-743S1: SCA Single Channel SCSI Backplane
N/A: Front Bezel Filter
CBL-037-U320: 6#34; 2-Drop Ultra320 SCSI Cable
CBL-0039: 20#34; IDE CD-ROM Cable
CBL-0040: 13.8#34; Floppy Cable
CBL-0087: Front Panel Control Cable
CBL-0084: 6#34; Split Converter Cable
CSE-PT17(B): 1#34; SCA drive tray (B = Black)
FAN-0072: 5000 RPM Hot-swappable Cooling Fan
FAN-0073: 5000 RPM Hot-swappable Rear Exhaust Fan
MNL-0747: SS7044H-82 User#39;s Manual
CSE-PT55: Color I/O Shield with Gasket
FPD-PNSC-02 (01): Panasonic 3.5#34; 1.44MB Floppy Drive (01 = Black)
PWS-0056: SP650-RP 650W Redundant-Cooling Power Supply
CSE-PT54: Air Shroud
CSE-PT26(B): Chassis Mounting Rails
CPU: Dual 604-pin FC-mPGA4 SocketsSupports up to two Intel 64-bit Xeon processor(s) of the same type below
System Bus: 800 MHz system bus
Operating System Software: Supports 64-bit Operating SystemsSupports 32-bit Operating Systems
Memory Capacity: Eight 240-pin DIMM socketsSupports up to 16 GB DDRII 400MHz memoryDual channel memory busMemory must be populated in pairsSingle-rank modules are recommended for 6+ DIMM support
Memory Type: DDRII 400MHz buffered (registered) ECC SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes: 256 MB, 512 MB, 1GB, 2GB
Memory Voltage: 1.8 V only
Error Detection: Corrects single-bit errorsDetects double-bit errors (using ECC memory)Supports Intel x4 Single Device Data Correction (SDDC)
Chipset: Intel E7520 chipsetMCH + ICH5R + PXH +82546GB
SCSI: Adaptec AIC-7902 ControllerDual-Channel Ultra320 SCSIHost RAID 0, 1, 10, JBOD support
RAID: Support for Zero-Channel RAID with Adaptec 2010S ZCR Card (Card NOT included)
IPMI: Support for Intelligent Platform Management Interface v.2.0(Optional
Network Controllers: Intel 82546GB Dual Port Gigabit ControllerSupports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics: ATI Rage XL SVGA PCI video controller with 8 MB of video memory
Super I/O: National 87427 chip
IDE: Dual EIDE channels support up to four UDMA IDE devicesSupports UDMA Mode 5, PIO Mode 4, and ATA/100
Floppy: 1 Floppy controller; 1.44 MB, 2.88 MB
LAN: 2x RJ45 LAN port
USB: 2x USB rear ports3x USB internal headersUSB 2.0 Compliant / 1.1 Compliant
VGA: 1x VGA Port
Keyboard / Mouse: PS/2 keyboard and mouse ports
Serial Port / Header: 1 Fast UART 16550 serial port1 Fast UART 16550 serial header
Parallel Port: 1 ECP/EEP parallel port
BIOS Type: 8Mb Flash EEPROM with Phoenix BIOS
BIOS Features: Plug and Play (PnP)SMBIOS 2.3APM 1.2DMI 2.1ACPI 1.0Fan Speed Control
Form Factor: 4U Rackmountable / TowerOptional Rackmount Kit (CSE-PT26)
Model: SC743S1-650
Height: 7.0#34; (177mm)
Width: 17.1#34; (434mm)
Depth: 25.5#34; (647mm)
Gross Weight: 64.5 lbs (29.3kg)
Available Colors: Beige, Black
Buttons: Power On/Off buttonSystem Reset button
LEDs: Power LEDHard drive activity LED2x Network activity LEDsSystem Overheat LEDPower Fail LED
Ports: 2x USB Ports
4U Xeon MP SuperServer
Tuned to perform complex computations, Supermicro's quad-processor Xeon MP servers offer responsive operation with ample headroom for handling emerging tasks. The systems are designed specifically for mid-tier servers performing key business functions such as collaboration, application serving, and resource planning.
