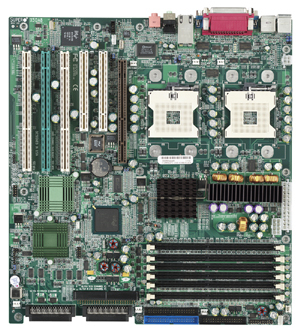

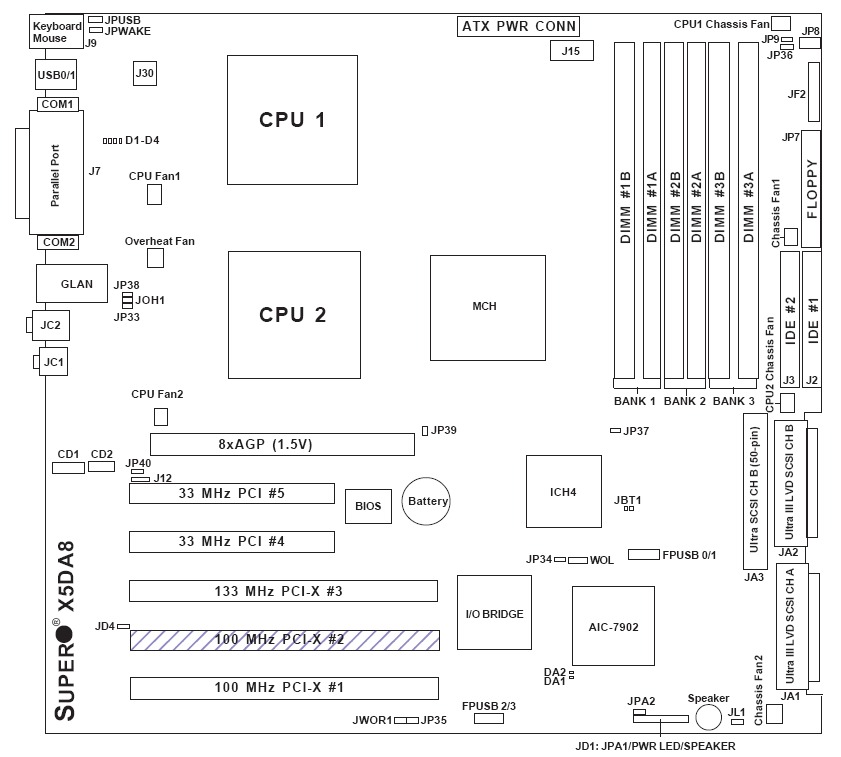

Model: Supermicro MBD-X5DA8-O
Features
- Dual Intel Xeon Support up to 3.2 GHz
- Intel E7505 Chipset
- Up to 12GB DDR 266/200 SDRAM
- Intel 82545EM Gigabit Ethernet Controller
- Adaptec AIC-7902 dual channel Ultra320 SCSI
- 3 x 64-bit PCI-X expansion slots
- AC'97 Audio, 6-channel sound
- Zero Channel RAID support
Dimensions
Form Factor: Extended ATX
Processor-Cache
CPU: Dual mPGA604 ZIF Sockets | Supports up to two Intel Xeon processor(s) with 1MB integrated Advanced Transfer Cache up to 3.20GHz
System Bus: 533MHz-400MHz system bus
System Memory
Memory Capacity: Six 184-pin DIMM sockets | Supports up to 12 GB DDR266-200 memory | Dual channel memory bus | Memory must be populated in pairs
Memory Type: DDR266-200 registered ECC SDRAM 72-bit, 184-pin gold-plated DIMMs
DIMM Sizes: 256 MB, 512 MB, 1GB, 2GB
Memory Voltage: 2.5 V only
On-Board Devices
Chipset: Intel E7505 chipset | MCH + ICH4 + P64H2
SCSI: Adaptec AIC-7902 Controller | Dual-Channel Ultra320 SCSI
RAID: Support for Zero-Channel RAID w- Adaptec 2010S ZCR Card (Card NOT included)
Network Controllers: 1x Intel 82545EM Gigabit Ethernet | Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio: AC'97 audio CODEC with high quality 6-channel sound
Input - Output
AGP: 8x-4x AGP Pro 1.5V
PCI Expansion: 1x 64-bit 133-100-66MHz PCI-X (3.3V) slot | 2x 64-bit 100-66MHz PCI-X (3.3V) slots | 2x 32-bit 33MHz PCI-X (5V) slots
IDE: Dual EIDE channels support up to four UDMA IDE devices | Supports UDMA Mode 5, PIO Mode 4, and ATA-100
USB: Up to 6 USB ports
Infrared: 1 Infrared port header
Serial Ports: 2 Fast UART 16550 serial ports
Parallel Port: 1 ECP-EEP parallel port
Floppy: 1 Floppy controller; 1.44 MB, 2.88 MB, 3-mode support
Keyboard - Mouse: PS-2 keyboard and mouse ports
Chassis: ( Optimized for X5DA8 )
Rackmount Tower: SC742S-420 | SC742S-600
Tower: SC762-420 [Important Note To ensure system stability, a 400W (minimum) ATX power supply [8-pin +12V AND (20 or 24-pin)] is required].
System BIOS
BIOS Type: 4Mb Flash EEPROM with Phoenix BIOS
BIOS Features: Plug and Play (PnP) | SMBIOS 2.3 | APM 1.2 | ACPI 1.0 | Hardware BIOS virus protection
Management
Software: Super Doctor III | Watch Dog
Power Configurations: ACPI-ACPM Power Management | Main Switch Override Mechanism | Wake-On-Ring (WOR) header | Wake-On-LAN (WOL) header | Suspend to RAM (STR) | Keyboard Wakeup from Soft-Off | CPU Fan auto-off in sleep mode | Power-on mode control for AC power loss recovery | Internal-External modem remote ring-on
PC Health Monitoring
CPU: Monitors for CPU Cores, +1.8V +3.3V, +5V, +/-12V, 3.3V Standby | CPU Core 4-Phase-switching voltage regulator with auto-sense from 1.3V-1.5V | Adjustable CPU clock frequency ratio settings (via BIOS)
FAN: Total of six 3-pin fan headers | 4x fans with tachometer monitoring | Status monitor with firmware-software on-off control
Temperature: Monitoring for CPU, chassis, environment | CPU thermal trip support
LED: CPU Overheat LED | System Overheat LED | Suspend-state indicator LED
Other Attributes: Chassis intrusion detection | Chassis intrusion header | Chipkill support
OS Compatibility: Please see our OS Compatibility Chart
Standard Retail Package Includes
X5DA8: 1 x X5DA8 Motherboard
Manual(s): 1 x Motherboard Manual for X5DA8 | 1 x Ultra 320 SCSI Manual
Retention Kits: 2 x Pentium 4, Xeon Heatsink Retention w/ 603 & 604-pin socket
Fans: 2 x Pentium 4, Xeon, Active Heat Sink low noise fan, 52mm
I/O Cables: 1 x SCSI Cable | 1 x ATX Floppy Cable | 1 x LVD, Ultra320 SCSI Cable | 1 x ATA 66/100 IDE LP Cable | 1 x 4-port USB 2.0 Cable with Key on 10
Driver Disk: 1 x Version 1.0 CD
I/O Shield: 1 x I/O Shield 3200-1A
