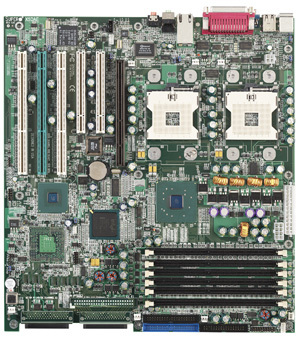

Model: Supermicro MBD-X5DAE-O
Features
- Dual Intel Xeon Support up to 3.2 GHz
- Up to 12GB DDR 266/200 SDRAM
- Intel 82545EM Gigabit Ethernet Controller
- Dual ATA/100 IDE Channels
- 3 x 64-bit PCI-X expansion slots
- AC'97 Audio, 6-channel
- Intel E7505 Chipset
Dimensions
Form Factor: Extended ATX
Dimensions: 12" x 13.05" (30.5cm x 33.2cm)
Processor/Cache
CPU: Dual mPGA604 ZIF Sockets | Supports up to two Intel Xeon processor(s) with 1MB integrated Advanced Transfer Cache up to 3.20GHz
System Bus: 533MHz/400MHz system bus
System Memory
Memory Capacity: Six 184-pin DIMM sockets | Supports up to 12 GB DDR266/200 memory | Dual channel memory bus | Memory must be populated in pairs
Memory Type: DDR266/200 registered ECC SDRAM 72-bit, 184-pin gold-plated DIMMs
DIMM Sizes: 256 MB, 512 MB, 1GB, 2GB
Memory Voltage: 2.5 V only
On-Board Devices
Chipset: Intel E7505 chipset | MCH + ICH4 + P64H2
Network Controllers: 1x Intel 82545EM Gigabit Ethernet | Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio: AC'97 audio CODEC with high quality 6-channel sound
Input / Output
AGP: 8x/4x AGP Pro 1.5V
PCI Expansion: 1x 64-bit 133/100/66MHz PCI-X (3.3V) slot | 2x 64-bit 100/66MHz PCI-X (3.3V) slots | 2x 32-bit 33MHz PCI-X (5V) slots
IDE: Dual EIDE channels support up to four UDMA IDE devices | Supports UDMA Mode 5, PIO Mode 4, and ATA/100
USB: Up to 6 USB ports
Serial Ports: 2 Fast UART 16550 serial ports
Parallel Port: 1 ECP/EEP parallel port
Floppy: 1 Floppy controller; 1.44 MB, 2.88 MB, 3-mode support
Keyboard / Mouse: PS/2 keyboard and mouse ports
Chassis ( Optimized for X5DAE )
Rackmount Tower: SC742i-450
Mid-Tower: SC733i-450
Tower: SC762-420
Important Note: To ensure system stability, a 400W (minimum) ATX power supply [8-pin +12V AND (20 or 24-pin)] is required.
System BIOS
BIOS Type: 4Mb Flash EEPROM with Phoenix BIOS
BIOS Attributes: Plug and Play (PnP) | SMBIOS 2.3 | APM 1.2 | DMI 2.1 | ACPI 1.0; | Hardware BIOS virus protection
Management
Software: Super Doctor III | Watch Dog
Power Configurations
Attribute: Internal/External modem remote ring-on
PC Health Monitoring
CPU: Monitors for CPU Cores, +1.8V, +3.3V, +5V, +/-12V, 3.3V Standby | CPU Core 4-Phase-switching voltage regulator with auto-sense from 1.3V-1.5V | Adjustable CPU clock frequency ratio settings (via BIOS)
FANs: Total of six 3-pin fan headers | 4x fans with tachometer monitoring | Status monitor with firmware/software on/off control
Temperature: Monitoring for CPU, chassis, environment | CPU thermal trip support
LEDs: CPU Overheat LED | System Overheat LED | Suspend-state indicator LED
Other Attributes: Chassis intrusion detection | Chassis intrusion header | Chipkill support
Standard Retail Package
Item: I/O Shield 3200-1A
Optimized for dual CPU platforms, the E7505 chipset combines a 533 MHz system bus with next-generation AGP 8X graphics.
