Model: Supermicro MBD-X6DAL-G-O

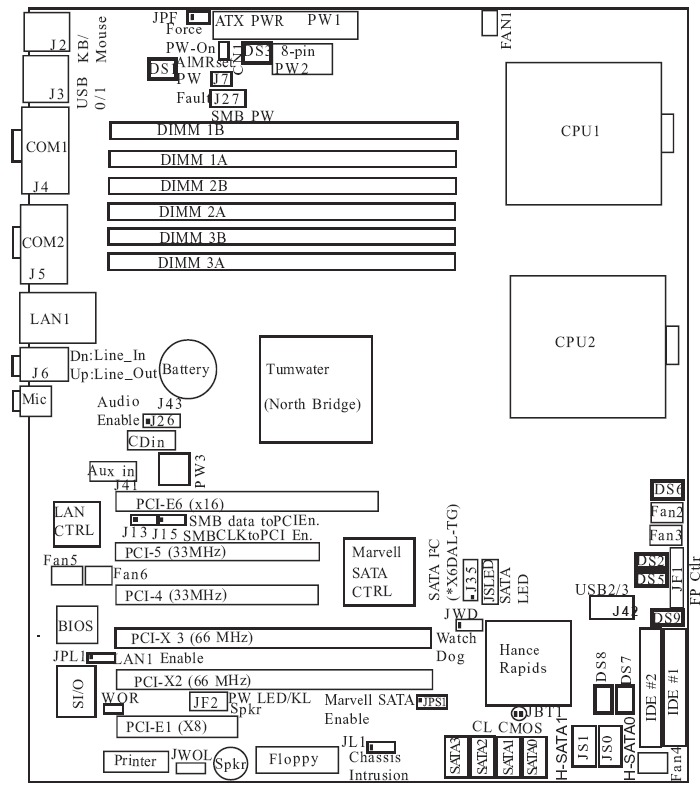

Features
- 1. Dual Intel 64-bit Xeon Support, Up to 3.6 GHz, 800 MHz FSB
- 2. Intel E7525 (Tumwater) Chipset
- 3. Up to 12GB DDR 333 SDRAM (or) Up to 24GB DDR 266 SDRAM
- 4. Intel 82541GI Gigabit Ethernet Controller
- 5. 2x SATA Ports via 6300ESB On-chip SATA Controller
- 6. 1 (x16) & 1 (x8) PCI-Express, 2x 64-bit 66MHz PCI-X, 2x 32-bit 33MHz PCI
- 7. AC'97 Audio, 6-Channel Sound
- 8. Fan Speed Low Noise Control
Dimensions
Form Factor: ATX
Dimensions: 12" x 10" (30.5cm x 25.4cm)
Processor/Cache
CPU: Dual 604-pin FC-mPGA4 Sockets | Supports up to two Intel 64-bit Xeon processor(s) of the same type following
System Bus: 800MHz system bus
System Memory
Memory Capacity: Six 184-pin DIMM sockets | Supports up to 12 GB DDR 333 MHz or | Supports up to 24 GB DDR 266 MHz | Dual channel memory bus | Memory must be populated in pairs
Memory Type: DDR333/266MHz buffered (registered) ECC SDRAM 72-bit, 184-pin gold-plated DIMMs
DIMM Sizes: 256 MB, 512 MB, 1GB, 2GB, 4GB
Memory Voltage: 2.5 V only
On-Board Devices
Chipset: Intel E7525 chipset | MCH + 6300ESB + 82541PI
SATA: 6300ESB support for 2x SATA ports | RAID 0, 1, and JBOD support
Network Controllers: 1x Intel 82541GI Gigabit Ethernet | Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio: AC'97 audio CODEC with high quality 6-channel sound
Input / Output
Serial ATA: Two Serial ATA ports | Two SATA hard drives supported
IDE: Dual EIDE channels support up to four UDMA IDE devices | Supports UDMA Mode 5, PIO Mode 4, and ATA/100
Floppy: 1 Floppy controller; 1.44 MB, 2.88 MB, 3-mode support
LAN: 1x RJ45 LAN port
USB: Up to 4 USB 2.0 ports | 2x ports, 2x headers
Audio: 1x Line In / Line Out / Microphone ports
Keyboard / Mouse: PS/2 keyboard and mouse ports
Serial Ports: 2 Fast UART 16550 serial ports
Parallel Header: 1 ECP/EEP parallel header (CBL-081)
Chassis ( Optimized for X6DAL-G )
Rackmount Tower / 4U SC743i-650: | SC743i-645 | Note
Mid-Tower SC733i-645: SC733i-450
Important Chassis Notes: To ensure system stability, a 420W (minimum) ATX power supply [4-pin (+12V), 8-pin (+12V) and 24-pin are required] Chassis must have CPU mounting holes required for 800MHz FSB CPUs with this serverboard.
Expansion Slots
PCI-Express: 1 (x16) PCI-e slot | 1 (x8) PCI-e slot
PCI-X: 2x 64-bit 66MHz PCI-X (3.3V) slots
PCI: 2x 32-bit 33MHz PCI (5V) slots
System BIOS
BIOS Type: 8Mb Flash EEPROM with AMI BIOS
BIOS Attributes: Plug and Play (PnP) | SMBIOS 2.3 | APM 1.2 | DMI 2.1 | ACPI 2.0
Management: Software Super Doctor III | Watch Dog
Power Configurations: ACPI/APM Power Management | Main Switch Override Mechanism | Wake-On-Ring (WOR) header | Wake-On-LAN (WOL) header | Suspend to RAM (STR) | CPU Fan auto-off in sleep mode | Power-on mode control for AC power loss recovery | Internal/External modem remote ring-on
PC Health Monitoring
CPU: Monitors for CPU Cores, +3.3V, +5V, +/-12V & +5V Standby | CPU Core 4-Phase-switching voltage regulator with auto-sense from 1.3V-1.5V | Adjustable CPU clock frequency ratio settings (via BIOS)
FANs: Total of six 4-pin fan headers | 6x fans with status monitoring | Status monitor with firmware/software on/off control | Low noise fan speed control | Pulse Width Modulated (PWM) fan connector
Temperature: Monitoring for CPU, chassis, environment | CPU thermal trip support | Thermal Monitor 2 support
LEDs: CPU Overheat LED | System Overheat LED | Suspend-state indicator LED
Other Attributes: Chassis intrusion detection | Chassis intrusion header | SDDC
Parts List
Item: CPU mounting plate
Supporting dual Xeon processors with an 800MHz system bus, the E7525 chipset optimized workstation platform utilizes PCI-Express x16 expansion for top-of-the-line graphics.
