Supermicro X7DCA-L

Motherboard

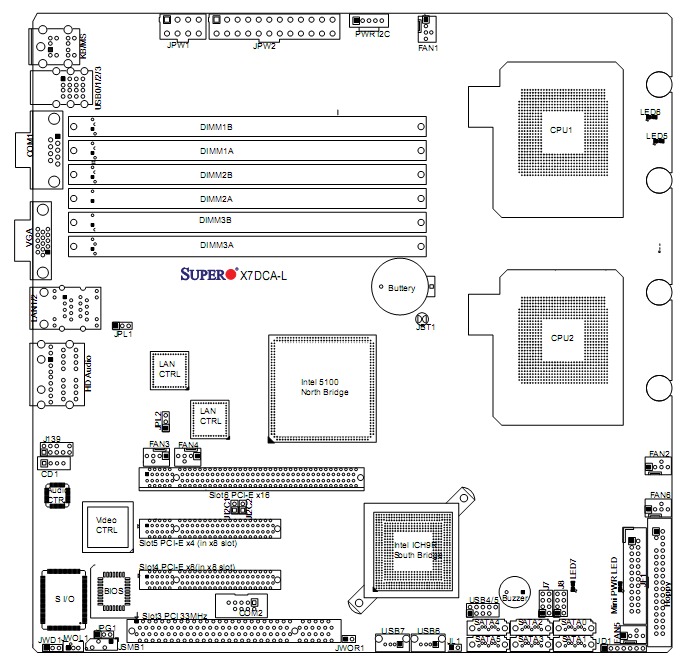

[ Rear Ports ][ Schematic ]

Supermicro X7DCA-L Picture 11741Supermicro X7DCA-L Picture 11759Supermicro X7DCA-L Picture 11760
Model: Supermicro X7DCA-L

Specifications:
spacer
Socket  771
CPU Compatibility  Xeon
Form Factor  MicroATX
Chipset Manufacturer  Intel
Chipset  5100 (San Clamente)
Front Side Bus  1333Mhz
Network Connectivity  Gigabit Networking
Cooling System  Heatsink
Memory Support
Type  DDR2 ECC
Maximum Speed  667 MHz
Number of Slots  6
Maximum Size per Slot  4 GB
Maximum Amount Supported  32 GB
Onboard Video
Chipset Manufacturer  XGI
Processor Type  Z9s
Onboard Memory  32 MB
Maximum Shared Memory  32 MB
VGA  1
External Connections
USB 2.0  4
PS/2 Keyboard  Yes
PS/2 Mouse  Yes
Audio Out  Surround Sound (7.1)
Audio In  Line-In/Microphone
LAN (RJ45)  2
Serial (COM) Port  1
Internal Connections
USB 2.0  4 (providing 8 ports)
Floppy  1
Expansion Slots
Slot 1  PCI Express x16
Slot 2  PCI Express x4
Slot 3  PCI Express x8
Slot 4  PCI
Additional Information
SLI Compatible  No
Crossfire Compatible  No
Dimensions
Height  254 mm (10.0 in)
Width  254 mm (10.0 in)

Internal Connections
SATA2: 6




with the Supermicro X7DCA-L.
