Tyan Tempest EX S7100-EX Ports

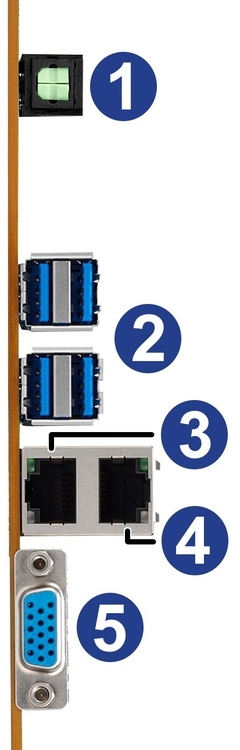

Optical S/PDIF Out: Digital audio output port compatible with optical S/PDIF cables / devices (also called TOSLINK).
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
IPMI LAN Port: RJ-45 plug for remote management of computer via IPMI (Intelligent Platform Management Interface).
LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 100 Mbps.
VGA Out Port: Video Graphics Adapter (VGA) port for outputting analog video.
The Tyan Tempest EX S7100-EX is a server-oriented motherboard for the Xeon Scalable family of processors. There are sockets for two CPUs alongside 12 DDR4 RAM modules. For expansion, this board features seven PCI-Express slots. All are the full x16 size - although depending on which slots are populated, some may only run at x8 data speed.
In terms of external connectivity, the Tempest EX S7100-EX is fairly spartan: just four USB 3.0, dual gigabit Ethernet ports, and VGA output when a local terminal is needed. A bracket is also included for basic audio input and output, if desired. Internally there are two SATA 6Gbps ports, two M.2 slots, and three mini-SAS HD connectors - which can provide 12 more SATA ports via breakout cables, if you aren't using SAS drives. That wide range of drive connectivity, combined with the flexibility of seven PCI-E slots, makes this board a great platform for any number of server configurations.
In terms of external connectivity, the Tempest EX S7100-EX is fairly spartan: just four USB 3.0, dual gigabit Ethernet ports, and VGA output when a local terminal is needed. A bracket is also included for basic audio input and output, if desired. Internally there are two SATA 6Gbps ports, two M.2 slots, and three mini-SAS HD connectors - which can provide 12 more SATA ports via breakout cables, if you aren't using SAS drives. That wide range of drive connectivity, combined with the flexibility of seven PCI-E slots, makes this board a great platform for any number of server configurations.
Note: Audio is via an optional expansion bracket.
Model: Tyan S7100AGM2NR-EX
Specifications
| Socket | 3647 |
| CPU Compatibility | Purley |
| Form Factor | SSI EEB |
| Chipset Manufacturer | Intel |
| Chipset | C621 |
| Front Side Bus | DMI 3.0 |
| Network Connectivity | Dual Gigabit Networking |
| Network Controller | Intel I350-AM2 |
| Audio Controller | Realtek ALC892-GR |
| Cooling System | Heatsink |
| Color | Green |
Memory Support | |
| Type | DDR4 ECC Registered |
| Maximum Speed | 2933 MHz |
| Number of Slots | 12 |
| Maximum Size per Slot | 128 GB |
| Maximum Amount Supported | 1536 GB |
Onboard Video | |
| Chipset Manufacturer | ASpeed |
| Processor Type | Aspeed AST2500 |
| Maximum Resolution | 1920x1200 |
| VGA | 1 |
External Connections | |
| USB 3.2 Gen 1 (USB 3.0) | 4 |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| S/PDIF | Optical |
| LAN (RJ45) | 1 |
| Mgmt LAN (RJ45) | 1 |
| Wireless Antenna Port | No |
Internal Connections | |
| USB 2.0 | 1 (providing 2 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| SATA III 6.0Gbps | 2 |
| M.2 Connector | 2 |
| M.2 Support | x1 42mm, x1 42/60/80mm |
| Serial (Com) | 1 |
| TPM (module sold separately) | 1 |
| Compatible TPM | TYAN TM-TPM2-I |
| Mini-SAS HD | 3 |
SATA Controllers | |
| SATA III 6.0Gbps Controller 1 | Intel C621 SATA (8 via 2x Mini-SAS HD) |
| SATA III 6.0Gbps Controller 2 | Intel C621 sSATA (2 via SATA-DOM, 4 via 1x Mini-SAS HD) |
Expansion Slots | |
| Slot 1 | PCI Express 3.0 x16 |
| Slot 2 | PCI Express 3.0 x8 |
| Slot 3 | PCI Express 3.0 x16 |
| Slot 4 | PCI Express 3.0 x8 |
| Slot 5 | PCI Express 3.0 x16 |
| Slot 6 | PCI Express 3.0 x8 |
| Slot 7 | PCI Express 3.0 x16 |
Additional Information | |
| RAID Support | 0/1/10/5 |
| Bluetooth | No |
| Dual GPU Slot Spacing | 2-Slot |
| Integrated IO Shield | No |
| Remote Management | Onboard |
Dimensions | |
| Height | 305 mm (12.0 in) |
| Width | 330 mm (13.0 in) |
| Net Weight | 1.787 kg (3.9 lbs) |
Warranty
3 Years
